Technical Guide: Secondary Retention Systems for Industrial UFO High Bay Lighting

In industrial environments, the transition to high-efficiency LED lighting is frequently viewed through the lens of energy performance and utility rebates. However, for facility managers and safety officers, the physical integrity of the installation is paramount. A single fixture failure in a high-traffic warehouse or high-vibration manufacturing plant represents not only a maintenance challenge but a significant liability risk.

Executive Summary: Quick Action Checklist

Redundancy Requirement: Always install a secondary restraint (safety cable) independent of the primary mounting hardware to prevent "single point of failure."

The 10x Rule: Ensure your retention system has a minimum breaking strength of 10 times the fixture weight to account for dynamic (shock) loads.

Material Selection: Specify 304 or 316-grade stainless steel for cables in high-humidity or corrosive environments to prevent hidden degradation.

Verification: Conduct annual structural audits, checking for "white powder" (stress corrosion) on stainless components.

Compliance: Verify that all mounting hardware meets UL 1598 Section 16.5 (4x static load test) as a baseline.

The implementation of secondary retention systems—specifically safety cables and high-load hooks—is a primary strategy for mitigating the risk of falling objects. According to the Occupational Safety and Health Administration (OSHA), overhead hazards must be strictly controlled to prevent workplace injuries. For round industrial high bay fixtures, often referred to as UFO high bays, the primary mounting point must be supplemented by a secondary restraint designed to withstand dynamic forces that can exceed the static weight of the luminaire.

This technical guide outlines the engineering requirements, regulatory compliance standards, and financial implications of professional-grade secondary retention systems.

The Regulatory Landscape: OSHA, UL, and the NEC

For B2B professionals, compliance is the foundation of risk management. Three primary regulatory bodies dictate the safety requirements for industrial lighting installations.

1. OSHA General Duty Clause and Overhead Hazards

While OSHA does not explicitly name "UFO high bays," its General Duty Clause (Section 5(a)(1)) requires employers to provide a workplace free from recognized hazards. In facilities with high ceilings, vibration from overhead cranes, or seismic activity, a primary mounting failure is a recognized hazard. Implementing secondary retention is a standard method for demonstrating "due diligence" in hazard mitigation.

2. UL 1598: The Standard for Luminaires

UL 1598 (Section 16.5) is the core safety standard for fixed-site luminaires. It specifies that mounting means must support four times the weight of the fixture. However, real-world conditions—such as a forklift striking a rack or a seismic event—often require a higher factor of safety than this laboratory minimum.

3. NFPA 70: National Electrical Code (NEC)

The National Electrical Code (NEC) provides the framework for electrical safety. Article 410.36(B) specifically addresses luminaires supported by suspended ceilings, requiring secure fastening to the building structure. The principle of "securely fastened" implies that the failure of a single component should not result in the fixture falling.

Engineering Specifications for Secondary Retention

The reliability of a safety cable depends on its material choice and load rating.

Material Integrity: Stainless Steel vs. Galvanized

For most industrial settings, 304 or 316-grade stainless steel is the recommended material. Stainless steel cables offer a minimum breaking strength typically ranging from 68.5 kN to 80 kN (approx. 7,000 to 8,000 kgf) for 1/4" 7x19 strand construction.

Engineering Note: This material is essential in facilities with high humidity or chemical exposure, as it resists the "pitting corrosion" that can weaken galvanized alternatives without visible warning.

The "10x Rule" for Dynamic Loads

In professional lighting design, it is vital to distinguish between static and dynamic loads. A "static load" is the weight of the fixture at rest. A "dynamic load" accounts for external forces such as seismic activity or physical impact.

The 10x Rule of Thumb: Many engineering firms recommend that the secondary retention system have a minimum breaking strength of at least 10 times the fixture's weight.

Example: For a 30 lb industrial high bay, a 300 lb rated cable is the minimum recommended. However, standard 1/4-inch stainless steel cables provide a much higher safety margin (4,900 lbs to 8,000 lbs breaking strength), which is preferred for high-vibration zones.

Round industrial high bay fixture suspended by chain from exposed wooden beams, demonstrating practical mounting and rugged aesthetic.

Installation Best Practices and Anchor Point Strategy

A common error in high bay installation is attaching the safety cable to the same conduit or electrical box as the primary support. This creates a "single point of failure" scenario.

Independent Structural Anchoring

The safety cable should be secured to a separate, structurally independent element, such as a dedicated steel beam or purlin.

Beam Clamps: Use high-strength steel clamps rated for the intended dynamic load.
Expansion Bolts: When anchoring into concrete, use wedge anchors. A 5/16-18 wedge anchor is a common specification for medium-duty fixtures.
Protection: If looping cables around beams, ensure the cable is protected from sharp edges to prevent mechanical shearing.

Secondary Retention Checklist

Component	Specification	Verification Method
Cable Material	304/316 Stainless Steel	Material Certificate (MTR)
Diameter	Min 1/8" (1/4" Preferred)	Caliper Measurement
Load Rating	10x Fixture Weight	Manufacturer Data Sheet
Anchor Point	Independent Beam/Purlin	Visual/Physical Inspection
Connectors	Swaged Sleeves/Rope Clips	Torque/Crimp Verification

The B2B Financial Case: ROI and Risk Mitigation

While safety cables are a compliance cost, they are a value driver when integrated into a comprehensive LED retrofit.

Simulation Assumptions

To provide a verifiable ROI, our simulation is based on the following boundary conditions:

Facility Size: 50,000 sq. ft. (100 fixtures).
Energy Cost: $0.12/kWh (US Industrial Average).
Operating Hours: 4,380 hours/year (12 hrs/day).
Labor Rate: $65/hr for maintenance.

Quantifying the Savings

By upgrading from legacy 400W metal halide fixtures to high-efficiency LED high bays (verified via the DesignLights Consortium (DLC) QPL):

Energy Savings: Approx. $48,565 annually (based on a 308 kW reduction).
Maintenance Savings: $24,638 annually by avoiding relamping in high-vibration environments.
Total Project Payback: In this simulation, including the cost of professional-grade safety hardware and utility rebates (ranging from $18,500 to $32,000), the payback period was calculated at 0.36 years (~4.3 months).

Note: Actual ROI will vary based on local utility rates and specific labor costs. Users should use these figures as a baseline for their own internal audits.

Technicians on scissor lifts performing maintenance on industrial lighting in a high-ceiling warehouse.

Maintenance and Long-Term Reliability Protocols

Inspection Frequencies

Pre-Use Check: Perform a visual check of anchor points after any significant building event (e.g., seismic activity or heavy storm).
Monthly Test: For fixtures with emergency battery backups, conduct a 30-second activation test (per NFPA 101).
Annual Audit: A comprehensive structural audit is recommended. Look for "white powdery residue" on stainless steel, a sign of chloride-induced stress corrosion cracking.

Photometric Integrity: IES RP-7

The ANSI/IES RP-7-21 standard emphasizes that proper lighting layout prevents accidents. When installing safety cables, ensure they do not obstruct the light distribution. Designers should use IES LM-63-19 photometric files to confirm that mounting hardware does not create shadows in critical work zones.

A clipboard with IES RP-7 standards and a light meter in a warehouse aisle, indicating compliance testing.

Professional Decision Framework

For facility managers, the decision should be based on a risk-versus-cost analysis:

Assess Vibration: In plants with heavy machinery, stainless steel safety cables are highly recommended.
Verify Certification: Ensure all hardware carries a valid UL or ETL Listed mark.
Consult Local Codes: Local building codes or insurance requirements (e.g., FM Global) may dictate more stringent safety factors in high-seismic regions.
Demand Documentation: Request IES LM-79 reports and TM-21 lifetime projections to ensure the fixture's longevity matches the mounting system.

By prioritizing verifiable compliance and engineering-grade hardware, industrial professionals can develop lighting systems that are designed for long-term stability and reliability.

Disclaimer: This article is for informational purposes only and does not constitute professional engineering or legal advice. Industrial lighting installations must comply with local building codes, the National Electrical Code (NEC), and OSHA regulations. Always consult with a licensed electrical contractor or professional engineer before performing overhead installations.

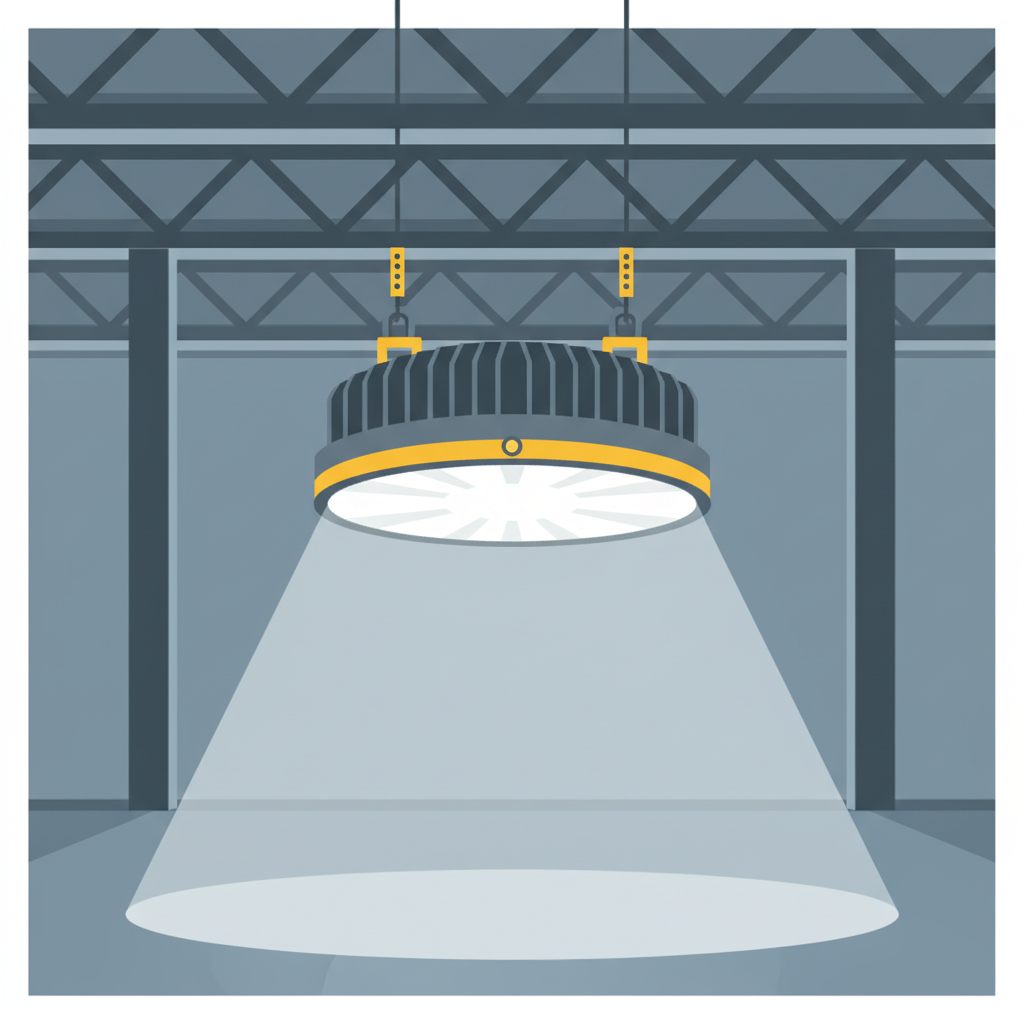

Safety Cables and Hooks: OSHA-Compliant UFO Mounting
