When to Use Type IV Beam Patterns for Floodlights

IES Type IV (forward-throw) distribution is one of the most powerful tools you have for perimeter and security lighting—when you deploy it intentionally. Used well, it cuts fixture counts, tames glare, and keeps light on the ground instead of in the sky or into neighbors’ windows. Used poorly, it creates hot spots and complaints.

This guide focuses on when and how to use Type IV beam patterns for LED floodlights and area lights in real perimeter and security applications: warehouse yards, loading docks, building setbacks, and fenced compounds.

1. What “Type IV” Really Means in the Field

1.1 Quick definition

Per the Illuminating Engineering Society (IES) distribution system, a Type IV (forward-throw) distribution is a semicircular pattern that throws most of the light away from the pole or wall, with limited backlight.

In practice for floodlights and shoebox/area lights:

The candela lobe is pushed forward (into the site), not straight down.
You get wide lateral coverage but asymmetric around the mounting point.
Backlight is controlled compared to Type III and especially Type II.

This is why Type IV is sometimes labeled “perimeter” or “forward-throw” in spec sheets.

1.2 How Type IV differs from Type II and III

Specifiers often lump “Type II/III/IV” together, but they behave differently. Use this table as a quick mental model:

IES Type	Typical Use Zone	Pattern Shape at Grade	Common Mounting Location
II	Narrow walkways, sidewalks, paths	Long and narrow, little lateral	Pole at side of path
III	Parking rows, drive lanes, medium setbacks	Broad but still forward-biased	Pole on edge of lot
IV	Perimeters, building edges, large yards	Semi-circular, strong forward throw	Pole or wall at boundary

For perimeter security and building-adjacent yards, Type IV is usually the most efficient choice because you’re trying to light away from the building or fence line, not straddle it.

2. Ideal Applications for Type IV Floodlights

2.1 Building perimeter security zones

The classic Type IV use case is lighting out from a building façade into a secure yard, service lane, or setback.

Typical goals:

Maintain 0.2–1 foot-candle (fc) general perimeter illumination.
Provide 2–5 fc in access and camera-critical zones (gates, doors, loading docks, choke points).
Avoid over‑lighting the façade itself to reduce reflected glare in cameras and avoid complaints from occupants.

A forward-throw floodlight or area light with a Type IV optic lets you mount on the building and push the majority of light out into the secured zone, with only limited light on the wall.

Common mistake: Designers often overspec lumens (extra fixtures, higher wattage) instead of correcting beam direction. Switching from a broad symmetric flood to a Type IV pattern typically reduces fixture count by 15–30% in perimeter layouts while improving uniformity.

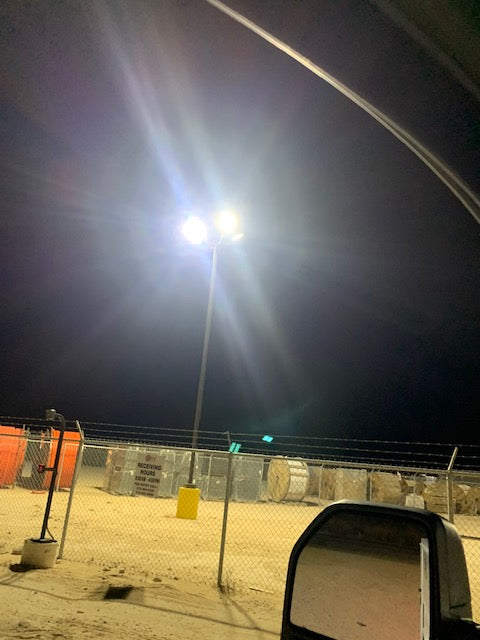

2.2 Yards, laydown areas, and fenced compounds

In fenced yards—contractor laydown, fleet parking, container storage—poles are typically at the edge (inside the fence) to keep them protected.

Here Type IV distribution shines:

You can place poles just inside the fence line and throw light inward, minimizing light trespass beyond the property.
Strong forward throw can cover large rectangles of yard with fewer poles.
You remain compatible with energy codes like ASHRAE 90.1 and IECC 2024, which limit lighting power density and often require controls.

According to the ASHRAE 90.1-2022 commercial lighting provisions, exterior lighting must meet both power limits and mandatory control requirements (such as automatic shutoff and photocontrols). A Type IV optic improves lumens per watt at the target plane—you do more with the same input wattage, making those code limits easier to hit.

2.3 Loading docks and service courts

Dock walls are crowded: bumpers, dock seals, overhead doors, conduit, cameras.

Using a Type IV floodlight:

Mounts above the dock door or on adjacent structure.
Throws a wide forward beam across the apron and truck envelope.
Limits backlight that can create veiling luminance in cameras.

A typical dock design might target 5–10 fc on the dock face and apron, but with a strong forward throw so the truck yard beyond remains visible at 1–2 fc without glare into drivers’ eyes.

2.4 Perimeter roadways around facilities

Many industrial sites have a ring road inside the fence. A Type IV pattern on poles just inside the fence line lets you:

Illuminate the road and shoulder from the inside out.
Reduce stray light onto public rights-of-way, supporting “dark-sky” objectives.
Maintain a readable vertical illuminance for drivers and pedestrians.

Here, pairing Type IV optics with reliable cutoff and aiming is essential to keep high candela zones out of motorists’ line of sight.

3. Photometric Decision-Making with Type IV Optics

3.1 Start from illuminance targets, not wattage

Professional layouts should start from maintained illuminance targets at task level, not “how many watts do I think I need.”

As a practical working range for many perimeter and security applications:

General perimeter / fence line: 0.2–1 fc horizontal at grade.
Access gates, badge readers, and camera zones: 2–5 fc horizontal; adequate vertical illuminance at face height.
High-security inspection points or loading operations: 5–10 fc.

These ranges align with the guidance in IES recommended practice documents for exterior and industrial facilities such as ANSI/IES RP‑7, which emphasizes matching illuminance to task and risk level rather than a one‑size‑fits‑all value.

From there:

Select candidate fixtures with LM‑79 photometry (total lumens, distribution, CCT) and IES files in LM‑63 format so you can model them accurately. The IES LM‑79‑19 standard specifies how lumens, efficacy (lm/W), and color are measured under controlled conditions, so you can trust that two products with LM‑79 reports are directly comparable.
Run layouts in AGi32 or similar tools (AGi32 natively uses .ies files per Lighting Analysts documentation) to verify that the Type IV optic actually hits your target fc levels.
Only after that, optimize wattage and count.

3.2 Beam spread and pole spacing heuristics

When you do not have time for a full model or you are sketching early concepts, use these field-tested heuristics for Type IV floodlights and area lights:

Spacing along a perimeter:
- Start with 1.5–2.5 × mounting height as a spacing range for continuous Type IV runs.
- Example: 25 ft (7.6 m) pole height → 38–63 ft spacing.
Setback from fence or building:
- For poles just inside a fence, typical setback is 2–6 ft to avoid conflicts with vehicles and equipment.
- For wall-mounted fixtures, keep the beam centerline aimed such that the primary candela lobe lands one to two mounting heights out into the yard.

These ratios are not code requirements; they are starting points that usually land within ±10–20% of final optimized spacing when validated against a full AGi32 layout.

3.3 Candela distribution and aiming logic

The single most important habit with Type IV optics is to aim by candela lobe, not by appearance against the wall.

When reading the IES file and polar plot:

Identify the maximum candela angle in vertical plane (often around 60–75° from nadir for forward-throw patterns).
Aim the fixture so that this beam peak intersects the center of your secured zone, not the sky.
Limit tilt angles so that no strong candela zones project above the horizontal plane.

Myth to debunk:

“If the wall under the floodlight is bright, the yard will be safe.”

In reality, a brightly lit wall often means you are wasting lumens on the façade and pushing glare into cameras and occupants’ windows. A well-aimed Type IV optic will make the wall look comparatively darker but produce more usable fc where people and vehicles move.

4. Mounting Height, Aiming, and Hardware Choices

4.1 Wall-mounted Type IV floodlights

Wall packs and floodlights mounted on building exteriors are often your most cost-effective Type IV platforms. Key considerations:

Height: 15–30 ft mounting heights are common on single‑ and two‑story structures.
Tilt: A small 5–10° downward tilt is usually enough to push the forward lobe into the yard while keeping the fixture visually comfortable.
Backlight control: When a wall pack has a strong forward-throw optic and clear or glass lens, check the IES file for backlight BUG ratings if you are near property lines or residential neighbors.

For example, an adjustable wall pack or compact flood with a robust trunnion mount gives you fine control. Many perimeter retrofits see better results by re‑aiming existing wall‑mounted floods 5–10° down rather than replacing them with higher wattage units.

4.2 Pole-mounted Type IV area lights

On poles, Type IV is typically delivered via shoebox/area fixtures with directional slip‑fitter mounts:

Mounting height: 20–35 ft for yards and small lots; higher only when you have clear sight lines and tall equipment.
Slip‑fitter orientation: Rotate the head so the forward throw aims directly into the target zone (yard, drive lane), not parallel to the fence.
Fine tilt adjustment: As with wall mounts, 5–10° down tilt is often enough; avoid excessive tilt that throws light above horizontal.

A LED area light with Type III or Type IV distribution and a slip‑fitter mount is a flexible option here. A 150 lm/W class parking lot light with an integrated photocell and IP65 enclosure can often replace legacy 400–1000 W HID yard lights while improving coverage and reducing maintenance.

4.3 Trunnion vs. slip‑fitter for perimeter projects

Choosing the right mounting hardware is as critical as the optic:

Trunnion mounts (yoke-style):
- Ideal for building-mounted floodlights on walls, parapets, or structural steel.
- Offer precise vertical aiming but require a flat mounting surface.
Slip‑fitters (tenon mounts):
- Ideal for round poles along fences and access roads.
- Allow 0–180° rotation around the pole plus vertical tilt, making it easy to align the Type IV forward throw with the yard geometry.

In practice, many security upgrades combine both:

Trunnion-mounted floods on buildings for short-throw coverage near doors and dock aprons.
Slip‑fitter area lights along the yard perimeter for long-throw Type IV coverage across open areas.

5. Performance, Durability, and Compliance Considerations

5.1 Why LM‑79, LM‑80, and TM‑21 matter even outdoors

For outdoor security lighting, many teams focus only on wattage and IP rating. That is risky for long‑term performance.

Key documents:

LM‑79‑19 (luminaire photometry): As noted earlier, LM‑79‑19 defines how to measure total lumens, input watts, CCT, and CRI for LED fixtures under controlled conditions. It is effectively the performance report card for your floodlight.
LM‑80‑21 (LED source lumen maintenance): LM‑80‑21 describes how LED packages/modules are tested over thousands of hours at specific case temperatures to determine lumen maintenance.
TM‑21‑21 (lifetime projection): TM‑21‑21 gives the math for projecting L70 life (e.g., L70 @ 60,000 h) from LM‑80 data, with a strict rule: projections cannot exceed 6× the LM‑80 test duration.

For specifiers, this means:

Demand LM‑79 reports and IES files that match the exact configuration (wattage, optic, CCT) you are specifying.
Confirm that L70 claims are TM‑21 compliant and not marketing exaggerations—especially for fixtures mounted in hot, enclosed soffits.

5.2 IP, IK, and surge protection for exposed floodlights

Perimeter floodlights live a hard life: wind, dust, rain, impacts, and line surges.

Ingress Protection (IP): The IEC 60529 IP rating system defines degrees of protection against dust and water. For exposed exterior floodlights:
- IP65 (dust tight, protected against water jets) is a sensible minimum.
- Higher ratings (IP66/IP67) may be appropriate for coastal or high-pressure washdown areas.
Impact Protection (IK): IEC 62262 / EN 62262 classifies impact resistance in joules. For fixtures mounted where they might be struck (low poles, loading areas), an IK08 (5 J) or higher rating offers practical robustness.
Surge protection: For pole‑top and building-edge floodlights, specify at least 6 kV surge protection, and 10 kV in storm‑prone or exposed sites. Many utility‑grade drivers integrate surge suppression; confirm this in the spec sheet.

Combined, these attributes determine whether your Type IV floodlight will continue delivering design illuminance into year 5 and beyond.

5.3 Safety and EMI compliance (UL/ETL, FCC)

Most facility managers now expect verifiable safety and EMI compliance:

Safety listings: Luminaires are typically evaluated against UL 1598 for general luminaires and UL 8750 for LED equipment. The UL 1598 overview explains that it covers fixed luminaires up to 600 V, including construction, wiring, and thermal performance. UL‑ or ETL‑listed floodlights give inspectors and insurers confidence that installations meet baseline product safety requirements.
Electromagnetic interference (EMI): LED drivers fall under FCC Part 15 for unintentional radiators. FCC Part 15 limits radiated and conducted emissions to protect radio and communication equipment. Poor‑quality floodlights can cause interference with radios, Wi‑Fi, or even security systems; compliant products avoid these issues.

For large perimeter projects, document the UL/ETL file numbers and maintain LM‑79, LM‑80, and FCC test reports in the project closeout package. This protects you during inspections and any future audits.

6. Integrating Controls, Photocells, and Codes with Type IV Optics

6.1 Photocell placement and common mistakes

Most perimeter floodlights now ship with integrated photocells or field‑installed photo receptacles. Photocells are essential for energy code compliance and operating cost control, but only when placed correctly.

Common errors that cause nuisance cycling or non‑operation:

Facing bright urban sky where ambient light never drops enough to trigger ON.
Looking at nearby streetlights or storefronts, causing premature shutoff.
Buried behind parapets or architectural elements so they never see sky.

Best practices:

Use pole‑mounted, sky‑facing photocells whenever possible.
If fixtures are wall‑mounted under overhangs, consider a remote photocell on the roof or pole, then feed controlled power to the floodlights.
Use shielded photocells when adjacent light sources could confuse the sensor.

6.2 Codes: ASHRAE 90.1, IECC, and Title 24 alignment

Energy codes treat exterior lighting—perimeter, parking, façade—as a regulated load. Practical implications for Type IV deployments:

ASHRAE 90.1-2022 and IECC 2024 both:
- Limit exterior lighting power density by zone and surface type (parking, façade, walkways).
- Require automatic shutoff (time switch, astronomical clock, or photocell) and often bi‑level or motion-based control for certain areas.
California Title 24, Part 6 adds more granular requirements for multi‑level control, shutoff after business hours, and logical zoning of exterior luminaires.

Documents such as the Title 24 2022 Lighting Controls Application Resource provide detailed diagrams of required control strategies.

For Type IV floodlights, this means:

Glare‑free forward throw helps you meet illuminance targets with fewer watts, easing power density limits.
Integral photocells plus motion sensors or 0–10 V dimming drivers help you achieve required bi‑level operation (e.g., 100% output when activity is detected, 30–50% background otherwise).

6.3 Pairing optics with sensors

Sensor selection and placement should follow the optic, not the other way around:

For wide Type IV coverage, use occupancy sensors with matching detection patterns and mount them such that their coverage aligns with the main illuminated zone.
The DOE application guide on wireless occupancy sensors highlights a key point: sensor mounting height and line-of-sight obstructions have a major impact on detection reliability, especially in warehouses and high‑bay spaces. The same logic applies outdoors—vehicles, containers, or equipment can shadow sensor fields if not planned carefully.

7. Field Verification and Commissioning of Type IV Floodlight Layouts

Even a perfectly modeled layout can fail if installation and aiming are sloppy. Build a simple field verification routine into every perimeter project.

7.1 Pre‑aiming checklist

Before the lift leaves the ground:

Confirm the correct fixtures and optics are on‑site (model, wattage, Type IV distribution).
Verify that IES files in your design match the delivered product (any optic or CCT changes must be re‑modeled).
Review the aiming diagram with installers, including tilt angles and azimuth.

7.2 Night‑time aiming and measurement

At night after burn‑in:

Rough aim each fixture using visual cues—focus on throwing light into the yard, not lighting the wall.
Use a calibrated lux meter (fc or lux mode) to measure at least three representative points in each critical zone:
- Near the fence line.
- In the center of the secured yard.
- At gate/camera locations.
Compare field readings to design targets and AGi32 predictions. Deviations of ±20% are common and usually acceptable; bigger gaps suggest aiming or obstruction issues.
Fine‑tune tilt and rotation before final torqueing of trunnions and slip‑fitters.

A small aiming tweak—often just a few degrees—can recover 10–30% illuminance at the ground plane compared to a “by eye” installation.

7.3 Documentation and turnover

For professional projects, include in the turnover package:

Final aiming diagram with tilt and azimuth notes.
LM‑79 report summary and IES files used in the design.
Copies of UL/ETL listing details and FCC Part 15 statements.
Control schedules showing photocell and motion sensor logic.

This documentation not only supports inspections but also simplifies future maintenance and troubleshooting.

8. Product Example: Type IV Optics in a Parking Lot / Perimeter Role

To ground these concepts, consider a typical LED parking lot and perimeter fixture with a forward-throw distribution:

Optic: Type III/IV wide distribution suitable for parking rows and perimeter runs.
Performance: Around 150 lm/W efficacy; a 150 W unit delivering roughly 22,500 lumens easily replaces a 400–600 W HID head.
Electrical: 120–277 V input with integrated dusk‑to‑dawn photocell and 0–10 V dimming for controls integration.
Mechanical: Slip‑fitter mount for round poles, IP65 enclosure, and built‑in surge protection.

A fixture in this class—such as the Hyperlite LED Parking Lot Light – Zeus Series—is designed for exactly the kinds of Type IV perimeter applications described in this guide: parking lots that double as secure yards, drive lanes along fences, and mixed‑use exterior zones where you need both coverage and control.

When specifying such a product for Type IV use, always request:

The exact IES file for the selected wattage and optic.
LM‑79 summary data (lumens, lm/W, CCT, CRI, power factor).
Confirmation of UL listing and surge rating.

This keeps your modeling honest and your installation defensible.

9. Quick Decision Framework: When Type IV Is the Right Choice

Use this checklist as a fast way to decide if Type IV is appropriate for a given floodlight application.

9.1 Type IV is usually appropriate when:

Luminaires are mounted at the perimeter (on walls or poles just inside a fence).
The primary task area lies one to two mounting heights away from the mounting point.
You need to minimize backlight onto the building or beyond the fence line.
The site is used for security, staging, or vehicular circulation, not closely spaced pedestrian tasks.
You want to reduce fixture count by covering a wide swath of yard from each mounting point.

9.2 Consider other optics (II or III) when:

You are lighting narrow paths or sidewalks alongside a building (Type II).
The pole is embedded within a parking field where coverage must be more symmetric (Type III).
Adjacent properties are highly sensitive to any spill light and you require extreme cutoff and backlight control (specialty distributions or optics beyond standard Type IV).

9.3 Summary table

Scenario	Mounting Location	Primary Task Zone	Recommended Optic
Warehouse yard inside fenced perimeter	Poles just inside fence	Open yard 1–2 MH inside fence	Type IV flood/area
Building setback used as secure lane	Wall-mounted on building	Lane 1–2 MH from façade	Type IV wall/flood
Ring road around facility	Poles inside perimeter road	Roadway and shoulders	Type III or Type IV
Narrow walkway beside building	Poles or brackets at side	Path directly below	Type II
Parking rows with central drive aisles	Poles along row medians	Parking on both sides	Type III

Wrapping Up: Making Type IV Floodlights Work for You

When you treat Type IV as a precision tool instead of a generic “wide” pattern, perimeter and security lighting projects become easier to justify, easier to install, and easier to defend under scrutiny.

Key takeaways:

Start from illuminance targets and risk level, guided by IES practices, not raw wattage.
Use Type IV where you are lighting away from a boundary—building edge, fence line, or pole at the property line.
Match mounting hardware (trunnion vs. slip‑fitter) to structure and aiming needs.
Insist on LM‑79/LM‑80/TM‑21 documentation, UL/ETL listings, and FCC Part 15 compliance to ensure long-term, verifiable performance.
Build in field verification with a lux meter and adjust aiming before you torque everything down.

Do that consistently, and Type IV floodlights stop being guesswork. They become a repeatable, spec‑ready solution for reliable perimeter and security lighting.

Frequently Asked Questions

Q1. Is Type IV always better than Type III for perimeter lighting?
No. Type IV is usually better when fixtures are mounted at the perimeter and you want strong forward throw with limited backlight. When poles are within a parking field or you need more symmetric coverage, Type III often produces better uniformity. Always confirm with an IES‑based layout.

Q2. How high should I mount Type IV floodlights?
For building‑mounted fixtures, 15–30 ft is common; for poles, 20–35 ft. Higher mounting heights generally allow wider spacing and smoother uniformity but require careful aiming to avoid glare. Use the 1.5–2.5 × mounting height spacing rule as a starting point and validate in AGi32.

Q3. Do I need full photometric reports, or is the wattage rating enough?
For serious perimeter or security projects, wattage alone is not sufficient. Request LM‑79 reports and IES files for your chosen optic and wattage. This is the only reliable way to compare different manufacturers and validate your design in software.

Q4. What IP rating should I specify for perimeter floodlights?
An IP65 rating (per IEC 60529) is a practical minimum for exposed exterior floodlights, providing dust tightness and protection against water jets. In harsher environments (coastal, washdown), consider IP66 or IP67.

Q5. How do energy codes impact my choice of Type IV floodlights?
Energy codes like ASHRAE 90.1, IECC 2024, and California Title 24 cap exterior lighting power and require controls such as photocells and sometimes motion-based bi‑level operation. Type IV optics help you meet your illuminance targets with fewer watts, while integrated photocells and 0–10 V dimming make it easier to implement compliant control strategies.

Safety & Compliance Disclaimer: This article is for informational purposes only and does not constitute professional engineering, electrical, or legal advice. Exterior lighting design and installation must comply with applicable building codes, electrical codes (such as the NEC), and local regulations. Always consult a licensed design professional and qualified electrician for project-specific decisions and approvals.

Sources: LM‑79‑19, LM‑80‑21, TM‑21‑21 and related IES documents; IEC 60529 and IEC 62262; ASHRAE 90.1‑2022, IECC 2024, California Title 24 Part 6; FCC Part 15 rules; DOE and GSA guidance on LED lighting and controls.

MERRY CHRISTMAS SALE丨UP TO $110 OFF

When to Use Type IV Beam Patterns for Floodlights
