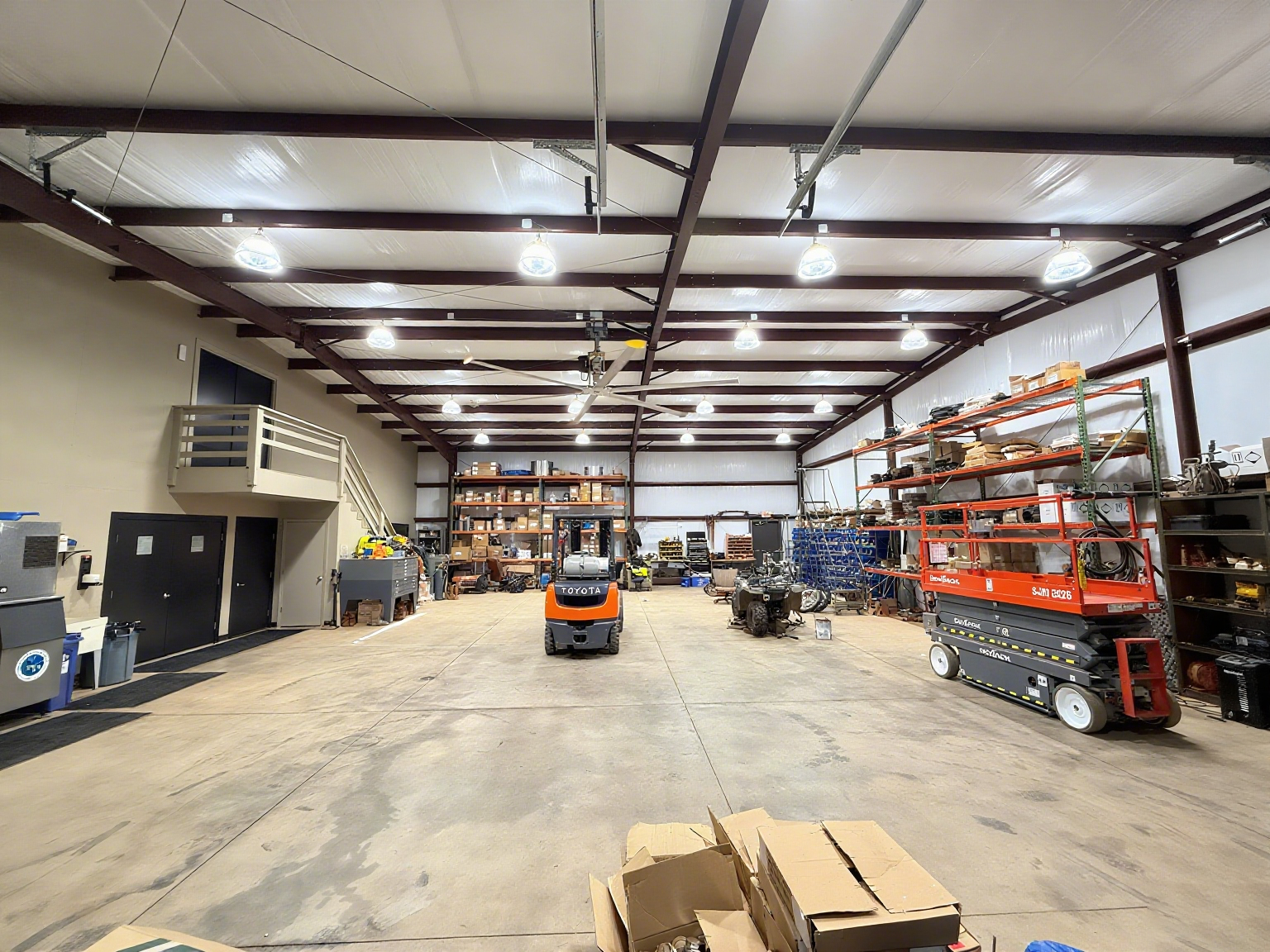

Troubleshooting Common High Bay Mounting Issues
Even the most meticulously planned industrial lighting installation can encounter performance degradation or safety risks over time. For facility managers and electrical contractors, the "set it and forget it" mentality often overlooks the mechanical stressors inherent in high-ceiling environments. From the subtle deformation of mounting hardware to the resonant frequencies of metal buildings, post-installation issues can damage professional credibility and lead to costly downtime.
This guide provides an authoritative technical framework for identifying, diagnosing, and resolving common high bay mounting problems. By prioritizing actionable, compliance-aware guidance, we aim to mitigate long-term risks such as fixture drift, vibration-induced failure, and electrical interference.
The Mechanics of Fixture Drift and Hook Failure
One of the most frequent yet misunderstood issues in high-ceiling installations is "fixture drift." While many assume a total failure of the mounting point is required for a fixture to lose its alignment, the reality is often more subtle. In UFO-style high bays (circular industrial fixtures), drift is rarely caused by the primary hook failing outright. Instead, it is typically a result of the S-hook or chain link slowly deforming under the fixture's constant weight combined with minor building movements.
The Clevis Hook Heuristic
Based on common patterns from customer support and warranty handling (not a controlled lab study), we have observed that standard S-hooks provided in "universal" kits are often the weakest link in high-vibration or high-traffic zones. A professional-grade rule of thumb is to replace any standard open S-hook with a forged, rated clevis hook.
Pro-Grade Installation Checklist:
- Primary Support: Use a forged clevis hook with a threaded bolt and cotter pin.
- Secondary Safety: Install a secondary aircraft cable safety tether independent of the primary support. This is a critical requirement for compliance with safety standards and prevents a total drop if the primary mount fails.
- Torque Verification: Always torque mounting plate screws to specific manufacturer requirements. While exact specs vary by ceiling material, a common heuristic for standard bolts in steel is 15–25 ft-lbs. Over-tightening into steel joists can strip threads and create a hidden failure point.
Vibration Management and Resonant Frequencies
In manufacturing facilities or warehouses with large overhead doors, vibration is a constant threat to fixture longevity. Conventional wisdom suggests that a flickering light points directly to a failing driver, but a proper diagnostic sequence for a "properly installed" fixture starts with the mechanical mount.
Thermal cycling (the expansion and contraction of metals during heating and cooling) can loosen set screws in swivel hooks or pendant mounts long before it affects electrical components. Furthermore, metal buildings have specific resonant frequencies. If the resonant frequency of a long pendant chain matches that of nearby machinery or overhead doors, the fixture will experience excessive oscillation.
Solving the Resonance Problem
Through observational patterns in industrial audits, we have identified that shortening a chain drop by as little as 6 inches can shift the resonant frequency enough to eliminate excessive swaying. Alternatively, adding a rubber isolator between links or at the mounting point can decouple the fixture from the building's vibration.
| Issue | Observation | Practical Solution |
|---|---|---|
| Mechanical Swaying | Fixture oscillates when overhead doors operate. | Shorten chain drop or add rubber isolators. |
| Audible Rattling | Metal-on-metal noise near the mounting point. | Verify torque on all set screws; check hook engagement. |
| Fixture Rotation | Fixture turns over time, affecting light distribution. | Use a locking pendant mount or stiff-arm bracket. |
Logic Summary: These recommendations are based on pattern recognition from high-vibration manufacturing environments where standard mounting methods often lead to premature mechanical fatigue.
Diagnosing Audible Humming and Electrical Interference
Electrical humming or buzzing in dimmable high bays is a common post-installation frustration. While often attributed to "dirty power," the source is frequently mechanical. In many LED drivers, the casing is in direct contact with the aluminum heatsink to facilitate heat transfer. However, if the mounting is too rigid or the driver is not properly isolated, this contact can amplify the internal 60Hz hum of the transformer.
Technical Fix: Inserting a thin, non-conductive thermal pad between the driver casing and the heatsink can dampen the vibration without significantly compromising thermal performance.
Furthermore, facility managers must ensure compliance with FCC Part 15 (EMI Regulations). Low-grade LED drivers are a primary source of electromagnetic interference (EMI), which can disrupt sensitive equipment in laboratories or hospitals. Authoritative reports, such as the 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights, emphasize that choosing DLC Premium-certified fixtures often ensures higher-quality drivers with better EMI suppression.
Structural Integrity and the "Retrofit Cascade"
A significant "gotcha" in B2B lighting upgrades is the structural reinforcement cascade. Contractors often assume that if a point held a legacy 400W Metal Halide (MH) fixture, it will support a new LED high bay. However, the weight and vibration profile of modern LED fixtures—especially those with heavy-duty cold-forged aluminum heatsinks—may differ significantly from legacy HID lamps.
Before a retrofit, verify the structural limits of the existing mounting points. According to the IES RP-7-21 - Lighting Industrial Facilities, maintenance factors and structural safety margins must be calculated based on the total weight of the luminaire and any potential environmental loads (such as dust accumulation in foundries).
Scenario Modeling: ROI and TCO in High-Vibration Environments
To demonstrate the tangible impact of choosing high-quality, vibration-resistant mounting and fixtures, we modeled a scenario for a medium-sized manufacturing bay.
How We Modeled This (Method & Assumptions)
This is a deterministic parameterized scenario model, not a controlled lab study. It assumes a 2-shift operation in a Midwest US industrial facility.
| Parameter | Value | Unit | Rationale |
|---|---|---|---|
| Legacy System | 458 | W | 400W Metal Halide + Ballast Loss |
| LED System | 150 | W | Standard LED High Bay |
| Fixture Count | 40 | Qty | Medium Manufacturing Bay |
| Annual Hours | 6,000 | Hours | 2-Shift Operation |
| Electricity Rate | 0.18 | $/kWh | EIA Industrial Average |
| Maintenance Labor | 95 | $/hr | Union Electrician Rate |
Calculated Impact (5-Year Horizon):
- Annual Energy Savings: ~$13,300 (based on 308W reduction per fixture).
- Annual Maintenance Savings: ~$4,200 (calculated by avoiding frequent lamp/ballast replacements in high-vibration zones).
- Carbon Reduction: ~37 metric tons of CO₂ annually (using EPA eGRID MROW grid factors).
- Payback Period: ~3.4 months (including estimated utility rebates of $50/fixture).
Modeling Note: These results apply specifically to facilities with high operating hours. Payback periods may extend if electricity rates are lower or if the facility operates on a single shift.
Compliance and Standards for Professional Specifiers
When troubleshooting or specifying mounts, referring to established standards is the only way to ensure legal and safety compliance.
- UL 1598: This is the core safety standard for fixed luminaires. Any mounting hardware used must be rated to support the weight of a UL 1598 listed fixture.
- DLC Qualified Products List (QPL): For facility managers seeking utility rebates, the DLC QPL is the definitive source. Ensure that the specific mounting configuration (e.g., pendant vs. hook) does not void the DLC listing for that model.
- NEC (NFPA 70): The National Electrical Code dictates the wiring and grounding requirements for high bay installations. A common mistake is using Class 2 dimming wires in the same conduit as Class 1 power lines without proper separation, which can lead to interference and signal degradation.
Summary Checklist for Facility Managers
To maintain a "Reliable, Bright, and Solid" lighting system, perform an annual mechanical audit:
- Visual Inspection: Check for "drift" or tilting in UFO fixtures.
- Hardware Check: Verify that all S-hooks are closed and show no signs of widening or elongation.
- Safety Tethers: Ensure every fixture has a secondary aircraft cable attached to a structural member.
- Acoustic Audit: Listen for humming during dimming cycles, which may indicate a need for driver isolation.
- Thermal Review: Use an infrared thermometer to ensure drivers are operating within their rated temperature range (typically -22°F to 113°F for industrial units).
By addressing these mechanical "friction points" proactively, professionals can ensure that their high bay installations remain secure and efficient for the full duration of their 50,000+ hour rated lifespan.
Disclaimer: This article is for informational purposes only and does not constitute professional electrical or structural engineering advice. All installations must comply with local building codes and be performed by a licensed electrician.
