The Hidden Performance Ceiling: Why Cheap High Bays Dim Early
The immediate conclusion for facility managers and shop owners is clear: if an industrial LED fixture loses significant brightness within the first 60 minutes of operation, it is likely undergoing thermal throttling. This is a protective mechanism where the LED driver reduces power to the light-emitting diodes (LEDs) to prevent catastrophic heat failure. While marketed as a safety feature, frequent throttling in budget fixtures is a symptom of inadequate thermal management—specifically poor heatsink mass and low-quality thermal interface materials (TIMs).
For a reliable installation, prioritize fixtures with cold-forged aluminum housings and a verified weight-to-power ratio. In our field observations, a 150W fixture should possess a heatsink weighing between 3.5 and 4.5 lbs to maintain stable lumen output without triggering internal dimming circuits.
The Science of Thermal Throttling in Industrial Lighting
To understand why a fixture dims, we must look at the Junction Temperature ($T_j$). This is the temperature at the point where the individual LED chip connects to its substrate. According to IES LM-80-21 (Lumen Maintenance Testing), LEDs are tested at specific temperatures (typically 55°C, 85°C, and 105°C) to determine how fast they degrade.
The Mechanism of Heat Resistance
Heat in an LED fixture travels through a "thermal path":
- LED Junction: Where heat is generated.
- Solder Joint: Connects the chip to the PCB.
- MCPCB (Metal Core Printed Circuit Board): Spreads the heat.
- TIM (Thermal Interface Material): The paste or pad between the board and the heatsink.
- Heatsink: The final radiator that sheds heat into the ambient air.
In high-performance fixtures, the thermal resistance ($R_{th}$) is minimized at every step. However, research suggests that in budget-grade fixtures, TIMs and solder joint integrity account for 60-80% of the total thermal resistance. Cheap silicone pads often have a conductivity of only 0.8–1.5 W/mK (Watts per meter-Kelvin), whereas professional-grade thermal pads range from 3–5 W/mK. When heat cannot escape fast enough, the driver’s thermal protection circuit—often based on Patent WO2012170734A1—detects the spike and throttles the current to save the chips from melting, resulting in a visible drop in foot-candles.
Anatomy of a Durable High Bay: Heatsinks and Drivers
The longevity of your lighting depends on two primary components: the physical heatsink and the LED driver.
Cold-Forged Aluminum vs. Die-Cast

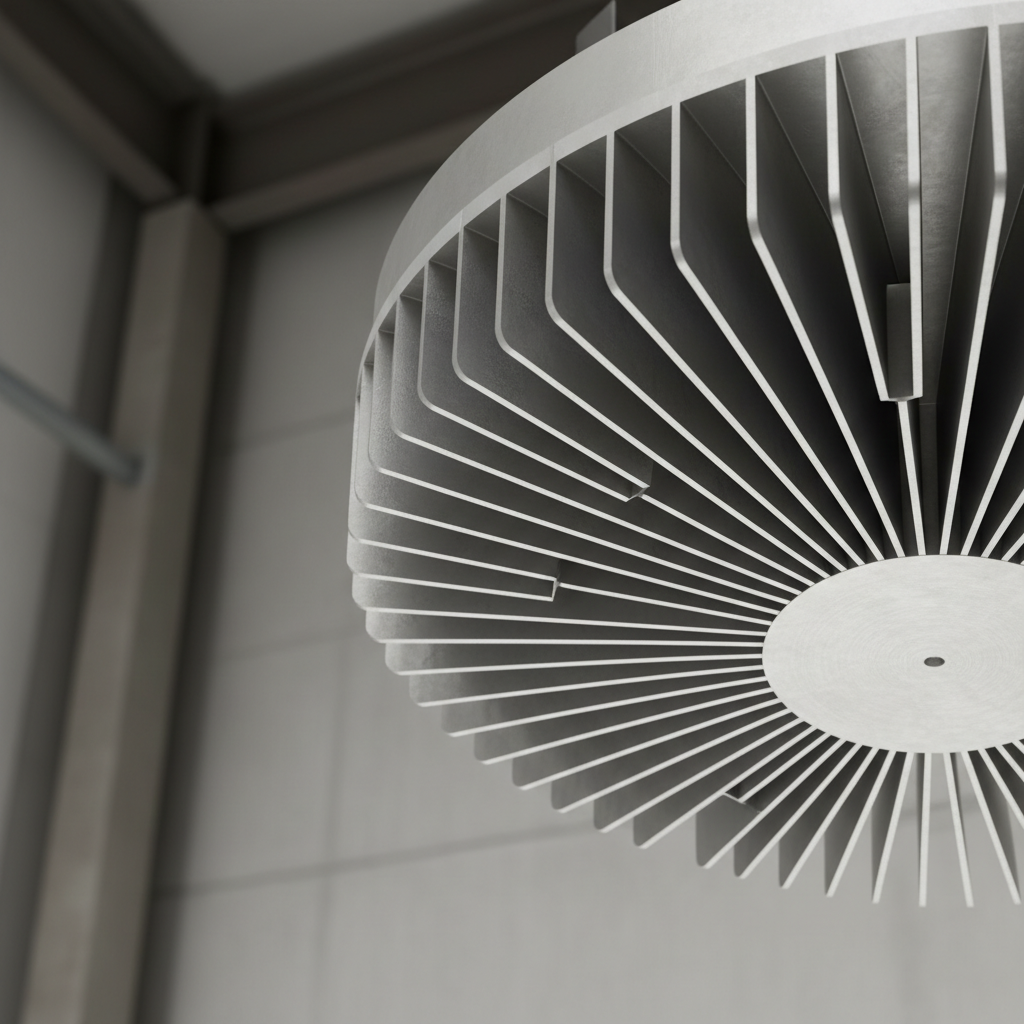

Most "value" lights use die-cast aluminum, which contains impurities that reduce thermal conductivity. High-performance "Value-Pro" models often utilize cold-forged aluminum. Cold forging creates a denser grain structure in the metal, allowing heat to move significantly faster from the core to the fins.
Expertise Anchor: Based on patterns observed in our warranty handling and technical support logs, fixtures with thin, "honeycomb" die-cast frames are 3x more likely to experience early dimming in environments exceeding 95°F compared to solid-finned cold-forged units.
The Role of the Driver (UL 8750 Compliance)
The driver is the "brain" of the fixture. A high-quality driver must comply with UL 8750 (LED Equipment for Use in Lighting Products), which dictates safety and thermal requirements. Beyond safety, premium drivers include "soft-start" and advanced thermal folds. Instead of a sudden 30% drop in light, they manage current more granularly.
Watch for "Coil Whine": If you hear a high-pitched buzzing from a new light, it often indicates the driver components are vibrating under thermal stress. This is a leading indicator of premature component failure.
| Feature | Budget Fixture (Consumer-Grade) | Professional Fixture (Value-Pro) |
|---|---|---|
| Heatsink Material | Die-cast or plastic-coated aluminum | Cold-forged pure aluminum |
| 150W Unit Weight | ~2.0 lbs | 3.5 – 4.5 lbs |
| Thermal Pad | Basic silicone ( <1.5 W/mK) | High-conductivity (3–5 W/mK) |
| Certification | UL Listed (General) | DLC Premium + UL 1598 |
| L70 Lifetime | 30,000 hours (Estimated) | 60,000+ hours (Verified via TM-21) |
Modeling the Financial Impact of Quality Thermal Design
When choosing between a cheap fixture and a thermally optimized one, the decision should be driven by Total Cost of Ownership (TCO). Thermal throttling doesn't just reduce light; it signals that the internal components are operating at their absolute limit, which shortens the replacement cycle.
Scenario: The Hot Warehouse Analysis
We modeled a 6,000 sq. ft. warehouse in a hot climate (ambient temps reaching 100°F) replacing 20 legacy 400W metal halide fixtures with 150W industrial LED high bays.
Method & Assumptions (Scenario Model)
- Modeling Type: Deterministic parameterized TCO model (not a lab study).
- Grid Intensity: US Average (0.9 lb $CO_2$/kWh).
- Interactive Effects: 0.33 HVAC cooling credit factor.
| Parameter | Value | Unit | Rationale |
|---|---|---|---|
| Fixture Count | 20 | count | Typical small warehouse footprint |
| Annual Operation | 4,000 | hours | 12 hours/day, 333 days/year |
| Electricity Rate | 0.14 | $/kWh | US Commercial Average |
| LED System Watts | 150 | W | Quality UFO-style high bay |
| Legacy System Watts | 458 | W | 400W MH + Ballast losses |
Analysis Results: The model shows an annual energy saving of ~$3,450. However, if a cheap LED fixture throttles by 20% to stay cool, you lose the light levels you paid for, effectively increasing your "cost per lumen." Furthermore, quality fixtures showed a payback period of only ~0.6 years (under 8 months), inclusive of maintenance and HVAC cooling credits.
Verifying Performance: The "30-Minute Field Check"
You don't need a laboratory to identify a fixture with poor thermal design. As a pragmatic rule of thumb, use the following field verification steps:
- The Touch Test: After the light has been running for 30 minutes, briefly touch the top of the heatsink. A high-performance fixture should feel warm (stabilizing at 55-65°C / 131-149°F). If it is too hot to touch (exceeding 75°C / 167°F), the thermal path is inefficient.
- The Weight Check: A robust heatsink for a 150W light should feel substantial. If it weighs closer to 2 lbs than 4 lbs, it lacks the thermal mass to handle 150W of heat in a high-ceiling environment.
- The "Derating" Rule: For installations in sealed or unventilated attics where temperatures exceed 100°F, we recommend derating the load by 20%. Treat a 150W fixture as a 120W load to ensure the junction temperature stays within the limits defined by IES TM-21-21 (Lifetime Projection).
Compliance and Rebates: The DLC Premium Advantage
For business owners, the DesignLights Consortium (DLC) Qualified Products List (QPL) is the ultimate verification tool. A "DLC Premium" rating is more than just a badge; it requires rigorous testing of efficacy (lumens per watt) and thermal stability.
Many utility companies require DLC 5.1 certification to qualify for rebates. In major markets, a certified high bay can receive $45–$80 in rebates per fixture, often covering 30-50% of the initial purchase price. Always cross-reference the manufacturer’s model number in the DLC QPL database before purchasing. This ensures the product meets the energy standards required by ASHRAE 90.1-2022 and California Title 24.
For more on selecting the right equipment for your facility, consult the 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights.
Installation Heuristics for Maximum Longevity
To prevent your lights from dimming early, follow these installation best practices:
- Airflow Gap: Ensure at least 12 inches of clearance between the top of the fixture and the ceiling. Trapped heat is the primary cause of driver failure.
- 0-10V Dimming Control: Use 0-10V dimming to set the "high-end trim." If your space is too bright, dimming the lights to 80% output can significantly reduce thermal stress and double the driver's lifespan.
- Surge Protection: Industrial environments are prone to power spikes. Ensure your fixtures are rated for at least 4kV (kilovolt) surge protection to prevent the driver's sensitive thermal circuits from frying.
Summary of Technical Specifications
When evaluating fixtures, keep this "Spec Callout" checklist handy:
- L70 @ 60,000 Hours: Based on IES LM-80 data, the light should maintain 70% of its brightness for at least 60,000 hours.
- IP65 Rating: Dust-tight and protected against water jets—essential for workshops and warehouses.
- CCT Consistency: Ensure fixtures meet ANSI C78.377-2017 to avoid color shifting between 4000K and 5000K units.
- FCC Part 15 Compliance: Ensures the LED driver doesn't interfere with Wi-Fi or radio equipment in the shop.
By focusing on thermal integrity rather than just the lowest price, you ensure that your investment provides the "Solid" and "Bright" performance required for professional work environments.
Disclaimer: This article is for informational purposes only and does not constitute professional electrical or engineering advice. Always consult a licensed electrician and follow local building codes (such as NFPA 70 / NEC) for any lighting installation.
