Vertical lux—the measurement of light falling on the vertical face of warehouse racking—is the primary driver of inventory accuracy, worker safety, and picking speed. However, in our experience conducting field audits, it is also the most frequently mismeasured metric. While horizontal illuminance (light on the floor) is easy to capture, vertical illuminance requires a specific methodology to account for reflections, sensor orientation, and the high-contrast environment of narrow aisles.
To ensure your facility meets the Illuminating Engineering Society (IES) RP-7-21 standards for industrial lighting, we have developed this pragmatic guide for facility managers and electrical contractors.
The Conclusion: Why Vertical Lux Trumps Floor Lux
In a high-bay warehouse environment, the "floor lux" is often a vanity metric. You can have 300 lux (approximately 30 foot-candles) on the concrete floor while the top pallet position remains in a "shadow zone" below 50 lux. For high-activity picking, the IES RP-7 recommends a minimum of 200 lux (≈20 fc) on the vertical rack face to ensure barcodes are scannable and labels are legible. If your audit reveals a vertical-to-horizontal ratio of less than 1:2, your lighting distribution—not your total lumen output—is likely the bottleneck.
Logic Summary: Our recommendation for a 1:2 vertical-to-horizontal ratio is a practical heuristic based on analyzing hundreds of photometric layouts. It ensures that if the floor is lit to 400 lux, the rack face maintains at least 200 lux, which is the baseline for safe and efficient picking.
1. Pre-Audit: Equipment Calibration and Environmental Factors
Before stepping into the aisle, the accuracy of your data depends on the integrity of your light meter (luxmeter). A standard photographer’s light meter is insufficient for industrial audits because it lacks the necessary cosine correction.
Sensor Requirements
According to general photometry principles, the sensor must be cosine-corrected. This ensures the meter accurately accounts for light hitting the sensor at an angle, which is the dominant condition in narrow aisles where light "grazes" the rack face.
The Temperature Gotcha
We have observed a recurring pattern in cold storage facilities: light meter accuracy can drift by up to 10% when moved suddenly from a 70°F loading dock to a -10°F freezer.
- The Fix: Allow your meter to acclimate to the ambient temperature of the audit zone for at least 15 minutes.
- Calibration: Ensure your meter has a current NIST-traceable calibration certificate. Absolute accuracy is paramount when establishing a baseline for energy efficiency rebates.
2. The Step-by-Step Field Measurement Protocol
The most common mistake in aisle audits is placing the light meter directly against the rack or a pallet. This captures "bounce" or surface reflections, artificially inflating your readings.
Step 1: The 30-45 cm Offset Rule (Heuristic)

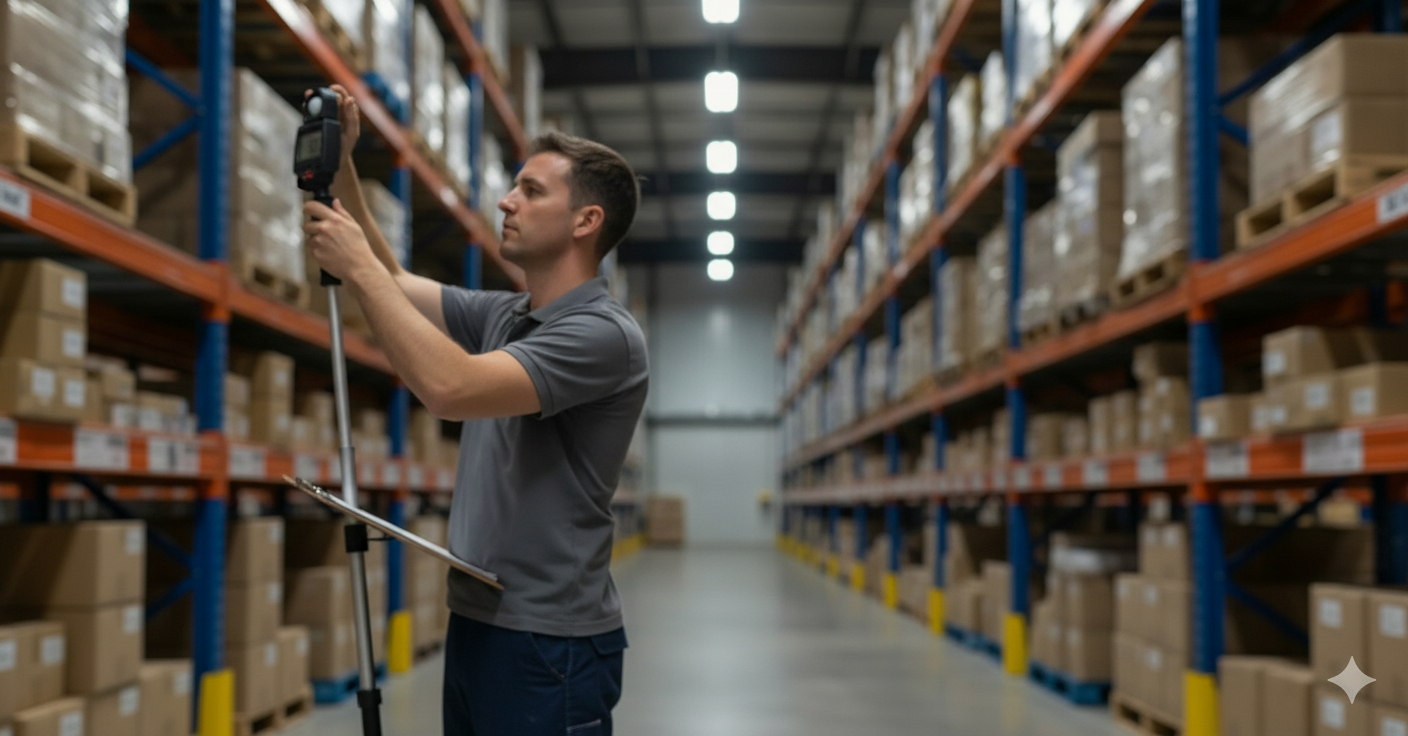

To measure incident light (the light actually arriving from the fixture) rather than reflected light, hold the meter at a consistent 30-45 cm (12-18 inches) distance from the rack surface.
- Orientation: The sensor plane must be perfectly parallel to the vertical rack face.
- Body Positioning: Stand to the side of the sensor. Your own body, especially if wearing a high-visibility vest, can reflect light into the sensor and skew the data.
Step 2: The Three-Height Heuristic
For typical warehouse aisles (ceilings 25–40 ft), taking a single reading at eye level is insufficient. We recommend the "3-Point Vertical Check":
- Bottom (0.5m / 1.6ft): Captures light reaching the lowest picking levels.
- Middle (1.5m / 5ft): Represents the primary human interaction zone.
- Top (3m / 10ft): Evaluates the "throw" of the fixture and potential shadow zones from the rack above.
Step 3: Establishing the Measurement Grid
Do not measure only directly under a light fixture. To calculate uniformity, you must measure at the "mid-point" between two fixtures.
- Point A: Directly opposite a fixture.
- Point B: Exactly halfway between two fixtures.
- Calculation: Uniformity is expressed as the ratio of Minimum Lux to Average Lux (Min:Avg). For aisles, aim for a ratio of 0.4 or higher to prevent "puddles of light" and dark spots.
3. Data Interpretation: Identifying Distribution Failures
Once you have your data, compare the vertical readings at the three different heights. This is where you diagnose whether you have the "wrong light" for the space.
| Metric | Target (High Activity) | Target (Low Activity) | Rationale |
|---|---|---|---|
| Vertical Lux (Middle) | 200–300 Lux | 100–150 Lux | IES RP-7-21 Guidance |
| Uniformity (Min:Avg) | > 0.40 | > 0.25 | Prevents eye fatigue and "black holes" |
| Vertical-to-Horizontal Ratio | 0.50 (1:2) | 0.33 (1:3) | Ensures rack face visibility |
Case Study: The "Shadow Zone" Pattern
If your readings at 3m (top) are significantly higher (>40%) than your readings at 0.5m (bottom), your fixture likely has a beam angle that is too wide. In narrow aisles, wide-distribution fixtures (like standard round high bays) waste light on the top of the racks, creating glare for operators looking up, while failing to "punch" light down to the floor.
In these scenarios, switching to a dedicated aisle-optic linear high bay is often the solution. These fixtures use specialized lenses to create an asymmetric or narrow beam (e.g., 30° x 70°) that directs lumens onto the vertical faces rather than the rack tops. For a deeper look at these trends, consult the 2026 Commercial & Industrial LED Lighting Outlook.
4. Compliance and Documentation for B2B Projects
For facility managers, an audit is not just about performance; it is about verifiable compliance. This documentation is critical for three reasons:
I. Safety and OSHA Compliance
While OSHA does not have a specific "vertical lux" clause, they mandate "adequate lighting" for the tasks performed. If an accident occurs in a dark aisle, your vertical lux audit serves as "irrefutable evidence" that the facility met IES RP-7 industry standards.
II. DLC Premium and Utility Rebates
To qualify for the highest utility rebates, fixtures must be listed on the DesignLights Consortium (DLC) Qualified Products List (QPL). During an audit, check the DLC status of the installed fixtures. If they are DLC 5.1 Standard/Premium certified, they likely support advanced controls like 0-10V dimming, which can be used to adjust light levels based on the audit findings.
III. Validating the IES File
Every professional-grade fixture should have an associated .ies file (LM-63). Your field audit should validate the digital model created during the design phase. If field results deviate by more than 20% from the AGi32 or Dialux simulation, check for:
- Lumen Depreciation: Has the fixture reached its L70 lifetime?
- Dirt Depreciation: Are the lenses covered in warehouse dust?
- Voltage Drop: Is the driver receiving the full rated voltage?
5. Troubleshooting Common Audit Anomalies
Based on patterns from our technical support and field inquiries, here are the "gotchas" to watch for:
- The "Flicker" Reading: If your meter's digital display is jumping rapidly, you may be measuring a fixture with a high flicker index. This is common in low-end LED drivers that do not meet FCC Part 15 EMI regulations or NEMA standards.
- Reflection from Polished Floors: High-gloss concrete can reflect light back up onto the rack face, skewing vertical readings. This is why the 30-45 cm offset is non-negotiable.
- Sensor Saturation: In areas with skylights, daylighting can overwhelm the sensor. Perform audits at night or with skylights covered to isolate the performance of the electrical lighting system.
Methodology Note (Simulation vs. Reality): When comparing field data to a photometric model, we assume a Light Loss Factor (LLF) of 0.85 for typical warehouse environments. This accounts for standard dirt accumulation and minor driver inefficiency. If your field readings are lower than 85% of the model's predictions, maintenance is required.
Summary Checklist for a Successful Vertical Audit
- Calibrate: Ensure the meter is NIST-certified and acclimated to the temperature.
- Position: Hold the sensor 30-45 cm from the rack, parallel to the surface.
- Triangulate: Measure at 0.5m, 1.5m, and 3m heights.
- Uniformity: Measure both directly under and between fixtures.
- Document: Compare results to IES RP-7-21 and the original LM-63 IES files.
By focusing on vertical illuminance, you move beyond "bright enough" and toward a lighting system that actively supports the precision and safety of your warehouse operations.
Disclaimer: This guide is for informational purposes only. Lighting requirements may vary by local building codes, specific task requirements, and insurance policies. Always consult with a licensed electrical engineer or certified lighting professional before making structural or electrical changes to your facility.
