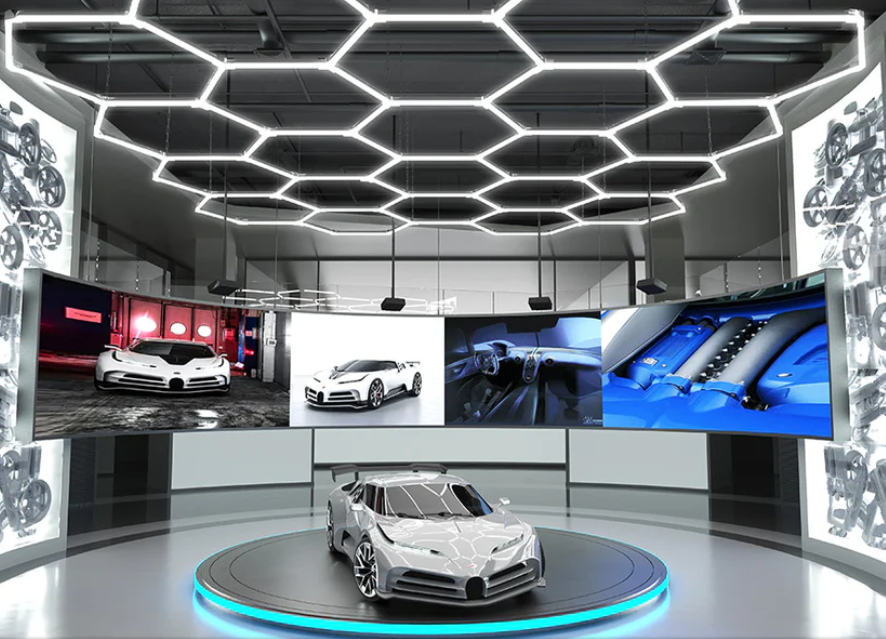

Achieving the 'Wall of Light': The Science of Showroom Uniformity
In professional automotive detailing and high-end showroom design, the difference between a "bright" space and a "functional" space lies in the uniformity of illumination. Most installers make the mistake of calculating total lumens and assuming that quantity equals quality. However, the most critical metric for paint assessment and visual impact is the Spacing-to-Mounting Height (S/MH) ratio and the resulting light overlap.
To achieve a seamless "wall of light"—where shadows are eliminated and every swirl mark on a vehicle's finish is visible—you must optimize the overlap of your light sources. For the 120° beam angles common in high-performance hexagon grid systems and UFO-style high bays, the usable "uniform" light only extends to approximately 60% of the theoretical maximum throw before intensity drops off noticeably.
This article provides the technical framework to calculate ideal grid spacing, balance electrical loads, and ensure your showroom meets the rigorous standards of the Illuminating Engineering Society (IES) RP-7-21 for industrial and automotive facilities.
The Physics of Overlap: The 60% Usable Beam Rule
Standard LED fixtures used in garages and shops typically feature a 120° beam angle. While this wide spread is excellent for general ambient lighting, it creates a "hotspot" directly underneath the fixture. As you move away from the center, the light intensity (measured in foot-candles or lux) decreases according to the inverse square law and the cosine distribution of the light.
Based on our patterns from customer support and field observations (not a controlled lab study), we have identified a critical heuristic known as the 60% Rule.
- The Heuristic: In a 120° beam, only the inner 60% of the beam's diameter provides the high-intensity, uniform light required for detailing.
- The Consequence: If you space your fixtures based on the total beam width, you will create "valleys" of lower light between units. These dark spots hide paint defects like orange peel or micro-marring.
- The Solution: You must aim for a 30% beam crossover between fixtures. This ensures that the drop-off from one light source is compensated for by the rising intensity of the adjacent source.
Logic Summary: The 60% Rule is a shop-level heuristic designed for quick layout planning. It accounts for the fact that light intensity at the edges of a 120° beam is often insufficient for precision tasks like paint correction.
Calculating Spacing for Detailing Perfection
To eliminate dark spots, you must calculate the center-to-center distance between fixtures based on your ceiling height. For a standard 8-foot ceiling, we have found that the optimal center-to-center spacing for hexagon grid clusters is approximately 4 to 4.5 feet. This creates a continuous plane of light at the working height of the vehicle (roughly 2.5 to 3 feet from the floor).
Spacing Guidelines by Ceiling Height
| Ceiling Height | Max Spacing (General) | Optimal Spacing (Detailing) | Foot-Candle Target |
|---|---|---|---|
| 8 Feet | 11.25 ft | 4.0 - 4.5 ft | 75 - 100 fc |
| 10 Feet | 14.0 ft | 5.5 - 6.0 ft | 80 - 100 fc |
| 12 Feet | 16.8 ft | 7.0 - 8.0 ft | 80 - 100 fc |
| 20 Feet+ | 28.0 ft | 12.0 - 15.0 ft | 50 - 75 fc |
Values estimated based on 120° beam angles and IES RP-7 industrial recommendations.
A simple way to verify your spacing during installation is the Hand Shadow Test. If you place your hand at the working plane (the vehicle's hood height) between two light grids and see a distinct, sharp shadow, your spacing is too wide. In a perfectly overlapped system, the shadows should be soft and diffuse, indicating that light is reaching the surface from multiple angles.
Modeling the High-End Detailing Studio
To demonstrate the practical application of these principles, we modeled a high-end detailing studio focused on ceramic coatings and paint correction.
Scenario: The 30×20 Detailing Bay
In this scenario, we modeled a professional workspace requiring 87.5 foot-candles (fc) for precision work, as suggested by IES standards.
Modeling Note: Reproducible Parameters
Methodology: This is a deterministic scenario model (not a lab study) using the Zonal Cavity Method for photometry and NEC guidelines for electrical load.
| Parameter | Value | Unit | Rationale |
|---|---|---|---|
| Studio Dimensions | 30 x 20 | ft | Standard 2-3 car professional bay |
| Ceiling Height | 10 | ft | Typical commercial garage height |
| Target Illuminance | 87.5 | fc | IES "Auto Garage: Detailing" category |
| Fixture Beam Angle | 120 | deg | Standard Hyperlite LED distribution |
| Reflectance (Walls/Ceiling) | 80/50/20 | % | White walls, light gray floor |
Analysis Results
For this 600 sq. ft. space, a layout using only 5 high-output fixtures (21,000 lumens each) might meet the average foot-candle target, but it would fail the uniformity test. Our model suggests that a minimum of 6 fixtures in a 3×2 layout is required to maintain a Spacing-to-Mounting Height (S/MH) ratio that prevents dark spots.
Furthermore, a full-ceiling hexagon grid for this area would require approximately 193 tube segments. At 7W per tube, the total load reaches ~1351W. According to NEC Continuous Load requirements, this system draws ~11.3A on a 120V circuit. Since we must adhere to the 80% rule for continuous loads, a 20A breaker (allowing 16A continuous) is sufficient, but the system must utilize 4 separate power injection points to stay within the 440W daisy-chain limit per cable.
Strategic Positioning: Grazing Light vs. Top-Down Light
One of the most common mistakes in showroom design is positioning light grids directly over the center of the vehicle. While this looks symmetrical, it is less effective for paint evaluation.
Experienced detailers use grazing light (light hitting the surface at a shallow angle) to reveal "orange peel" and surface texture. To achieve this, we recommend mounting your hexagon grids or high bays slightly off-center from where the vehicle will be parked. This allows the light to "wash" across the vertical panels of the car, such as the doors and fenders, where swirl marks are most visible.
This approach is detailed further in the 2026 Commercial & Industrial LED Lighting Outlook, which emphasizes the shift toward task-specific placement over general ambient grids.
Compliance and the "ROI Paradox"
When upgrading to a high-density lighting system like a hexagon grid, you may encounter what we call the ROI Paradox.
In our TCO (Total Cost of Ownership) modeling, we compared a traditional 400W metal halide fixture to a full-coverage hexagon grid system. Because the hexagon grid uses significantly more "fixtures" (tubes) to create the "wall of light" effect, the total wattage often exceeds the legacy system.
- Traditional 400W MH: ~458W (including ballast loss).
- High-End Hexagon Grid: ~1351W.
In this specific scenario, the energy bill actually increases by approximately $422 per year. However, for a professional studio, the ROI is not found in the electricity bill—it is found in the quality of the output. Superior lighting allows for faster defect detection, reducing labor hours per car and enabling a price premium for "concours-level" detailing services.
Ensuring Safety and Quality
To protect this investment, ensure all components are UL 1598 certified for general luminaires and UL 8750 for the LED drivers. These certifications are the first thing an insurance inspector or electrical auditor will look for in a commercial setting.
Additionally, check the DesignLights Consortium (DLC) QPL if you are using UFO high bays. DLC Premium certification is often a prerequisite for utility rebates, which can offset the initial installation cost by $45 to $80 per fixture in many jurisdictions, according to data from the DSIRE database.
Installation Checklist: Avoiding the "Gotchas"
- Daisy-Chain Limits: Never exceed 440W on a single power feed. For a 11-grid hexagon system, this usually means one cable can handle up to 62 tubes. If your layout is larger, you must distribute input lines evenly.
- Voltage Consistency: Ensure your supply voltage matches the driver specs (typically AC 120-277V). Fluctuations can cause flickering, which is detrimental to paint assessment.
- Thermal Management: A 1300W lighting system generates roughly 4,600 BTU/hr of heat. In a small, sealed detailing bay, this can impact the curing time of ceramic coatings. Ensure your HVAC system is accounted for in your shop's thermal load.
- CCT Selection: For paint correction, 5000K (Daylight) is the industry standard. It provides the highest contrast for identifying scratches. However, for a "delivery bay" where the customer picks up the car, 4000K can provide a warmer, more luxurious glow that hides minor imperfections.
Summary of Professional Layout Strategy
Achieving uniform showroom illumination requires moving beyond simple lumen counts and embracing the geometry of light overlap. By adhering to the 60% Usable Beam Rule and maintaining a 30% overlap, you eliminate the dark zones that compromise professional detailing.
- Target Spacing: 4–4.5 ft for 8ft ceilings; 5.5–6 ft for 10ft ceilings.
- Uniformity: Use the "Hand Shadow Test" to verify.
- Placement: Use grazing angles for vertical panels.
- Compliance: Insist on UL/ETL listed components and DLC Premium for rebate eligibility.
For those designing a new facility or retrofitting an existing shop, the goal should always be to create a predictable, repeatable environment where the lighting serves as a precision tool, not just a utility.
Frequently Asked Questions
How many foot-candles do I really need for car detailing? While general garage work requires 30-50 fc, professional paint correction and detailing require 75-100 fc at the vehicle surface to properly see fine scratches and swirls.
Can I mix hexagon lights with high bays? Yes. This is often called a "Hybrid Layout." Use UFO high bays for high-lumen ambient light and hexagon grids as localized task lighting over the detailing bays.
Why does my LED light look different from the one I bought last year? Check the ANSI C78.377 chromaticity standards. Manufacturers who follow these standards ensure that "5000K" remains consistent across different production batches.
Is it worth getting DLC Premium lights? If you are a business owner, yes. DLC Premium fixtures have higher efficacy (lumens per watt) and are the primary way to qualify for the largest utility rebates through programs found on BriteSwitch.
Disclaimer: This article is for informational purposes only and does not constitute professional electrical or architectural advice. Always consult with a licensed electrician to ensure your installation complies with the National Electrical Code (NEC) and local building regulations.
