Imagine this: You’ve spent six hours on a two-stage paint correction. Under your handheld torch, the hood looks like a mirror. You pull the car out into the Saturday afternoon sun, and suddenly, there they are—tiny, spider-web swirls you somehow missed. It’s the ultimate "gotcha" moment for any detailer, and it almost always points back to one culprit: your garage lighting.
Perfect paint correction requires more than just a high-end polisher; it requires a lighting layout that eliminates shadows and reveals defects from every angle. In this guide, we’re going to walk through how to build a professional-grade, shadowless detailing bay. We’ll dive into the science of CRI, the "45-degree rule," and why a hybrid approach using both hexagon grids and high-output high bays is the gold standard for serious enthusiasts.
1. The Science of "Seeing": CRI, CCT, and Clarity
Before we talk about where to hang the lights, we have to talk about what kind of light you need. In the detailing world, two metrics reign supreme: CRI and CCT.
CRI (Color Rendering Index): This measures how accurately a light source reveals the true colors of an object. According to the IES LM-79-19 Standard, which defines the measurement methods for solid-state lighting, a high CRI is essential for task-critical work. For detailing, you should never settle for less than CRI 80, and CRI 90+ is the preferred benchmark. Why? Because lower CRI light "flattens" the appearance of the clear coat, making it nearly impossible to see the subtle depth of a scratch or the true hue of a paint touch-up.
CCT (Correlated Color Temperature): This is the "warmth" or "coolness" of the light, measured in Kelvins (K). While many enthusiasts love the clinical look of 6500K (cool white), the ANSI C78.377-2017 standard helps ensure that "5000K" remains consistent across different fixtures. We generally recommend 5000K for detailing because it mimics natural daylight. It provides a neutral balance that doesn't artificially tint the paint, allowing you to see the surface exactly as it will appear on the road.
2. The Layout Strategy: Eliminating the "Shadow Gap"
A common mistake we see in DIY setups is mounting all the lights directly overhead. While this makes the garage bright, it creates "harsh shadows" under the curves of the fenders, bumpers, and side skirts. When the light source is directly above the car, the car itself blocks the light from reaching the lower panels—the very places where road grime and rock chips do the most damage.
The 45-Degree Rule
To achieve shadowless illumination, you need cross-lighting. We recommend mounting a primary grid of lights (like hexagon systems) not just on the ceiling, but positioned so that the light hits the work bay walls at a 45-degree angle. This creates a "wrap-around" effect. When light comes from multiple directions, it fills in the shadows created by the car’s body lines.
The Defect Panel Test
Here is an expert tip for calibration: use a "known defect panel." Take a scrap car part with visible swirls and walk around it under your new lights. If the swirls disappear from any single viewpoint, your angles are off. You need to adjust the tilt of your wall lights or add a secondary light source to fill that "blind spot."
3. The Hybrid Approach: Why One Light Type Isn't Enough
For a professional-grade finish, we advocate for a hybrid layout. This involves two distinct layers of light:
- The Ambient Layer (High Bays): Use high-output fixtures like the Hyperlite LED High Bay Light - BP Series to wash the entire garage in bright, even light. These should be mounted higher and farther back. They reduce the overall contrast in the room, which prevents your eyes from getting fatigued by "hotspots" of light.

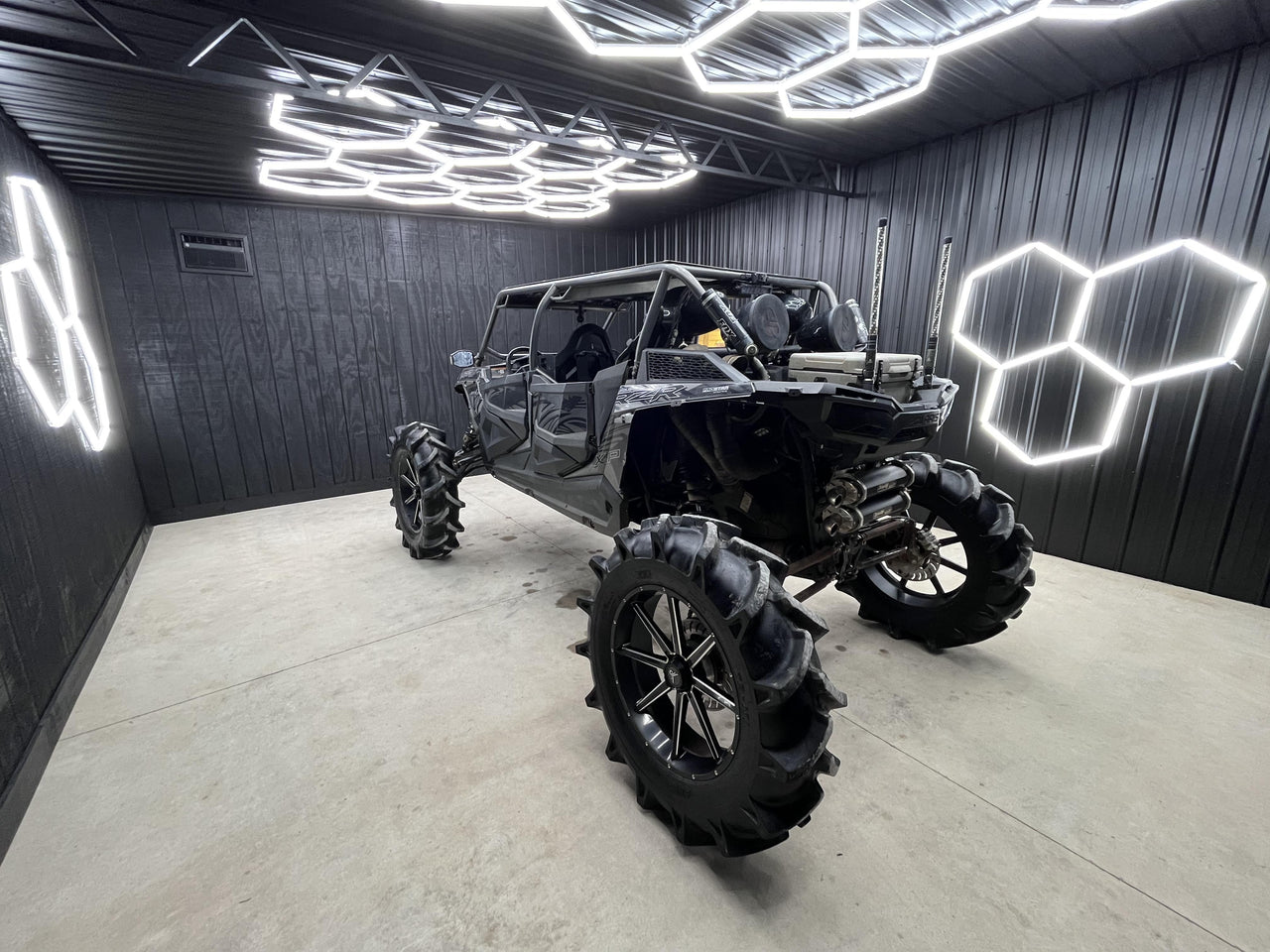

- The Task Layer (Hexagon Grids): Systems like the Hyperlite Hexagon Garage Lights Gen 2 - 11 Grid provide the directional "punch" needed for correction work. The geometric pattern of a hexagon grid is particularly useful because it creates a predictable reflection on the car's surface. If the hexagon lines look distorted or broken in the reflection, you know you’ve found a high or low spot in the paint.
4. Deep Dive: The Detailing Bay Experiment
To show you exactly what this looks like in practice, we simulated a professional 30 ft × 24 ft detailing bay. We compared a traditional metal halide setup against a modern LED hexagon grid.
The "Glass Box" Logic:
- Target Illuminance: 87.5 foot-candles (fc), based on ANSI/IES RP-7 - Lighting Industrial Facilities recommendations for high-precision paint work.
- Reflectance: We assumed bright white walls to maximize light bounce.
| Metric | Traditional (Metal Halide) | Performance (Hexagon Grid) |
|---|---|---|
| Total Wattage | 458W (Single Fixture) | 1,617W (231 Tubes) |
| CRI | 65-70 (Yellowish/Dull) | 90+ (Crisp/Accurate) |
| Light Uniformity | Poor (Bright centers, dark corners) | Excellent (Edge-to-edge coverage) |
| Annual Energy Cost | ~$165.00 | ~$582.00 |
| Maintenance | High (Bulb changes every 2 years) | Low (50,000+ hour lifespan) |
The Verdict: While the energy cost is higher for the hexagon grid, this is a performance upgrade, not an efficiency play. You are trading a few hundred dollars a year in electricity for the ability to produce a flawless, multi-thousand-dollar ceramic coating job. For the serious enthusiast, the "maintenance savings" and the cooling credit (LEDs run much cooler than metal halides, reducing AC load) help bridge the gap.
5. Installation & Technical "Gotchas"
Installing these systems is generally DIY-friendly, but there are critical safety and technical hurdles you need to clear.
Electrical Load and Daisy-Chaining
A massive hexagon grid draws significant power. For the 231-tube grid mentioned above, the total draw is about 13.5 Amps. While a standard 20A household breaker can handle this, you cannot run all those tubes off a single power cord. Most hexagon systems have a "daisy-chain limit" (often around 440W per injection point). For a large grid, you will need at least four separate power injection points distributed evenly to prevent the wires from overheating.
Safety Certifications
Never buy uncertified lights for a garage environment where moisture and chemicals are present. Look for the UL 1598 mark. According to UL 1598 - Luminaires, this certification ensures the fixture is grounded properly and won't become a fire hazard under continuous use. Additionally, ensure the drivers are FCC Part 15 compliant to prevent your lights from interfering with your garage door opener or radio.
6. Scenario Analysis: Finding Your Fit
Scenario A: The Weekend Warrior (Standard 2-Car Garage)
If you detail your personal cars and the occasional neighbor's, you don't need a 200-tube grid. A smaller setup, like the Dimmable Hyperlite Hexagon Garage Lights Gen 2 - 5 Grid, provides excellent task lighting over the hood and roof. Pair this with two Linear High Bay LED Lights -HPLH01 Series mounted along the side walls for side-panel illumination.
Scenario B: The Prosumer (Dedicated Correction Bay)
If you are chasing "concourse-level" perfection, go for the full ceiling grid. This creates a "light tunnel" effect. The constant, overlapping light sources mean that no matter where you stand, there is a light source reflecting off the paint. This setup typically requires a dedicated 20A circuit and professional mounting to ensure the grid is perfectly level—any sag in the grid will show up as a "wave" in your paint reflections.
7. Maintenance: Keeping the Clarity
In a detailing environment, polish dust is your enemy. It settles on the LED covers, slowly dimming your output and shifting the color temperature.
- Clean Monthly: Use a damp microfiber towel to wipe down the tubes.
- Check the "Flicker": If you notice a strobe effect, it’s often a sign of a failing driver or interference on the circuit. High-quality fixtures with >0.9 power factor, like the Linear High Bay LED Lights -HPLH01 Series, are designed to minimize these issues.
What to Expect: Common Detailing Lighting Questions
Q: Can I just use 6500K lights for everything? A: You can, but 6500K can be very fatiguing on the eyes during long 10-hour correction sessions. 5000K is generally more comfortable and provides a more "real-world" view of the paint.
Q: Why do my LED lights interfere with my radio? A: This usually happens with cheap, non-FCC-compliant drivers. The high-frequency switching inside the driver leaks electromagnetic interference. Investing in UL and FCC-certified products solves this "friction point."
Q: Is dimmability really necessary? A: For detailing, yes! Dimmability allows you to simulate different lighting conditions. Sometimes, a "dimmer" light actually makes it easier to see high spots in a ceramic coating that might be washed out by full brightness. The Dimmable Hyperlite Hexagon Garage Lights Gen 2 - 5 Grid allows you to toggle brightness levels to catch those elusive "high spots."
Q: How high should I mount my high bays? A: For a standard garage with 10-12 ft ceilings, flush mounting or short pendants work best. If you have 20 ft ceilings, you’ll need the punch of a Hyperlite LED High Bay Light - BP Series to ensure enough foot-candles reach the floor.
Final Checklist for a Shadowless Setup
- [ ] CRI Check: Are your fixtures CRI 80 or higher?
- [ ] Cross-Lighting: Do you have light sources hitting the car from at least three different angles?
- [ ] Circuit Load: Have you calculated the total amperage and split the power injections for large grids?
- [ ] Calibration: Have you tested the layout with a known defect panel?
By moving away from "just bright" and toward "strategically placed," you transform your garage from a storage space into a world-class detailing studio. Your paint correction will be faster, your eyes will be less tired, and most importantly—there won't be any surprises when you pull that car out into the sun.
Disclaimer: Electrical work involves risks of shock and fire. Always consult a licensed electrician for new circuit installations and ensure all work complies with the National Electrical Code (NEC) and local building codes. This guide is for informational purposes only.
Sources
- IES LM-79-19: Optical and Electrical Measurement of Solid-State Lighting
- ANSI C78.377-2017: Specifications for the Chromaticity of Solid State Lighting Products
- UL 1598: Standard for Safety of Luminaires
- ANSI/IES RP-7: Recommended Practice for Lighting Industrial Facilities
- FCC Part 15: Radio Frequency Devices
