Safety & Compliance Disclaimer: Electrical installations involve risks of fire and electric shock. The following guide is intended for informational purposes for trained maintenance personnel. All high-voltage wiring, circuit modifications, and installations must be performed by a licensed electrician in accordance with local building codes and the National Electrical Code (NEC). Always disconnect power at the breaker before servicing any fixture.

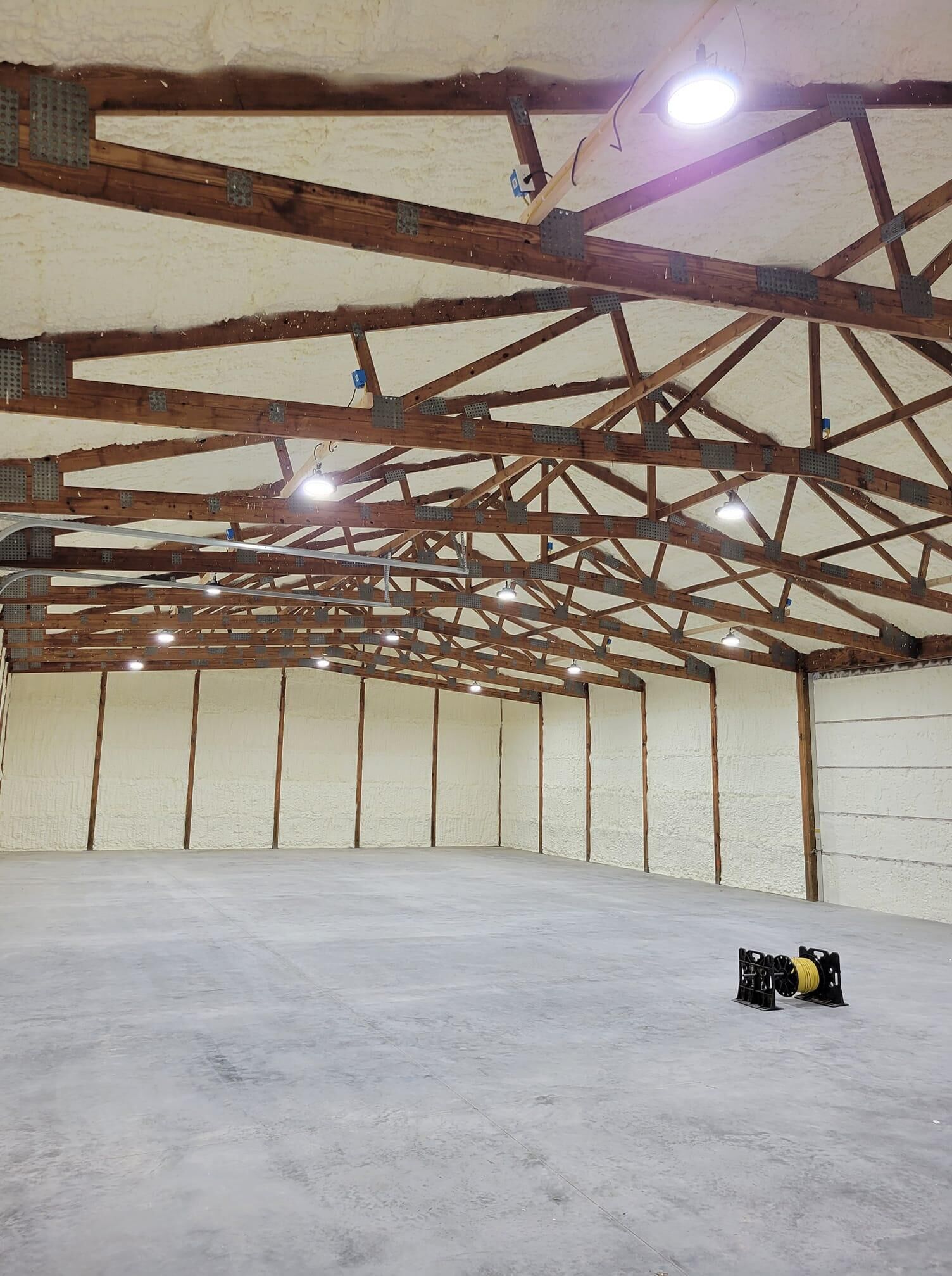

The Advantage of Sensor-Ready UFO High Bays
In high-ceiling environments like warehouses, workshops, and gymnasiums, lighting is a significant operational expense. Traditional lighting systems run at full power regardless of occupancy or natural light, wasting energy. While adding sensors isn't a new concept, the process historically involved cutting into wiring, mounting separate control boxes, and extensive labor. A "sensor-ready" UFO high bay changes this entirely.
These modern fixtures are designed with standardized, built-in interfaces—often a 12V DC AUX power-integrated twist-lock receptacle or a dedicated low-voltage port. This plug-in design transforms a complicated wiring job into a quick, tool-free task. For a professional installer, this means completing jobs faster and minimizing wiring errors. Instead of spending hours on a ladder running new conduit, you can add motion and daylight sensing capabilities in minutes.
Choosing the Right Sensor for Your Space
Selecting the correct sensor technology is critical for reliable performance. A mismatched sensor can lead to "nuisance tripping" (lights staying on) or, worse, "false-offs" while staff are present. Based on common patterns we see in customer support and field returns, the choice usually comes down to environment-specific physics.
Passive Infrared (PIR) vs. Microwave Sensors
Passive Infrared (PIR) sensors detect the movement of heat signatures (infrared radiation). They are most effective in enclosed spaces with clear lines of sight. However, their effectiveness is limited by physical obstructions like high pallet racking.
Microwave sensors are generally the superior choice for high-ceiling, open-plan industrial spaces. They emit low-power electromagnetic waves and measure the reflections. They can "see" around objects and detect subtle motion over a larger area, making them ideal for mounting heights above 20 feet.
Heuristic for Coverage Planning: While manufacturer spec sheets provide maximum ranges, we use a practical "rule of thumb" derived from field testing: The effective detection radius is typically 0.6x to 0.9x the mounting height. Use 0.6x for PIR (more conservative) and 0.9x for Microwave to ensure overlap and eliminate dead zones.
| Feature | Passive Infrared (PIR) | Microwave Sensor |
|---|---|---|
| Detection Method | Heat signature movement | Electromagnetic signal shift |
| Best Use Case | Small offices, enclosed storage | Large warehouses, open gyms |
| Ceiling Height | Optimal < 20 ft | Effective > 20 ft |
| Obstruction Tolerance | Requires direct line-of-sight | Can detect through thin barriers |
| Common Pitfall | Blocked by racking/shelving | False triggers from heavy vibration |
Technical Note: Driver Compatibility & Inrush Current
A common mistake is assuming any 0-10V sensor works with any dimmable driver. High-quality LED drivers often produce a high "inrush current" upon startup (often exceeding NEMA 410 standards). This can weld the internal relay of a low-quality sensor. Always verify that the sensor module is specifically rated for the driver’s AUX output (typically 12V DC, 200mA) or use a power pack with a built-in relay to isolate the sensor from the main AC load.
Installation and Commissioning: A Professional's Checklist
A successful installation requires strategic placement and careful commissioning. Use the following checklist to ensure a "one-and-done" installation.
1. Strategic Placement
- HVAC Avoidance: Keep PIR sensors at least 6–10 feet away from air diffusers to prevent false triggers from rapid temperature changes.
- Vibration Control: For microwave sensors, ensure the fixture is mounted rigidly. Swaying fixtures can cause the sensor to detect the building's own movement as occupancy.
- Reflective Surfaces: Avoid pointing sensors directly at large windows or highly reflective metal surfaces.
2. Standardized 0-10V Wiring (NEC Compliance)
When wiring dimming controls, adhere to NEC Article 725 for Class 2 circuit separation.
- Identify Leads: Most drivers use Purple (Dim+) and Pink/Gray (Dim-).
- Verify Polarity: Reversed polarity is the #1 cause of "non-responsive" dimming.
- Common Ground: Ensure the sensor and driver share the same 12V DC return path to prevent signal "floating," which causes flickering.
3. Field Commissioning (The "Walk Test")
- Initial Timeout: Set to 10 minutes during the first week. This prevents "nuisance off" events while you gather occupant feedback.
- Daylight Harvesting: If using daylight sensors, calibrate them during mid-day. Set the threshold so lights only dim when ambient light provides at least 150% of the required foot-candles.
- Staged Dimming: Program the sensor to dim to 20–30% (Standby Level) for 5 minutes before turning off completely. This is a safety requirement in many jurisdictions to prevent total darkness in large zones.
Verifying Compliance for Safety and Rebates
For professional contractors, compliance impacts insurance and utility rebate eligibility.
Safety Certifications (NRTL)
Ensure all components carry a mark from a Nationally Recognized Testing Laboratory (NRTL) like UL (Underwriters Laboratories) or ETL (Intertek).
- Verification: You can verify a product's UL listing using the UL Product iQ™ database (look for category code IFAM for LED luminaires).
- NEC Requirement: Per NEC Article 410.6, luminaires must be listed for the environment they are installed in.
Energy Rebates (DLC QPL)
To secure utility rebates, the fixture/sensor combination should be listed on the DesignLights Consortium (DLC) Qualified Products List (QPL). Look for DLC V5.1 Networked Lighting Controls (NLC) requirements if the project requires advanced scheduling or energy reporting.
Documentation
Maintain a "Project Closeout Folder" containing:
- IES Files: Photometric data based on IES LM-79-19 standards.
- Spec Sheets: Showing the IP65 rating (for wet/dusty locations).
- Warranty Certificates: Typically 5 years for professional-grade UFO high bays like the Hyperlite LED High Bay Light - Black Hero Series.
Key Takeaways
- Plug-and-Play: Sensor-ready fixtures reduce labor costs by up to 70% compared to traditional hard-wired sensors.
- Match Technology: Use Microwave for open warehouses (>20ft) and PIR for enclosed rooms (<20ft).
- Code Compliance: Always follow NEC Article 725 for low-voltage dimming wires and ensure NRTL (UL/ETL) listings are valid.
- Commissioning: Always perform a "Walk Test" to confirm the detection radius (0.6x–0.9x mounting height).
Frequently Asked Questions (FAQ)
Can I add a sensor to any LED high bay light? Technically yes, but it is labor-intensive. Standard fixtures require an external junction box and manual splicing. "Sensor-ready" fixtures use a pre-wired DC port that allows for 30-second installations.
Why are my high bay lights flickering after installing a sensor? This is usually caused by a "floating ground" on the 0-10V dimming wires or electrical interference. Ensure all dimming wires are shielded or kept away from high-voltage AC lines, as per NEC Class 2 wiring standards.
Do I need a special sensor for a wet or dusty location? Yes. Ensure the sensor has an IP65 rating or higher. A sensor with a lower rating will fail due to dust ingress or internal condensation. For more on this, see our guide to IP65 UFO high bays.
