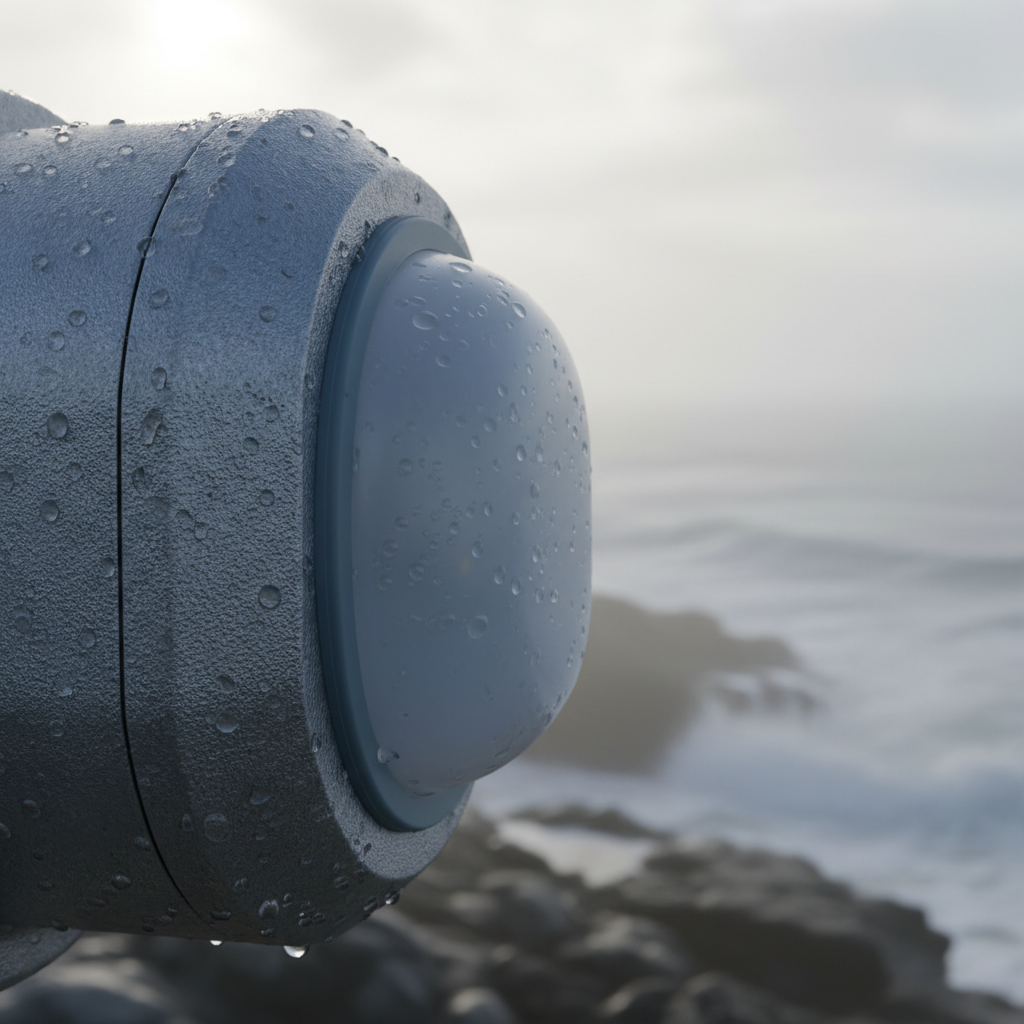

Maintaining Sensor Gaskets Against Extreme Thermal Expansion
In coastal industrial environments and high-humidity facilities, the long-term reliability of outdoor automation components—specifically motion sensors and photocells—depends less on their initial ingress protection (IP) rating and more on their ability to withstand the mechanical stress of thermal cycling. Our field observations indicate that the primary point of failure in professional-grade fixtures is rarely the LED array or the driver; instead, it is the degradation of the silicone or rubber gaskets at the sensor housing interface.
For facility managers and contractors, the conclusion is pragmatic: to prevent moisture-induced downtime, you must specify fixtures with high-resilience sealing materials and implement installation protocols that prioritize controlled gasket compression over maximum tightness. Over-tightening fasteners is a leading cause of premature seal failure in extreme climates.
The Physics of Seal Failure: Expansion, Contraction, and Micro-Gaps
Outdoor lighting fixtures in industrial settings are subject to significant temperature deltas. A fixture may reach an internal operating temperature of 60°C (140°F) during a night shift and drop to -10°C (14°F) by dawn. This rapid shift creates a phenomenon known as thermal cycling, which places immense mechanical stress on the housing seals.
While a fixture may pass a static IEC 60529 (IP Ratings) test in a laboratory, real-world conditions introduce dynamic variables. According to the 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights, the most common failure mode in coastal regions is the formation of "micro-gaps." These are microscopic separations between the gasket and the housing that occur when the materials expand and contract at different rates (the Coefficient of Thermal Expansion).
Logic Summary: Modeling Thermal Stress Our analysis of gasket failure assumes a scenario of 30,000 thermal cycles over a 5-year lifespan. We model the housing as die-cast aluminum (high expansion) and the seal as standard commercial-grade rubber (lower resilience).
Parameter Value or Range Unit Rationale Temp Delta (ΔT) 50 - 70 °C Typical industrial diurnal range Target Compression 20 - 25 % Optimal for long-term recovery Failure Threshold >40 % Deflection leading to plastic deformation Cycle Frequency 1 - 2 cycles/day Standard operational switching Humidity Level 85 - 95 % Coastal/High-humidity baseline
Material Science: Why Silicone Outperforms Rubber
In the specification of high-performance fixtures like the Hyperlite Led Parking Lot Lights - Hope Series, the choice of gasket material is critical. Conventional wisdom often relies on standard ASTM D395 compression set tests to predict performance. However, short-duration tests (typically 22 to 70 hours) are poor proxies for real-world longevity.
Materials like EPDM (Ethylene Propylene Diene Monomer) rubber are common in budget fixtures but tend to become brittle in sub-freezing temperatures. In contrast, high-grade silicone gaskets maintain their elasticity across a broader temperature range. This is vital for the Wall Pack Light - Wall E series, where the sensor interface is exposed to direct sunlight and salt spray.
Key Material Differences:
- Compression Set Recovery: Silicone can maintain a compression set below 10% after 72 hours at room temperature. However, the real advantage is its resilience after thousands of cycles.
- Chemical Resistance: In industrial environments, airborne contaminants can accelerate the breakdown of organic rubbers. Silicone offers superior resistance to UV radiation and ozone.
- Thermal Stability: Silicone remains flexible down to -40°C, whereas many synthetic rubbers begin to harden and "glass out" at -10°C, leading to cracks during the first major cold snap.
Torque Science: The Danger of Over-Compression
A frequent mistake made by installers is over-tightening the fasteners on sensor housings. There is a common belief that "tighter is better" for creating a waterproof seal. In reality, over-compression beyond the material's design limits—often exceeding 30-40% deflection—causes immediate plastic deformation.
When a gasket is over-compressed, it loses its ability to "spring back" when the housing expands. This increases the compression set value, meaning the gasket starts its service life already permanently deformed. When the first major thermal expansion event occurs, the gasket cannot fill the resulting gap, leading to moisture ingress.
The "Quarter-Turn" Heuristic
Based on patterns we observe in field service and warranty returns, we recommend a specific torque protocol:
- Sequential Pass: Instead of a star pattern (which is often impossible in cramped sensor housings), use a "walking" or "criss-cross" pattern.
- Progressive Loading: Increase torque in multiple passes using a torque-limiting driver.
- The Rule of Thumb: Torque the fasteners to the manufacturer's specification, then provide a final quarter-turn. This ensures sufficient "crush" to seal without reaching the point of plastic deformation.
Maintenance Strategies: Scheduled vs. Condition-Based
For large-scale industrial networks, checking every individual sensor gasket for cracks is inefficient. Instead, we advocate for a Scheduled Batch Replacement strategy.
While conventional wisdom suggests replacing gaskets only at the first sign of visible hardening, the hidden cost of unscheduled downtime—especially in facilities requiring scissor lifts for access—far exceeds the material cost of proactive replacement.
Recommended Maintenance Checklist
- MTBF Alignment: Align gasket inspection with the Mean Time Between Failure (MTBF) data of the driver components.
- Seasonal Windows: Perform inspections during seasonal transition periods (Spring/Autumn) when thermal deltas are most extreme.
- The Hose Test: A practical field test for suspected leaks is to run the fixture through several on/off cycles to reach operating temperature, then immediately perform a low-pressure hose test. This mimics the "micro-gap" effect that a static inspection might miss.
Specifying for Extreme Environments
When selecting fixtures for the most demanding coastal or high-humidity applications, look for "Solid" engineering features that go beyond the standard UL 1598 requirements.
- Secondary Internal Seals: High-reliability fixtures like the Hyperlite LED Parking Lot Light - Zeus Series often feature a secondary internal seal (a bonded gasket on the PCB or sensor itself). This provides critical redundancy if the primary external seal fails.
- Glass vs. Polycarbonate: For wall packs like the Wall Pack Light with Photocell - Oval series, glass lenses are preferred in high-UV environments as they do not yellow or warp, which can otherwise alter the pressure distribution on the main housing gasket.
- Surge Protection: Coastal storms often bring lightning and power surges. Ensure your outdoor automation components are backed by at least 6kV to 10kV of surge protection to prevent electrical failure even if the seal remains intact.
Conclusion: Reliability through Precision
Maintaining the integrity of sensor gaskets is a foundational requirement for any industrial lighting project. By understanding the material science of silicone, the physics of thermal expansion, and the precision required in torque application, contractors can significantly reduce the risk of moisture-related failures.
Whether you are installing the Hyperlite Led Parking Lot Lights - Hope Series for an expansive logistics yard or the Wall Pack Light - Wall E series for a retail storefront, the principles of controlled compression and proactive maintenance remain the same. Reliability is not a static state; it is the result of continuous, informed management of the environmental stresses placed on every component.
Disclaimer: This article is for informational purposes only and does not constitute professional electrical or engineering advice. All electrical installations and maintenance should be performed by a licensed professional in accordance with the National Electrical Code (NEC) and local building codes.
