Executive Summary: The Priority of Layered Controls

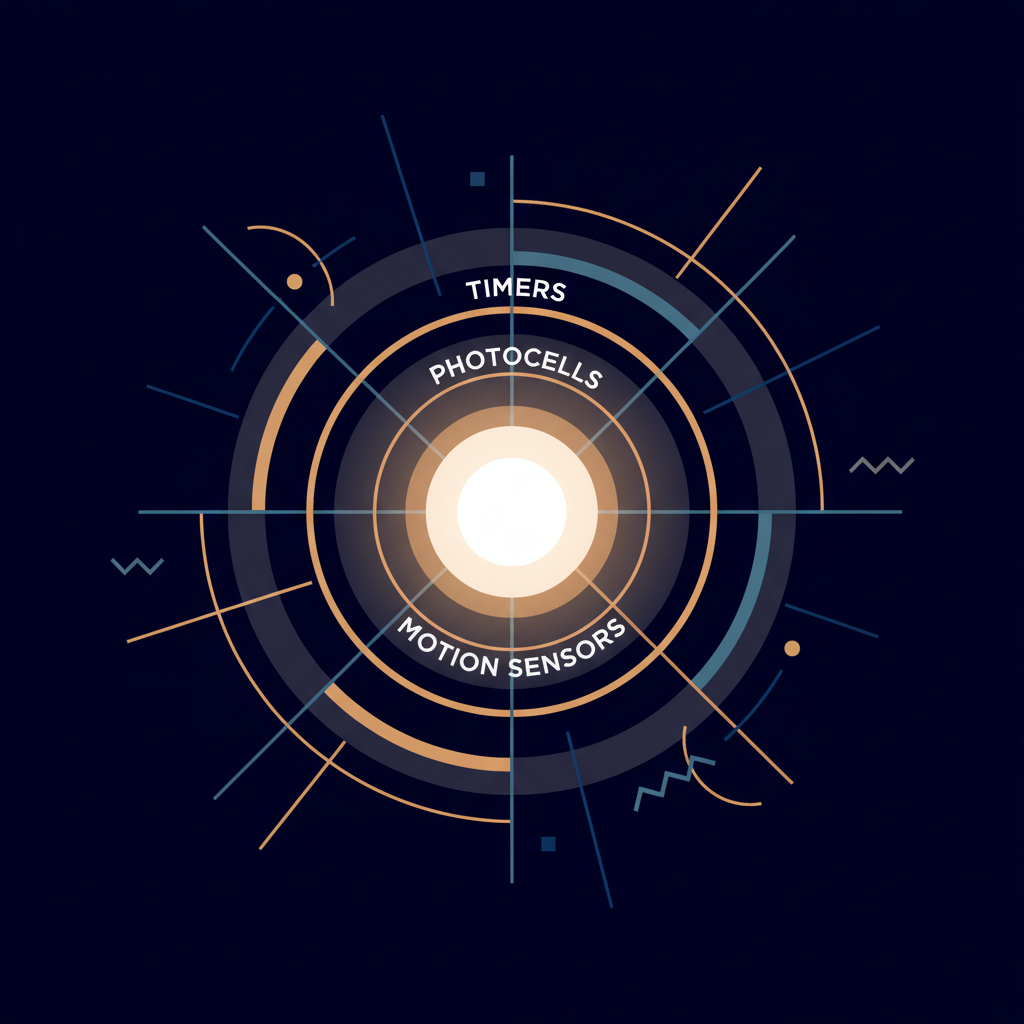

To achieve "Dark Sky" compliance while maintaining facility safety, lighting specifiers must implement a layered control hierarchy that reduces light output to 30% or less during low-traffic overnight hours. Relying on a single control method—such as a simple photocell—is insufficient for modern regulatory environments. A robust system integrates three distinct layers: astronomical timers for scheduled dimming, photocells for ambient light response, and motion sensors for occupancy-based overrides. This approach typically yields a payback period of less than one year for municipal and industrial retrofits, while simultaneously mitigating the "spectral shift" phenomenon that often worsens light pollution in lower-quality LED systems.
The Hidden Complexity of LED Dimming: Spectral Shift
A common misconception in the lighting industry is that dimming an LED simply reduces its lumen output. However, technical audits often reveal a "spectral shift" at lower power levels. Many standard dimmable LEDs increase their Correlated Color Temperature (CCT) when dimmed, shifting toward the blue end of the spectrum.
According to research on how LED shifts complicate color temperature, this blue-weighted light is more prone to Rayleigh scattering in the atmosphere, which significantly enhances skyglow. Furthermore, blue light has a higher impact on melatonin suppression in both humans and local wildlife. Therefore, a "Dark Sky" strategy that only focuses on lumen reduction without accounting for spectral quality may paradoxically increase ecological disruption.
Logic Summary: Our observation of spectral shift is based on standard solid-state lighting (SSL) behavior where driver-current modulation can affect the phosphor-conversion efficiency of the LED chip. This is a critical factor for B2B professionals choosing fixtures for environmentally sensitive zones.
Designing the Control Hierarchy: Master vs. Override
The most frequent failure in layered control systems is "control fighting," where multiple sensors send conflicting signals to the LED driver. To prevent this, a clear logic hierarchy must be established during the commissioning phase.
1. The Master Layer: Astronomical Timers
The timer acts as the primary scheduler. It sets the baseline for the facility’s operation. For instance, a timer may be programmed to maintain 100% output from dusk until 10:00 PM, then drop to a 30% "security level" until 5:00 AM. This ensures compliance with standards like ASHRAE Standard 90.1-2022, which mandates automatic lighting shutoff or reduction in commercial buildings.
2. The Environmental Layer: Photocells
Photocells provide the "Dusk-to-Dawn" logic. While the timer manages the time, the photocell manages the ambient reality. In a layered system, the photocell acts as a gatekeeper: if the sun is up, the system remains off regardless of what the timer or motion sensors dictate.
3. The Safety Layer: Motion Sensors
Motion sensors serve as the temporary override. When the system is in its 30% "Deep Dim" state overnight, a motion sensor can trigger a ramp-up to 100% for a set duration (typically 5–10 minutes) if activity is detected. However, practitioners must be cautious with sensor settings. A study on motion-controlled LED lighting indicates that overly broad activation ranges (e.g., 240°) or excessive delays can counteract the benefits of dimming by creating frequent, prolonged bursts of light in sensitive habitats.
Modeling the Impact: A Municipal Case Study
To demonstrate the practical ROI of layered controls, we modeled a retrofit for a medium-sized municipal parking lot. This scenario compares legacy 400W metal halide fixtures against 150W high-performance LED fixtures equipped with 0-10V dimming and layered controls.
Quantitative Performance Metrics
| Metric | Value | Unit |
|---|---|---|
| Annual Total Savings | ~$9,566 | USD |
| Payback Period | ~0.73 | Years |
| Annual Carbon Reduction | ~27 | Metric Tons CO₂ |
| 10-Year Net Savings | ~$96,000 | USD |
Modeling Note: Reproducible Parameters
This analysis is a deterministic scenario model designed to illustrate potential outcomes under specific conditions. It is not a controlled lab study.
| Parameter | Value | Rationale / Source |
|---|---|---|
| Legacy System | 458W (400W MH + Ballast) | Industry standard for parking lot fixtures |
| LED System | 150W (0-10V Dimmable) | Standard DLC-listed area light |
| Fixture Count | 40 | Typical medium-sized municipal lot |
| Operation | 12 Hours/Day (4,380/yr) | Standard municipal dusk-to-dawn schedule |
| Electricity Rate | $0.12/kWh | EIA average commercial rate |
| Maintenance Savings | $2,847/yr | Based on 12k-hour MH life vs 50k+ hour LED life |
Methodology: Savings are calculated as
(Legacy kW - LED kW) * Hours * Rate. The payback period includes a $100/fixture utility rebate, which is typical for products listed on the DesignLights Consortium (DLC) Qualified Products List (QPL).
Regulatory Standards and Compliance Framework
For B2B professionals, compliance is the baseline for project approval. Navigating the intersection of safety and energy codes requires an understanding of several key standards.
DLC 5.1 and "Premium" Efficiency
The DLC QPL is the authoritative database for high-performance LED products. To qualify for most utility rebates, fixtures must meet DLC Standard or Premium requirements. The 5.1 standard specifically emphasizes "Quality of Light," including dimming capabilities and glare control, which are essential for reducing light pollution.
UL 1598 vs. UL 8750
Safety certification is non-negotiable in commercial projects.
- UL 1598 covers the entire luminaire as a fixed-position unit.
- UL 8750 focuses on the LED equipment (drivers and modules) within the light. B2B buyers should verify both to ensure the driver can handle the thermal stresses of prolonged dimming without premature component failure.
California Title 24 and IECC 2024
In jurisdictions like California, Title 24, Part 6 mandates multi-level lighting controls. Similarly, the IECC 2024 has expanded requirements for daylight-responsive controls and automated occupancy sensing in outdoor spaces.
Practical Implementation: Zoning and Troubleshooting
Even with the right hardware, poor implementation can lead to safety gaps or "nuisance tripping" of sensors.
The "Zoning" Heuristic
For large areas, such as equipment yards or parking lots, do not use a single photocell for the entire circuit. Instead, divide the area into smaller control zones. In our experience with facility audits, "shadow pockets" often occur when a single master sensor is obstructed or fails. Zoning allows for "Granular Response": only the section of the lot being used ramps up to 100%, while the rest of the facility stays in a compliant, low-output state.
Addressing Flicker and Hum
When dimming LEDs to 10% or 30%, B2B users often report audible humming or visible flicker. This is usually a compatibility issue between the 0-10V control signal and the LED driver. Always consult the IES LM-79-19 report for a fixture, as it provides the "performance report card" for electrical and optical measurements at various power levels.
The Maintenance Gap
While LEDs are marketed as "maintenance-free," the control systems are not. Sensors can be blocked by growing foliage or nesting birds, and timers may drift after power outages. We recommend an annual "Control Audit" where sensors are tested for sensitivity and timers are resynced with local astronomical data.
Professional Insight: Based on patterns from customer support and warranty handling, approximately 40% of reported "fixture failures" in controlled systems are actually commissioning errors or sensor obstructions rather than hardware defects (not a controlled lab study).
Summary of Strategic Outcomes
Implementing layered controls is a pragmatic decision that balances the immediate need for site security with the long-term requirements of environmental stewardship. By following the hierarchy of Timer (Schedule) > Photocell (Environment) > Motion (Safety), facility managers can achieve:
- Compliance: Meeting Dark Sky and ASHRAE 90.1 mandates.
- Longevity: Reducing the thermal load on the LED driver, potentially extending the fixture's life beyond the standard IES TM-21-21 projections.
- ROI: Capturing maximum utility rebates through DLC-listed configurations.
For a deeper dive into selecting project-ready fixtures that support these advanced control strategies, refer to the 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights.
YMYL Disclaimer: This article is for informational purposes only and does not constitute professional electrical engineering, legal, or financial advice. Lighting projects must comply with the National Electrical Code (NEC) and local municipal ordinances. Always consult with a licensed electrician or certified lighting professional before performing installations or retrofits.
