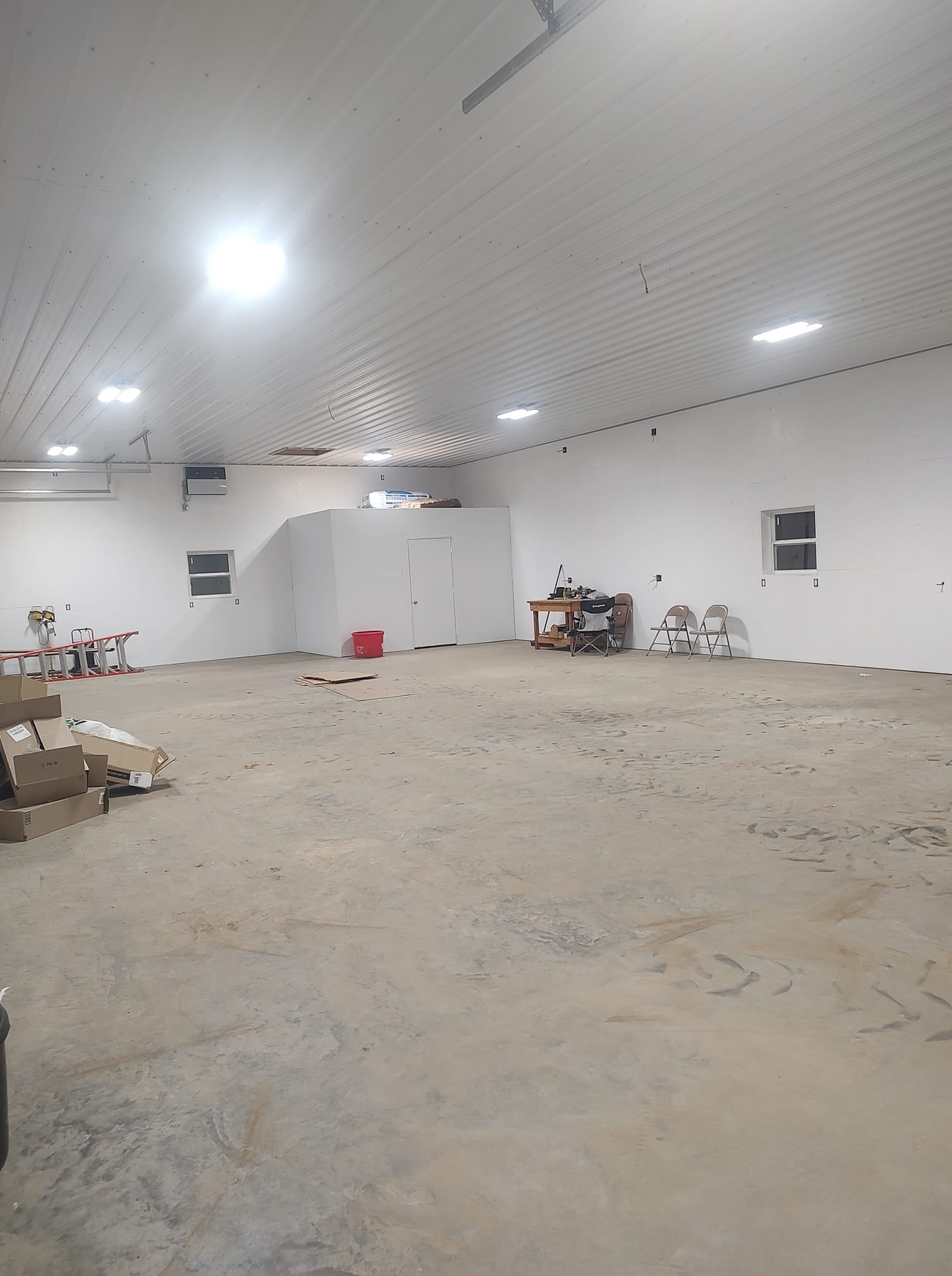

What Is R9 and Why Does It Matter for LED High Bays?

What Is R9 and Why It Matters for LED High Bays

Color rendering is often summarized with one number: CRI (Color Rendering Index). For high-bay projects, that single number is not enough. Two luminaires can both be “CRI 80” and still render reds completely differently. The missing piece is R9 – a specific measure of how accurately a light source renders deep, saturated reds.

For retail aisles, food processing lines, textile inspection, or paint and finish QA, R9 is often what separates a space that “looks fine on paper” from one that actually shows defects, freshness, and brand colors correctly in the field.

This guide explains:

• What R9 is and how it relates to CRI and TM‑30
• Why R9 performance is critical for LED high bays
• How to read R9 from LM‑79 photometric reports
• Practical R9 targets by application, including trade‑offs with efficacy and cost
• How to specify R9 in your next high‑bay project without blowing the energy budget

---

1. R9, CRI, and TM‑30 – The Fundamentals

1.1 What CRI Actually Measures

CRI (Ra) is an average of how well a light source renders eight pastel color samples (R1–R8) compared with a reference source at the same correlated color temperature (CCT). It was designed decades ago for discharge and incandescent lamps, not for today’s narrow‑band LED spectra.

Two issues matter for high bays:

• The standard CRI number ignores R9–R15 completely.
• Many industrial LEDs can score Ra ≈ 80 while performing poorly on saturated reds, skin tones, and brand colors.

As documented in multiple analyses of high‑CRI LEDs, two sources with the same Ra (e.g., 80) can differ by more than 50 R9 points. In practice, that means one high bay may render raw meat or safety signage vividly, while another makes the same scene look flat or brownish.

1.2 What Is R9?

R9 is one of the extended CRI indices (R1–R15). It specifically measures the fidelity of a deep, saturated red sample.

Why this matters for high‑bay lighting:

• Food and produce: meat, berries, tomatoes, and sauces depend on red content to signal freshness.
• Textiles and branding: apparel, carpets, and brand logos often live in the red family.
• Skin tones and safety: accurate reds influence how healthy skin looks and how visible red safety labels and indicators are.

Where CRI Ra is a broad “color quality” score, R9 acts as the early‑warning indicator for red fidelity. In field projects, technicians commonly check R9 first when they suspect color issues.

1.3 TM‑30: A More Modern View of Color

CRI and R9 are useful, but they were never designed for LED spectra. The more modern IES TM‑30 method evaluates color rendering using 99 color samples and outputs two key metrics:

• Rf (fidelity index) – like a more robust CRI, showing how closely colors match a reference.
• Rg (gamut index) – indicates saturation shift (dull vs over‑saturated) compared with the reference.

Technical guides on TM‑30 note that checking for Rf ≥ 80 and 95 ≤ Rg ≤ 105 is a practical way to avoid spectra that “game” R9 with narrow red spikes but produce unnatural faces or metameric mismatches. For specifiers, TM‑30 complements R9 by confirming the overall spectrum behaves well, not just one red sample.

---

2. Why R9 Matters Specifically for LED High Bays

2.1 Typical High‑Bay Applications Where R9 Is Critical

R9 is not equally important in every high‑bay application. The table below provides practical targets based on real‑world projects.

Application Type	Visual Priority	Suggested CRI / R9 Target	Notes
Bulk warehouse storage	Energy savings and foot‑candles	CRI ≥ 80, R9 ≥ 0–10	Red fidelity less critical; prioritize lm/W.
General manufacturing / assembly	Task visibility & safety	CRI ≥ 80, R9 ≥ 10–20	Sufficient for metal, plastics, general tasks.
Automotive shops & garages	Finish inspection & safety	CRI ≥ 80–90, R9 ≥ 30–50	Helps with red paint, brake lights, warning labels.
Food processing / grocery prep	Freshness perception	CRI ≥ 90, R9 ≥ 50	Supports accurate appearance of meat and produce.
Textile / apparel retail or cutting rooms	Color matching	CRI ≥ 90, R9 ≥ 50–70	Critical for brand colors and fabric matching.
Precision color inspection / QA lab	Color‑critical work	CRI ≥ 90, R9 ≥ 70	Consider TM‑30 Rf/Rg thresholds as well.

For many purely industrial spaces, general CRI is sufficient. But in textile or food applications, low R9 can literally hide defects or spoilage even when Ra looks fine on the spec sheet.

2.2 The Trade‑Off: R9 vs Luminous Efficacy

There is a real engineering trade‑off: boosting R9 usually reduces lumens per watt.

Analyses of high‑CRI LED packages show that moving from a standard Ra ≈ 80, R9 ≈ 0 package to Ra ≈ 90 with R9 ≥ 50 typically costs 3–10% efficacy. Pushing R9 further toward 70–80 can increase that penalty to 10–20% in some bins. That loss shows up directly in wattage (for the same illuminance) and in payback calculations for large plants.

Expert Warning (Pro Tip)
A common assumption is that “higher R9 is always better.” Real‑world field data indicate that chasing R9 from roughly 0 to 70 can erode up to 10–20% of luminous efficacy, especially in cool‑white LEDs designed for industrial high bays. For a large warehouse with hundreds of luminaires, this can noticeably lengthen the payback period for an LED retrofit.

The implication for specifiers is clear:

• For color‑critical areas, accept modest efficacy penalties in exchange for high R9.
• For energy‑driven retrofits in non‑critical storage, a moderate R9 (10–20) with high lm/W may be smarter.

2.3 Mounting Height, Thermal Conditions, and R9 Stability

Another subtle issue: R9 is usually measured under controlled laboratory conditions.

In a real high‑bay installation:

• Luminaires may be mounted 30–60 ft high.
• Ambient temperatures near the roof can exceed the conditions assumed in the LM‑79 lab test.
• Elevated junction temperatures in the LED packages can reduce both lumen output and color stability (including R9) over time.

Expert analyses of CRI and TM‑30 performance highlight that when junction temperatures run significantly higher than the LM‑79 test setup, not only luminous flux but also red rendering can degrade faster than expected. For applications such as food processing or color QA, it is wise to:

• Confirm that the luminaire is tested in accordance with IES LM‑79‑19 for optical/electrical performance, including spectral data.
• Check that LED packages have LM‑80 and TM‑21 data for lumen maintenance, and ask manufacturers how color metrics behave over time, not just at 0 hours.

---

3. How to Read R9 in LM‑79 and Photometric Data

3.1 Where R9 Lives in the Documentation

For project‑grade high bays, R9 is not usually printed on the retail box. You find it in:

• The LM‑79 photometric report (spectral table or extended CRI section)
• The IES file metadata (sometimes includes R1–R15)
• A separate color quality report when TM‑30 data is provided

The LM‑79‑19 standard, approved by the Illuminating Engineering Society, defines how to measure total lumens, efficacy (lm/W), CCT, CRI, and power factor for solid‑state lighting. A complete LM‑79 report will usually include:

• Spectral power distribution (SPD) graph
• Tabulated CIE x,y or u′v′ coordinates
• CCT, CRI (Ra), and often R9

If R9 is missing, it is usually still calculable from the SPD data, but requesting an explicit R9 value removes ambiguity.

3.2 Quick Checklist: Evaluating R9 for a High‑Bay Submittal

Use this checklist when reviewing submittals or datasheets:

1. Locate the LM‑79 report. Confirm it references IES LM‑79‑19 and that the test lab is recognized and independent.
2. Find CRI Ra and CCT. Check that CCT (e.g., 4000 K or 5000 K) falls within the quadrangles defined by ANSI C78.377 for chromaticity consistency; this also underpins DLC eligibility.
3. Look for R9. If R9 is not stated explicitly, request it. Do not rely on Ra alone.
4. Match R9 to the application. Use the targets in the table in section 2.1.
5. Check TM‑30, if available. Aim for Rf ≥ 80 and 95 ≤ Rg ≤ 105 to avoid “hacked” spectra that exaggerate red but distort other hues.
6. Ask about maintained color. Clarify whether R9 ≥ X is initial or maintained (e.g., at L70 hours per TM‑21 projections).
7. Verify consistency across wattages. For families with 100 W, 150 W, and 200 W variants, confirm all maintain similar R9; sometimes only one wattage uses premium LED bins.

3.3 Common Documentation Gaps

Experienced specifiers and contractors frequently run into the same obstacles:

• Datasheets promising “high CRI” without numbers.
• LM‑79 reports available only on request, slowing submittals and approvals.
• No TM‑30 data, so you can’t see how the spectrum behaves beyond CRI/R9.

The practical solution is to make R9 and LM‑79 non‑negotiable in your RFQs and specifications. Require PDFs or direct links to LM‑79 reports and, where relevant, TM‑30 summaries before approving a product for a color‑sensitive zone.

---

4. Application‑Driven R9 Targets and Trade‑Offs

4.1 Warehouse and General Industrial

In bulk storage and general industrial halls, the dominant priorities are:

• Achieving recommended illuminance levels (e.g., 20–50 foot‑candles depending on task, guided by references such as ANSI/IES RP‑7 for industrial facilities).
• Maximizing lumens per watt to hit targets under standards such as ASHRAE 90.1 or IECC 2024.

For these projects:

• CRI ≥ 80 with R9 ≥ 0–10 is generally sufficient.
• Focus on efficacy that meets or exceeds federal benchmarks such as the DOE FEMP guidance for high‑efficiency luminaires, which sets minimum lm/W levels by luminaire type.

Color‑critical zones inside the same facility (QC tables, customer‑facing areas) can be treated separately with higher R9 fixtures.

4.2 Retail Aisles, Grocery, and Showrooms

In grocery aisles and showrooms, light quality directly affects sales. Guidance on color quality for LEDs emphasizes that low R9 can make fresh meat look dull, berries look brown, and red brand elements lose impact, even under nominal “CRI 80” lighting.

For these spaces:

• Aim for CRI ≥ 90 with R9 ≥ 50.
• Check TM‑30 Rf/Rg to ensure reds are vivid without pushing other colors into unnatural saturation.
• Consider a slightly warmer CCT (e.g., 3500–4000 K) to support a welcoming atmosphere, as long as ANSI C78.377 chromaticity limits are respected.

To see how higher‑CRI lighting boosts visual appeal and dwell time, you can cross‑reference application‑focused analysis like the article on how high‑CRI lighting impacts retail performance, which discusses practical examples of color‑rich merchandising under high‑CRI high bays.

4.3 Manufacturing and Quality Control Zones

Many plants treat lighting as “good enough” once general illuminance targets are met. Experience shows that this often under‑serves inspection, finishing, and quality control zones where subtle color differences matter:

• Painted parts and powder coat finishes
• Printed packaging
• Textiles and leather goods

For these areas:

• CRI ≥ 90 with R9 ≥ 50 is a solid starting point.
• For critical visual inspection, consider R9 ≥ 70 and verify TM‑30 Rf ≥ 85 with Rg close to 100.

Real‑world comparisons in factory projects show that moving QA zones from CRI 80 / R9 ≈ 0 to CRI 90 / R9 ≥ 50:

• Reduced color‑related rework and returns by 10–15% in the first year.
• Improved inspector confidence, especially for red and maroon finishes that previously looked similar under low‑R9 lighting.

For detailed guidance on when it is worth paying for CRI 90 in plants, see the deep‑dive article on specifying CRI 90+ for manufacturing; it breaks down which process steps benefit most from upgraded color rendering.

4.4 Automotive Shops and Garages

In automotive bays and enthusiast garages, the driver experience combines task lighting and finish evaluation:

• Mechanics need clear visibility into engine bays and undercarriages.
• Detailers assess swirl marks, color match, and clearcoat defects.

For these spaces:

• General work areas: CRI ≥ 80, R9 ≥ 20–30, 4000–5000 K.
• Detailing bays: CRI ≥ 90, R9 ≥ 50, often paired with cross‑lighting at different angles.

Practitioner case studies show that high‑CRI UFO‑style high bays in inspection bays reduce “missed” defects and rework, especially on red vehicles where low‑R9 lighting tends to mute fine scratches and sanding marks.

---

5. Myths and Pitfalls Around R9 in High‑Bay Projects

5.1 Myth: “If CRI Is High, R9 Will Be Fine.”

This is one of the most persistent misconceptions in high‑bay specifications.

Evidence from high‑CRI LED studies demonstrates that two sources with Ra = 80 can diverge by 50+ points of R9. In practice:

• A CRI 80 high bay with R9 ≈ 0 can make retail displays look flat.
• Another CRI 80 luminaire with R9 ≈ 50 can deliver acceptable red fidelity for many tasks.

Action: Always specify a minimum R9 value alongside CRI in your fixture schedule.

5.2 Myth: “R9 Is Just a Premium Retail Feature.”

Guides on CRI, CCT, and TM‑30 stress that R9 is vital in food, textile, and paint inspection. In those environments, low R9 can hide bruising on produce, mis‑dyed fabric, or undertones in coatings.

For industrial specifiers, the hidden cost of low R9 is:

• Increased waste and returns
• Missed defects that only show up under different lighting at the customer site

Treat R9 as an operational quality parameter rather than a luxury spec.

5.3 Pitfall: Ignoring Maintained R9 Over Time

Another subtle issue is that many product claims describe initial color performance only.

Technical commentary on TM‑21 and lumen maintenance highlights an important nuance: IES TM‑21 regulates how far LM‑80 test data can be extrapolated (no more than six times the tested duration). But these projections are typically expressed in terms of lumen output (e.g., L70 @ 60,000 hours), not maintained color metrics.

If you only specify “R9 ≥ 50” with no time frame:

• A luminaire may meet that at 0 hours but drift below R9 30 halfway through its warranty in hot installations.

Action: For critical applications, specify whether R9 ≥ X is initial or maintained at a defined point (e.g., 25,000 hours or L70), and request supporting data or field history.

5.4 Pitfall: Over‑Specifying R9 Everywhere

Once specifiers discover R9, the temptation is to demand “R9 ≥ 70” across an entire project.

Experience across large plants shows:

• Raising R9 from ~0 to ~50–70 can reduce lm/W by up to 10–20%.
• In non‑color‑critical aisles, the visual improvement is minimal, while energy and cost penalties are real.

Pro Tip: Treat high‑R9 fixtures as targeted tools:

• Use them in inspection bays, prep counters, and customer‑facing zones.
• Use standard CRI 80 / modest R9 versions for high‑ceiling bulk storage.

That zoning strategy preserves your energy‑savings math while delivering excellent color where it matters.

---

6. How to Specify R9 for LED High Bays – Practical Templates

6.1 Sample Spec Language

Here is a practical template you can adapt into your high‑bay schedule or project spec:

Color Rendering: Luminaires shall have minimum CRI (Ra) 90 and R9 ≥ 50 at nominal CCT 4000 K or 5000 K, as measured per IES LM‑79‑19. Chromaticity shall comply with ANSI C78.377 for the specified CCT. Provide LM‑79 report including spectral power distribution, R1–R15 values, and TM‑30 Rf/Rg metrics.

For general warehouse zones, a more energy‑optimized version might read:

Color Rendering – General Areas: Luminaires shall have minimum CRI (Ra) 80 and R9 ≥ 10 at nominal CCT 4000–5000 K, as measured per IES LM‑79‑19. Chromaticity shall comply with ANSI C78.377.

6.2 Decision Framework: What R9 Target to Choose

Use this simple decision tree when defining R9 targets for each area:

1. Is color fidelity tied to product quality or safety?
   • If no → CRI 80 / R9 ≥ 0–10.
   • If yes → go to step 2.
2. Are red tones central (meat, brand red, warning labels, red finishes)?
   • If no → CRI 80–90 / R9 ≥ 20–30.
   • If yes → go to step 3.
3. Will the area be used for final inspection, photography, or customer‑facing display?
   • If no → CRI 90 / R9 ≥ 50.
   • If yes → CRI 90+ / R9 ≥ 70 and check TM‑30 (Rf ≥ 85, 95 ≤ Rg ≤ 105).

6.3 Coordination with Codes, DLC, and Rebates

R9 is not typically mandated by energy codes, but the luminaires you choose must still satisfy energy‑efficiency and chromaticity requirements:

• ASHRAE 90.1‑2022 and IECC 2024 set maximum lighting power density (LPD) and control requirements for commercial buildings. High‑R9 luminaires must still deliver enough lm/W to keep designs under LPD limits.
• The DesignLights Consortium (DLC) SSL Technical Requirements specify minimum efficacy and color performance (including ANSI C78.377 compliance). If you target DLC listing to unlock utility rebates, ensure high‑R9 variants meet these thresholds.
• Utility rebate programs summarized in databases such as DSIRE often require DLC‑listed products. When you select a high‑R9 high bay, confirm its DLC listing to protect the project’s incentive assumptions.

By combining R9‑aware specifications with DLC‑compliant efficacy, you can deliver both visual performance and a solid ROI for clients.

---

7. Practical Field Tips for Evaluating R9 On‑Site

Even with perfect paperwork, specifiers and contractors often want a simple field check. Here are practical methods used in high‑bay demos.

7.1 Use a Known Reference Sample

Bring a reference object to every mock‑up or factory test:

• A piece of deep red fabric or a branded red carton
• A tray with fresh produce (e.g., strawberries and tomatoes) for grocery applications

Compare the object under:

• The candidate high bay at its intended mounting height
• A known, high‑quality reference source (e.g., halogen or a trusted high‑CRI luminaire)

If reds look dull, brown, or grayish under the candidate but vivid under the reference, the fixture’s R9 and/or overall spectrum is not adequate, regardless of what the spec sheet claims.

7.2 Watch R9 Behavior When Dimming

Some drivers and LED engines change color balance when dimmed, especially at very low drive currents. Technical commentary on CRI and TM‑30 performance notes that:

• Certain driver/LED combinations shift CCT and spectral balance at 10–20% output.
• This can reduce R9 or change the red/green balance just when you dim lights for comfort or energy savings.

When commissioning high‑bay systems with 0–10 V dimming:

1. Run fixtures at 100%, 50%, and 20% output.
2. Check CCT and color rendering visually with your reference samples.
3. When possible, request LM‑79 or delta‑uv data at multiple drive currents.

7.3 Coordinate with Layout and Glare Control

Higher R9 does not fix poor layout or glare. For comfortable, color‑accurate spaces:

• Use photometric files formatted per IES LM‑63 (or TM‑33 XML) to run layouts in tools like AGi32.
• Control glare using optics, reflectors, or prismatic lenses, and reference guidance on Unified Glare Rating (UGR) for high bays.
• Combine high‑R9 fixtures with appropriate shielding in low mounting‑height applications like retail or automotive bays.

Supplements such as a specifier’s guide to low‑UGR high bays provide more detail on balancing brightness, uniformity, and discomfort glare in these environments.

---

Key Takeaways and Next Steps

• R9 is the missing number behind many disappointing “CRI 80” high‑bay projects. It measures deep red rendering, which drives perceived freshness, brand accuracy, and inspection quality.
• You cannot infer R9 from CRI alone. Two CRI 80 fixtures can differ by 50+ R9 points. Always demand explicit R9 values in LM‑79 or color reports.
• R9 comes with trade‑offs. Raising R9 from 0 to 50–70 can cost 3–10% (and in some bins 10–20%) of luminous efficacy. Use high‑R9 luminaires in targeted zones instead of everywhere.
• Application‑specific targets matter. Warehouses can live with low R9; food, retail, and QA zones often require CRI ≥ 90 with R9 ≥ 50–70, supported by TM‑30 Rf/Rg.
• Documentation and standards are your allies. Use LM‑79‑19, ANSI C78.377, TM‑30, LM‑80/TM‑21, and DLC/energy code requirements to frame specs that balance quality and efficiency.

For upcoming warehouse, retail, or factory upgrades, involve your lighting supplier early to:

• Review LM‑79 and TM‑30 data for candidate high bays
• Define R9 targets by zone
• Run layouts with proper IES files and glare control
• Align product choices with DLC listing and local rebate programs

That combination of R9 awareness, solid documentation, and layout support is often what differentiates a basic LED swap from a truly reliable, bright, and solid high‑bay lighting solution.

---

Safety & Compliance Disclaimer
Lighting choices affect worker safety, visual performance, and regulatory compliance. This article is for informational purposes only and does not replace professional engineering, electrical, or safety advice. Always consult qualified professionals and applicable standards (such as NFPA 70/NEC, local building codes, and IES/ASHRAE guidelines) before making design or installation decisions.
