An effective pottery studio lighting design requires two elements working in tandem: fixtures with documented ingress protection where clay dust is present, and illumination reaching the wheel from complementary angles. A single bulb centered overhead almost always leaves part of a turning vessel wall in shadow while your hand, a rib, or a trimming tool blocks the rest.
The practical starting point is to layer broad ambient light across the workspace with two independently aimed task lights beside the wheel. This dual-source approach establishes the baseline layout for shadow-free pottery wheel lighting before you evaluate fixture IP markings, color metrics, and electrical details.
The lighting plan: layer ambient light with two wheel-side angles
Sketch three light roles before you shop for a single fixture: general room light, wheel-side task light from two directions, and a movable inspection light for close surface checks. This split matters more than raising overall brightness.
Start with ceiling-mounted ambient fixtures for circulation, glaze shelves, and general visibility. Then add two lower, offset task sources near the wheel, positioned so one can partially fill in the shadow the other creates. A small clamp or gooseneck light gives you a third, repositionable option for checking rims, handles, and trimmed walls up close.
Where clay dust reaches a fixture regularly, its enclosure and documented ingress protection belong in the purchase decision. Keeping dust off surfaces and out of the air, however, is a separate housekeeping and ventilation question, covered next.
Build separate lighting zones for throwing, inspection, and cleanup
Treat the wheel as a visual inspection task, not just a spot that needs illumination, and give each studio activity its own light role instead of one shared overhead source.
Assign a light to each studio task
Ambient light handles circulation, storage, and general visibility across the room. A separate wheel task layer, aimed from the side rather than straight down, reveals the vessel wall as it turns. Detail work like trimming and glazing benefits from a close, repositionable inspection light rather than the ambient layer alone. Cleanup and clay-handling areas need broad, easy-to-maintain coverage, but that coverage does not by itself manage airborne dust.
Keep dust control separate from fixture selection
Pottery and ceramic work can create respirable dust, and OSHA silica exposure guidance recommends wet methods, local exhaust ventilation, and process enclosures as primary dust controls. A well-sealed light fixture does not replace those measures; it only affects how well the fixture itself resists dust ingress and how easy it is to clean. If your studio's wet-methods, ventilation, or housekeeping plan for clay handling and cleanup isn't settled yet, resolve that separately before assuming any fixture solves dust exposure. For a broader look at splitting a shared space into distinct work and storage zones, our garage zoning guide walks through the same zoning logic applied to multi-use spaces.
Place wheel lights to reduce vessel-wall shadows and glare

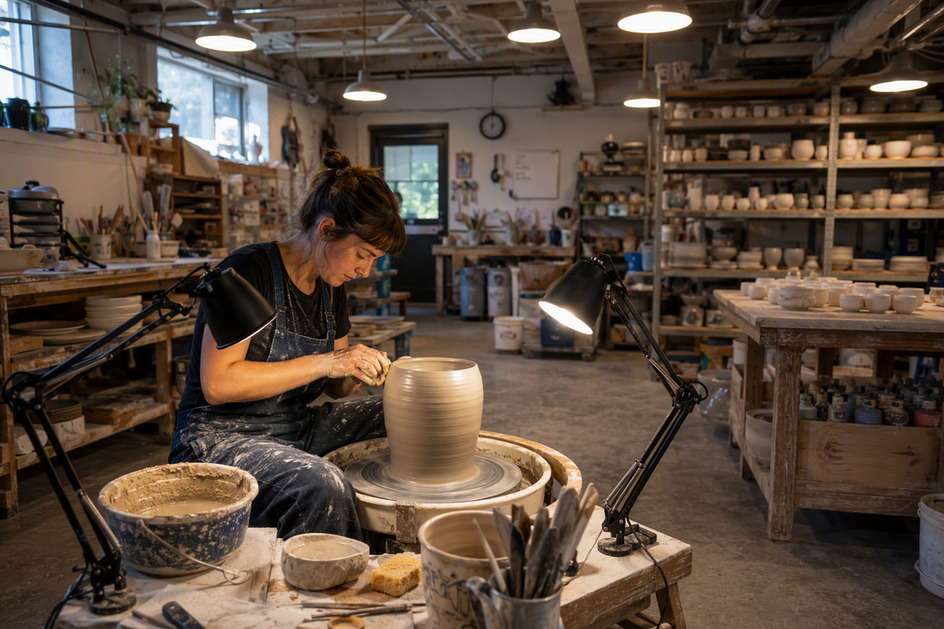

Achieving shadow-free lighting for a pottery wheel relies on testing opposing angles rather than simply increasing overall room brightness. Start with two light sources placed at offset or diagonal angles to the wheel rather than one source directly overhead, then confirm the arrangement on an actual turning piece.
Run a wheel-side shadow and glare test
- Aim or place one light source from each of two offset directions beside the wheel, rather than relying on a single point straight above it.
- Watch the vessel wall while it rotates and while your hands, tools, and the rim move through the light.
- If a shadow follows your hand or the rim, reposition or re-aim one source before reaching for a brighter bulb.
- If glare washes out the surface instead, change your viewing angle or the source's direction and repeat the check.
Treat ceiling height as a geometry change
A low ceiling can put a fixture directly in your line of sight, which tends to make glare and hard-edged shadows more noticeable at the wheel. A higher ceiling often calls for broader ambient coverage, but the wheel still benefits from separate, lower-angle task light rather than relying on the ceiling fixtures alone. Ceiling height alone doesn't determine fit; use the category matrix below only as a starting point, then repeat the shadow test in your own room.
Evaluate IP, CCT, CRI, and electrical details by purchase impact
Each of these specifications changes a different part of the purchase decision, and none of them alone proves a fixture is right for your studio.
Translate technical terms into buying decisions
| Term or spec | Purchase implication | Limit of the claim |
|---|---|---|
| IP rating | The first digit indicates solid-particle ingress protection for that exact fixture | Does not prove wet-location approval, code compliance, or complete studio suitability |
| CCT (color temperature) | Describes the listed color appearance, which affects how glaze colors read | No universal pottery-specific CCT value is established; compare against your task |
| CRI (color rendering) | Indicates how accurately the source renders color relative to a reference | One comparison point, not proof of accurate clay or glaze inspection |
| Voltage, wattage, controls, mounting | Confirms electrical compatibility, dimming or sensor support, and physical fit | Missing documentation is a verification gap, not evidence the fixture will work |
Separate a product fact from a fit conclusion
Limit any product claim to the exact SKU or configuration the manufacturer documents; a spec sheet for one model doesn't transfer to a whole product line. A listed IP65 rating, voltage, output figure, CCT, or UL listing on one configuration doesn't by itself prove wheel-shadow control, a specific CRI value, mounting compatibility, or code compliance for your space. Before buying, check the current label, spec sheet, and installation instructions for the exact fixture you're considering rather than the family name on the packaging.
Choose a fixture category by ceiling height and task
The right fixture category depends on ceiling height and the task underneath it, not on brightness alone; use the table to narrow choices, then verify the exact SKU.
| Ceiling height | Task | Fixture category/use | Limitation or next check |
|---|---|---|---|
| Low (under 8 ft) | Wheel throwing | Compact, aimable task light at wheel height | Check for direct-view glare before adding output |
| Higher (10 ft+) | General studio ambient | Broad workshop-style ambient fixture | Still needs a separate lower wheel-side task light |
| Any height | Detail inspection/glazing | Close, repositionable task light | Test against real surface color and glare |
| Any height | Dusty prep or cleanup | Enclosed, cleanable fixture | Verify current IP documentation and access for cleaning |
For dust-exposed prep or cleanup areas, our LED vapor tight lights collection is one category worth reviewing, provided you confirm the exact model's IP documentation for your conditions. For higher-ceiling ambient coverage, some buyers start by browsing workshop-style high bay categories such as our BP Series high bay, but confirm that the specific configuration's documented specifications and mounting match your ceiling height and dust conditions before treating it as a wheel-area solution.
Complete the before-buying and before-installation checks
Two short checklists turn the plan above into a purchase and installation decision: one for the shopping cart, one for the day you mount the fixture.
Before buying
- Record the exact SKU or configuration name, not just the product family or collection.
- Confirm the current IP marking and locate readable supporting documentation for that exact model.
- Compare the listed CCT and CRI values against your visual task instead of assuming a series-wide figure.
- Check voltage, wattage, control or dimming compatibility, and mounting method against your space.
Before installation
- Confirm the mounting surface, height, and cleaning access match the fixture's documented conditions.
- Run the wheel-side glare and shadow test with the real vessel, your actual hand positions, and your tools.
- If wiring, mounting, voltage compatibility, location classification, or local code questions remain unresolved, pause and get a qualified professional's review before proceeding.
- Keep your dust-control and housekeeping practices in place independently of whatever fixture you choose.
FAQs
Does an IP-rated fixture automatically make a pottery studio lighting installation safe?
No. An IP code only describes documented ingress protection against solid particles and water for that specific fixture. It doesn't establish local code compliance, wet-location approval, mounting compatibility, or complete suitability for your studio. Check the exact product documentation, mounting requirements, and any project-specific conditions separately.
What should I do if shadows remain on the vessel wall?
Watch the vessel while it rotates and while your hands and tools move through the light, then identify whether the shadow follows your hand, the rim, or a tool. Reposition or re-aim one of your two task sources and repeat the check before assuming you need more overall output. There's no single spacing formula that works in every room, so treat this as a repeatable visual test rather than a one-time setup.
Do I need one specific CCT or CRI for throwing clay?
No universal pottery-specific CCT or CRI threshold is established in the available guidance. Compare the exact listed values for a fixture against your own visual task, and where possible, test a sample in your actual studio space before committing to a full installation.
When should I ask a qualified professional to review the lighting plan?
Bring in a qualified professional whenever wiring, mounting, voltage or control compatibility, location classification, or local code requirements are still unresolved for your specific space. This guide covers category selection and verification steps, but it doesn't replace a project-specific electrical or code review.
