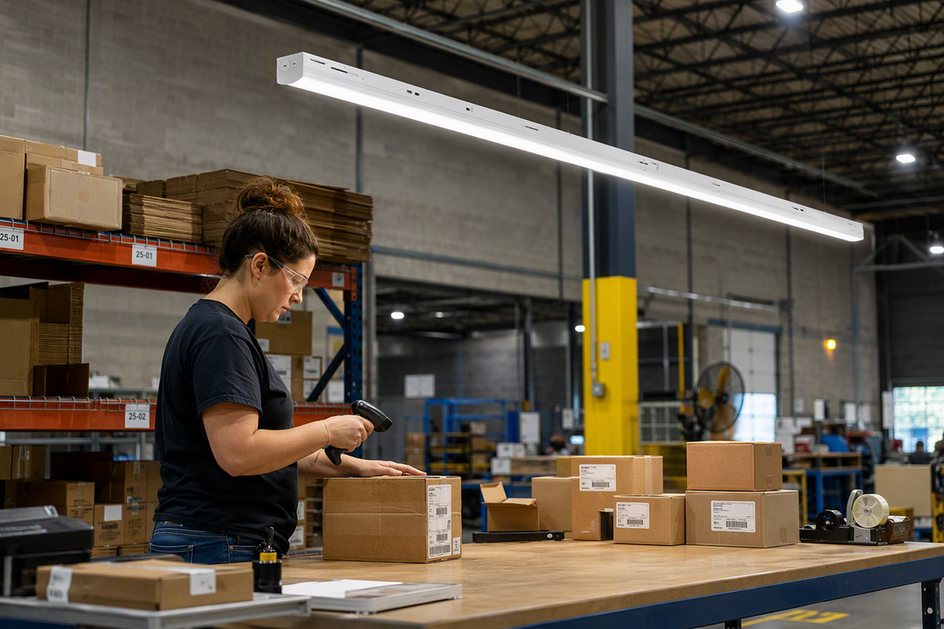

Aim for 50-75 footcandles of packaging station lighting for barcode scanning at the actual task plane. That range is the design target for this guide, not a certified barcode or safety standard. Illuminance alone cannot confirm that a scanner will read cleanly through clear tape or a glossy label, so check uniformity, reflected glare, and worker comfort before accepting the station.
Clear tape and glossy labels can bounce a bright, concentrated reflection straight back toward the scanner or the operator's eyes. That reflection can wash out the dark-and-light bars a scanner needs to tell apart, even when the meter reads well inside the target range. The sections below cover the design logic, the reflection mechanism, fixture choices by packaging condition, buyer verification, and a field validation sequence.
What 50-75 Footcandles Means at a Packaging Bench
50-75 footcandles is a provisional task-plane target for this guide, not a certified standard for barcode scanning. Meet it at the actual work surface first, then check the station separately for uniformity, glare, and scan performance.
Treat the Range as a Measured Design Target
Hold a light meter flat at the height and location where packages sit, not at floor level or under the fixture's brightest point. OSHA's 1926.56 illumination rule sets minimum footcandle levels for certain other job classifications, but it does not set a footcandle or contrast requirement for packaging benches or barcode scanning. Treat 50-75 footcandles as the working target for this project, then move to the next question: does the light reach the barcode without creating glare.
Separate Illuminance From Scan Quality
A meter reading inside 50-75 footcandles confirms enough light is arriving at the bench. It does not confirm the scanner can read the code. Reflected highlights, viewing angle, scanner type, and the packaging surface itself can all cut contrast at the barcode even when the ambient reading looks fine. Diagnose the actual problem before changing anything: is it low light, uneven light, or a bright reflection sitting on top of the code.
How Clear-Tape Glare Reduces Barcode Contrast
Clear tape and glossy labels behave like small mirrors instead of matte paper. When a light source sits at the wrong angle, that mirror-like surface throws a concentrated reflection straight back toward the scanner or the operator's eyes.
Why Clear Tape Can Create a Washout Highlight
A matte, diffuse surface scatters light in many directions, so a scanner sees a fairly even mix of light and dark bars. A glossy or clear surface instead returns a tight, bright highlight along one specific angle, the angle where the source, the surface, and the viewer line up. That concentrated highlight can sit directly over the barcode and lighten the dark bars until the scanner can no longer separate them from the light spaces, a symptom often described as washout. Fixture optics also shape how concentrated that reflection becomes; our low-glare optic guide compares how lens and reflector designs spread the beam, though that comparison alone does not prove a specific fixture will avoid glare on this bench.
The Geometry Variables to Change First
- Source angle relative to the barcode plane. Move or re-aim the fixture so the reflection angle does not point at the scanner's normal working position; watch the highlight shift as you change the angle.
- Fixture position and mounting height. Lower or reposition a fixture that sits directly above the scan point, since a steep angle over glossy tape is more likely to create a mirror-like return.
- Scanner viewing angle and working distance. Change the angle or distance the operator holds the scanner at; a slightly off-axis read can avoid the same hot spot a straight-on scan hits.
- Surface orientation, diffusion, shielding, or controlled dimming. Tilt the package, add a diffusing lens or shield, or dim the source in that zone before adding more total light.
Keep Scanner Type in the Decision
Laser and imaging scanners do not necessarily respond the same way to a glossy surface or a bright reflection, and settings vary between models. Use the intended scanner's current manufacturer instructions as the final reference for acceptable lighting and surface conditions for that specific unit.
Choose Fixture Placement and Optics by Packaging Condition
Match the placement and optical response to what is actually happening at the bench: a reflective package, a fixed layout, or a mixed packaging line each call for a different first move. When evaluating warehouse packaging table lighting and barcode scanner reflection, use the table below as a starting decision, then confirm the result with the checks in the following sections.
| Condition | First response | What to observe | Verification outcome |
|---|---|---|---|
| Reflective packaging (clear tape, glossy labels) | Move the source off the scanner's reflection path; add a diffuser or shield | Highlight position relative to the barcode | Retest scan after each angle change |
| Fixed bench, stable layout | Mount at a repeatable height and angle; map footcandles at several task points | Even coverage across the whole bench | Consistent readings and consistent scans at each point |
| Variable packaging mix | Use adjustable position, tunable output, or dimming | The worst-case glossy or clear sample | Test the hardest surface, not the easiest one |
When Fixed or Adjustable Lighting Is the Better Fit
Fixed lighting suits a bench where the task plane, package size, and flow stay the same day to day, because the geometry only needs solving once. Adjustable or dimmable lighting is more useful when operators handle different package shapes, tape types, or barcode positions during a shift, since a reflection angle that caused glare on one package may not affect the next. Either approach still needs the same on-site check: confirm scan performance across the range of packaging the bench actually handles, not a single best-case sample. Our bench lighting guide compares bench, wall, and combined placements for close task work like this.
Before You Buy: Verify Photometry, Controls, and Fit
Confirm the fixture's documented output, controls, and mounting fit before treating any purchase as a solution for this bench. Features like adjustable wattage or dimming describe what a fixture can do, not whether it will solve glare at this specific station.
Photometry and Mounting Evidence
- Photometric file or layout for the exact SKU. Request the manufacturer's IES file or documented distribution instead of relying on total lumens; lumens alone do not predict task-plane coverage or reflected hot spots.
- Mounting height and location matched to the bench. Compare the fixture's documented mounting options against the bench's actual ceiling height, task-plane distance, and available mounting points.
- Distribution and likely reflection path. Check whether the documented beam angle would place a concentrated source directly over the scan point before installing anything.
Controls and Electrical Documentation
- Input voltage and total connected load. Confirm the fixture's voltage range and wattage against the circuit and the number of fixtures planned for the run.
- Dimming and control compatibility. Check whether the fixture's dimming driver and control range match any dimmer or lighting-control system already installed.
- Current installation instructions and ratings. Review the manufacturer's current manual and ratings rather than assuming a similar-looking model shares the same specifications.
As one example of what to look for, the current MLF04 linear fixture listing documents four selectable wattage levels, five selectable CCT options, a 1-10V dimming driver with a 10%-100% dimming range, universal 120-277 VAC input, and surface, chain, or steel-wire mounting. Those documented features describe the SKU's specification sheet; they do not confirm a result for any particular packaging bench, so a specific mounting configuration and an on-site scan test are still needed to confirm fit.
When to Withhold a Product Recommendation
Withhold any product recommendation until the exact configuration, current photometric data, and an on-site scan test with the intended scanner are documented for this bench. A fixture that lists strong specifications on its product page has not yet been shown to solve glare on a particular clear-tape surface; that conclusion still depends on the site's mounting geometry, ambient light, and the scanner in use.
Measure and Validate the Finished Station
Measure the installed station before accepting it: check illuminance at the real task plane, then test scans with the actual scanner on representative packaging. A reading inside the target range only confirms one part of the job.
Run the First Field Validation
- Measure illuminance at the task plane and at representative barcode surfaces, not just the center of the bench.
- Repeat the reading at several points across the usable bench area and at the positions where packages actually sit during scanning.
- Record the fixture's current setting, ambient light condition, scanner model, and the packaging sample used for each reading.
Test Scan Readability and Reflected Highlights
Scan representative packages, including the glossiest tape or label the bench handles, with the scanner operators normally use. Watch for both a successful read and a visible bright highlight from the operator's and the scanner's usual viewpoints, since a highlight that is easy to miss standing upright can still sit directly in the scanner's line of sight. Change one variable at a time, whether a fixture angle, a shield, or an output adjustment, then rescan before making a second change. Collect feedback directly from the operators who scan and pack at this bench; OSHA's ergonomics process supports identifying glare or awkward-viewing complaints, testing a change, and reassessing whether it actually solved the problem.
Apply the Installation Boundary
Keep electrical work at the documentation-review stage. This guide does not cover live wiring, circuit design, or panel and breaker sizing. For load calculations, circuit questions, or installation steps beyond following the manufacturer's instructions, use a qualified electrician.
FAQs
Is 50-75 footcandles a universal barcode-scanning standard?
No. The 50-75 footcandle range in this guide is a project design target, not a certified barcode, ergonomic, or OSHA standard. Treat it as a starting point for measurement, then validate the actual station with a scan test on representative packaging before accepting the result.
Can more light make clear-tape barcode glare worse?
Yes, conditionally. If the barcode is washing out because of a reflected highlight rather than low light, adding output can make that same highlight brighter without helping the scanner see the code. Change the source angle, position, or shielding first, then retest before increasing total light.
Where should I measure footcandles at a packaging station?
Measure at the actual task plane, at the height and location where packages sit during scanning, and at representative barcode surfaces rather than only below the fixture. Take several readings across the working area, since one convenient reading near the center of the bench can miss dim corners or reflective hot spots.
Is any dimmable linear fixture suitable for barcode scanning?
No. Dimming and selectable output describe a fixture's controls, not whether it fits this application. Confirm the exact SKU's photometry, mounting geometry, voltage, and current installation instructions, then test the installed result with the intended scanner before accepting it.
