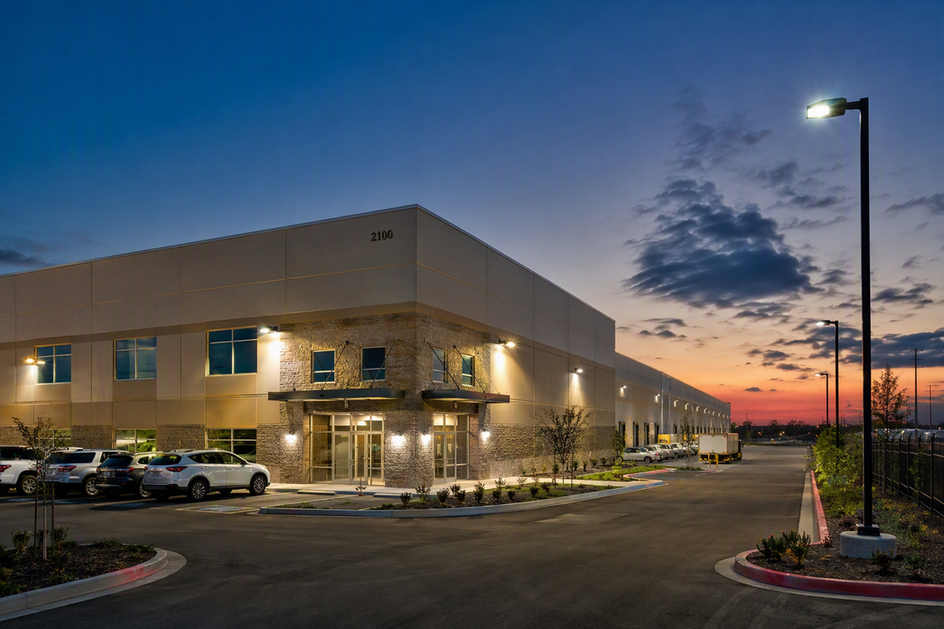

Can One Photocell Control Every Exterior Lighting Zone?

For dusk to dawn outdoor lighting, one photocell can control several exterior lighting zones, but only when the control architecture, documented loads, schedules, and installation requirements all line up. There is no universal fixture count that makes this safe to assume. This guide is a planning tool, not a wiring or code manual. It helps you sort entrances, walls, parking, and perimeter lighting into shared-zone candidates, separate-zone candidates, or unresolved items that need more documents before you buy or install anything.

Can One Photocell Control Multiple Exterior Lighting Zones?

The short answer is conditional: yes, if the control system is built and documented to distribute that photocell's signal to every intended load, and no, if you are relying on a single fixture-mounted sensor to somehow reach fixtures it was never wired to control.

The Short Answer Is Conditional

For dusk-to-dawn outdoor lighting, the key distinction is the control path, not the number of fixtures. A photocell signal can be distributed through a documented control architecture, such as a relay panel or a networked controller, to multiple assigned loads. According to the Department of Energy's outdoor lighting control fundamentals, a basic photocell is typically a simple on/off field device, while broader outdoor-control systems combine sensors, schedules, events, and relays to manage more complex layouts. A standalone photocell screwed into one fixture is not automatically a control point for other fixtures or zones. That link has to be built into the system on purpose and confirmed in writing.

The Five Conditions for a Shared Zone

Before you treat any group of exterior areas as a single photocell zone, confirm all five of these:

• The areas need the same daylight response, meaning they should turn on and off at the same light level.
• The areas need the same operating schedule, with no exceptions for curfews or activity windows.
• The control documentation shows every intended load is actually assigned to that photocell's output.
• Voltage, total load, inrush, and control-signal compatibility have been verified for the combined group, not just one fixture.
• The consequence of one shared failure is something the property is willing to accept.

If any one of these is unclear, treat the shared arrangement as unresolved rather than approved.

Which Exterior Areas Can Share One Photocell Zone?

Areas can share a zone when their daylight exposure and operating schedule create the same control objective. Areas with different exposure, activity levels, or security timing should not be grouped by default.

Likely Shared-Zone Candidates

Entrance and wall lighting often make reasonable shared-zone candidates because they frequently need the same dusk-to-dawn behavior:

• Entrance and wall groups that share the same intended dusk-to-dawn objective, such as turning on together at dusk and off together at dawn
• Areas with comparable exposure to open sky and similar nearby obstructions, so one sensor location represents both areas accurately
• Groups that are meant to turn on, stay on, and turn off together with no separate override

Reasons to Keep the Areas Provisional

Even entrances and walls should stay provisional until you check for these differences:

• Different building orientations or shade patterns that change when each area actually needs light
• Parking activity that ends earlier or later than perimeter or access-route needs
• A site requirement for timed, dimmed, or independently reviewed operation in one of the areas

The DOE guidance on purchasing energy-efficient exterior lighting notes that exterior lighting has multiple control options. For each area, identify whether the required trigger is daylight, a schedule, or activity before deciding that it matches its neighbors.

When Should Exterior Lighting Use Separate Photocell Zones?

Use separate zones when any area has a different schedule, different daylight exposure, a different operational priority, or a shared-failure consequence you are not willing to accept. The matrix below sorts common commercial areas into shared, separate, or unresolved results.

Exterior Control-Zone Decision Matrix

How to Use the Result

Use a shared zone only when every relevant field in a row points the same direction and the required documents exist. Choose separate zones the moment one decision-changing difference shows up, such as a different schedule or an unacceptable failure consequence.

What Documents Must You Verify Before Buying or Changing a Shared Photocell?

Treat any proposed shared arrangement as one combined application, not a set of individually rated fixtures. Gather the records below before you buy or change anything.

Fixture and Load Records

• Fixture model and driver information for every unit in the proposed group
• Operating voltage and total connected load across all assigned fixtures
• LED-driver inrush or other manufacturer-provided switching information for the combined load

Control and Application Records

• Photocell, relay, or controller model and its documented rating
• Sensor placement and exposure requirements, including clearance from fixture light and obstructions
• Control type, 0-10V behavior where applicable, and the manufacturer's current installation instructions

A 0-10V label by itself does not prove that different fixtures will respond the same way to one signal. The DOE primer on networked outdoor lighting controls points out that the relationship between the signal and actual light output can vary by luminaire, so the real documents have to confirm it. Once you know these fields, our photocell lighting options can help you compare fixtures by category, though the category itself does not establish compatibility for your specific combined load.

Apply the unresolved rule above. The records must identify the combined load and control requirements for the actual fixture and driver group.

When Should a Manufacturer or Qualified Electrician Verify the Plan?

Escalate before buying or changing anything when a document gap could flip the shared-versus-separate result, or when an existing system is already showing unexplained behavior.

Escalate for Technical Verification When

• The combined load, inrush, voltage, sensor rating, or control type cannot be confirmed from current documents
• The proposed fixture and control documents describe different applications rather than one consistent setup
• Lights stay on, cycle, or respond differently across groups and the cause is not documented

If commissioning details, sensor behavior, or system documentation are unclear, use qualified support rather than trial and error.

Escalate for Project Review When

• The project specification or local authority requirements are unknown
• The zone affects security-sensitive access, perimeter, or emergency-related operations
• A proposed change alters an existing control system whose records are incomplete

Stop before purchase or modification when the control path or project requirements cannot be confirmed from current documents. Use a qualified electrician or other responsible project professional for installation, electrical diagnosis, and local requirement review; this guide does not provide wiring or code instructions. If you have gathered your documents but still cannot confirm the architecture, our lighting support team can help you sort next steps.

How Should a Property Manager Document the Zone Decision?

Record one matrix row per exterior area so the decision stays traceable for purchasing, installation, and future maintenance.

1. List each exterior area separately, such as entrances, walls, parking, and perimeter, instead of making one property-wide assumption.
2. Record the daylight exposure and operating schedule you have confirmed for that area.
3. Record the shared-failure consequence the property is willing to accept for that area.
4. Attach the current fixture, driver, and control documents gathered for that row.
5. Assign an owner and an escalation status so unresolved rows get a next action instead of a guess.

Keep this matrix as a project record. Our commercial zone records guide covers building similar repeatable zone files with status labels and a clear submit-or-gather rule for larger, multi-building projects. Use the matrix to select a shared-zone candidate only when the common objective and combined control path are documented. Otherwise, record separate-zone or unresolved status and assign the next document or professional review.

FAQs

Can One Photocell Control Multiple Outdoor Lights?

Yes, but only conditionally. The control architecture has to be built to distribute that photocell's signal to every intended load, and those loads need to share the required daylight response, schedule, and documented compatibility. Fixture count alone does not answer the question.

Should Parking Lot and Building Lights Share a Photocell?

Parking areas should be separate-zone candidates when their activity window or operational priority differs from entrances or walls, or when a shared failure would remove lighting from a security-sensitive entrance, perimeter, or access route. Use a shared zone only when their daylight and schedule objectives match and the shared-failure consequence is acceptable.

Why Do Exterior Lights Stay on or Cycle?

Record what you are seeing, including which groups are affected and when. Then review sensor exposure and your current fixture and control documents before assuming the photocell itself is at fault. If the cause is not clear from those documents, escalate to a manufacturer or qualified electrician for system-level review.

Does a Fixture Rating Prove Shared Photocell Compatibility?

No. An individual fixture's voltage, wattage, built-in photocell, or 0-10V label does not prove the entire shared control path is compatible. Match the actual fixture, driver, control, load, inrush, and signal documentation for the full combined application before treating any group as approved for one shared zone.
