NEC Code Checklist for LED Wall Pack Installation

For professional electricians and contractors, a "solid" installation isn't just about the light turning on; it is about long-term reliability and strict adherence to the National Electrical Code (NEC). Outdoor security lighting, particularly LED wall packs, faces unique environmental stressors—from wind loads on masonry to moisture accumulation in conduit. Failing to follow code not only creates safety hazards but also exposes your business to liability and failed inspections.

In our field experience working with large-scale commercial retrofits, we have observed that the most common points of failure aren't the LED chips themselves, but the infrastructure supporting them. This guide provides a pragmatic, code-centric checklist to ensure your next wall pack installation is compliant, safe, and built to last.

For a broader view of current industry benchmarks, we recommend reviewing the 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights.

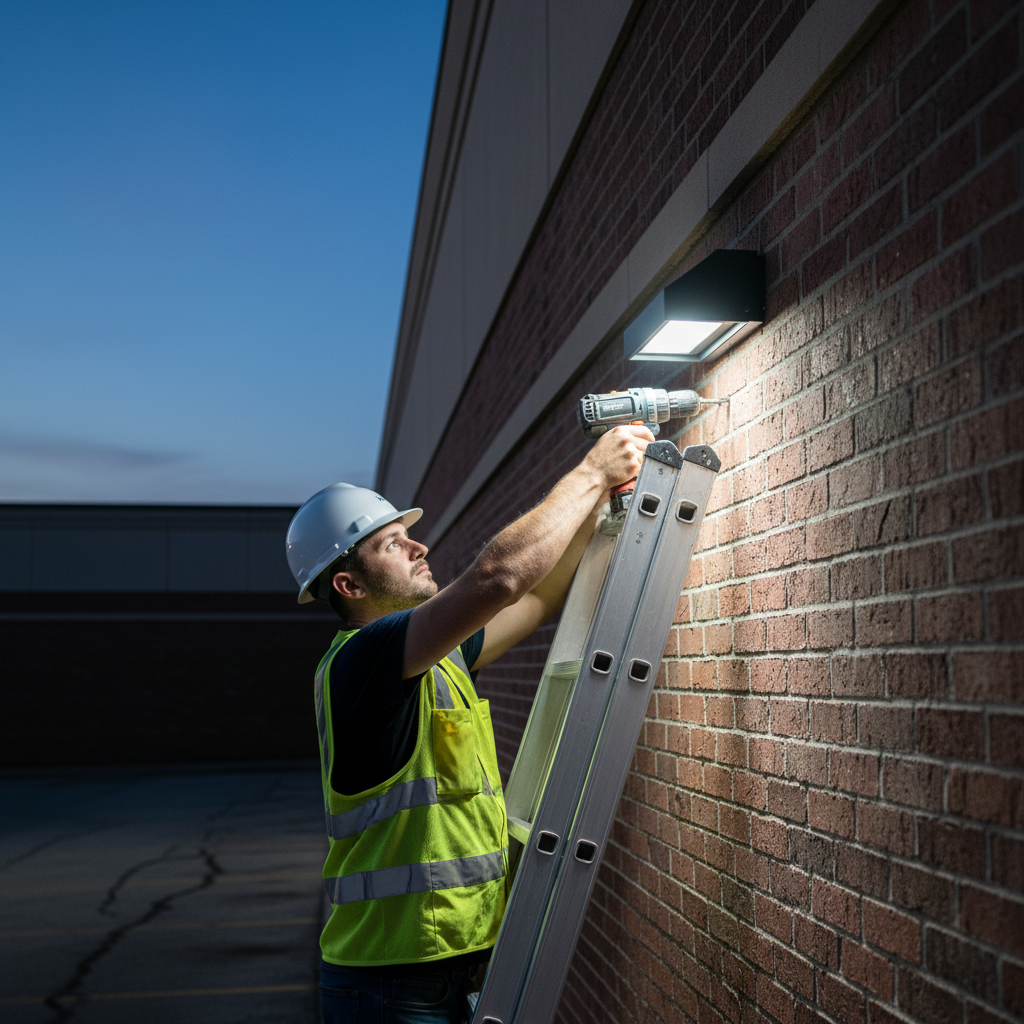

Professional electrician in high-visibility vest and hard hat installing a commercial LED wall pack fixture on a brick exterior wall during dusk, emphasizing code-compliant mounting and wiring practices.

1. Pre-Installation: Verification and Compliance

Before a single hole is drilled, you must verify that the hardware meets the rigorous safety and performance standards required for commercial environments.

Safety Certifications (UL/ETL)

The NEC is explicit about using equipment that has been evaluated by a National Recognized Testing Laboratory (NRTL). According to UL 1598 – Luminaires, fixtures must be tested for thermal management and electrical safety in their intended environment.

UL Listed vs. UL Recognized: Ensure the fixture is "UL Listed" as a complete assembly. "UL Recognized" components (like a driver) are not sufficient for a field installation unless the entire luminaire carries the Listing mark.
Wet Location Marking: NEC 410.10(A) requires luminaires installed in wet or damp locations to be specifically marked for such use. We often see installers mistake "damp-rated" fixtures for "wet-rated" ones. A wall pack exposed to rain must be wet-location listed.

Energy Performance (DLC QPL)

While the NEC focuses on safety, your client’s Return on Investment (ROI) depends on energy efficiency. Verify the product on the DesignLights Consortium (DLC) Qualified Products List (QPL).

Rebate Eligibility: Most utility providers require DLC Premium status to qualify for the highest tiers of utility rebates.
LM-79 and LM-80 Reports: These are the "performance report cards" of the fixture. IES LM-79-19 measures the initial performance, while IES LM-80-21 tracks lumen maintenance over time.

Logic Summary: Our verification process assumes that an NRTL listing is the legal baseline, while DLC certification is the financial baseline. This dual-track verification ensures compliance with both the Authority Having Jurisdiction (AHJ) and the client's budget.

2. Structural Mounting and Integrity

The physical attachment of a wall pack is governed by NEC 110.13, which requires electrical equipment to be "firmly secured to the surface on which it is mounted."

Mounting on Masonry and Brick

One of the most frequent errors we see on job sites is the use of plastic plugs or light-duty lead anchors on brick facades. Under high wind loads, these can pull out, leading to fixture damage or injury.

The Mortar Rule: Always drive concrete screws or anchors into the mortar joint, not the face of the brick. Brick faces are prone to cracking and spalling under the expansion pressure of an anchor.
Through-Bolting: For heavy, high-output wall packs, we recommend through-bolts with a backing plate on the interior of the wall to distribute the load.

Torque Specifications

Modern LED drivers are sensitive components. Overtightening mounting screws or terminal blocks can crack the internal circuit board, while undertightening leads to arcing.

Heuristic: Use a torque screwdriver to tighten terminal screws to the manufacturer's spec, typically between 8–10 in-lbs.
Consequence of Error: Undertightened terminals create high-resistance points that generate heat, eventually causing the wire insulation to melt and the driver to fail prematurely.

Three exterior wall-mounted LED fixtures on brick, corrugated metal, and stucco walls showing bracketed and recessed installations for commercial security and site illumination.

3. Wiring Methods and Circuit Integrity

Wiring for outdoor security lights requires a deep understanding of NEC Article 300 (Wiring Methods) and Article 250 (Grounding and Bonding).

Conductor Selection: THWN vs. NM Cable

A common and dangerous mistake is running standard Non-Metallic (NM) "Romex" cable through conduit to an outdoor fixture.

The Trap: NM cable is not rated for wet locations. Even inside a conduit, outdoor environments are considered "wet" due to condensation. NEC 334.12(B)(4) prohibits NM cable in these scenarios.
The Solution: Use individual THWN (Thermoplastic High Heat-resistant Nylon-coated) conductors. These are designed for wet locations and provide the necessary durability for outdoor runs.

Voltage Verification

When working with 277V or 480V commercial systems, verification is critical.

Testing Protocol: Always test phase-to-phase and phase-to-ground. Assuming a system is 120/240V split-phase without testing can lead to catastrophic equipment failure or severe electrical shock.
Mixed Voltages: If you are running multiple circuits in the same conduit, ensure all conductors have an insulation rating equal to the highest voltage present (NEC 300.3(C)(1)).

Grounding and Bonding

Grounding provides a path for fault current, while bonding ensures all metal parts are at the same potential.

NEC 250.104(A): If you are mounting to a metal building or using metal conduit, ensure the system is bonded back to the building's grounding electrode system.
Local Variations: Be aware that some local AHJs require explicit bonding of metal mounting structures even if the NEC doesn't strictly mandate it for that specific height.

Methodology Note (Wiring Analysis):

Parameter Value/Range Unit Rationale

Conductor Type THWN-2 N/A Wet location rating (NEC 310.10)

Terminal Torque 8–10 in-lbs Prevention of board stress/arcing

Insulation Rating 600 Volts Standard for commercial branch circuits

Max Voltage Drop 3 % Recommended by NEC for efficiency

Conduit Fill < 40 % Standard for 3+ conductors in EMT

4. Environmental Sealing and Protection

Outdoor fixtures must withstand more than just rain; they must handle snow, dust, and mechanical impact.

IP and IK Ratings

Referencing IEC 60529 (IP Ratings) and IEC 62262 (IK Ratings) allows you to quantify the durability of the fixture.

IP65: This is the standard for wall packs, meaning the fixture is "dust tight" and protected against water jets.
IK08/IK10: For high-traffic areas or areas prone to vandalism, look for high IK ratings, which measure resistance to mechanical impact in Joules.

Conduit Seals and Drainage

NEC 110.12 mandates a "neat and workmanlike" installation. In wet locations, this means more than just a clean look; it means preventing water from entering the electrical system.

Entrance Caps: Use listed, waterproof conduit entrance caps.
The Weep Hole: While the fixture should be sealed at the top and sides with high-quality silicone, many experts suggest leaving a small gap or "weep hole" at the very bottom of the fixture-to-wall seal. This allows any internal condensation to escape rather than pooling around the driver.

High-ceiling industrial warehouse aisle illuminated by LED high bay fixtures; light meter reading and a clipboard labeled IES RP-7 indicate photometric testing and compliance documentation.

5. Controls and Energy Code Compliance

Modern installations must often comply with energy codes like ASHRAE 90.1-2022 or California Title 24.

Occupancy and Daylight Sensing

Code often requires that outdoor lights be automatically reduced or turned off when daylight is available or when the area is unoccupied.

Photocells: Ensure the photocell is positioned where it won't be "tricked" by the light from the fixture itself or adjacent streetlights.
0-10V Dimming: Most commercial wall packs now feature 0-10V dimming. According to NEMA LSD 64, clear terminology is essential for troubleshooting dimming circuits. Ensure your Class 1 and Class 2 wiring is properly separated as per NEC Article 725.

Lighting Power Density (LPD)

Energy codes set limits on how many watts can be installed per square foot. High-efficacy LEDs (measured in lumens per watt, or lm/W) are the primary tool for meeting these limits. We recommend using a Lighting Layout Calculator during the design phase to ensure you aren't over-lighting the space, which can lead to code violations and light pollution.

For more information on specialized mounting, see our guide on Mounting Fixtures in High-Impact & Vibration Zones.

Exterior metal pole-barn with a roll-up garage door and a single surface-mounted LED wall pack on corrugated metal siding.

Final Inspection Checklist

Use this checklist to ensure your installation is project-ready and compliant:

[ ] Certification: Fixture is UL/ETL Listed for "Wet Locations."
[ ] Circuitry: Voltage verified phase-to-phase; conductors are THWN/THHN.
[ ] Mounting: Hardware is rated for the wall material; screws torqued to 8-10 in-lbs.
[ ] Grounding: Continuity verified between the fixture housing and the building ground.
[ ] Sealing: Conduit entries are sealed; top and sides of the fixture are caulked.
[ ] Controls: Photocell and/or motion sensors are tested and functional.
[ ] Documentation: LM-79/LM-80 reports and warranty information are provided to the owner.

Addressing Common Friction Points

In our experience, the "small things" often cause the biggest headaches. For instance, the specific "burning sensation" in the forearms from holding a heavy fixture while trying to start a screw can be avoided by using fixtures with a "hinged" backplate design. This allows the backplate to be mounted first, with the front housing hanging safely during wiring.

Furthermore, always check the FCC Part 15 compliance of the driver. In sensitive environments like hospitals or laboratories, a non-compliant LED driver can cause electromagnetic interference (EMI) with critical equipment.

Pair of adjustable, rugged LED flood fixtures bolted to a concrete pad and a brick wall, aimed over a loading yard, showing commercial-grade mounting.

Professional Reliability

By following this NEC code checklist, you aren't just installing a light; you are providing a professional, compliant service that protects your reputation and your client's property. For further technical support or to download IES files for your next photometric layout, visit our Official FAQ and Support Hub.

Disclaimer: This article is for informational purposes only and does not constitute professional electrical engineering or legal advice. Electrical work should only be performed by a licensed professional in accordance with the National Electrical Code (NEC) and all local building codes.
