In modern logistics and high-rack warehousing, the efficiency of a lighting system is frequently misjudged by a single, misleading metric: total lumen output. While high-lumen fixtures are necessary for illuminating vast spaces, the true measure of a "project-ready" installation lies in optical control. For narrow-aisle environments, where racks often reach 30 feet or higher, undirected light becomes a liability rather than an asset.
Photometric simulation, powered by IES (Illuminating Engineering Society) data, is the only reliable method to predict and mitigate "light spill"—the phenomenon where illumination is wasted on the tops of racks or upper-tier pallets rather than reaching the floor where active picking and forklift operations occur. Precision in beam distribution directly correlates to reduced energy waste, improved worker safety, and a significantly faster Return on Investment (ROI).
The Technical Foundation: Beyond the Lumen Trap
Specifying lighting based solely on lumens per watt (lm/W) is a common pitfall. A fixture may boast 30,000 lumens, but if those lumens are dispersed in a wide, uncontrolled 120° pattern within an 8-foot wide aisle, up to 20% of the light will be absorbed by the top-tier inventory. This results in "hot spots" at the ceiling level and insufficient foot-candles (fc) at the floor level.
To avoid this, professional specifiers rely on two critical documents:
- IES LM-79-19 Report: This is the "performance report card" for a fixture. According to the IES LM-79-19 Standard, this document provides precise measurements of total luminous flux, electrical power, efficacy, and, most importantly, the luminous intensity distribution.
- IES (.ies) File: Defined by the IES LM-63-19 Standard, this electronic file contains the photometric data required by simulation software like AGi32. Without a verified .ies file, a lighting designer cannot accurately model how light will behave in a narrow aisle.
Decoding Candela Distribution for Narrow Aisles
The shape of the light—its candela distribution—is far more critical than its raw power. In narrow-aisle warehouses, the goal is to achieve high vertical illuminance on the rack faces while maintaining uniform horizontal illuminance on the floor.
The 90° vs. 120° Beam Angle Comparison

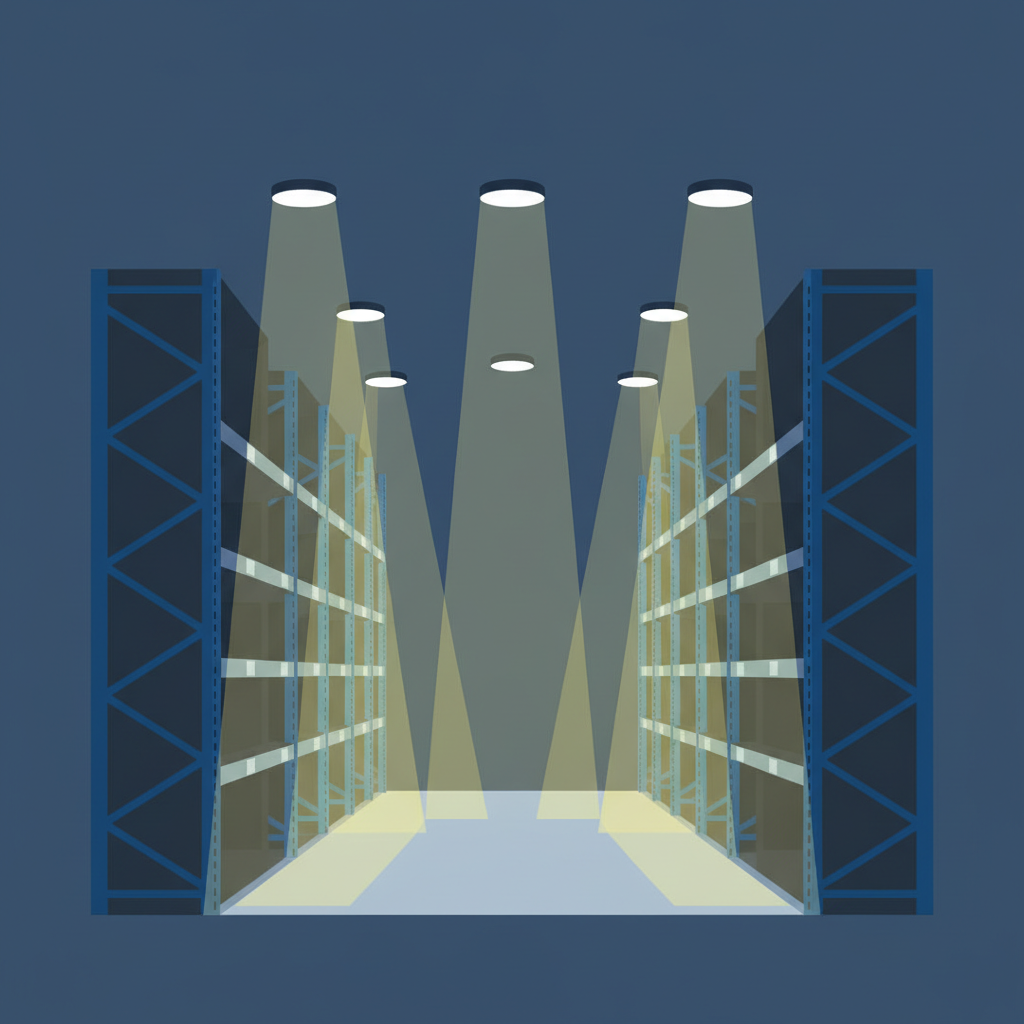

Most standard circular high bays feature a 120° beam angle, which is ideal for open manufacturing floors. However, in narrow aisles, a 120° distribution creates excessive spill. Professional-grade fixtures often utilize 90° or even 60° narrow-beam optics (typically achieved through polycarbonate lenses or aluminum reflectors) to "punch" the light down to the work plane.
The 10-15% Candela Rule: A useful heuristic for specifiers is to examine the candela values at high vertical angles (70–80 degrees from the nadir, or straight down). If the intensity at these angles exceeds 10-15% of the maximum candela, significant spill onto high racks is guaranteed. This spill creates glare for forklift operators looking upward and wastes energy on non-critical surfaces.
Scenario Simulation: The ROI of Precision Optics
To demonstrate the impact of optical control, we modeled a typical high-ceiling warehouse retrofit. This simulation compares a legacy 400W Metal Halide (MH) system against a modern 240W circular LED high bay utilizing 90° narrow-beam optics.
Simulation Parameters:
- Facility Size: 200 x 60 ft (12,000 sq. ft.)
- Ceiling Height: 30 ft
- Aisle Width: 10 ft
- Operating Hours: 6,000 annual hours (approx. 16 hours/day)
- Electricity Rate: $0.16/kWh
- Rebates: $4,000 (Estimated via DSIRE Database)
Table 1: Comparative Performance & Financial Impact
| Metric | Legacy 400W Metal Halide | Precision 240W LED (90°) | Variance / Savings |
|---|---|---|---|
| System Watts (per fixture) | 458W | 240W | -218W |
| Total Fixtures | 40 | 40 | 0 |
| Annual Energy Use | 109,920 kWh | 57,600 kWh | -52,320 kWh |
| Annual Energy Cost | $17,587 | $9,216 | $8,371 Savings |
| Maintenance Cost (Annual) | $2,320 | $0 | $2,320 Savings |
| HVAC Cooling Credit | $0 | $329 | $329 Savings |
| Total Annual Savings | -- | -- | $11,020 |
| Payback Period | -- | -- | ~3.5 Months |
Note: HVAC cooling credit assumes a 0.33 interactive factor based on reduced lighting heat load in a climate-controlled facility.
Why This Logic Holds:
The energy savings are calculated using the standard formula: (Legacy Watts - LED Watts) * Quantity * Hours * Rate / 1000. By reducing the system wattage from 458W (including ballast draw) to 240W, the facility saves over 52,000 kWh annually. Furthermore, the 90° optics ensure that the light is concentrated in the aisle, maintaining the 10:1 horizontal-to-vertical illuminance ratio recommended for safe label recognition in high-density storage.
Compliance and "Project-Ready" Standards
For a facility manager or architect, a fixture must be more than just bright; it must be compliant. In the B2B sector, compliance is the bridge between a "cheap" light and a "value-professional" investment.
1. DLC Premium and Utility Rebates
To qualify for the highest tier of utility rebates, fixtures should be listed on the DesignLights Consortium (DLC) Qualified Products List (QPL). DLC 5.1 standards now include requirements for "Spectral Quality" and "Glare Control," which are essential for preventing worker fatigue in narrow aisles.
2. Safety and Durability (UL/ETL & IP Ratings)
In industrial settings, fixtures must meet UL 1598 safety standards for fixed luminaires. Additionally, high-rack warehouses often have dust accumulation or moisture from HVAC systems. An IP65 rating (Ingress Protection), as defined by IEC 60529, ensures the fixture is dust-tight and protected against water jets.
3. Energy Codes (ASHRAE 90.1 & Title 24)
New constructions must adhere to strict Lighting Power Density (LPD) limits. According to ASHRAE Standard 90.1-2022, modern warehouses are often limited to 0.40–0.50 watts per square foot. High-efficacy LEDs (140+ lm/W) are required to meet these targets while providing sufficient light. In California, Title 24, Part 6 further mandates multi-level dimming and occupancy sensing, which are easily integrated into 0-10V dimmable LED drivers.
Professional Specifying Checklist: Minimizing Spill
When finalizing a lighting layout for narrow aisles, follow these expert-verified steps:
- Step 1: Request the LM-79 and IES Files. If a manufacturer cannot provide these, they are not project-ready. Use these files in AGi32 or a similar lighting simulation tool to verify floor-level foot-candles.
- Step 2: Check the Spacing-to-Height Ratio. For 30-foot ceilings, a common rule of thumb is to space fixtures 1 to 1.5 times the mounting height. However, in narrow aisles, this must be tightened to ensure vertical uniformity.
- Step 3: Verify Lifetime Projections. Look for IES LM-80 data and TM-21-21 calculations. A claim of "100,000 hours" is meaningless without the mathematical projection showing $L_{70}$ (70% lumen maintenance) at that duration.
- Step 4: Assess Color Consistency. Use ANSI C78.377-2017 to ensure the CCT (Correlated Color Temperature) is consistent across all fixtures. For warehouses, 5000K (Daylight) is often preferred for alertness, while 4000K (Neutral White) reduces glare in lower-ceiling applications.
The Strategic Advantage of Photometric Control
Precision lighting is not merely an aesthetic choice; it is a financial strategy. By simulating light spill before the first fixture is installed, specifiers can reduce the total fixture count, lower the LPD, and ensure that every watt of electricity purchased translates into usable light on the warehouse floor.
As outlined in the 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights, the industry is moving toward "Value-Pro" solutions—products that provide the technical depth of enterprise brands with the accessibility of modern procurement. In the high-stakes environment of narrow-aisle logistics, the difference between success and waste is found in the data.
Disclaimer: This article is for informational purposes only and does not constitute professional engineering, electrical, or financial advice. Always consult with a licensed electrical contractor and a qualified lighting designer to ensure compliance with local building codes (NEC) and safety regulations.
Sources
- DesignLights Consortium (DLC) Qualified Products List
- IES LM-79-19: Optical and Electrical Measurements of Solid-State Lighting Products
- ANSI/IES RP-7-21: Recommended Practice for Lighting Industrial Facilities
- ASHRAE Standard 90.1-2022: Energy Standard for Buildings
- DSIRE: Database of State Incentives for Renewables & Efficiency
