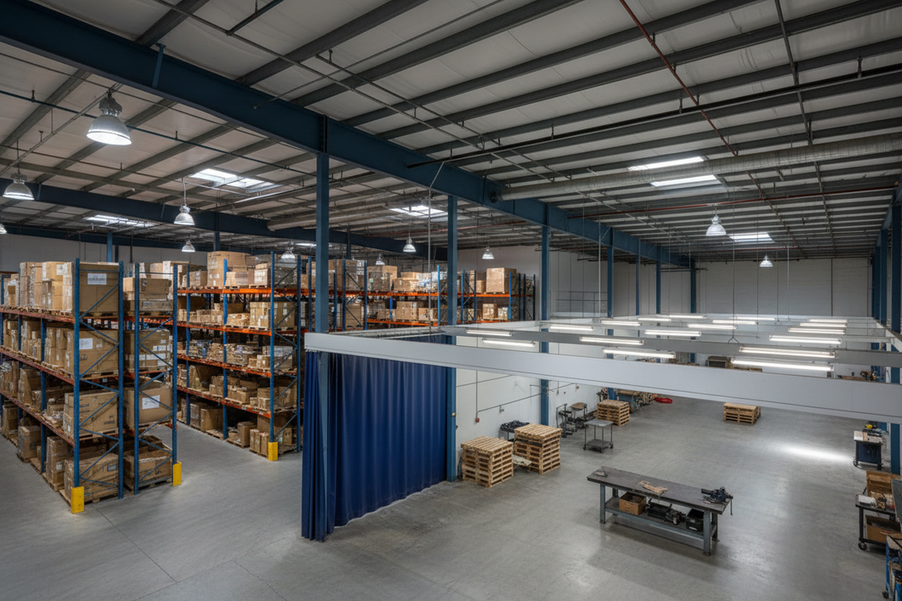

Mixed-height warehouses usually need separate zones when ceiling height, usable mounting height, rack geometry, task use, access, or mounting constraints change the lighting assumptions. Keep areas together only when those inputs remain comparable and one verified layout can serve them. Start by marking the zone boundaries, then match each area to its work and prepare a documented brief before buying warehouse lighting fixtures.
Split the Warehouse Into Separate Warehouse Lighting Zones First
Use a five-input rule for warehouse lighting zones: height or usable mounting condition, rack and aisle geometry, task, access, and mounting constraints. If any one of these could change coverage, glare, shadowing, fixture assumptions, or maintenance, treat the area as a separate planning zone until a verified design shows that it can share a layout.
| Area condition | Keep with another zone when | Split into a new zone when |
|---|---|---|
| Low perimeter area beside a tall bay | Usable mounting conditions, tasks, clearances, and access remain comparable | Lower clearance changes direct-view glare, distribution, mounting, or service access |
| Tall racked aisles | Rack orientation, aisle geometry, stored goods, and picking tasks match | Rack faces, aisle direction, obstructions, or picking and inspection points change the coverage question |
| Tall open floor or bulk storage | Working surfaces, travel paths, obstructions, and tasks match the adjacent area | Open-floor geometry differs materially from nearby racks or task areas |
| Staging, packing, or workstations | The same task, surface, equipment, and operating conditions apply | Inspection, packing, workstation, vehicle, or pedestrian activity needs different distribution or glare treatment |
| Mezzanine, office edge, or service corridor | Mounting points, access, electrical assumptions, and use match the main space | The structure, clearance, occupancy, service access, or mounting method changes |
The table is a planning selector, not an engineered lighting result. For example, a low front section beside a tall racked center may deserve its own zone even when both areas are in one open room. A small warehouse can also need several small warehouse lighting zones when aisles, staging, and workstations have different geometry or tasks.
Keep two areas together only when their dimensions, usable mounting height, mounting points, rack arrangement, task, obstructions, access method, operating requirements, and electrical assumptions are comparable. Record those inputs for every proposed zone. If the complete set is not comparable, carry the area forward as a separate zone for design review rather than forcing one warehouse-wide grid.
The measurable lighting brief should describe the space and its work, not just its ceiling label. A resource on lighting requirements by space can provide general follow-up context, but it does not replace zone-specific calculations or photometric review.
Match Each Zone's Layout to Its Work
Once the boundaries are marked, translate each zone into working surfaces, travel paths, obstructions, and task locations. Racked aisles and open work areas may need different distribution, placement, aiming, glare, and shadow treatment, so warehouse lighting for mixed ceiling heights should be reviewed by work geometry as well as mounting height.
Racked Aisles and Tall Storage
For a racked-aisle zone, document rack height and orientation, aisle width and direction, stored-goods obstruction, picking or inspection locations, and the surfaces workers need to see. These details determine what the layout review must examine at the rack faces and along the aisle, rather than treating the floor as an unobstructed rectangle.
Ask the supplier or designer to state the assumed mounting position, fixture distribution, spacing or aiming logic, and measurable coverage requirement for the aisle zone. Separate aisle blocks when rack geometry, access, or task demands alter those calculations. This is the practical reason high bay lighting for different ceiling heights cannot be selected from the fixture label alone.
A high-bay, low-bay, linear, UFO, or vapor-tight category is not automatically suitable because of its name. The exact fixture's documented distribution, mounting range, electrical compatibility, environmental suitability, and photometric behavior must match the zone. For background on how the categories may differ, see high-bay and low-bay differences, then return to the rack geometry and documented design evidence for the actual decision.
Open Floor, Staging, and Workstations
Open staging and workstation zones should be described by task locations, equipment, vehicle and pedestrian paths, clearances, and shadow sources. Packing, inspection, and workstation surfaces may need separate treatment from nearby bulk storage even when the roof and mounting height are the same.
Low-ceiling areas deserve particular attention to direct view, glare, mounting clearance, distribution, and access before a high-bay pattern is carried over. The right question is not whether one fixture family is popular across the building. It is whether one verified layout can serve the lower area without changing the assumptions that work in the taller zone.
For each open or task-focused zone, request zone-specific review of distribution, placement, spacing, aiming, glare, shadows, and photometric evidence. Exact optics, spacing, output, and fixture selection remain project-specific. That approach keeps LED high bay lighting as a conditional option rather than an automatic answer for every area.
Prepare a Zone-by-Zone Design Brief Before Buying
A useful design brief lets a supplier, lighting designer, or contractor decide whether one verified plan is defensible or whether multiple fixture, layout, or review paths are needed. Send the marked zone map with the following five-part handoff:
- Map the boundaries. Mark low and tall sections, racked aisles, open floor, staging, workstations, mezzanine or office edges, and service corridors on a floor plan. Label the reason for each boundary, such as a change in usable mounting height, task, rack geometry, access, or mounting condition.
- Document dimensions and mounting. Provide floor dimensions, ceiling height, usable mounting height, actual mounting points, clearances, structural limits, and any difference between the roof label and the location where a fixture can realistically be installed or serviced.
- Map racks, tasks, and obstructions. Show rack height and orientation, aisle width and direction, stored goods, equipment, work surfaces, picking or inspection points, packing areas, travel paths, and likely shadow sources. Include whether the project is a retrofit or a new installation.
- Record access, electrical, and service constraints. State the available access method, lift or service limitations, mounting and attachment conditions, power assumptions, controls, operating schedule, maintenance method, and any known clearance or structural questions. A fixture's voltage, load, control compatibility, and installation requirements need to be matched to the actual zone rather than assumed from a product category.
- Request a zone-specific layout review. Ask for the proposed fixture or fixture family, documented specifications, layout assumptions, spacing and aiming logic, electrical compatibility, glare and shadow treatment, maintenance access, and calculation or photometric evidence where needed. Ask the reviewer to identify which zones can share one plan and which require separate rules.
Flag workplace, electrical, structural, emergency, and local-code questions for qualified review. OSHA states that each exit route must be adequately lighted so a person with normal vision can see along it in its exit-route lighting requirement. That is a narrow visibility boundary for egress, not a general target for storage aisles, rack faces, or workstations.
Exit signs and emergency illumination also belong in the site review rather than being folded into ordinary task lighting. OSHA describes separate exit-sign illumination requirements, while emergency illumination requirements can depend on the site and governing requirements. A lighting zone map can flag these questions, but it is not an engineered or compliance determination.
With the brief complete, one plan is defensible only when every proposed shared zone has comparable, verified assumptions. When height, racks, tasks, access, or mounting conditions change those assumptions, request separate fixture, layout, or design-review paths before buying.
FAQs
These FAQs clarify how to turn mixed-ceiling conditions into separate planning decisions and what to document before a supplier, designer, or contractor reviews the project.
How do you divide a warehouse with different ceiling heights for lighting?
Create a new zone when ceiling or usable mounting height, rack geometry, task, access, or mounting constraints could change the layout assumptions. Keep areas together only when the full input set is comparable and one verified layout can serve both areas.
Can one high-bay layout work across different ceiling heights?
It can work only when mounting conditions, tasks, coverage geometry, glare considerations, and fixture behavior remain comparable and are verified together. If those assumptions change, request separate spacing, aiming, fixture, or control rules instead of extending one grid automatically.
How should low-ceiling warehouse areas be lit differently?
Treat the lower area separately when clearance, direct-view glare, distribution, task use, or access differs from the taller space. A high-bay pattern should not be carried over automatically; ask for a layout reviewed specifically for the lower zone.
What measurements should I collect before planning warehouse lighting zones?
Collect floor dimensions, ceiling and usable mounting heights, mounting points, rack and aisle geometry, task locations, obstructions, access limits, electrical conditions, and retrofit constraints. Mark unknowns on the plan so the supplier or contractor can resolve them during the zone-specific review.
