When machine shop lighting looks worse after equipment moves, don't call a light failed yet. First, compare where the operator and workpiece sit now with the fixtures that stayed in place. If the dark area follows the new task position or sits in a shadow from a new obstruction, the next step is a coverage review around that task.
If the symptom stays with one fixture no matter where the work happens, send that observation to qualified maintenance staff. Neither pattern proves the cause. Each one tells you which check comes next.
Does the Dark Area Follow the Moved Task—or Stay With One Fixture?
Stand at the new operator position with the machine stopped and set up the way it will run. Then check whether the dark area moves with the task or stays tied to one fixture overhead.
The fixtures were placed for the old floor plan. When a machine moves, the operator and the workpiece land in a new spot under that same layout. The room can look just as bright under general LED shop lights while the chuck, vise, or table sits in shade. Brightness across the room and light on the workpiece are separate questions. After a move, the second one is usually the one that changed.
Guidance from the Canadian agency CCOHS on checking fixture position and shadows says to look for shadows. It also advises against placing a workstation with a light fixture directly behind the worker, such as an overhead high bay light casting a silhouette. This is not a US rule, but it points to a practical check. If the relocated operator now has the nearest fixture at their back, their head and shoulders may shade the work. Step out of the operator position and look again. If the shade on the workpiece clears when you step away, the shadow comes from the operator's position relative to that fixture, not from the fixture's output.
Next, look at the floor or bench under the fixture you suspect, away from the machine. If that fixture lights open space about as well as its neighbors, the visible difference points toward the task position. If that fixture looks different from its neighbors wherever you stand, the pattern points toward the fixture.
| What you see | Likely direction | Next step |
|---|---|---|
| Dark area sits at the new operator or workpiece position | Task location changed under the old layout | Coverage review at the moved task |
| New shadow from the machine body, a guard, stock, or the operator | Obstruction or orientation changed | Note what casts the shadow, then review coverage |
| One fixture looks dimmer, flickers, or stays out wherever the work is | Symptom tied to that fixture | Report it for qualified inspection |
These patterns guide the next check. They do not confirm a fault or prove that a fixture is working correctly.

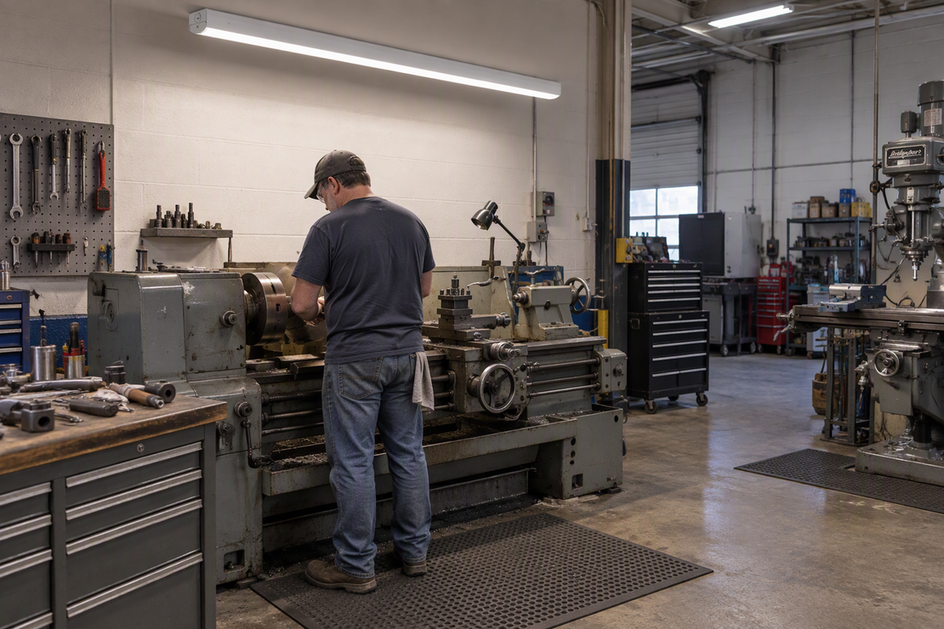

Illustrative example: A shop moves a manual lathe to a new bay, and the operator now faces the wall. The nearest fixture ends up behind the operator's shoulder. The chuck area looks dim during setup, but the aisle beside the lathe looks normal. When the operator steps aside, the shadow on the chuck clears. That pattern follows the task, so the supervisor schedules a coverage review for the lathe position rather than a fixture replacement.
A coverage review looks at whether fixture positions, the machine's orientation, or added light at the work fits the new layout. For shadow and glare considerations across a whole floor, our guide to high bay layout planning covers the layout side. If the question is whether a fixed overhead source or a movable light suits the job, our guide on matching light to task position walks through that choice. For a new layout sketch, our online lighting layout tool is a starting point.
The fixture-localized branch needs a different owner. Keep your own check visual: do not open the fixture, test circuits, or try a repair. OSHA's interpretation on qualified employees states that only qualified persons may perform specified work on electrical equipment that has not been deenergized. It also states that only qualified persons may perform testing work on electric circuits or equipment. A persistent symptom at one fixture goes to your maintenance team or electrician as an observation, not as a verdict that the fixture failed.
What to Record for a Coverage Review or Maintenance Handoff
A useful report describes where the task sits and what you saw, not just that the area looks dark. Capture these details while the machine is still in its new setup:
- Machine and move: which machine moved, where it came from, where it sits now, and when the move happened.
- Operator and workpiece orientation: which way the operator faces and where the workpiece sits compared with the nearest fixtures, such as "fixture behind the operator's left shoulder."
- Nearby fixtures: identify each fixture by location, row, or label so someone else can find the same one.
- Shadows and obstructions: what casts the shadow and where it falls, such as a guard, chip shield, cabinet, or stacked stock.
- Observed pattern: whether the dark area follows the task, stays with one fixture, or is unclear.
- Fixture appearance, if one is involved: what is visible from the floor, such as dimmer than its neighbors, flickering, or out.
- Observed versus suspected: list what you saw in one place and your guess about the cause in another.
That split between observation and suspicion matters. A coverage reviewer can act on the task and shadow details. A maintenance tech can start from the fixture location and visible symptom without assuming your guess is right. If follow-up would involve work on circuit parts or equipment that have not been deenergized, OSHA's rule for energized work limits that work to qualified persons.
Our lighting maintenance checklist covers fixtures, controls, mounting, and task changes, and helps turn this kind of record into a next action.
FAQs
Does a dark spot under one fixture mean that fixture has failed?
No. A symptom that stays with one fixture is a reason to send the observation for qualified inspection. It is not proof of failure. The cause can only be confirmed by someone qualified to inspect and test the equipment. Your part is to describe what you saw and where.
Does comparing task positions show whether the shop meets lighting code?
No. The position-and-shadow comparison is a visual check for choosing the next step. It does not measure light levels or decide compliance. The CCOHS guidance cited above is Canadian and does not set US requirements. Code questions for your shop belong with a lighting designer, engineer, or the local authority having jurisdiction.
Can local task lighting fix a shadow at the new machine position?
It can be one option. CCOHS lists more reflected light and local lighting as ways to reduce shadows. Whether it fits your machine depends on what the coverage review finds. Moving a fixture, changing the machine's orientation, or adding light at the work may each solve a different version of the problem.
Who should do the visual comparison after a machine move?
The operator, a supervisor, or maintenance staff can compare the work position with the fixtures from the floor. The operator knows exactly where the work sits during setup and cutting, which makes the record more precise. Opening fixtures and testing circuits are different jobs, and they stay with qualified personnel.
