Visual Comfort as a Design Metric: Beyond Raw Lumens
In the transition from a casual DIY space to a high-performance home workshop, the most common error is equating "more light" with "better light." While raw lumen output—the total amount of visible light emitted by a source—is a critical starting point, it does not account for the physiological impact of light on the human eye. For a serious hobbyist or small shop operator engaged in precision tasks like fine woodworking, CNC machining, or electronics assembly, the limiting factor is often not darkness, but glare.
Glare is more than a nuisance; it is a measurable optical phenomenon that causes visual fatigue, reduced contrast sensitivity, and, in severe cases, safety hazards. To address this, professional lighting designers utilize the Unified Glare Rating (UGR). This metric provides a standardized way to predict the likelihood of discomfort glare in an indoor environment. Designing a layout with a low UGR ensures that your workshop remains a place of focus rather than a source of eye strain.
According to the 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights, the shift toward project-ready lighting requires balancing high-efficiency fixtures with advanced optical control. This guide explores how to integrate UGR theory into your physical workshop layout to achieve professional-grade visual comfort.
Understanding Unified Glare Rating (UGR) in the Shop Environment
The Unified Glare Rating (UGR) was introduced in 1995 by the International Commission on Illumination (CIE) to provide a consistent scale for evaluating discomfort glare. Unlike simple brightness, UGR is a calculated value that considers the luminance of the light source, the background luminance of the room, and the position of the light source relative to the observer's line of sight.
The UGR scale typically ranges from 10 to 30. A lower number indicates less glare and higher visual comfort. In professional settings, the following thresholds are generally observed:
- UGR ≤ 19: The "Gold Standard" for office work and high-precision technical tasks.
- UGR 22–25: Acceptable for general industrial work and mixed-use workshops.
- UGR > 28: Likely to cause significant discomfort and should be avoided in task-intensive areas.
Logic Summary: Our assessment of UGR thresholds is based on standard industry benchmarks provided by the International Commission on Illumination (CIE). These values assume a standard observer height and typical viewing angles.
For the home workshop owner, achieving a UGR of 19 is ideal but can be challenging in spaces with lower ceilings (under 12 feet). In these scenarios, a UGR between 22 and 25 is often considered a pragmatic success, provided the lighting is stable and flicker-free. Flicker, often caused by low-quality LED drivers, can exacerbate the negative effects of glare, leading to headaches even when UGR levels seem acceptable.
Modeling the Ideal Workshop Layout: A Case Study
To demonstrate the impact of layout on visual comfort, we modeled a scenario for a "Serious Hobbyist" operating in a typical two-car garage converted into a workshop. This model prioritizes fine-detail tasks requiring 75 foot-candles (fc) of illuminance at the work plane.
Modeling Note (Reproducible Parameters)
This scenario is a deterministic parameterized model, not a controlled lab study. It assumes a clean environment and standard reflectance.
| Parameter | Value | Unit | Rationale / Source Category |
|---|---|---|---|
| Room Dimensions | 24 x 18 | ft | Standard 2-car garage footprint |
| Ceiling Height | 12 | ft | Typical residential workshop clearance |
| Work Plane Height | 3 | ft | Standard workbench height |
| Target Illuminance | 75 | fc | IES recommendation for fine detail work |
| Fixture Output | 18,000 | lm | Common spec for linear high-bay LEDs |
| Beam Angle | 110–120 | deg | Wide distribution for uniformity |
Analysis Results: To achieve the target 75 fc with high uniformity, our model requires four 18,000-lumen fixtures. While a single, ultra-bright fixture might provide the same total lumens, it would create a massive hotspot and a high UGR. By distributing the light across a 2x2 grid, we reduce the "luminance per point source," which is the primary driver of glare.
The maximum recommended spacing ($S_{max}$) for these fixtures in this 12-foot ceiling environment is approximately 13.5 feet. By centering the fixtures 12 feet apart, we ensure that the light beams overlap significantly. This overlap fills in shadows and softens the transition between light and dark zones, a key factor in reducing visual fatigue.
Strategic Mounting: The 30-Degree Glare-Free Cone

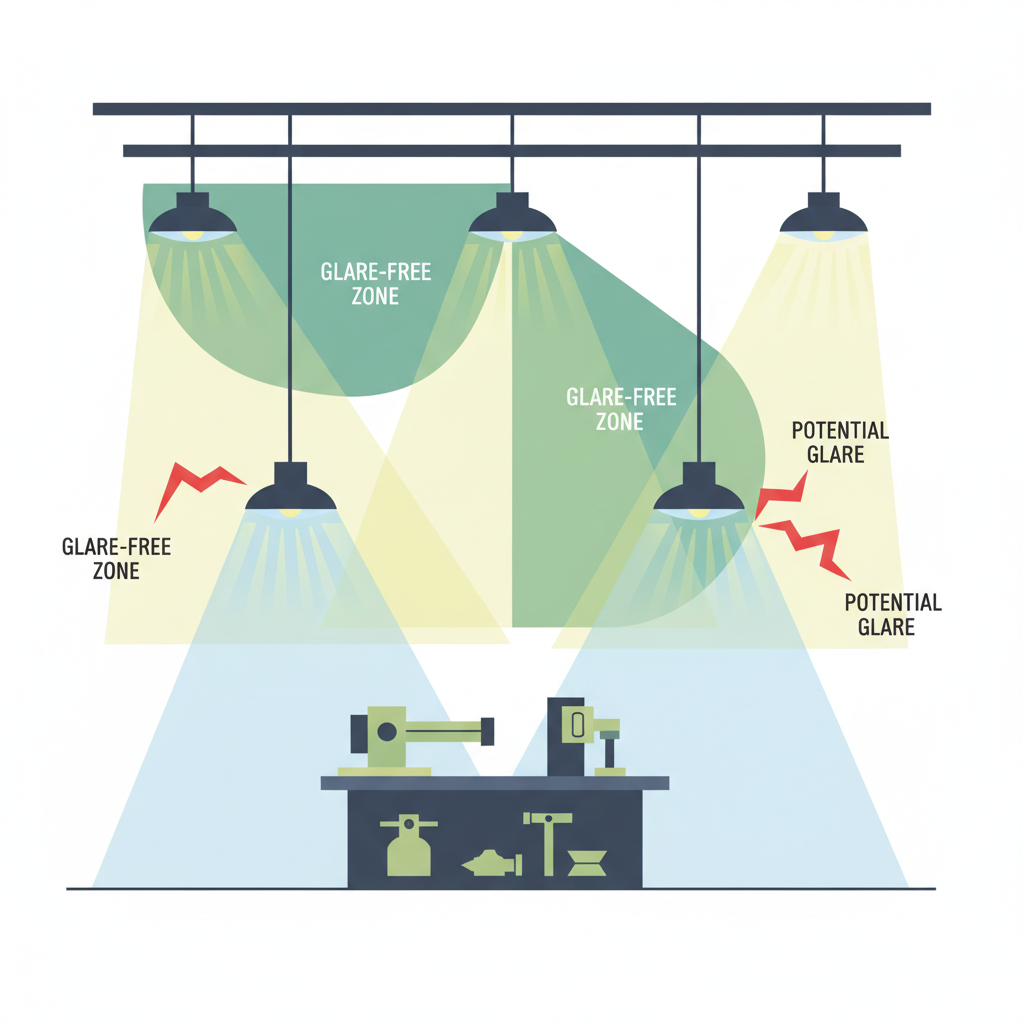

Fixture placement is only half the battle; orientation and mounting height dictate how much of that light enters your eye at a painful angle. A useful heuristic for workshop owners is the 30-degree glare-free cone.
Discomfort glare is most acute when a high-intensity light source is located within 30 degrees of your horizontal line of sight. To mitigate this:
- Mount as High as Possible: Every inch of additional mounting height moves the fixture further out of your primary field of vision.
- Parallel Orientation: For linear fixtures, always orient the long axis parallel to your primary sightline at a workbench. For example, if you are standing at a long bench against a wall, the lights should run along the length of the bench, not perpendicular to it. This reduces the amount of direct diode exposure visible in your peripheral vision.
- The "Shielding" Principle: Use fixtures with recessed optics or frosted diffusers. Transparent covers allow for higher efficacy (more lumens per watt) but often result in "pixelated" glare from individual LED chips. Frosted lenses provide a larger, lower-intensity luminous surface, which naturally lowers the UGR.
First-Party Experience Anchoring: Based on common patterns from customer support and installation feedback, the most frequent complaint regarding "too much light" is actually a complaint about perpendicular mounting. Rotating a linear fixture 90 degrees often resolves glare issues without changing the fixture itself.
Verifying Performance: The Role of IES LM-79 and DLC 5.1
When selecting fixtures for a low-UGR layout, you must look beyond the marketing "box specs." Professional-grade performance is verified through standardized testing.
- IES LM-79-19: This is the "performance report card" for an LED fixture. It measures total luminous flux, electrical power, and chromaticity. Most importantly for UGR, it provides the luminous intensity distribution (photometric data). Without an LM-79 report, any UGR claim is merely an estimate. You can verify these reports through the IES LM-79-19 Standard.
- DLC 5.1 Premium: The DesignLights Consortium (DLC) sets the bar for high-performance commercial lighting. A DLC 5.1 Premium listing ensures the fixture meets strict efficacy and light quality standards. For B2B or small commercial operators, this certification is often a prerequisite for utility rebates. You can search for qualified products on the DLC Qualified Products List (QPL).
- Safety Certifications: Ensure any fixture used in a workshop carries a UL Listed or ETL Listed mark. This proves the product has been tested for electrical safety and fire risk under UL 1598 standards.
The Economic Reality: ROI and HVAC Interactive Effects
Upgrading to a low-UGR, high-efficiency LED system is a financial investment. In our 24'x18' workshop model, replacing four legacy 400W metal halide fixtures (which actually draw ~458W with ballast losses) with 150W high-performance LEDs yields significant returns.
Financial Modeling (10-Year Horizon):
- Annual Energy Savings: ~$259 (based on 1,500 operating hours at $0.14/kWh).
- Maintenance Savings: ~$68/year by eliminating the need for periodic bulb and ballast replacements.
- Net Annual Impact: ~$340 total savings.
The "Hidden" HVAC Impact: A non-obvious benefit of LED upgrades is the reduction in the cooling load. Legacy lighting acts as a space heater; in a workshop with air conditioning, you pay twice—once to power the light and once to remove the heat it generates. Our model shows an annual HVAC cooling credit of ~$14.
However, there is a heating penalty to consider. In colder climates where the workshop is heated by gas, the loss of "waste heat" from legacy bulbs means your furnace must work slightly harder. We estimate a heating penalty of ~$28 annually for gas-heated spaces. Even with this penalty, the net savings remain overwhelmingly positive.
Logic Summary: These calculations assume a 33% lighting interactive factor based on regional energy efficiency studies. Individual results vary based on local utility rates and climate zones.
Troubleshooting and The "Comfort Test"
Even the most meticulously planned layout can have unforeseen "gotchas," such as reflections off polished tool surfaces or shadows from overhead cabinets. Once your lights are installed, perform the 5-Minute Comfort Test:
Stand at your primary workstation and perform a typical task for 5 to 10 minutes.
- Do you feel an instinctive urge to squint?
- Do you find yourself leaning closer to the work to see detail?
- When you look up, do you see "after-images" (spots) from the light sources?
If you answer yes to any of these, your UGR is likely too high. Potential fixes include:
- Adding diffusers: If your fixtures have clear lenses, switching to frosted lenses is the most effective way to drop UGR.
- Adjusting Height: If you have the clearance, raising the fixtures by even 6 inches can move them out of the 30-degree glare zone.
- Task Lighting Integration: Sometimes, the best way to lower the overall UGR is to lower the ambient light levels and use dedicated, shielded task lamps for the most detailed work.
Frequently Asked Questions
Q: Can I achieve a low UGR with UFO-style high bays? A: Yes, but it requires more care. UFO high bays are point sources of light, which inherently have higher luminance than linear fixtures. To keep UGR low with UFOs, seek models with deep-recessed reflectors or prismatic lenses that spread the light over a larger area.
Q: Does color temperature (CCT) affect UGR? A: Technically, UGR is a measure of luminance, not color. However, many users perceive 5000K (Daylight) light as "harsher" than 4000K (Cool White) at the same brightness. For workshops where visual comfort is the priority, 4000K is often preferred as it aligns with the ANSI C78.377 standard for chromaticity while feeling more natural for long sessions.
Q: How do I wire my shop to be compliant with the National Electrical Code (NEC)? A: For most home workshops, a 2x2 grid of 150W LED fixtures draws only ~600W total. This is well within the limits of a standard 15A circuit. Always follow NFPA 70 (NEC) guidelines for grounding and proper wire gauge.
