In precision electronics manufacturing, the margin for error is non-existent. Facility managers and plant engineers must recognize that lighting is not merely a utility; it is a critical component of the quality control (QC) ecosystem. For environments dedicated to Surface Mount Technology (SMT) assembly, micro-soldering, and PCB (Printed Circuit Board) inspection, industrial linear high bays provide the most effective solution for achieving the required uniformity and color accuracy.
The conclusion for decision-makers is clear: linear fixtures with a high Color Rendering Index (CRI) and flicker-free drivers are essential to reduce micro-fatigue and inspection errors. This article analyzes the technical requirements, photometric strategies, and financial ROI (Return on Investment) of implementing professional-grade linear lighting in electronics facilities.
The Technical Baseline: Beyond Lumens per Watt
While energy efficiency is a primary driver for retrofits, the quality of light—specifically its spectral composition and stability—dictates worker performance in precision environments.
CRI and the R9 Factor
In electronics assembly, distinguishing between wire insulation colors (e.g., subtle differences in red, orange, or brown) and identifying the wetting quality of solder joints is a high-stakes task. Standard LED fixtures often boast a CRI of 80, but this is frequently insufficient. According to the ANSI C78.377-2017 standard, which defines chromaticity specifications for solid-state lighting, consistency in color temperature (CCT) is vital for visual comfort across large assembly floors.
For precision work, a CRI of 90+ is recommended, with a specific focus on the R9 value. R9 represents the ability of a light source to render deep red tones. Without a strong R9 component, solder joints can appear "flat," making it difficult for inspectors to identify cold solder joints or micro-fractures.
Flicker-Free Performance and Micro-Fatigue
Even when flicker is not visible to the naked eye (stroboscopic effect), low-quality LED drivers can produce high-frequency flicker that causes micro-fatigue. In an 8-hour shift, this leads to increased eye strain, headaches, and a measurable rise in inspection errors. It is imperative to verify that fixtures comply with FCC Part 15 regulations, ensuring the LED drivers do not produce electromagnetic interference (EMI) that could disrupt sensitive testing equipment on the factory floor.
Photometric Strategy for Assembly Workbenches
A common mistake in electronics factories is the use of wide-beam circular high bays. While effective for open warehouses, these fixtures often create harsh glare on reflective component trays and metallic surfaces.
Beam Angles and Vertical Illumination

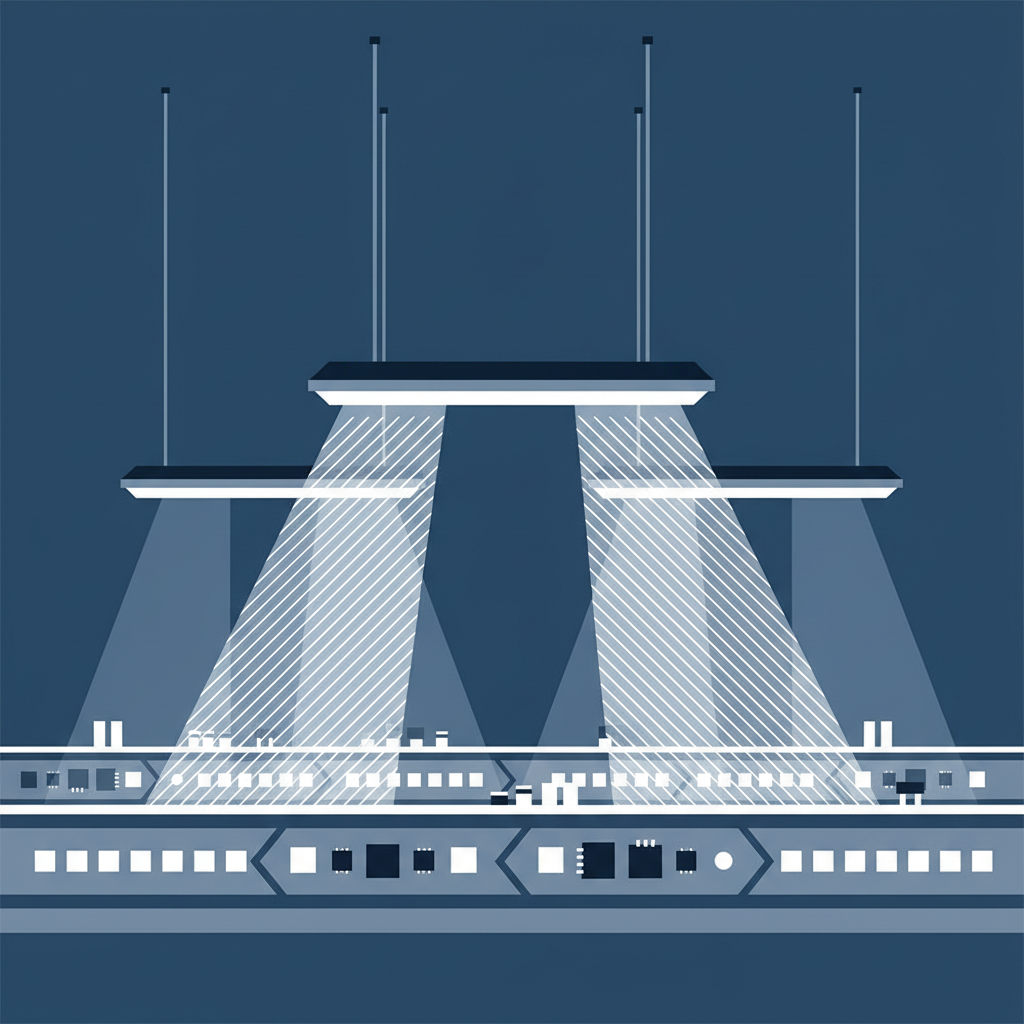

Linear high bays typically utilize a 110° beam angle, which provides superior vertical illumination. In a workbench environment, light must reach not only the flat PCB but also the vertical sides of components and the interior of deep chassis.
Recommended Layout Specs for Electronics Assembly:
- Mounting Height: 15–20 feet.
- Spacing-to-Height Ratio: 1.2:1 to ensure overlap and eliminate shadows.
- Target Lux: 750–1000 lux on the work surface.
- Uniformity Ratio: 3:1 (Max-to-Min) or better.
Glare Control (UGR)
The Unified Glare Rating (UGR) is a critical metric for worker retention and productivity. High-output LEDs can be blinding if not properly shielded. Linear fixtures equipped with micro-prismatic lenses diffuse the point-source intensity of the LEDs, reducing the UGR and preventing "hot spots" on reflective work surfaces. This is further supported by the IES LM-63-19 standard, which allows engineers to use .ies files in software like AGi32 to simulate and correct glare issues before installation.
Financial Engineering: ROI and Utility Rebates
The transition to high-performance linear LED lighting is often justified by a rapid payback period, often under six months in 24/7 operations.
The "Enterprise Precision" Experiment Data
In a simulated retrofit of 200 legacy 400W metal halide fixtures to 180W premium linear LEDs in a 50,000 sq. ft. facility, the financial impact was substantial.
| Metric | Legacy (Metal Halide) | Modern Linear LED |
|---|---|---|
| System Wattage (per fixture) | 458W (incl. ballast) | 180W |
| Total Annual Energy Cost | ~$135,000 | ~$47,330 |
| Maintenance Cost (Annual) | ~$33,945 | ~$0 (5-year coverage) |
| HVAC Cooling Credit | $0 | ~$2,831 (Estimated) |
| Net Annual Savings | Base | $124,446 |
Note: Calculations based on $0.18/kWh and 24/7 operation. Individual results may vary based on local rates and facility conditions.
Leveraging Utility Rebates
To achieve a payback period of approximately 4 months, facility managers must utilize the DesignLights Consortium (DLC) Qualified Products List. Most North American utility companies require fixtures to be "DLC Premium" to qualify for the highest tier of prescriptive or custom rebates.
You can find available local incentives through the DSIRE Database (Database of State Incentives for Renewables & Efficiency). For example, replacing a high-lumen HID lamp with a DLC 5.1 certified fixture can yield rebates ranging from $45 to $80 per unit in many jurisdictions.
Compliance, Controls, and Energy Codes
Modern electronics facilities must comply with evolving energy codes that mandate more than just efficient lamps; they require "intelligent" lighting systems.
ASHRAE 90.1 and IECC 2024
The ASHRAE Standard 90.1-2022 and the IECC 2024 (International Energy Conservation Code) have significantly lowered the allowable Lighting Power Density (LPD) for manufacturing spaces. Meeting these standards requires high-efficacy fixtures (typically >150 lm/W) and integrated controls.
California Title 24 Requirements
For facilities in California, Title 24, Part 6 mandates specific control strategies, including:
- Multi-Level Dimming: The ability to reduce power in specific increments.
- Occupancy Sensing: Lights must automatically dim or turn off when zones are unoccupied.
- Daylight Harvesting: Linear fixtures near windows or skylights must dim in response to available natural light.
Dimming Compatibility and Flicker
A common "gotcha" in B2B lighting is low-end flicker. Some budget 0-10V drivers cause the LEDs to flicker when dimmed below 20%. In an electronics inspection area, where light levels might be adjusted for specific tasks, this is unacceptable. Always specify drivers that provide smooth, continuous dimming from 100% down to 10% without visible or stroboscopic interference. This technical nuance is explored further in the 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights.
Installation and Long-Term Reliability
The longevity of an LED system is not just about the chips; it is about thermal management and electrical safety.
UL 1598 and Safety Listings
Every fixture installed in a commercial facility must carry a safety certification. The UL 1598 standard for luminaires ensures the fixture can handle the electrical and thermal stresses of an industrial environment. For electronics plants, ensuring the fixture is "UL Listed" (rather than just containing UL Recognized components) is a prerequisite for passing insurance inspections and building code audits.
Thermal Management and LM-80
The "Solid" reputation of an industrial fixture depends on its ability to dissipate heat. Electronics factories often have significant heat loads from machinery. Check the manufacturer's IES LM-80-21 report, which measures lumen maintenance over 6,000+ hours. Using these data points, engineers apply IES TM-21-21 calculations to project the L70 lifetime—the point at which the light output drops to 70% of its original brightness. A high-quality linear high bay should offer an L70 of at least 50,000 to 60,000 hours.
Implementation Checklist for Facility Managers
When planning a lighting upgrade for an electronics assembly floor, follow this pragmatic sequence:
- Audit Existing Light Levels: Measure current foot-candles at the workbench level. Identify "dark spots" where shadows impede assembly.
- Request IES Files: Ensure the manufacturer provides IES LM-63 formatted files for your design team to run a simulation.
- Verify DLC Status: Cross-reference model numbers on the DLC QPL to secure utility rebates.
- Test for EMI: Ensure the fixtures won't interfere with your SMT or testing equipment by checking FCC Part 15 compliance.
- Pilot a Zone: Install linear high bays in one assembly line first. Gather qualitative feedback from technicians regarding eye strain and glare before a full-scale rollout.
Maintenance and Troubleshooting
While LED systems are largely maintenance-free, the environment of an electronics factory can introduce challenges. Dust accumulation on lenses can reduce light output by 10-15% over time.
Pro-Tip: Schedule a lens cleaning during annual facility shutdowns. If you experience dimming issues, refer to the NEMA LSD 64-2012 white paper to troubleshoot 0-10V control signal interference, which is often caused by running dimming wires too close to high-voltage power lines.
Precision Lighting for Precision Work
In the electronics industry, the quality of your lighting directly influences the quality of your product. By moving from legacy HID or standard circular LEDs to high-CRI, flicker-free linear high bays, facilities can achieve a rare trifecta: improved worker well-being, higher inspection accuracy, and a massive reduction in operational costs.
For further guidance on selecting the right wattage for your specific ceiling height, refer to our comprehensive guide on Matching Linear High Bay Wattage to Your Workshop Ceiling Height.
YMYL Disclaimer: This article is for informational purposes only and does not constitute professional electrical engineering or financial advice. Lighting requirements vary by jurisdiction and specific manufacturing processes. Always consult with a licensed electrical contractor and certified lighting professional to ensure compliance with local building codes and safety standards.
