Combine ambient shop lighting with two adjustable task-light directions, and you can light a wood lathe without shadow or glare in most home setups. Point one fixture from the front or operator side and a second from above or roughly 45 degrees, then adjust each one while watching the actual turning. The right position depends on your workpiece, its finish, and your viewing angle, so treat this as a starting layout to test rather than a fixed rule.
Once the basic geometry is in place, the details that matter most are which light direction removes a stubborn shadow, how to stop glare on dark or glossy wood, and which fixture specifications are worth verifying before you buy or mount anything near a rotating tool.

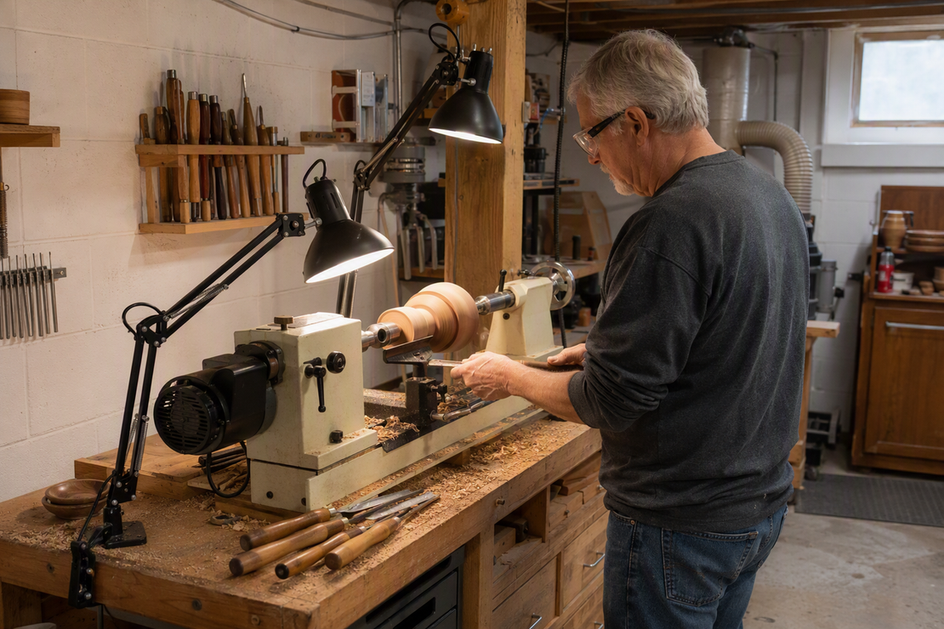

The Practical Two-Direction Setup for a Home Lathe
When planning how to light a wood lathe, start with ambient light for the room and add two task fixtures aimed at the turning and tool area. Test one variable at a time so you know which change actually helped.
- Keep your existing ambient or ceiling light on for general visibility around the lathe bed and floor.
- Add one task fixture from the front or operator side, angled toward the tool rest and the section of the workpiece you're cutting.
- Add a second task fixture from above or roughly 45 degrees to the first, and compare how each one reveals the curved profile differently.
- Adjust one fixture at a time, checking the tool contact point, the profile edge, and your hand clearance before locking in a position.
- Recheck the layout with the lathe running at a normal working speed, since a static check can miss glare or shadow that only appears in motion.
Treat this as a layout to refine at your own bench. Distances, exact angles, and brightness levels vary with room size, stock diameter, and personal preference.
How Shadow Direction Changes What You See
Light direction determines which part of a turning stays visible and which part disappears into shadow. A single overhead beam can leave the tool contact area or a profile's lower curve dark even in an otherwise bright shop.
Running two directions lets you compare more than one contour edge, but the useful position still depends on the workpiece shape and where you're standing to look. When a shadow hides detail, move the source sideways or up and down in small steps rather than reaching for a brighter bulb first.
- A shadow that falls toward you usually softens once the light comes from a higher or more frontal angle.
- A shadow hiding the tool contact point often means that fixture needs to move closer to the operator's viewing line, not farther away.
- A profile edge that disappears near the tailstock may need its own dedicated angle instead of relying on the headstock-side light.
Fixture length and coverage pattern also affect how evenly a task light spreads across a bench, which is a factor if you're setting up a bench light in a tight garage or basement bay, as covered in this guide to fixture length and uniformity.
How to Reduce Glare on Dark or Glossy Turnings
Reflected glare and an underlit workpiece are different problems with different fixes. A bright patch bouncing off dark or wet wood usually means the fixture needs to move, not get stronger.
- Move the fixture off the direct line between the light, the reflective surface, and your eyes before changing anything else. This is the lowest-risk first step and often solves the problem by itself.
- Test a higher, lower, or side position while confirming the tool area stays visible; a position that kills glare but hides your cutting edge isn't a real fix.
- Add shielding or diffusion only if your fixture's documentation supports it and the accessory doesn't block your view of the work.
- Don't apply UGR or reflector guidance written for large overhead high-bay fixtures directly to a compact lathe task light. The application, mounting height, and beam spread are different, and a mismatch can create new problems instead of solving the one you have.
Fixtures built for larger spaces sometimes use reflectors or lenses specifically to control glare, which is useful background if you're also lighting the surrounding shop area; see this glare control guide for that broader context.
How Flicker, CRI, and CCT Change the Buying Decision
Flicker deserves the most scrutiny of any spec here because the workpiece is spinning and a flicker-driven stroboscopic effect can make it look like it's moving slower than it actually is. CRI and CCT matter mainly for how clearly you can judge wood tone, grain, and finish under the light you choose.
- Flicker and dimming: LED flicker behavior is largely a function of the driver, and dimming can increase or induce flicker, particularly with phase-cut controls or pulse-width modulation. Independent DOE CALiPER testing also found that a "dimmable" label carries no guaranteed minimum flicker performance, as dimming can increase LED flicker at the exact settings you plan to use. Ask for flicker data at your intended dimming or control mode before buying, especially since stroboscopic effects have been documented to affect the visual perception of moving machinery.
- CRI: A higher color-rendering index helps you judge grain, tone, and finish differences accurately, but don't assume high CRI just because a fixture is LED. Check the documented CRI value for the exact model.
- CCT: Color temperature is a matter of matching your existing ambient light and your own preference for how wood color appears, not a single universal "best" setting. Compare a candidate fixture's CCT with your current shop lighting before committing.
- Controls and dimming compatibility: Confirm the fixture works correctly with any dimmer or control device you already own; mismatched controls are a common source of the flicker or brightness issues described above.
If your priority is judging fine surface or finish detail rather than just general visibility, this high-CRI visual inspection guide explains how CRI documentation changes that kind of buying decision.
Safety Illumination and Electrical Boundaries
Adequate illumination around a lathe is a setup goal, not a license to promise a specific foot-candle or contrast number without fixture-specific data. For portable or temporary lights, check the guard, cord condition, and support method before powering anything.
Federal maritime lighting rules require adequate work-area illumination, guards on exposed bulbs, cords rated for the load, and prohibit suspending a light solely by its cord unless the manufacturer built it for that purpose. This OSHA lighting standard applies to maritime worksites, not home workshops, so treat it as useful reference context rather than a residential code, and check your local requirements separately.
Before mounting anything, verify the fixture's voltage, wattage, control type, dimming compatibility, and the manufacturer's mounting instructions instead of improvising a support method. If a fixture requires hardwiring, has unclear voltage or control requirements, lacks a documented support method, or can't be mounted securely without improvising, stop and get the manufacturer's installation instructions and qualified, project-specific review before you power it.
Lathe Lighting Troubleshooting: Symptom, Cause, Next Check
Match what you're seeing to the table below to pick the safest next adjustment instead of guessing.
| Symptom | Likely cause | Safe next check |
|---|---|---|
| Persistent shadow on profile or tool area | Single light direction, wrong angle | Move or add a second fixture at a different angle; adjust one at a time |
| Glare or bright reflection off the workpiece | Fixture position in the reflection path | Reposition off the direct reflection line before increasing output |
| Suspected flicker or apparent slowing of the spinning work | Driver or dimmer/control interaction | Stop and request exact-model flicker data at your control setting |
| Fixture movement or unstable support | Improvised mounting or worn hardware | Remove from use until support method matches manufacturer instructions |
A suspected flicker issue or an unstable mount should send you back to documentation or a support check, not to live testing.
Verify the Fixture Before Purchase or Installation
Verify the exact model you intend to buy, not the series or category it belongs to. Marketing terms like "flicker-free," "plug-and-play," or "high output" describe a general product line and don't by themselves prove a fixture fits your specific lathe setup.
Work through these checks in priority order:
- Optical documentation: Confirm the exact lumen output, CCT, CRI, and any available beam or optical data for the specific SKU you're considering.
- Electrical and control information: Confirm voltage, wattage, dimming compatibility, and whether the fixture works with any control device you already own.
- Mounting and support: Confirm the documented mounting method, clearance around the rotating work, and whether the fixture is rated for the position you plan to use, such as a magnetic base, hook, or fixed mount.
- Exact SKU and instructions: Match the product page, spec sheet, and included instructions to the exact model number before you buy, since a similar-looking model in the same line can differ in these details.
Some portable work lights list documented fields like plug-and-play 120V operation, a fixed cord length, a hook or latch, and a guarded housing, but those listed fields only describe that model; they don't establish magnetic mounting, a specific CRI value, or lathe-specific beam suitability unless the product page states it directly. When the available facts don't cover your exact use case, use the portable LED work lights category to compare current options rather than assuming fit from a category description alone.
FAQs
Can one light be enough for a small wood lathe?
Yes, if that single fixture can be positioned to keep both the curved profile and the tool contact area visible throughout the cut. If you notice a shadow that stays in place no matter how you angle that one light, that's your signal to test a second direction rather than add more brightness from the same angle.
Should I reposition the task light during different turning operations?
Yes. The useful angle for roughing a blank often differs from the angle you want for fine sanding or a final inspection pass, since surface finish and reflectivity change as the work progresses. Reposition one fixture at a time and check the result before touching a second variable, so you know exactly what caused the improvement.
What if a light says "flicker-free" but provides no test data?
Don't treat that label as proof near a rotating lathe. Ask the manufacturer for exact-model flicker data at your intended dimming or control setting, since driver and dimmer behavior can vary between products even when both are marketed as flicker-free. If that documentation isn't available, keep the fixture in verify-first status or choose one with confirmed data instead.
