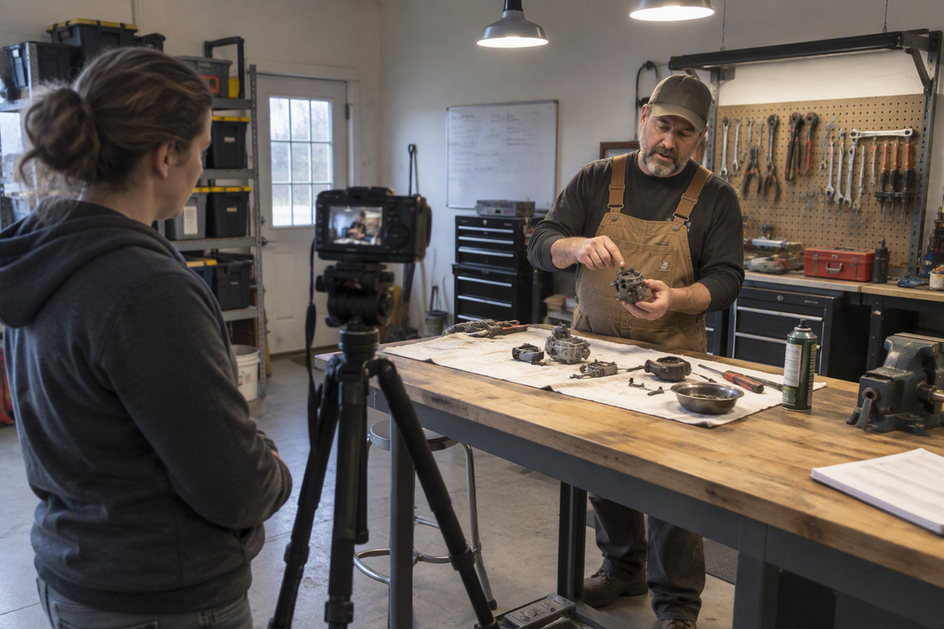

To light a camera-facing training area without losing work visibility, plan for two separate viewing conditions: the image the camera records and what people can actually see at the work surface. A frame that looks clear on a monitor does not show whether the instructor's hands, the tool, or the part are easy to see from where participants stand.
So judge each view on its own terms. Map where the camera looks and where the work happens. Use the symptom you observe to decide which view to fix first, and accept the setup only after a rehearsal passes in both views.
Set Two Separate Visibility Targets
Good training area lighting has two pass conditions, and you need to write both down before you move a single light. One covers the recording. The other covers the task.
For the recording, list the details that must read clearly in the final video. Examples include the instructor's face, a gauge on the bench, or the edge of a part during a close-up. For the task, list what participants must see in person to follow along and do the work themselves. That usually means the work surface and the hands doing the work, seen from the spots where people actually stand or sit.
Keep these as two separate observations. The camera sees from one fixed point with its own exposure settings. A participant sees from a different angle, often over someone's shoulder or across a table. One can pass while the other fails.
This is also why fixtures shouldn't be chosen by how the room looks overall. General workplace guidance from the Canadian Centre for Occupational Health and Safety notes that workstation lighting needs should guide fixture choice for a task. That guidance is Canadian and general, so it is not a US project requirement. It still points the same way: start from the task, not from a general brightness impression. No single light level, fixture count, or fixture type fits every training space. Your two written targets become the yardstick you test against.
Map the Frame and the Work Positions
Next, sketch the room and mark every position your two targets depend on. A rough floor plan on paper works. If you want a digital version of the room, our online lighting layout tool is one place to lay out the space.
Include these items on the map:
- Camera frame: Mark the camera position and the edges of what it records. Note which details from your recording target must stay visible inside that frame.
- Work surface and hands: Mark the bench, table, or floor area where the task happens. Note where the instructor's hands and tools will be during each step, because a body or arm between the light and the work can change what is visible.
- Instructor position: Mark where the instructor stands while demonstrating and while talking to the camera, if those spots differ.
- Participant viewing positions: Mark where each participant watches the demo and where they do their own hands-on work. These are the spots you will check in person.
- Close-up or moving positions: If the demo moves between stations, or the camera cuts to a close-up, mark each stop and the route between them.
The last item changes how much testing you need. A fixed demonstration shot at one bench may only need checks at that bench and the viewing spots around it. A session where the instructor walks between machines, or participants rotate through stations, needs a check at each position used. One station or one camera frame does not stand in for the whole activity. For more on how bench-work shadows and sight lines shape a single work position, see our guide on small-parts bench lighting.
Match the Problem to the View That Fails
When something looks wrong, figure out which view failed before you change anything. A fix aimed at the wrong view can waste time or make the other view worse.
| Observed problem | First check | Next test |
|---|---|---|
| Recording lacks detail | Ambient light and camera exposure | Test exposure, then add light if needed |
| Hands or surface shadowed in person | View from the actual task position | Trial one change, recheck both views |
| Visibility shifts as people move | Each mapped position and route | Rehearse with people in place |
| Camera looks fine, participants struggle | Participant viewing positions | Treat as a task-side problem |
| In-person view fine, video weak | Camera-side settings and frame | Treat as a camera-side problem |
For camera-side problems, a Northern Illinois University photography chapter lays out a camera-side test exposure sequence. First assess the ambient light. Then set the camera exposure based on that light, take a test exposure, and add light as needed until the image shows the detail you want. That sequence tells you about the recorded image only. A good test frame says nothing about what a participant sees at the bench.
For task-side problems, go stand where the work happens. CCOHS notes that direct fixtures can create work-area shadows, because they send most of their light toward the work area. Look at the surface and the hands from the instructor's spot and from each participant spot on your map. Watching the camera feed is not a substitute for this check.
If you need help recognizing how shadows shift when light changes, Rice University's studio guide shows illustrated portrait lighting examples side by side. Those are portrait setups, so use them to train your eye. They are not a layout for a workbench.
When a room seems bright but the bench still feels dim, our article on dim work areas explains how task planes and layout affect that result. If you later compare fixtures such as LED shop lights, take the failed view and position from this table with you. Any change you try stays a trial until both views pass again.
Rehearse and Retest Both Views
A setup is ready only when a rehearsal shows both targets passing at every position you mapped. Run it under the same room conditions you plan to record in, with the real task, not an empty-room walk-through.
- Set the session conditions. Use the planned room lighting, camera position, and work layout. Have the instructor and at least one stand-in participant take their mapped positions.
- Record a short test demonstration. Do the actual task, including any close-ups and any walk between stations.
- Review the recording. Check it against your recording target. Every listed detail should read clearly in the clip.
- Check the task in person. While the demo runs, look at the work surface and hands from the instructor's position and from each participant position. If people move, check along the route too.
- Retest both views after any trial change. If you adjust a light, the camera, or the layout, repeat steps 2 through 4. A change that fixes one view is not accepted until the other view passes again.
The result you are looking for is simple. The required camera details are visible in the recording, and the required task details are visible at every position used. If either one fails, return to the symptom table and start with the view that failed.
FAQs
Is there a required light level for a training room used for video?
This plan does not set one number, because no single light level fits every task, room, and camera. A specific project may have its own requirements under local rules or workplace policies. If you need a numeric target or code compliance check, a lighting designer, engineer, or your local authority having jurisdiction should make that call for your space.
Who should install new fixtures or add circuits for the training area?
Any new wiring, circuits, or fixture installation should be handled by a licensed electrician. Requirements vary by location, so one US-wide rule does not apply to every project. Your job at the planning stage is to define the two visibility targets and the positions to test, which gives the installer a clear goal.
What if glare off a shiny surface is the problem, not shadows?
Treat glare as another observation, and find out from which position it appears: the camera, the instructor, or a participant spot. Bright reflections off metal tools or glossy tabletops can depend heavily on viewing angle. Our guide on tracing glare to its source walks through viewpoint checks before you move or replace fixtures.
When do I need to run the rehearsal again?
Rerun it whenever something on your map changes. That includes a new camera angle, a different task or work surface, rearranged stations, more participants, or a change to the room's lighting. Each of these can change what one view shows without affecting the other, so check both again.
