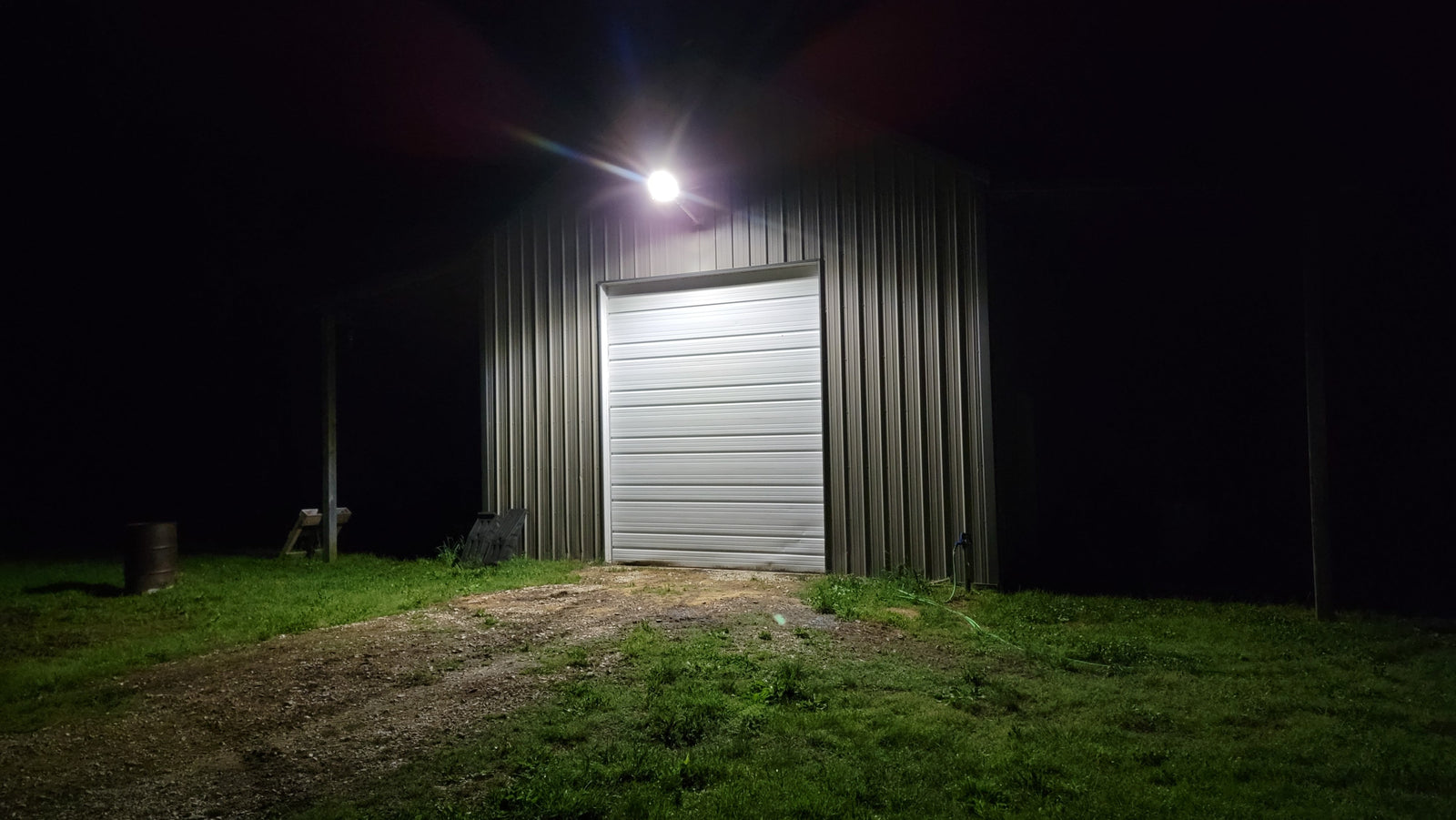

For facility managers and building owners, the exterior lighting of a commercial property represents both a critical safety asset and a persistent maintenance liability. Traditional High-Intensity Discharge (HID) systems, such as metal halide or high-pressure sodium wall packs, are notorious for high energy consumption and frequent lamp failures. The transition to commercial-grade LED wall packs is no longer just an energy-saving strategy; it is a fundamental shift toward operational resilience.
By eliminating the need for frequent bulb replacements and reducing the mechanical strain on building infrastructure, high-efficiency LED systems offer a "set and forget" reliability that traditional technologies cannot match. This article examines the technical specifications, financial justifications, and real-world installation nuances that define a low-maintenance exterior lighting strategy.
The Engineering of Durability: Beyond the Data Sheet
The primary driver of low maintenance in LED wall packs is the elimination of the filament and vacuum seal found in HID lamps. However, not all LED fixtures are created equal. True "pro-grade" reliability is verified through a combination of thermal management and environmental protection standards.
Luminous Maintenance and Thermal Management
The lifespan of an LED is not defined by when it "burns out," but by when its light output drops below a useful level, typically 70% of its original brightness ($L_{70}$). According to the Illuminating Engineering Society (IES) LM-80-21 Standard, LED manufacturers must test chips for at least 6,000 hours to measure lumen depreciation.
Expert facility teams look for the IES TM-21-21 Technical Memorandum, which provides the mathematical framework to project long-term performance. A critical "gotcha" in the industry is the 6x rule: IES standards prohibit manufacturers from claiming a lifespan greater than six times the actual test duration. If a fixture claims a 100,000-hour life but only has 6,000 hours of LM-80 data, the claim is technically unverified. Reliable fixtures typically demonstrate an $L_{70}$ of 50,000 to 60,000 hours based on rigorous data.
Ingress Protection and Impact Resistance
Maintenance often results from environmental ingress—water, dust, or insects entering the fixture and shorting the driver. Professionals prioritize fixtures with an IEC 60529 IP65 rating, indicating the housing is dust-tight and protected against water jets.
In high-traffic areas or loading docks where mechanical impact is a risk, the IEC 62262 IK rating becomes vital. An IK08 or IK10 rating ensures the housing and lens can withstand significant kinetic energy, preventing the need for replacements due to accidental strikes from equipment or vandalism.
The Total Cost of Ownership (TCO) Simulation
To understand the maintenance benefits, we must look at the financial impact over the fixture's life. We conducted a simulation for a 50,000 sq. ft. distribution center operating 24/7 with 80 exterior wall packs.
Simulation Parameters:
- Fixture Count: 80 units.
- Usage: 6,000 annual hours.
- Energy Rate: $0.18/kWh.
- Labor Rate: $120/hour (includes lift rental and safety protocols).
Total Cost of Ownership Comparison
| Metric | 400W Metal Halide (Legacy) | 150W Pro-Grade LED |
|---|---|---|
| Annual Energy Cost | $37,324 | $10,713 |
| Annual Maintenance Calls | 48 (Estimated) | < 2 |
| Annual Maintenance Cost | $10,800 | $0 (Warranty covered) |
| HVAC Cooling Credit | N/A | $1,143 |
| Total Annual Savings | Baseline | $38,554 |
Note: Values are estimated based on common industry rates and standard operational simulations.
The maintenance savings of $10,800 annually primarily stem from avoiding "lift-based" service calls. In a typical commercial environment, replacing a single metal halide bulb requires a lift rental and two technicians for safety compliance. By switching to LED, the facility manager effectively "buys back" 72 hours of maintenance labor per year.
Installation "Gotchas" and Friction Points
Even the best hardware can fail prematurely if installation nuances are ignored. Pattern recognition from thousands of retrofit projects reveals three critical areas where small tweaks yield massive maintenance dividends.
1. The North-Facing Photocell Rule
Dusk-to-dawn sensors (photocells) are the most common point of failure in exterior lighting. If a photocell is oriented toward the South or placed under a reflective building overhang, it may "cycle"—turning on and off rapidly as it misinterprets its own light as daylight. This rapid switching stresses the LED driver. Expert Tip: Always align the photocell to face True North (in the Northern Hemisphere). This ensures it receives consistent ambient light without direct solar interference or false triggers.
2. Galvanic Corrosion Prevention
In coastal or high-humidity regions, the junction between the fixture and the wall is a breeding ground for corrosion. While many fixtures include zinc-plated hardware, these often fail within 18 months. Pro-Grade Practice: Use 304 or 316-grade stainless steel mounting hardware. While it adds a marginal cost to the initial install, it prevents the "frozen bolt" syndrome that makes future building repairs or upgrades nearly impossible without damaging the facade.
3. Photometric Spacing for Uniformity
A common mistake is over-lighting the area directly under the fixture while leaving "dark holes" between units. This creates safety hazards and often leads to complaints that require re-aiming or adding more fixtures later. The 1.5x Rule: A common heuristic is to space wall packs at a distance equal to 1.5 times the mounting height. For a fixture mounted at 15 feet, the next unit should be approximately 22.5 feet away. This achieves the uniformity recommended by the IES RP-7-21 for Industrial Facilities.
Compliance and the "Rebate Engine"
For B2B procurement, compliance documentation is the ultimate proof of quality. It is the difference between a "consumer-grade" light and a "pro-grade" asset.
The DLC Qualified Products List (QPL)
The DesignLights Consortium (DLC) maintains a searchable database of high-performance LED products. For a facility manager, a DLC Premium listing is a prerequisite for utility rebates. In our 80-fixture simulation, DLC-qualified products were eligible for up to $14,000 in rebates, effectively paying for the hardware and leaving only the labor as a capital expense.
Safety and Interference Standards
- UL/ETL Listing: Ensure the fixture is "UL Listed" rather than just "UL Recognized." According to UL Solutions, a "Listed" mark means the entire fixture has been tested for safety, whereas "Recognized" only applies to internal components.
- FCC Part 15: High-frequency LED drivers can emit electromagnetic interference (EMI). Compliance with FCC Part 15 is mandatory to prevent the lights from interfering with building Wi-Fi, security systems, or sensitive manufacturing equipment.
Future-Proofing with Controls: The 0–10V Advantage
Energy codes like ASHRAE Standard 90.1-2022 and California Title 24 are increasingly mandating "occupancy-based dimming" for exterior spaces.
Even if your current project doesn't require sensors, installing fixtures with a 0–10V dimming driver is a critical maintenance hedge. This allows you to add occupancy or daylight sensors in the future via a simple plug-and-play port or low-voltage wiring, rather than replacing the entire fixture when local codes tighten.
Furthermore, integrating occupancy sensors doesn't just save energy; it extends the fixture's life. If a wall pack dims to 20% output when no one is present (e.g., between 2:00 AM and 5:00 AM), the LED chips and driver run cooler, significantly slowing the rate of lumen depreciation.
Maintenance Checklist for Facility Managers
To ensure the 5-year or 10-year warranty remains valid and the system performs as expected, we recommend the following annual audit:
- Visual Inspection: Check for cracks in the lens or signs of moisture (condensation) inside the housing.
- Photocell Cleaning: Wipe the sensor lens. Dust buildup can trick the sensor into thinking it is nighttime, leading to "day-burning."
- Hardware Torque: In high-vibration areas (near heavy machinery or highways), check that mounting bolts remain tight to prevent wind-load damage.
- Lumen Check: Use a basic foot-candle meter to verify that light levels haven't dropped significantly in critical safety zones like stairs or entryways.
Strategy for Retrofit Success
When selecting a partner for a wall pack upgrade, the "documentation gap" is the biggest risk. A manufacturer should be able to provide .IES files for photometric planning, LM-79 reports for performance verification, and a clear warranty claim process.
For large-scale facilities, the transition to LED is an investment in cash flow. By eliminating the $100+ "per-bulb" maintenance event and slashing energy bills by 60-80%, the project typically pays for itself in less than a year. As energy codes continue to evolve toward higher efficiency and mandatory controls, the move to pro-grade LED wall packs is the most pragmatic step a facility manager can take to secure their building's exterior.
Frequently Asked Questions
Can I use my existing HID photocells with new LED wall packs? In most cases, no. LED drivers have a high "inrush current" that can weld the contacts of older HID-rated photocells. It is always recommended to use the photocell provided by the LED manufacturer or one specifically rated for electronic LED loads.
What is the difference between Full Cutoff and Semi-Cutoff fixtures? Full Cutoff fixtures emit zero light above 90 degrees (the horizontal plane). This eliminates "sky glow" and is often required by "Dark Sky" ordinances. From a maintenance perspective, full cutoff fixtures typically have a flat glass lens, which is easier to clean and less prone to yellowing than the large polycarbonate refractor lenses found on semi-cutoff "acorn" style lights.
How does CCT (Color Temperature) affect maintenance? While CCT (e.g., 4000K vs 5000K) doesn't directly change the maintenance schedule, higher CCTs (cooler light) often provide better visual acuity at lower light levels. This may allow you to use a lower-wattage fixture to achieve the same perceived safety, further reducing the thermal load on the internal components.
Disclaimer: This article is for informational purposes only and does not constitute professional electrical engineering or financial advice. Always consult with a licensed electrician and check local building codes before beginning a lighting retrofit project.
