The Hidden Failure Point: Why Your IP Rating Won't Save Your Fixture

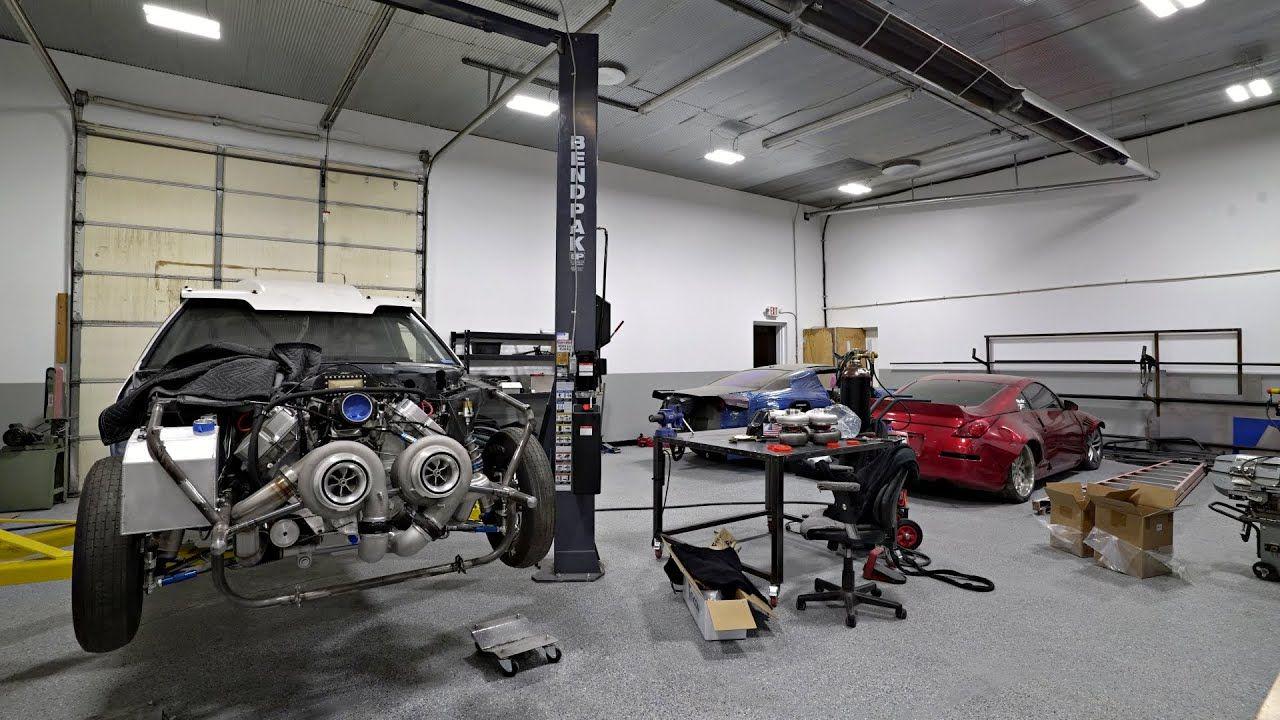

In any industrial setting—from machine shops and vehicle maintenance bays to food processing plants—the longevity of an LED fixture depends on its durability. Facility managers and contractors often look to an Ingress Protection (IP) rating as the primary indicator of a fixture's resilience. However, a common and costly mistake is assuming that a high IP rating, such as IP65 or IP67, guarantees protection against all environmental hazards.
An IP rating exclusively measures a housing's ability to resist the ingress of dust and liquids like water. According to the International Electrotechnical Commission (IEC) standard 60529, these tests do not account for chemical exposure. A fixture that is perfectly sealed against water jets can fail prematurely when exposed to common industrial solvents, oils, and cleaning agents. This article explains the mechanisms behind this chemical attack and provides a practical framework for selecting and maintaining fixtures with seals that can survive in chemically active environments.
Debunking the IP Rating Myth
A fixture earning an IP65 rating has demonstrated that it is dust-tight and can withstand low-pressure water jets from any direction. This is crucial for outdoor use or in areas with regular washdowns. The problem arises when "liquids" are interpreted to include chemical solvents. Most common gasket materials, like Nitrile (Buna-N) or EPDM, are selected for their excellent mechanical properties and resistance to water, but they can be highly vulnerable to industrial chemicals.
Think of it this way: a standard raincoat will keep you dry in a storm, but it would offer little protection if that rain were made of paint thinner. The same principle applies to fixture gaskets. Exposure to degreasers, brake cleaners, cutting fluids, or even certain oils can cause the seals to swell, soften, and lose their ability to maintain a seal, paving the way for moisture and contaminants to enter the housing and destroy the sensitive electronics within.
How Solvents Compromise Gasket Integrity
The failure of a gasket due to chemical exposure is not typically a sudden event. It is a gradual process of degradation that unfolds in predictable stages. Understanding this process is key to preventing it.
Stage 1: Absorption and Swelling
Most elastomeric (rubber-like) seals have a molecular structure that allows them to absorb certain chemicals. When a solvent comes into contact with a vulnerable gasket, the material acts like a sponge, drawing the chemical into its structure. This absorption causes the gasket to swell, sometimes increasing in volume by 10% or more. While a swollen gasket might temporarily seem to create a tighter seal, it is actually the first step toward failure. This process also softens the material, reducing its physical strength.
Stage 2: Compression Set
"Compression set" is the permanent deformation of a gasket after being subjected to prolonged compressive stress. In a properly functioning fixture, the gasket is compressed to create a seal, but it retains its elasticity to rebound and maintain pressure over time.
When a solvent-swollen gasket is under compression, its internal structure is compromised. As the solvent eventually evaporates, the gasket shrinks. However, because of the damage caused during the swollen state, it does not return to its original shape or size. It becomes permanently flattened, a phenomenon known as compression set. This creates gaps between the gasket and the housing, rendering the IP rating void and leaving the fixture vulnerable to dust and moisture.
Stage 3: Chemical Degradation and Brittleness
Beyond physical changes, some aggressive chemicals directly attack the polymer chains that make up the gasket material. This can cause the seal to become brittle and crack, or in other cases, turn into a soft, tacky residue. At this point, the seal has completely failed, offering no protection.
A Guide to Chemically Resistant Seal Materials
Selecting a fixture with the right gasket material is the most effective way to ensure long-term reliability in chemically harsh environments. While basic safety certifications like UL 1598 ensure electrical and structural safety, they do not specify chemical compatibility. The choice of material is critical. Here is a comparison of common gasket materials:
| Material | Common Trade Names | Resistant To | Vulnerable To | Best-Fit Application |
|---|---|---|---|---|
| EPDM | - | Water, Steam, Glycols, Dilute Acids | Petroleum Oils, Solvents, Brake Fluid | General outdoor use, water-based washdown areas where no solvents are present. |
| Nitrile | Buna-N, NBR | Petroleum Oils, Hydraulic Fluids, Water | Ketones (Acetone), Brake Cleaner, Aromatic Solvents | Machine shops with oil mist, general industrial use with no aggressive solvents. |
| Silicone | VMQ | High Temperatures, UV, Ozone, Water | Most Solvents, Fuels, Concentrated Acids | High-heat processing areas (e.g., near ovens) where chemical exposure is not a factor. |
| Fluorocarbon | Viton®, FKM | Most Solvents, Fuels, Oils, Acids | Ketones (Acetone), Skydrol®, Low-Temp Amines | Go-to choice for heavy industry, automotive repair, chemical plants, and food processing. |
| PTFE | Teflon® | Virtually All Chemicals | - (Prone to mechanical failure like cold flow) | Extreme chemical environments; requires specialized fixture design to prevent extrusion. |
For most demanding industrial applications, FKM (Viton®) offers the best balance of broad chemical resistance and robust physical properties.
Field Inspection and Proactive Specification
Even with the right materials, regular inspection is crucial. For facility managers and maintenance personnel, knowing what to look for can prevent widespread failures. The guidelines in ANSI/IES RP-7 for Lighting Industrial Facilities are based on fixtures operating in stable conditions; chemical attack undermines this baseline.
Field Inspection Checklist
- Visual Swelling: Check gaskets at cable glands, conduit entries, and around lenses. A visibly bulging or protruding gasket is a clear sign of solvent absorption.
- Tacky Residue: Touch the gasket (with appropriate PPE). If it feels sticky or leaves a residue, it is degrading.
- Loss of Torque: Check the tightness of screws on covers or lens frames. If they are loose, it may indicate the gasket has suffered from compression set and is no longer providing adequate pressure.
How to Specify for Durability
When procuring new fixtures, engage with suppliers beyond the spec sheet.
- Request Chemical Compatibility Data: Ask for test results showing the gasket material's performance after being immersed in specific chemicals relevant to your facility.
- Set Acceptance Criteria: A common professional standard is to reject any elastomer that exhibits more than a 10-15% swell in volume or a significant drop in its Shore durometer (hardness) after a 72-hour immersion test.
- Inquire About Design: Ask about the gland design. A well-designed fixture should apply 20-30% compression on the gasket to ensure a durable seal without over-stressing the material.
Key Takeaways
To ensure the reliability and safety of LED lighting in industrial environments, it is essential to look beyond the IP rating. Chemical compatibility is a critical, often overlooked factor that can determine the functional lifespan of a fixture.
The key to preventing premature failure is three-fold:
- Understand the Limitation: Recognize that IP ratings only certify protection against dust and water, not chemical solvents.
- Select the Right Material: Specify fixtures with gaskets made from chemically resistant materials like FKM (Viton®) for any area where solvents, oils, or aggressive cleaning agents are present.
- Inspect and Maintain: Implement a regular inspection schedule to check for the early signs of gasket failure, such as swelling or tackiness, and hold suppliers accountable by requesting chemical compatibility data during procurement.
By adopting this informed approach, you can avoid costly downtime and ensure your lighting systems deliver safe, reliable performance for their entire expected service life.
Frequently Asked Questions (FAQ)
Q: Why did my IP67-rated fixture fail after we started using a new degreaser? A: The IP67 rating tests for water and dust ingress, not chemical resistance. The solvents in the new degreaser likely attacked the gasket material, causing it to swell and then fail from compression set, allowing moisture or contaminants to enter the housing.
Q: Is Viton® the same as FKM? A: Yes. FKM is the ASTM designation for the category of fluoroelastomer materials. Viton® is a brand name of FKM originally trademarked by DuPont (now Chemours).
Q: What does "compression set" mean in practical terms? A: It means the gasket has permanently lost its shape and elasticity. After being compressed, it no longer springs back to fill the gap it was designed to seal, effectively creating a leak path.
Q: Can I use a standard LED high bay in a paint shop or auto body shop? A: It is highly discouraged. The air in these environments is often saturated with aromatic solvents that can quickly degrade standard EPDM or Nitrile gaskets. You should specify a fixture with FKM seals and potentially an even more robust housing material to withstand the chemical environment.
