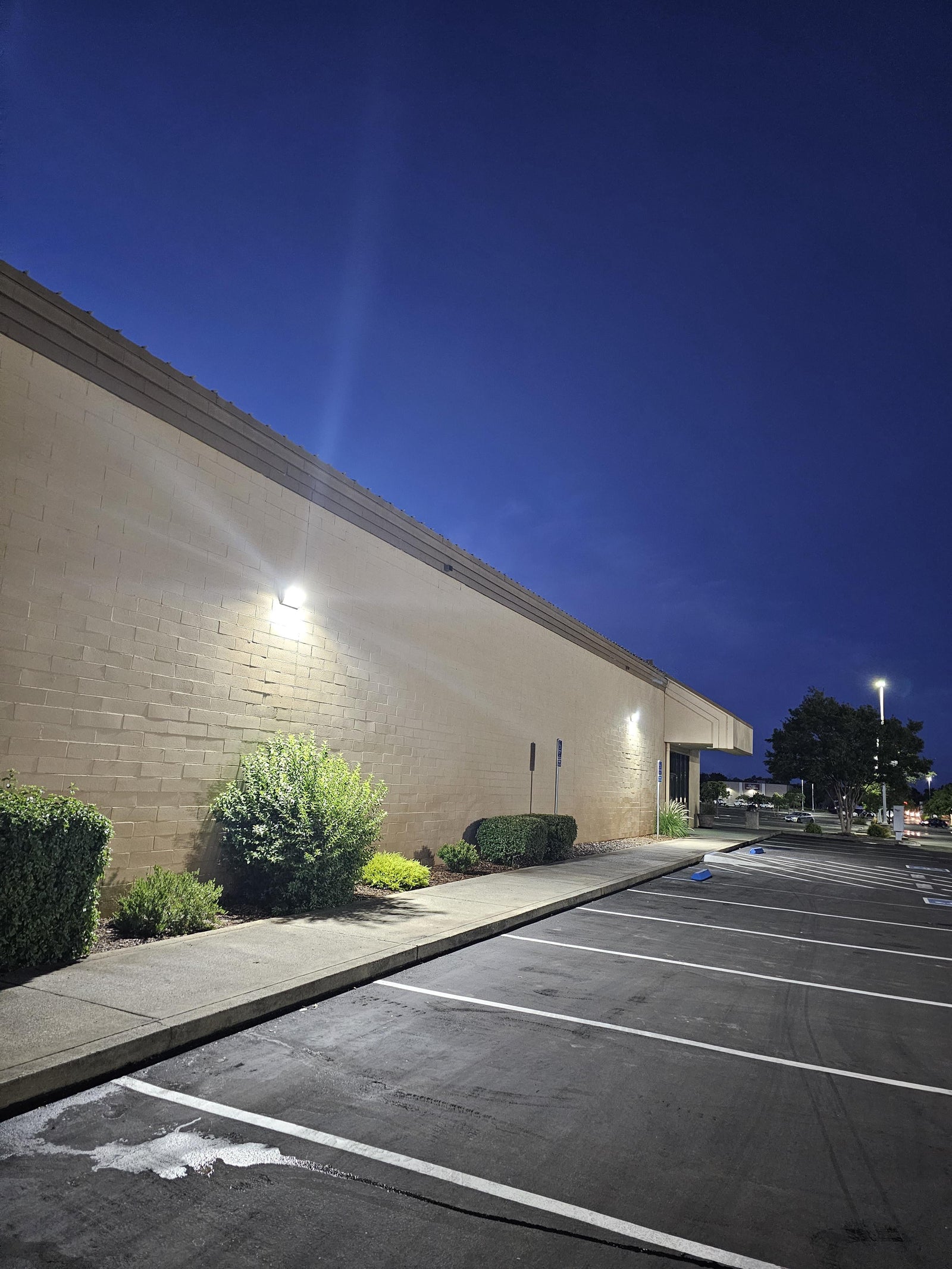

Before replacing a “bad” LED wall pack or area light because it will not dim correctly, it is essential to determine whether the fault lies within the driver’s internal circuitry or the external control system. In industrial and commercial settings, many service calls result in the disposal of functional drivers because the root cause—often control signal interference or mismatch—remains unaddressed.
This guide provides a structured, field-ready diagnostic framework for electricians, facility managers, and maintenance technicians to isolate and identify faults in outdoor LED systems using 0–10 V, photocells, or phase-cut dimming protocols.
1. Circuit Fundamentals: How Drivers and Controls Interact
Understanding the electrical topology of a dimming circuit is the first step in accurate diagnosis.
1.1 LED Driver Topology and Failure Modes
In high-output outdoor fixtures, the driver serves as a sophisticated power converter. Most project-grade drivers utilize a constant-current (CC) topology. According to technical analysis by Triad Magnetics, failure modes typically involve:
- Thermal Stress: Degradation of electrolytic capacitors, often manifesting as increased ripple current or flicker at low dimming levels.
- Input Stage Damage: Metal-oxide varistors (MOVs) failing due to transient surges, which can lead to intermittent "hiccups" in the dimming loop.
- Control Loop Instability: The internal feedback circuit that monitors the 0–10 V input may drift, causing the driver to misinterpret the dimming signal.
1.2 Dimming Protocols: Active vs. Passive 0–10 V
A common point of confusion in the field is the distinction between sourcing and sinking current.
- Passive Drivers (Sinking): Most standard LED drivers are "passive." They provide a small current (typically <2mA) on the purple/gray (or pink) wires. The dimmer acts as a variable resistor to "sink" this current to ground.
- Active Controls (Sourcing): Some advanced control systems (like DALI-to-0–10V bridges) "source" the voltage.
If a sourcing control is connected to a driver not designed to handle external voltage injection, the dimming response will be non-linear or the input stage may fail due to over-voltage on the control bus.
1.3 The Reality of Field Failures
While hardware failure is a risk, industry heuristics suggest a significant portion of dimming complaints—often estimated at nearly half in retrofit scenarios—originate from control-to-load mismatch. Research by the Lighting Research Center (LRC) highlights that flicker and "dead travel" are frequently the result of the driver's internal "holding current" thresholds not being met by legacy phase-cut dimmers.
2. Quick Decision Framework: Driver vs. Control
Use this heuristic table for initial assessment before climbing the pole:
| Symptom at Site Level | Likely Suspect | Technical Rationale |
|---|---|---|
| Circuit-wide flicker (all fixtures) | Control/Dimmer | Shared input signal suggests a mismatch at the source or a shared neutral issue. |
| Isolated fixture failure | Local Driver | If neighbors on the same control line are stable, the fault is likely localized to that driver or its wiring. |
| Random "Pop-on" or Flicker | EMI/Noise | Long 0–10 V runs can act as antennas, picking up noise from adjacent high-voltage lines. |
| Stuck at 100% Output | Open Control Loop | Most drivers default to full brightness if the 0–10 V wires are disconnected or broken. |
| Stuck at Minimum/Off | Shorted Control | A short between the purple and gray wires will force the driver to its minimum dimming threshold. |
3. Field Test Workflow: Systematic Isolation
3.1 Safety and Compliance (NFPA 70E)
Working on 120–277 V systems requires strict adherence to safety standards.
- Compliance: Follow NFPA 70 (NEC) for wiring and NFPA 70E (Standard for Electrical Safety in the Workplace) for operational safety.
- PPE: Minimum Category 2 protection is recommended for 277 V environments, including arc-rated clothing and insulated gloves (Class 0 or 00).
- LOTO: Always perform Lockout/Tagout procedures before opening any fixture housing or junction box. Use a non-contact voltage tester to verify "dead" status before touching terminals.
3.2 The Isolation Test (The "Golden Rule")
The fastest way to clear a driver is to remove the control input.
- Disconnect the 0–10 V leads (typically purple and gray/pink).
- Cap the leads to ensure they do not short to the housing.
-
Power the fixture.
- Result A: If the fixture is stable at 100% brightness, the driver's power stage is functional. The fault is in the control signal or the driver's input logic.
- Result B: If flicker or instability persists, the driver's output stage or the LED array itself is faulty.
3.3 Quantitative Signal Measurement
Use a high-impedance multimeter (e.g., Fluke 87V) to measure the 0–10 V signal.
Typical Field Measurement Log (Healthy 0–10 V System):
| Dimmer Setting | Measured Voltage (DC) | Expected Light Output |
|---|---|---|
| Full Bright | 9.2 V – 10.0 V | 100% |
| 50% Dim | 4.8 V – 5.2 V | ~50% (Linear) |
| Minimum Dim | 0.8 V – 1.2 V | 1% – 10% (Driver dependent) |
| Off (if supported) | < 0.5 V | 0% |
Note: If you measure >11 V or <0 V, there is likely a wiring cross-connection or a failed control source.
4. Symptom Analysis and Circuit Logic
4.1 Phase-Cut Flicker (TRIAC/ELV)
Phase-cut dimming works by "chopping" the AC sine wave. LED drivers require a minimum "holding current" to keep the internal switching power supply stable. When an LED load is too small, the dimmer's internal timing circuit misfires.
- The Fix: Ensure the total wattage on the circuit meets the dimmer's minimum load requirement (refer to Leviton’s LED Compatibility).
4.2 0–10 V Noise and "Ghosting"
In outdoor area lighting, 0–10 V wires are often run in the same conduit as AC power.
- Circuit Explanation: Capacitive coupling between AC lines and the control pair can induce a "ripple" on the DC signal.
- Diagnosis: If a multimeter shows a fluctuating DC voltage (e.g., jumping between 4.1 V and 4.6 V) while the control is static, EMI is likely. Use shielded twisted pair (STP) for control runs to mitigate this.
4.3 Surge-Induced Degradation
Outdoor drivers are vulnerable to "indirect strikes"—surges that don't kill the driver immediately but degrade the input filter.
- Trace Evidence: Look for "browning" on the circuit board or a characteristic "burnt electronics" smell. Eaton's Surge Protection Guide notes that repeated transients can cause the driver to "hiccup," appearing as an intermittent dimming fault.
5. Advanced Diagnostics: Beyond Static Voltage
A common mistake is assuming a driver is healthy because the static output voltage matches the nameplate. However, LED drivers are dynamic devices.
- Inrush Current: Using a meter with an "Inrush" function (like the Fluke 376 FC) can reveal if a driver is drawing excessive current at startup, which can trip protection circuits or cause dimming "snap-on" issues.
- Oscilloscope Observation: In complex cases, a portable oscilloscope can show if the 0–10 V signal has a 60 Hz "hum" superimposed on it, which a standard multimeter might average out. A healthy 0-10V signal should appear as a flat DC line; a "fuzzy" or oscillating line indicates interference.
6. Replacement and Mitigation Strategy
6.1 Matching Specifications
When a driver replacement is confirmed, do not simply match wattage. You must match:
- Output Current (mA): This is critical. A 1050mA driver cannot be replaced with a 1400mA driver even if the wattage is the same.
- Voltage Window: Ensure the LED string voltage (e.g., 36V) falls in the middle of the driver’s range (e.g., 20–50V).
- Dimming Curve: Match "Linear" vs. "Logarithmic" to ensure the fixture dims in sync with its neighbors.
6.2 Record Keeping for Reliability
Maintain a "Fixture Log" for every pole or wall pack. Documenting the measured 0–10 V levels at the time of installation provides a baseline that can reduce future troubleshooting time by an estimated 20–30% by allowing for "drift" detection.
7. Troubleshooting Checklist (Summary)
- Visual/Physical: Check gaskets for IP65/IP66 integrity; look for moisture in the driver compartment.
- Isolation: Disconnect 0–10 V wires. Does the fixture go to 100% and stay stable?
- Voltage Verification: Measure the control signal at the fixture. Is it between 0 and 10 V DC?
- Load Comparison: Does the issue affect one fixture or the whole string?
- Environment: Are there large motors or VFDs nearby creating line noise?
Safety and Responsibility Disclaimer
This technical guide is intended for qualified electrical professionals. Electrical troubleshooting involves high-voltage risks. Always adhere to NFPA 70E and local safety regulations. The author and publisher assume no liability for damages or injuries resulting from the application of this information.
