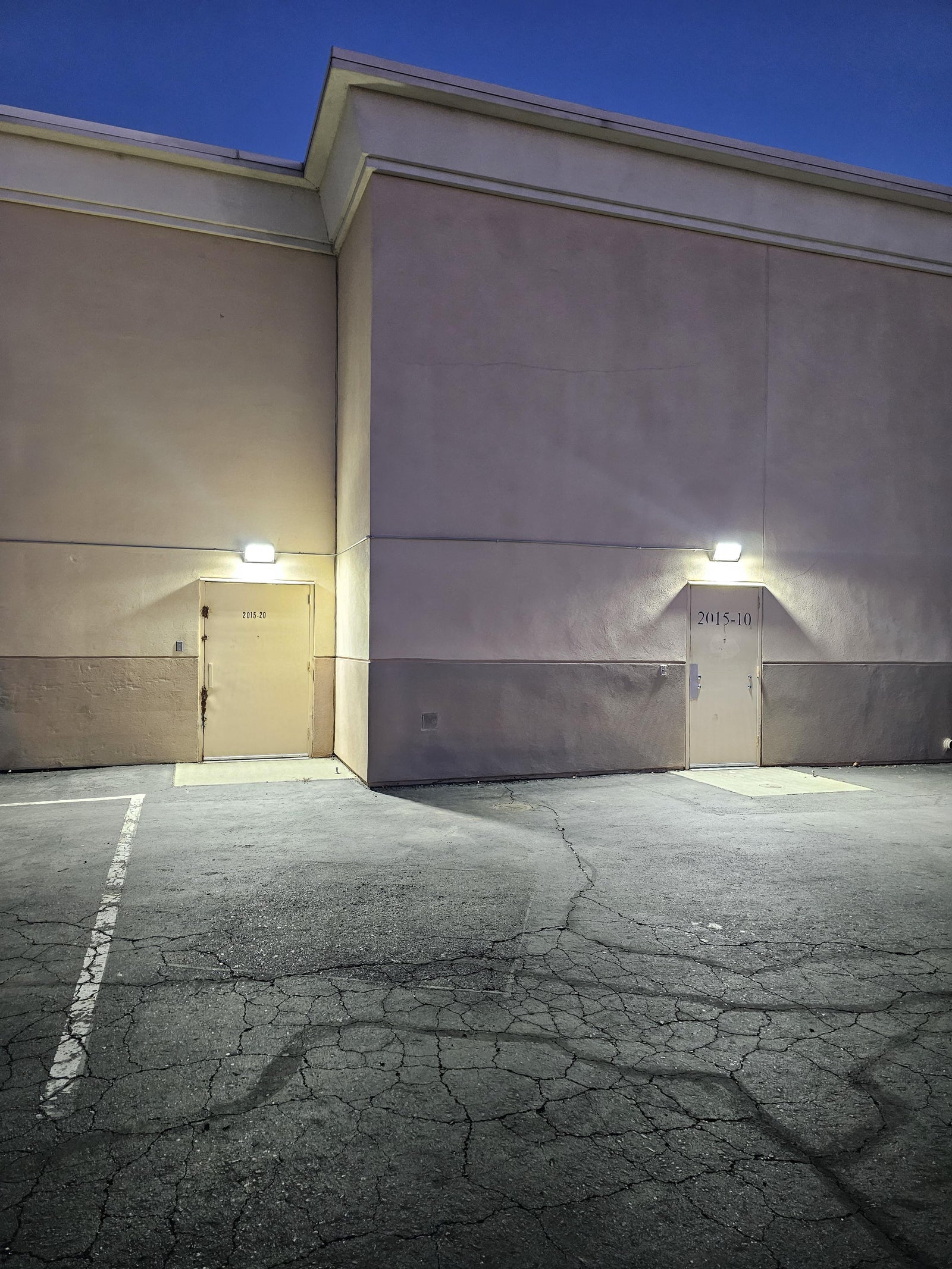

Why an IK08+ Rating Matters for Parking Structure Lights

Parking structures are some of the harshest environments for lighting. Fixtures live close to moving vehicles, exposed concrete, corrosive de‑icing salts, and a steady mix of accidental knocks and intentional abuse. In these conditions, an IK08 or higher impact rating is not a nice‑to‑have—it is a core safety and lifecycle requirement.

This guide explains what the IK rating is, how IK08 and IK10 actually perform in the field, and how to specify impact‑resistant lighting for garages and covered parking decks without over‑ or under‑engineering your project.

What the IK Rating Really Measures (and What It Does Not)

The IK rating comes from IEC 62262 / EN 62262 and classifies how much mechanical impact energy a luminaire’s enclosure can withstand.

In simple terms:

• IK08 ≈ 5 joules of impact energy.
• IK10 ≈ 20 joules of impact energy.

According to the EN 62262 overview, each IK step is defined by a standardized hammer mass and drop height striking the enclosure in controlled conditions. For example, 5 J corresponds to a steel impactor dropped from a set height onto defined locations on the housing.

Limits of the standard

Those lab conditions matter, because they define the boundaries of what IK can tell you:

• The test uses a small, rigid steel hammer, not a car bumper or a shopping cart.
• Impacts are largely normal (perpendicular) to the surface, not glancing or scraping.
• A limited set of strike points are tested, not every possible weak corner or edge.

The result is that IK is an apples‑to‑apples benchmark, but not a guarantee of survival against every real‑world hit. Field experience shows that oblique hits from trolley handles, thrown objects, or car doors can concentrate stress differently from the test hammer, even when the nominal energy is similar.

Why Parking Structures Need IK08+ Fixtures

Parking garages sit in a “semi‑public, semi‑industrial” sweet spot: more abuse than an office, less than a heavy factory. That creates a specific risk profile.

Typical impact risks in garages

Across retrofit and new‑build projects, three categories cause most damage:

1. Vehicle impacts
   • Car doors opening into wall‑mounted fixtures.
   • Roof racks, ladders, or tall vans brushing underside luminaires.
   • Slow‑speed contact with column‑mounted or low‑mounted luminaires.
2. Operational impacts
   • Maintenance carts or cleaning equipment bumping fixtures.
   • Tools or materials lifted near ceilings and accidentally dropped or swung.
3. Intentional damage
   • People striking wall‑packs and ceilings with improvised objects.

In these scenarios, an IK05–IK07 product (below 2 J) tends to crack lenses, deform housings, or compromise gaskets far too easily. Repeated low‑energy knocks are especially damaging because they fatigue plastic and seals over time.

Why IK08 is a practical minimum

IK08 is calibrated around 5 J impact energy, which the IEC and EN 62262 describe using a 1.7 kg impactor dropped from 300 mm. In practice, this approximates a solid tool or hand‑held object hitting the luminaire firmly.

For most parking decks and pedestrian areas, practical testing shows that luminaires rated below IK08 experience:

• Increased cracked or crazed lenses within 1–3 years.
• Deformed housings that compromise IP seals.
• Inconsistent photometrics as individual lenses break or yellow.

By contrast, a robust IK08+ fixture typically reduces mechanical damage incidents by 40–60% over the same period in like‑for‑like installations, primarily because its lens and housing geometry are engineered for impact as well as optics.

Where IK10 makes sense

IK10, defined as 20 J (5 kg from 400 mm or equivalent), is closer to a very hard hit with a heavy tool or a significant kick. Projects that tend to justify IK10 include:

• Column‑mounted fixtures within reach of vehicles.
• Perimeter luminaires near pedestrian ramps or stair towers where deliberate abuse is common.
• Low‑mounted wall packs protecting entrances and access gates.

However, as the analysis in Interelectronix’s IEC 62262 commentary explains, increasing IK often requires thicker materials and heavier housings. In aging garages with marginal concrete strength, that extra mass can demand new anchors, structural checks, and fall‑arrest solutions—costs that can exceed the fixture premium itself.

IP vs IK: Don’t Confuse Ingress Protection with Impact Protection

A recurring issue in parking‑structure projects is confusion between IP ratings and IK ratings.

• IP (Ingress Protection) is defined by IEC 60529 and measures resistance to dust and water.
• IK is defined by IEC 62262 and measures resistance to mechanical impact.

Why you must specify both

For covered parking decks, the typical baseline is:

• IP65 or better to handle wind‑blown rain, spray from vehicle washing, and fine dust.
• IK08 or better to handle everyday knocks and moderate abuse.

Experience with open‑sided garages shows that de‑icing salts, frequent hose‑downs, and exhaust particulates can exploit micro‑cracks created by minor impacts. As highlighted in the IEC 60529 guidance, IP ratings assume an intact enclosure. Once a lens or gasket is chipped, real‑world ingress can exceed lab assumptions.

Practical takeaway: Always specify IP and IK together, and state the mounting orientation (wall, ceiling, column) because both water and impact tests depend on how the fixture is installed.

How IK08+ Impacts Safety, Photometrics, and Lifecycle Cost

An IK08+ label is not just a durability badge. It affects photometrics, safety, and OPEX in ways that specifiers often underestimate.

1. Safety: fewer dark spots and exposed hazards

Broken luminaires do more than look bad:

• A shattered or dislodged lens can expose live parts or sharp fragments close to pedestrian routes.
• Partial failure in a row of luminaires can drop illuminance by 30–50% in localized zones, increasing slip‑trip‑fall risk.

Field reviews in mixed‑use garages consistently show that the bigger safety gain often comes from maintaining consistent illuminance over time, not just from preventing glass breakage. A more impact‑resistant luminaire keeps both its optical system and its IP sealing intact longer, so you maintain the designed light levels.

2. Photometric stability: why spare lenses matter

A common misconception is:

“If the fixture is IK08, I don’t need to worry about lenses; they won’t break.”

In reality, even with IK08, repeated localized impacts, thermal cycling, and material aging can still damage lenses. The Extra Information highlights a critical real‑world detail: in parking projects, simply specifying IK08 is insufficient. Designers also need:

• Lens fracture data (e.g., how lenses behave under overload—do they crack cleanly, or shatter?).
• Spare‑lens availability so a damaged lens can be replaced without scrapping the entire luminaire.

The moment a lens cracks or is removed, the luminaire’s photometric distribution changes immediately. For example, a Type V canopy luminaire with one missing panel can lose 20–30% of its downward flux and create glare spikes where the bare LED array is exposed.

Best practice: For structured parking, specify:

• IK08+ rating.
• Documented lens material (polycarbonate vs tempered glass) and fracture behavior.
• Availability of field‑replaceable lens modules and gaskets.

3. Lifecycle economics: IK08 vs IK10 vs “overbuilt” designs

The relationship between IK rating and lifecycle cost is not linear.

• Moving from IK06 to IK08 typically yields a high return: modest increase in fixture cost for a large drop in breakage.
• Jumping from IK08 to IK10 often adds larger housings, more material, and higher mounting loads.

As the Interelectronix analysis of IK levels points out, future‑proofing by always picking the highest IK class can backfire in older garages, where additional weight and volume can trigger structural reinforcements, conduit rework, and fire‑stopping modifications.

In well‑supervised or access‑controlled garages, long‑term maintenance data frequently shows that:

• Corrosion, driver failure, and lens yellowing dominate failure modes.
• True impact‑destroyed fixtures are a minority of replacements.

In such environments, upgrading to better IP sealing, thermal management, and replaceable drivers can produce more savings than chasing IK10 everywhere.

Comparison: IK07 vs IK08 vs IK10 for Parking Structures

Use the table below as a practical decision aid. Values are based on IEC 62262 definitions and aggregated field experience.

IK Class	Impact Energy (J)	Typical Test Scenario (IEC 62262)	Garage Use Suitability	Key Notes
IK07	2 J	0.5 kg hammer from 400 mm	Light‑duty, staff‑only areas	Insufficient for general public decks; lenses crack easily from trolleys and tools.
IK08	5 J	1.7 kg hammer from 300 mm	Baseline for most parking decks	Good balance of robustness and weight; handles most accidental knocks and moderate abuse.
IK10	20 J	5 kg hammer from 400 mm	High‑risk zones (columns, perimeters)	Very robust but heavier; may require structural checks and may reduce optical efficiency due to thicker lenses.

Pro Tip: Don’t Treat IK08 as a Drop‑In Swap

Specification teams often assume that upgrading from a lower IK class to IK08 is as simple as a one‑for‑one replacement. Experience shows this is rarely true.

Drawing on insights summarized in the Interelectronix IEC 62262 discussion:

• Fixture weight and volume often increase with higher IK ratings.
• This can force new mounting hardware, larger anchors, and re‑routing of conduits.
• In tightly packed ceilings, deeper bodies may conflict with fire sprinklers or mechanicals.

Before committing to an IK08+ upgrade across a portfolio of aging garages, run a quick impact‑resistance upgrade review:

1. Check existing substrate condition (spalled concrete, corrosion on inserts).
2. Confirm maximum allowable fixture weight for brackets and arms.
3. Verify conduit and junction box clearances for deeper fixtures.
4. Plan for a 3–5% spare‑fixture or spare‑lens kit, as recommended in the Extra Information, to cover early field damage without leaving dark zones.

This upfront diligence prevents expensive surprises during installation and inspection.

Lens Materials, Mounting, and Anti‑Vandal Details That Matter

The IK rating is only part of the vandal‑resistance story. Geometry, materials, and mounting strategy matter just as much.

Lens material: polycarbonate vs tempered glass

For parking structures, two lens options dominate:

• Polycarbonate (PC)
  • Very high impact resistance.
  • More prone to scratching and long‑term yellowing.
  • Well‑suited to low‑mounted wall packs and stair luminaires where direct abuse risk is high.
• Tempered glass
  • Excellent scratch and chemical resistance.
  • Lower impact resistance than PC; can shatter when overloaded.
  • Better for higher mounting heights where direct hits are rare and optical clarity is critical.

A practical heuristic from field projects:

• Use PC lenses at IK08+ up to ~3 m mounting height.
• Use tempered glass above that height where reachable abuse is less common and optical stability is more important.

Mounting strategy: reduce leverage, reduce failures

Even an IK10 housing can fail if it is mounted in a way that amplifies leverage. Smart mounting reduces the effective impact energy reaching the luminaire:

• Prefer recessed or semi‑recessed mounting in soffits where possible.
• Avoid long, flexible arms in low clearances; they act as levers.
• Orient fixtures so the strongest face of the housing faces likely impacts.

Serious buyers now routinely ask for the full IEC 62262 test matrix, not just the headline IK number. They want to know:

• Which surfaces were tested.
• At what angles.
• In which mounting orientation (ceiling, wall, or column).

This level of scrutiny prevents the situation where a manufacturer certifies only the most robust surface, leaving weaker faces in real‑world contact zones.

Anti‑vandal construction details

Beyond IK, several small design choices have big operational effects:

• Tamper‑resistant fasteners that require special bits, reducing casual interference.
• Recessed mounting surfaces that make it harder to grip or lever the fixture.
• Captive gaskets and lens frames that stay attached during maintenance.
• Replaceable lens modules so technicians can restore photometrics in minutes instead of swapping whole fixtures.

These details shorten service time and reduce lifecycle cost, particularly when outages must be fixed quickly to maintain code‑compliant egress lighting.

Balancing IK Rating with Driver Comfort and Glare Control

In parking structures, robust housings must coexist with driver comfort and visual safety.

Glare management and UGR

Experience shows that keeping Unified Glare Rating (UGR) ≤ 19 near ramps, intersections, and pedestrian crossings is a practical target for driver comfort. That requires careful balancing:

• Thicker or caged lenses used to achieve IK08+ can increase internal reflections and lead to higher apparent brightness at certain viewing angles.
• Over‑concentrated LEDs behind small windows can create hot spots that distract drivers.

A practical approach is to:

• Use wider, diffused optics in driver sightlines, even if that slightly lowers lumen efficacy.
• Increase lumen packages 20–30% at ramps and exits to avoid perceived dark spots, while controlling glare with larger emitting areas.

For readers working on broader high‑bay layouts, resources such as the “Specifier’s Guide to Low‑UGR High Bay Lighting” and “Designing a High Bay Layout for Warehouse Safety” can provide useful context on glare and uniformity in adjacent warehouse areas.

Impact resistance vs optical efficiency

One subtle trade‑off is that aggressively vandal‑resistant IK08+ designs may use:

• Thicker lenses.
• Protective cages or fins.
• Deep‑recessed LED arrays.

All of these can reduce useful lumens by several percentage points. As discussed in the EN 62262 commentary, real‑world product design often trades optical efficiency for mechanical robustness.

To maintain target light levels without oversizing fixtures, leverage full LM‑79 photometric reports, which quantify total lumens, distribution, and power factor, and pair them with IES (.ies) files that can be loaded into AGi32 or similar software. This ensures your layout accounts for the true delivered lumens with the IK08+ design, rather than the theoretical efficiency of a bare LED board.

Quick Specification Checklist for Parking‑Structure Lights

Use this checklist when writing specs or reviewing submittals for garage luminaires:

1. IK Rating and Testing
   • Minimum IK08 for general decks and drive aisles.
   • IK10 at columns, low‑mounted perimeters, and high‑risk abuse zones.
   • Request IEC 62262 test report including tested faces and mounting orientation.
2. IP Rating and Environmental Protection
   • IP65 or better for covered parking; IP66–67 for open‑sided structures exposed to driving rain and spray, per IEC 60529.
   • Confirm gasket materials are resistant to de‑icing salts and hydrocarbons common in garages.
3. Lens and Housing
   • Specify polycarbonate lenses for low‑mounted fixtures, tempered glass for higher mounts.
   • Require field‑replaceable lenses and gaskets with 3–5% spares delivered.
4. Mechanical and Mounting
   • Verify substrate condition and maximum fixture weight, especially in older garages.
   • Prefer recessed or semi‑recessed mounting where feasible.
   • Require tamper‑resistant fasteners and anti‑vandal hardware.
5. Optics and Photometrics
   • Confirm availability of LM‑79 reports and IES files for layout tools like AGi32.
   • Target UGR ≤ 19 in driver sightlines; increase lumen levels near ramps by 20–30% for perceived safety.
6. Controls and Compliance
   • For new or major renovations, tie luminaires into occupancy or vacancy sensors and daylight controls to support ASHRAE 90.1 and IECC requirements.
   • Verify drivers and control gear comply with FCC Part 15 to avoid interference with parking‑access systems.
7. Maintenance Strategy
   • Plan stocking of spare lenses and drivers (3–5%).
   • Define a repair SLA so damaged luminaires are restored promptly, avoiding extended dark zones.

Common Myths About IK Ratings in Parking Structures

Myth 1: “If it’s IK08, it’s vandal‑proof.”

Reality: IK08 is robust for everyday knocks, but it does not guarantee survival against repeated focused hits, large tools, or vehicles. Repeated low‑energy blows at the same point can fatigue lenses and seals in ways IEC 62262 does not model. Field data shows that fixture geometry, lens material, and mounting height are equally important.

Myth 2: “Higher IK is always better.”

The counter‑consensus insight from the Interelectronix study is clear: moving to IK10 in unsuitable substrates can introduce new hazards. Heavier fixtures on compromised concrete increase fall risk, and the added bulk can interfere with fire systems or clearance envelopes. In many garages, a combination of IK08+, better IP rating, and corrosion‑resistant hardware delivers better lifecycle outcomes than simply choosing the highest IK.

Myth 3: “IK has nothing to do with lighting performance.”

In practice, optical and mechanical design are tightly coupled. Thicker lenses and protective cages used to reach higher IK levels can reduce lumen output or change distribution, so you may need higher wattage or denser spacing to meet the same illuminance and uniformity targets.

Wrapping Up: A Practical Rule‑Set for IK08+ Parking‑Structure Lights

For parking garages and covered decks, the impact‑resistance strategy can be summarized in a few practical rules:

• Treat IK08 as the baseline for general decks and pedestrian routes; drop below this only in staff‑only rooms or protected equipment spaces.
• Use IK10 at high‑risk points: columns, entrances, low‑mounted wall‑packs, and locations with a history of abuse.
• Always combine IK and IP ratings in the spec and state mounting orientation.
• Look beyond the label—ask for test details, lens materials, fracture behavior, and spare‑lens availability.
• Balance mechanical robustness with glare control, driver comfort, and real photometric data.
• Build maintenance into the scope: spare parts, service access, and clear SLAs.

When you follow these guidelines, IK08+ becomes more than a checkbox. It becomes an integral part of a durable, safe, and economical parking‑structure lighting system that keeps drivers and pedestrians comfortable while minimizing unplanned maintenance and outages.

---

Frequently Asked Questions

What does IK08 actually protect against in a parking garage?
IK08 is tested at 5 J of impact energy using a standardized steel hammer. In practice, this corresponds to solid hits from hand tools, hard kicks, or cart handles. It significantly reduces cracked lenses and deformed housings compared to lower IK levels, but it does not make a luminaire indestructible, especially against vehicle impacts or sustained, deliberate abuse.

Do I always need IK10 for parking‑structure lights?
No. IK10 is useful for high‑risk locations such as column‑mounted fixtures within reach of vehicles or low‑mounted wall packs in areas with known abuse. For general decks and drive aisles, IK08 with good mounting and lens selection is usually sufficient and more economical.

How should I combine IP and IK ratings for a garage project?
For covered decks, aim for IP65 or better and IK08 or better. For open‑sided garages exposed to wind‑driven rain and spray, IP66–67 is often justified. Always confirm gasket and lens materials are compatible with de‑icing salts, oils, and exhaust.

Why do specifiers ask for IEC 62262 test reports instead of just the IK number?
Because the IK number alone does not show which faces were tested or in what orientation. Serious buyers request the test matrix to ensure the same surfaces and mounting orientation used on the project have been validated.

Does upgrading IK rating affect my lighting layout?
Yes. Higher IK designs may use thicker lenses and more protective geometry, slightly lowering lumen output or changing distributions. Always base layouts on current LM‑79 photometrics and IES files for the actual IK‑rated product, and adjust wattage or spacing accordingly.

---

Safety Disclaimer: This article provides general technical guidance on impact‑resistant lighting for parking structures. It does not replace detailed engineering, structural assessment, or local code review. Always consult a qualified electrical engineer, structural engineer, and your Authority Having Jurisdiction (AHJ) before finalizing specifications or installations in safety‑critical environments.

Sources:

• EN 62262 – Degrees of protection provided by enclosures for electrical equipment against external mechanical impacts
• ABNT NBR IEC 62262 – IK impact resistance grading and application commentary
• IEC 60529 – International Protection (IP) Code overview
• AGi32 – Luminaire photometric data formats and import guidance
