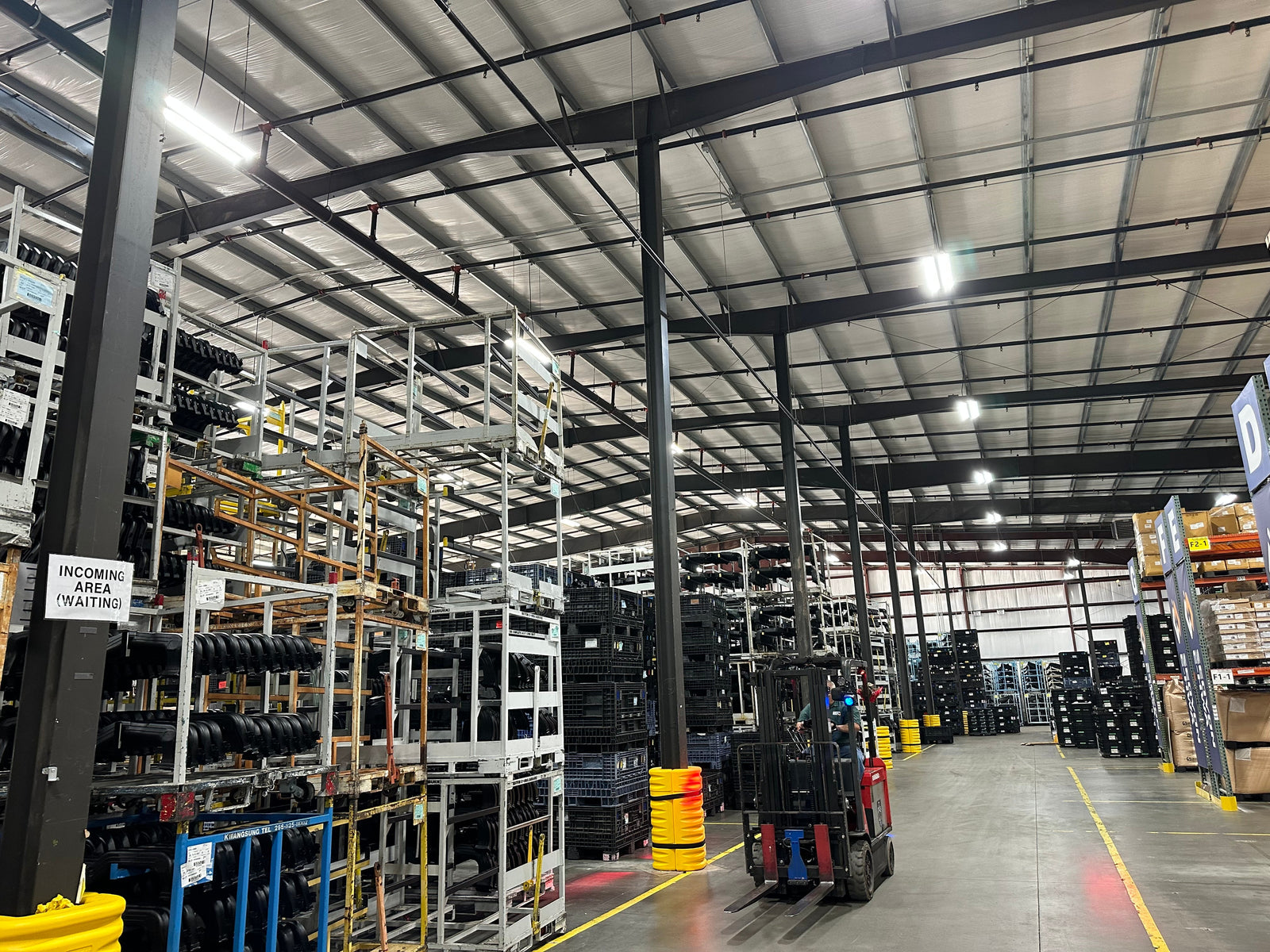

OSHA cares about conditions in the aisle, not promises in the catalog. An IES file and a good photometric layout will not “certify” a fixture as OSHA‑approved, but they provide the technical evidence required to prove that your warehouse lighting was designed to support a safe workplace.
This guide walks facility managers, safety leads, and contractors through the process of using IES files to document lighting safety, focusing on the rigorous requirements of racked aisles and high-bay environments.
1. What an IES File Can (and Cannot) Prove for OSHA
1.1 Clarifying OSHA’s focus
OSHA regulates working conditions, not lighting products. Under 29 CFR 1910.37(b)(1), exit routes must be adequately lighted so that an employee with normal vision can see along the exit route. Furthermore, 29 CFR 1926.56 (Construction, often used as a benchmark for general industry) specifies minimum illumination intensities for various tasks.
In practice, inspectors look at:
- Measured illuminance on walking‑working surfaces (floor) and task planes (racks).
- Shadow patterns that may obscure hazards like pallet tines or debris.
- Control reliability: How sensors and dimming affect light levels during active use.
According to practical guidance from JJ Keller, compliance is determined by light levels at the work surface, not the fixture’s theoretical output.
The Role of the IES File:
- Standardized Data: It describes light distribution using the IES LM‑63 format.
- Predictive Modeling: It allows for simulations in tools like AGi32 to forecast vertical rack light levels and uniformity.
- Defensibility: It forms the "Design Intent" portion of your safety manual.
Technical Note on the "Field Verification Gap": Industry audits typically reveal a 20–40% difference between simulated and measured illuminance. This variance stems from real-world reflectances, lumen dirt depreciation (LDD), and installation deviations, as noted in the Facility Solutions Group Industrial Guide. IES-based layouts are planning evidence, not final proof of compliance.
1.2 The role of LM‑79 and DLC data
An IES file is only as credible as the lab test behind it.
- LM‑79-19: This standard ensures the IES file reflects actual LED performance, including CCT and efficacy, rather than theoretical chip data (ANSI/IES LM‑79‑19).
- DLC QPL: The DesignLights Consortium verifies these tests. For OSHA documentation, using DLC-listed products ensures your "Design Intent" is based on third-party verified photometry.
2. Building an OSHA‑Ready Photometric Package
An OSHA-ready documentation set should be structured as a "Safety Evidence Folder" containing:
2.1 The Data Foundation
- Verified IES (.ies) files: Specifically matching the optic (e.g., "Aisle Optic" vs. "Wide") used in the facility.
- LM‑79 Summary Reports: Correlating the IES file to the specific wattage and lumen package installed.
- DLC Listing Screenshots: Proof of third-party performance verification.
2.2 Modeling Horizontal vs. Vertical Illuminance
OSHA 1910.37 focuses on "seeing the route," but NIOSH emphasizes that industrial safety depends on vertical visibility to detect pallet edges and fork tines.
Recommended Design Targets (Based on IES RP-7-17):
| Area Type | Horizontal Target (Floor) | Vertical Target (Rack Face) | Uniformity (Avg:Min) |
|---|---|---|---|
| High-Traffic Aisles | 30–75 fc (320–800 lux) | 10–30 fc (110–320 lux) | ≤ 3:1 |
| Open Storage | 20–50 fc (215–538 lux) | 5–15 fc (54–161 lux) | ≤ 4:1 |
| Loading Docks | 30–50 fc (322–538 lux) | N/A | ≤ 3:1 |
Note: These are "maintained" levels, meaning they account for aging and dust (Light Loss Factor).
2.3 Explicit Assumption Documentation
To survive a technical audit, your IES layout must list its assumptions. Use this standard template:
- Floor Reflectance: 20% (Standard grey concrete).
- Wall/Rack Reflectance: 10–20% (Typical for loaded pallets).
- Light Loss Factor (LLF): 0.80–0.85 (Accounting for 15-20% depreciation over time).
- Calculation Grid: 2' x 2' or 0.5m x 0.5m spacing for high-resolution safety checks.
3. Case Study: Verification in a 150,000 sq. ft. DC
Scenario: A regional distribution center upgraded to aisle-optic high bays to address "dark spots" reported by forklift operators.
- Design Intent (IES Simulation): Target of 40 fc average at floor level; 2.5:1 uniformity.
- Post-Installation Measurement: 34 fc average; 2.8:1 uniformity.
- Variance Analysis: The 15% lower-than-simulated light level was traced to dark-colored pallet wrapping (lower reflectance than the 20% modeled).
- Corrective Action: Sensor "low-trim" settings were adjusted from 10% to 30% to maintain a safer "dimmed" baseline, and the documentation was updated to reflect the as-built conditions.
4. Step‑by‑Step Workflow: IES to OSHA Safety
3.1 Step 1 – Define Safety Basis of Design (BOD)
Identify "Critical Paths" (forklift lanes) and "High-Risk Tasks" (order picking). Document your target footcandles based on IES RP-7-17.
3.2 Step 2 – Run Simulations with Aisle-Specific Optics
Import IES files into AGi32 or Visual.
- Visual Check: Ensure light is concentrated in the aisle, not on top of the racks.
- Vertical Plane: Add a calculation grid at 5 ft (1.5m) above the floor to simulate eye-level visibility for pallet labels.
3.3 Step 3 – Link Controls to Safety Minimums
Avoid "Dead Zones." Ensure that energy-saving dimming does not drop light levels below the 5 footcandle minimum often cited for safe movement in inactive areas.
- Pro Tip: Document your "Occupancy Sensor Time Delay." A 10-15 minute delay is recommended for forklift aisles to prevent sudden darkness during slow maneuvers.
3.4 Step 4 – The "As-Built" Measurement Table
After installation, use a calibrated light meter to create a verification table:
| Test Point | Simulated (IES) | Measured (Field) | Pass/Fail (Target >30fc) |
|---|---|---|---|
| Aisle 4, Bay 12 | 42 fc | 38 fc | Pass |
| Dock Door 3 | 35 fc | 31 fc | Pass |
| Cross-Aisle J | 31 fc | 24 fc | Fail - Adjusted Sensor |
5. Aisle‑Optic Illumination: Direct Link to OSHA Safety
Standard symmetric high bays often create disability glare on upper racks while leaving the floor in shadow. Aisle-optic IES files demonstrate a "long and narrow" distribution that maximizes Uniformity.
5.1 Why Uniformity Matters for Safety
High uniformity (lower Avg:Min ratio) reduces the "adaptation lag" of the human eye. When a forklift driver moves from a bright 80 fc zone to a 10 fc dark spot, their pupils cannot dilate fast enough to see a small trip hazard. Using IES files to prove a 3:1 or better uniformity is a powerful defense against "poor visibility" claims.
6. Practical Asset: OSHA‑Oriented IES Documentation Checklist
- [ ] IES File Source: Direct from manufacturer (LM-79 based).
- [ ] Vertical Grids: Included in the layout for picking faces.
- [ ] Reflectance Values: Stated on the layout (e.g., Floor 20%).
- [ ] LLF (Light Loss Factor): Clearly defined (e.g., 0.85).
- [ ] Control Sequence: Documented "Dimmed" vs "Active" light levels.
- [ ] Meter Calibration: Light meter used for verification has a current calibration certificate.
7. Working with External Reviewers and Insurers
Insurers often conduct loss‑control surveys. Providing a "Safety Evidence Folder" with IES layouts and post-install measurements shows active risk management. This proactive approach aligns with OSHA’s Safety and Health Program Management Recommendations.
8. Key Takeaways: Turning IES Files into Evidence
- Model the Reality: Include racks and mezzanines in your IES simulation; empty room models are insufficient for OSHA.
- Prioritize Vertical Light: Use aisle-optic IES files to prove you are lighting the task (the rack), not just the floor.
- Document the Gap: Acknowledge the 20-40% variance between IES models and field measurements; document how you compensated for it.
- Link Controls to Safety: Ensure your IES model accounts for the lowest possible dimming state.
Technical Review & Authorship
Technical Lead: Industrial Lighting Specialist & Senior Editor
Review Standards: This content was audited against IES RP-7-17 (Industrial Lighting) and OSHA 29 CFR 1910 Subpart E.
Disclaimer: This article is for informational purposes only and does not constitute legal or engineering advice. Always consult a licensed Professional Engineer (PE) or Certified Safety Professional (CSP) for facility-specific compliance.
