Modern fitness studios and home gyms have evolved beyond simple training zones into sophisticated content production hubs. For fitness influencers and studio operators, lighting is no longer just a utility for visibility; it is a critical production asset that determines the visual quality of video content, the accuracy of skin tones, and the vibrancy of equipment on camera. Achieving a professional look requires moving beyond generic lumens and focusing on high Color Rendering Index (CRI) and specific spectral values like R9.
According to the 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights, the integration of high-fidelity lighting is now a benchmark for facilities prioritizing digital engagement. This article provides a technical roadmap for optimizing gym lighting for both human performance and high-end video production.
The Physics of Color: Why CRI and R9 Matter for Video
The Color Rendering Index (CRI) is a quantitative measure of a light source's ability to reveal the colors of various objects faithfully in comparison with a natural light source. While a CRI of 80 is standard for industrial warehouses, it is often insufficient for video production. For professional filming, a CRI above 90 is considered the baseline.
However, the standard CRI (Ra) only averages the first eight test colors (R1–R8), which are mostly pastel. It often ignores R9, the saturated red value. In a fitness environment, R9 is the most critical differentiator. Saturated reds are essential for rendering natural skin tones and making red-colored equipment—such as kettlebells, medicine balls, or brand logos—pop on camera. Without a high R9 value, skin can appear "muddy" or gray, and vibrant equipment looks dull and lifeless.
To ensure performance, manufacturers use the IES LM-79-19 Standard, which defines the methods for measuring the optical and electrical characteristics of Solid-State Lighting (SSL) products. When selecting fixtures, professional operators should request LM-79 reports to verify the spectral power distribution and ensure the R9 value meets their production needs.
Camera-Ready Environments: CCT, Flicker, and Uniformity
Beyond color accuracy, the interaction between light and camera sensors introduces technical challenges that human eyes do not perceive.
1. Correlated Color Temperature (CCT) and Skin Tones
The choice between 4000K (Neutral White) and 5000K (Daylight) significantly impacts the "mood" of a video. While 5000K provides a high-energy, clinical look that mimics noon-day sun, it can sometimes wash out skin tones on camera. Many professional studios prefer 4000K for a more flattering, natural warmth that maintains alertness without the harshness of higher temperatures. Consistency is key; using fixtures that adhere to ANSI C78.377-2017 ensures that all lights in a grid maintain the same chromaticity, preventing awkward color shifts across different camera angles.
2. The Flicker Factor
Cameras utilize a rolling shutter that is highly sensitive to the pulse-width modulation (PWM) used in cheaper LED drivers. This results in "flicker"—distracting horizontal bands or strobing in video, especially in slow-motion shots. High-quality fixtures use flicker-free drivers that meet FCC Part 15 regulations for electromagnetic interference (EMI), ensuring that the lighting does not interfere with wireless microphones or camera equipment.
3. Lighting Uniformity and Shadow Control
Inadequate lighting levels often lead to eye strain and poor video quality. According to the IES RP-7-21 Recommended Practice for Industrial Facilities, achieving uniform horizontal and vertical illuminance is vital. For gyms, this means using a mix of high-output fill light and aesthetic accents.
- Primary Fill: High-efficiency fixtures like the Hyperlite LED High Bay Light - White Hero Series provide broad, shadow-free illumination from high ceilings (15–25 feet).

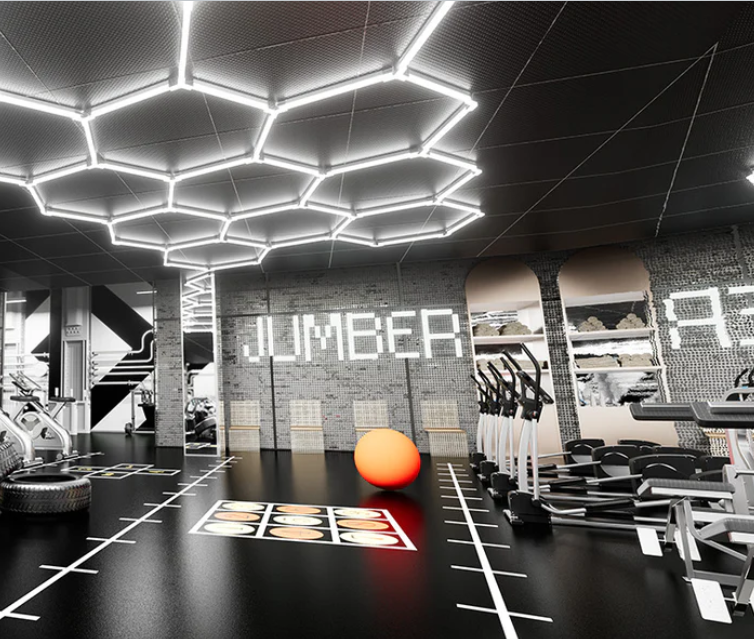

- Aesthetic Accents: Modular grids, such as the Dimmable Hyperlite Hexagon Garage Lights Gen 2 - 5 Grid, serve as dynamic backdrops that provide even, glare-free light directly over functional training areas.
The Business Case: ROI and Energy Efficiency
Upgrading to high-CRI LED lighting is a strategic business investment with quantifiable returns. A professional analysis of a "Content-First" fitness studio (approx. 1,500 sq. ft.) reveals the following financial impact:
Table 1: Estimated Annual Savings & ROI for a 1,500 sq. ft. Studio Upgrade
| Metric | Value (Estimated) |
|---|---|
| Annual Energy Savings | $4,990 |
| Maintenance Savings | $844 |
| HVAC Cooling Credit | $235 |
| Total Annual Savings | $6,069 |
| Payback Period | 0.74 Years (approx. 9 months) |
| Potential Utility Rebates | $1,500 - $3,000 |
Note: Estimates based on $0.18/kWh commercial rate and 3,000 annual operating hours. Individual results may vary based on local utility programs and building insulation.
The rapid payback is largely driven by eligibility for utility rebates. To qualify, fixtures must be listed on the DesignLights Consortium (DLC) Qualified Products List (QPL). The DLC 5.1 standard requires higher efficacy (lumens per watt) and improved light quality, making it the benchmark for professional-grade retrofits.
Regulatory Compliance and Safety Standards
Professional studio operators must ensure their lighting systems comply with local building codes and safety regulations.
- Safety Certification: All fixtures should be UL 1598 listed, ensuring they meet North American safety standards for fixed luminaires. This is the first verification point for insurance providers and building inspectors.
- Energy Codes: New constructions or major retrofits must often comply with ASHRAE Standard 90.1-2022 or the International Energy Conservation Code (IECC). These standards mandate specific Lighting Power Densities (LPD) and the use of automated controls, such as occupancy sensors and daylight harvesting.
- Regional Requirements: In California, Title 24, Part 6 imposes some of the nation's strictest requirements for multi-level dimming and high-efficacy lighting. Using dimmable solutions like the Hyperlite Hexagon Garage Lights Gen 2 - 14 Grid allows operators to meet these mandates while maintaining control over the visual environment.
Installation Best Practices and Maintenance
A high-performance lighting system requires proper execution to maintain its "Pro-Grade" status over time.
- Thermal Management: LED longevity is determined by heat dissipation. The IES LM-80 Standard measures the lumen maintenance of LED chips over time. High-quality fixtures utilize cold-forged aluminum housings to ensure that even under 24/7 operation, the light output does not degrade prematurely.
- Wiring and Controls: For B2B applications, 0-10V dimming is the industry standard. This allows for seamless integration with sensors and smart building systems. For DIY setups, plug-and-play kits like the Hyperlite RGB Gradient Hexagon Garage Lights Gen 3 - 5 Grid offer professional aesthetics with simplified installation.
- The "Slow-Mo" Test: Before finalizing an installation, always perform a slow-motion video test with a smartphone. If horizontal bands appear, the driver frequency is incompatible with the camera's shutter speed, necessitating a higher-quality flicker-free driver.
Summary of Technical Specifications for Gym Content
| Feature | Professional Recommendation |
|---|---|
| CRI (Ra) | >90 |
| R9 Value | >50 (High saturated red) |
| CCT | 4000K (Natural) or 5000K (Daylight) |
| Flicker | Flicker-free (<1% at high frequencies) |
| Compliance | DLC Premium, UL/ETL Listed, FCC Part 15 |
| Warranty | 5-Year Limited |
Designing for Performance and Aesthetics
The most successful fitness content spaces use a layered lighting approach. By combining the raw power of the Hyperlite LED High Bay Light - White Hero Series for overall brightness with the geometric precision of Hyperlite Hexagon Garage Lights, studio owners can create a space that feels motivational to athletes and looks cinematic to viewers.
Investing in high-CRI lighting is not merely about "seeing better"—it is about ensuring that every frame of content captured in the space reflects the professional quality of the training provided. By adhering to industry standards like LM-79 and prioritizing DLC-qualified fixtures, gym owners can achieve a high-performance environment that pays for itself through energy savings and enhanced brand authority.
YMYL Disclaimer: This article is for informational purposes only and does not constitute professional electrical, legal, or financial advice. All electrical installations should be performed by a licensed professional in accordance with the National Electrical Code (NEC) and local building regulations. Always consult with a qualified lighting designer or engineer for specific project requirements.
Sources:
- DesignLights Consortium (DLC) Qualified Products List
- IES LM-79-19: Optical and Electrical Measurements of Solid-State Lighting Products
- ANSI C78.377-2017: Specifications for the Chromaticity of Solid State Lighting Products
- UL 1598: Standard for Luminaires
- ASHRAE Standard 90.1-2022: Energy Standard for Buildings
