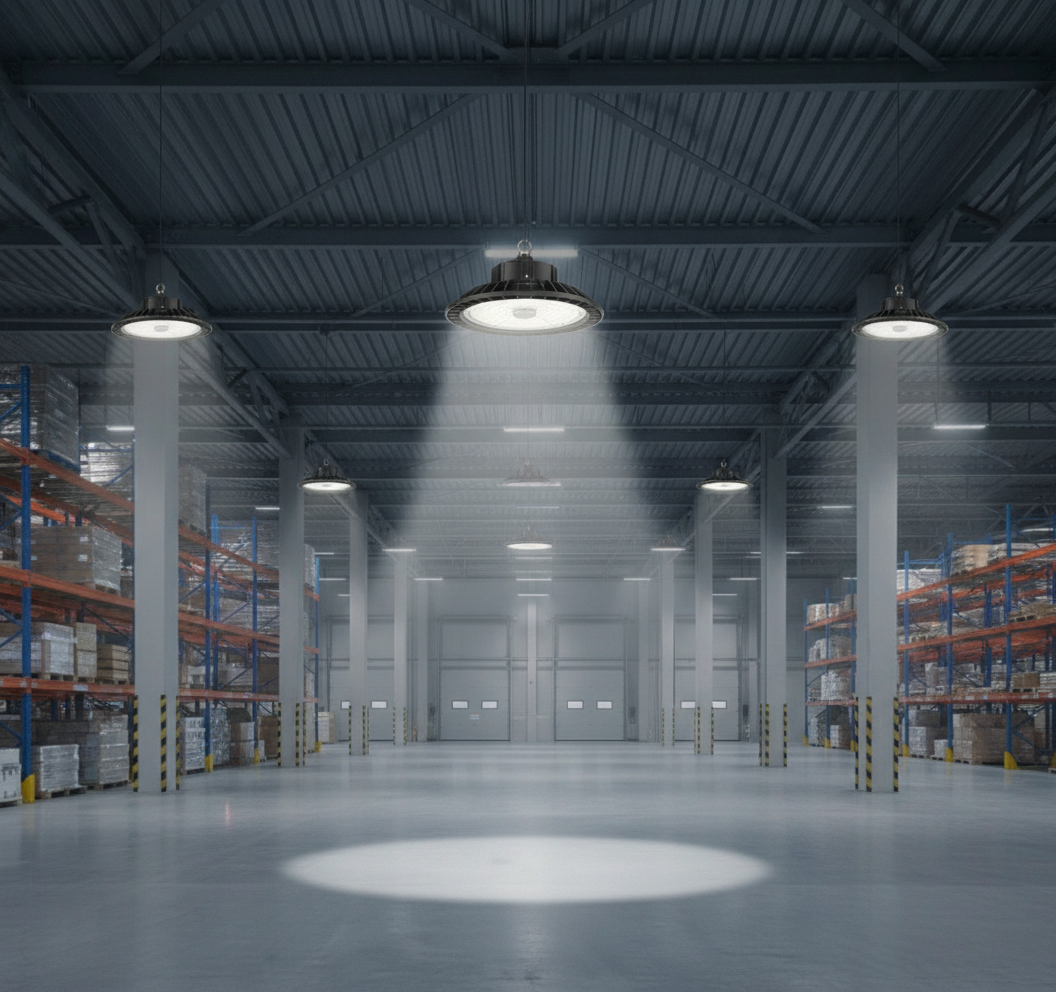

The Spacing-to-Mounting Height (S/MH) Framework for Industrial Productivity
In large-scale industrial lighting design, the distance between fixtures is a primary determinant of visual comfort and operational safety. For facility managers and specifiers, the Spacing-to-Mounting Height (S/MH) ratio serves as the foundational metric for ensuring adequate coverage without compromising worker well-being.
Based on recurring patterns in retrofit audits, a frequent challenge involves maintaining legacy fixture spacing when transitioning to high-efficiency LED systems. Because LEDs are directional point sources, failing to adjust the S/MH ratio can result in "hot spots" (extreme localized brightness) and "cavern effects" (dark upper walls), which may increase the Unified Glare Rating (UGR) and contribute to worker fatigue.
The Conclusion First: For a balance between uniformity and low glare in a standard warehouse, a Spacing-to-Mounting Height (S/MH) ratio between 1.0 and 1.3 is typically recommended for wide-beam (120°) circular high bays. For precision tasks where glare must be strictly controlled (UGR < 19), a tighter ratio of 0.8 to 1.0 utilizing medium-beam optics (90°) is a common pragmatic baseline. Note: These ratios are heuristic estimates; actual performance depends on specific fixture photometry (.ies files) and room surface reflectances.
Photometric Fundamentals: Uniformity vs. Glare
Visual performance in an industrial environment depends on two competing metrics: Uniformity ($U_1$) and the Unified Glare Rating (UGR).
1. Light Uniformity ($U_1$)
Uniformity is defined as the ratio of minimum illuminance to average illuminance ($E_{min}/E_{avg}$) across a work plane. According to the Illuminating Engineering Society (IES) RP-7-21 - Recommended Practice: Lighting Industrial Facilities (a third-party industry standard), a uniformity ratio ($U_1$) of 0.6 or higher is generally targeted for safe navigation and task identification in open areas.
2. Unified Glare Rating (UGR)
UGR is a dimensionless index (typically 10 to 30) predicting the likelihood of discomfort glare.
- UGR < 19: Recommended for detail-oriented assembly or long-shift workstations.
- UGR 22–25: Often acceptable for general bulk storage.
Technical Context: UGR is not a fixed property of a lamp; it is a calculation of contrast between the fixture and its surroundings. In "dark-shell" environments (non-reflective floors/walls), the high contrast makes LED sources appear more intense. In such cases, we suggest reducing the S/MH ratio by 10–15% to increase ambient light bouncing off surfaces, thereby softening the visual contrast.
The "Effective Mounting Height" in High-Stack Storage
A critical nuance in racking environments is the calculation of mounting height. In an empty facility, the height ($H$) is measured from the fixture to the floor. However, in high-stack storage, the "work plane" is often the top pallet level or the vertical face of the rack.
If a 30-foot ceiling serves racks stacked 20 feet high, the effective mounting height for vertical illumination is only 10 feet. Applying a standard 1.2 S/MH ratio based on the floor height can result in significant shadows at the top of the racks and "striping" on the aisle floor.
Heuristics for High-Stack Aisles:
- Vertical Uniformity: Consider asymmetric optics or "aisle-saver" distributions to push light down the vertical face.
- The 0.9 Rule (Practical Guideline): In narrow aisles (less than 12 feet wide), maintaining an S/MH ratio of approximately 0.9 relative to the top of the rack helps ensure the peak beam reaches the bottom pallet without being obstructed by the rack face.
| Application Type | Recommended S/MH Ratio* | Target UGR | Typical Optic Choice |
|---|---|---|---|
| Open Warehouse / Bulk Storage | 1.0 – 1.3 | < 22 | 120° Wide Beam |
| Precision Manufacturing | 0.8 – 1.0 | < 19 | 90° Medium Beam |
| High-Stack Racking Aisles | 0.9 – 1.1** | < 22 | Asymmetric / 60x120° |
| Cold Storage (High Reflectance) | 1.2 – 1.4 | < 19 | 120° Wide Beam |
*Ratios provided are industry-standard heuristics for initial planning. **Calculated based on effective height to the top of the rack.
Technical Validation: LM-79, LM-80, and TM-21
To ensure a layout performs as designed over its lifecycle, verify fixture performance through standardized reports.
- IES LM-79-19: The "performance report" for the entire luminaire. It verifies total lumens and light distribution patterns. Without a valid LM-79 report, layout simulations are speculative.
- IES LM-80-21: Measures the lumen maintenance of LED chips over time.
- IES TM-21-21: Uses LM-80 data to project long-term lifespan ($L_{70}$), indicating when light output will likely drop to 70% of original brightness.
When specifying, cross-reference these documents with the DesignLights Consortium (DLC) Qualified Products List (QPL). DLC Premium certification typically requires higher efficacy and stricter glare control, which are often prerequisites for securing utility rebates.
Economic Impact: Energy Savings and HVAC Interactive Effects
Optimizing the S/MH ratio can reduce energy waste. Over-lighting a space to achieve excessive uniformity ($U_1 > 0.7$) may increase energy consumption by 15–25% compared to a layout optimized for the standard $U_1 = 0.6$.
Modeling a Cold Storage Retrofit (Example Case)
This model examines replacing 50 legacy 400W Metal Halide (MH) fixtures with 240W high-performance LED high bays in a refrigerated warehouse.
Calculation Methodology
-
Annual Energy Savings ($):
[(Qty × ΔWatts) / 1000] × Annual Hours × Utility Rate -
HVAC Cooling Credit ($):
(Annual kWh Saved × Interactive Factor) / COP × Utility Rate - Maintenance Savings ($): Estimated based on avoiding biennial bulb/ballast replacements and labor.
| Parameter | Value | Unit | Rationale |
|---|---|---|---|
| Legacy System Watts | 458 | W | 400W MH + Ballast Loss |
| LED System Watts | 240 | W | 240W LED Equivalent |
| Utility Rate | 0.18 | $/kWh | Commercial Industrial Rate |
| Cooling COP | 3.5 | Ratio | Standard Refrigeration Efficiency |
| Interactive Factor | 0.33 | Ratio | Lighting Interactive Effects Study (3rd Party) |
Estimated Analysis Results:
- Annual Energy Savings: ~$17,187
- Annual HVAC Cooling Credit: ~$1,620
- Maintenance Savings: ~$11,388
- Estimated Payback Period: ~0.6 years (Includes a typical $100/fixture rebate)
Disclaimer: Financial results are illustrative. Actual ROI depends on local utility rates, rebate availability, and site-specific labor costs.
Regulatory Compliance: ASHRAE, IECC, and Title 24
Modern layouts must comply with regional energy codes, such as ASHRAE Standard 90.1-2022 or the IECC 2024.
- Lighting Power Density (LPD): Codes limit the watts per square foot allowed for specific applications. High-efficacy fixtures (>140 lm/W) are often necessary to meet these limits while maintaining safety foot-candles.
- Mandatory Controls: Occupancy sensors are frequently required in warehouses. According to the DOE FEMP Wireless Occupancy Sensors Guide, integrated sensors can reduce energy usage by up to 60% in low-traffic areas.
In California, Title 24, Part 6 requires multi-level dimming or automatic daylighting controls in spaces with significant natural light. Ensuring high bays are 0-10V dimming compatible is a standard compliance necessity.
Pre-Installation Field Checklist
Use this checklist to validate your design before final procurement:
- [ ] Verify Obstructions: Are fixtures positioned away from HVAC ducts, fire sprinklers, or large ceiling fans?
- [ ] Confirm Effective Height: Is the S/MH ratio calculated based on the floor or the top of the storage racks?
- [ ] Check Reflectance: Are walls/floors dark? (If yes, consider a 10% tighter spacing).
- [ ] Dimmer Compatibility: Is the 0-10V dimmer model listed on the manufacturer’s compatibility sheet to prevent flicker?
- [ ] Maintenance Access: Can a scissor lift reach the fixture once machinery or racking is installed?
- [ ] Certification Check: Does the fixture appear in the UL Product iQ Database and DLC QPL?
For further hardware specifications, refer to the manufacturer-led 2026 Commercial & Industrial LED Lighting Outlook.
Frequently Asked Questions
How do I verify if a fixture is actually UL Listed? Search the UL Solutions Product iQ Database using the manufacturer's file number. This is often required for insurance compliance and passing electrical inspections.
What is the difference between 4000K and 5000K for a warehouse? According to ANSI C78.377-2017, 5000K (Daylight) is often preferred for high-activity areas to improve alertness, while 4000K (Cool White) may be chosen for areas requiring a slightly "warmer" visual environment.
Can I use the same spacing for Linear and Circular high bays? Not necessarily. Linear high bays often have a wider lateral distribution. While effective for Aisle Glare Control (manufacturer guide), misaligned linear fixtures can create "striping" if the S/MH ratio exceeds 1.5.
Do I need an IK rating for my warehouse lights? If fixtures are at risk of impact from forklifts or equipment, look for an IK08 or IK10 rating (per IEC 62262). This ensures the housing can withstand mechanical impacts without shattering.
Disclaimer: This article is for informational purposes only and does not constitute professional engineering or legal advice. Always consult with a licensed electrical contractor or lighting designer and adhere to local building codes (NEC/NFPA 70) before beginning an installation.
