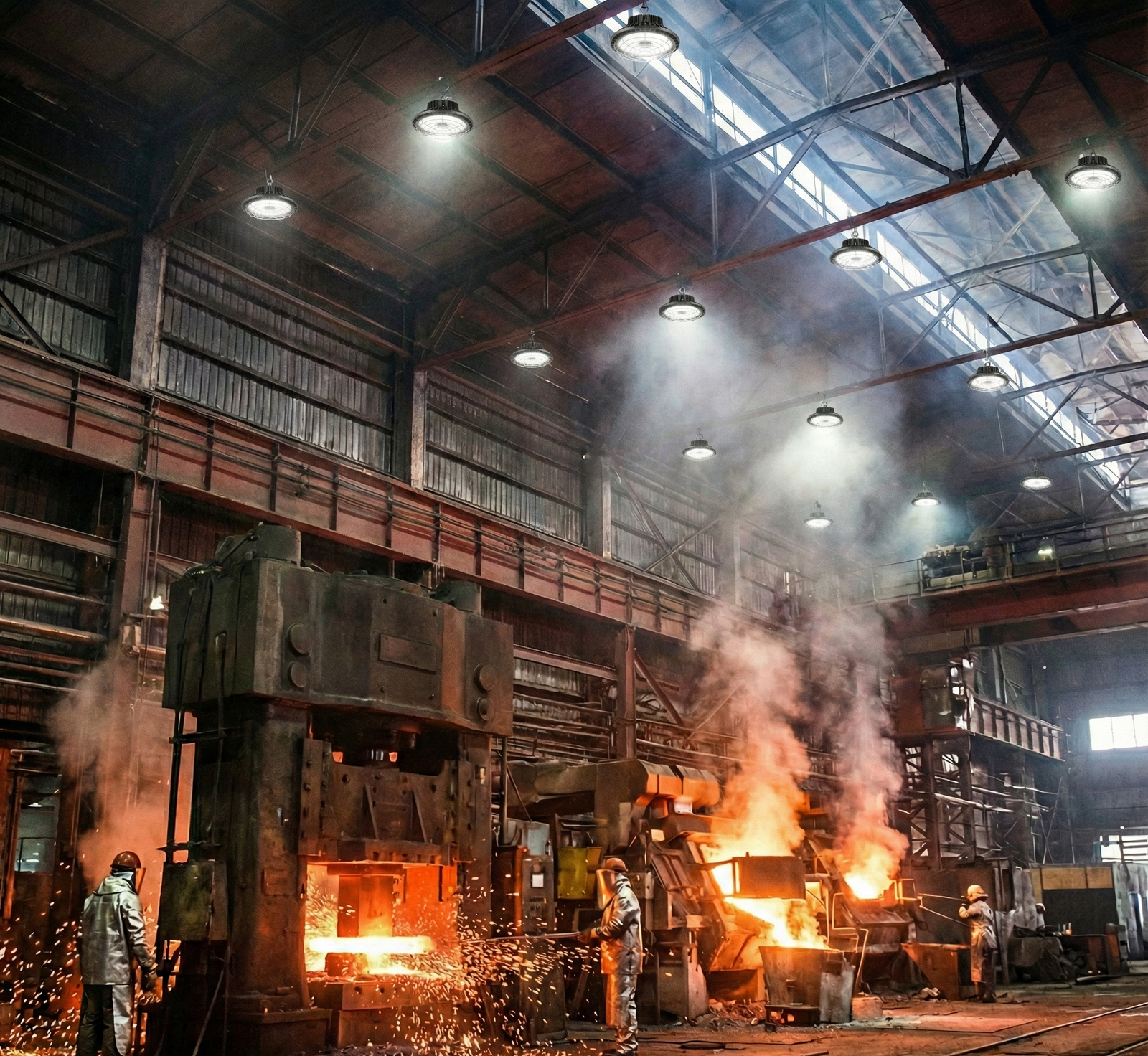

The Science of Visual Comfort: 5 Myths About High Bay Glare & UGR Debunked
In the high-stakes environment of industrial facility management, lighting specification is often reduced to two metrics: lumens and cost. However, for the contractors and engineers tasked with long-term operational success, a third metric—Unified Glare Rating (UGR)—is becoming the defining factor of a "pro-grade" installation. Glare is not merely an aesthetic nuisance; it is a safety hazard that causes eye strain, headaches, and "disability glare," which can obscure hazards for forklift operators and assembly technicians.
Despite its importance, UGR remains one of the most misunderstood aspects of photometric design. Many B2B buyers rely on outdated heuristics that lead to expensive retrofit corrections. By debunking the five most persistent myths regarding high bay glare, we can align project specifications with the rigorous standards of EN 12464-1 and ensure a superior Total Cost of Ownership (TCO).
Myth 1: More Lumens Automatically Mean More Glare
A common misconception among facility managers is that increasing the brightness (lumen output) of a space inherently increases the glare. While it is true that a higher-intensity light source has more potential to cause discomfort, glare is a function of luminance (the light leaving the surface in a specific direction) and the contrast against the background, not just total luminous flux.
High-efficacy fixtures, often reaching 140 lumens per watt (lm/W) or higher, are frequently blamed for glare. However, a fixture's performance is verified through IES LM-79-19 reports, which measure the spatial distribution of light. A 30,000-lumen fixture with precision optics can actually feel "softer" than a 15,000-lumen fixture with a clear lens and exposed LED chips.
Logic Summary: Our analysis of glare perception assumes that source luminance (cd/m²) is the primary driver of discomfort, rather than total lumens. This is based on standard photometric modeling where the size of the emitting surface (the "aperture") dictates the perceived intensity.
In our experience auditing industrial sites, we often find that "hot spots" are caused by high-lumen fixtures with narrow beam angles installed at low mounting heights. The solution is not to reduce lumens—which would compromise safety-critical horizontal lux levels—but to select fixtures with a larger luminous opening or secondary optics that redistribute the light over a wider area.
Myth 2: A Standard Diffuser Solves All Glare Issues
When glare complaints arise, the default response is often to "slap a diffuser on it." While standard frosted or milky diffusers do scatter light, they often do so indiscriminately. In a high-bay warehouse, a standard diffuser can actually decrease efficiency by 10–15% while failing to address high-angle glare (light emitted at 65° to 90° from the vertical), which is the primary cause of discomfort for workers looking across a large floor.
Professional-grade lighting utilizes micro-prismatic optics or anti-glare lenses. These are designed to redirect light downward into the task zone while shielding the "glare zone." According to the 2026 Commercial & Industrial LED Lighting Outlook, the industry is shifting toward "asymmetric" and "shielded" designs that prioritize the observer's line of sight over simple diffusion.
| Optic Type | Glare Reduction Mechanism | Efficiency Impact | Best Application |
|---|---|---|---|
| Clear Lens | None (Direct view of LEDs) | 0% (High) | Very high ceilings (>30ft) |
| Standard Frosted | Scattering (Lambertian) | -10% to -15% | Low-ceiling storage |
| Micro-Prismatic | Refraction (Directional) | -3% to -5% | Precision workshops (UGR <19) |
| Reflector/Shield | Physical Cut-off | -5% to -8% | Racked warehouses (UGR <22) |
Methodology Note: This comparison is a heuristic based on typical photometric performance observed in IES LM-63-19 files. Actual efficiency loss and UGR values vary significantly based on fixture geometry and LED density.
Myth 3: UGR is a Fixed "Product Specification"
This is perhaps the most dangerous myth in the B2B sector. You will often see lighting catalogs claim a fixture has a "UGR of 19." Technically, a fixture cannot have a UGR rating on its own. UGR is a calculation of how a lighting system interacts with a specific room.
The UGR formula takes into account:
- The luminance of the fixtures.
- The position of the observer.
- The background luminance (reflectance of walls, ceiling, and floor).
- The room geometry (the "Room Cavity Ratio").
When a manufacturer claims a UGR <19, they are usually referring to a "Standard Room" (typically a 4H/8H geometry with specific reflectances: 70% ceiling, 50% walls, 20% floor). If your warehouse has dark grey concrete walls and a black-painted ceiling, that "UGR 19" light will likely perform closer to a UGR 24 in reality.
To verify compliance with EN 12464-1 targets, specifiers must use AGi32 or similar photometric software to model the actual environment. Relying on a catalog number without a point-by-point calculation is a common pitfall that leads to failed inspections in regulated industries.
Myth 4: UFO High Bays are Inherently More "Glary" than Linear Fixtures
There is a persistent belief that the circular "UFO" form factor is inherently worse for glare than linear high bays. This stems from the fact that many early-generation UFO lights were essentially "cob" style LEDs with a single, highly concentrated light source.
Modern engineering has largely neutralized this difference. High-performance UFO fixtures now utilize high-density SMD (Surface Mounted Device) arrays that spread the heat and light over a larger surface area. Furthermore, the use of external reflectors—polycarbonate or aluminum—can provide a physical "cut-off" angle that linear fixtures often lack.
The choice between UFO and linear should be based on the mounting height and aisle configuration, not a generalized assumption about glare. In open-plan manufacturing, a UFO with a 120° beam angle and a micro-prismatic lens provides excellent uniformity. In narrow-aisle racking, a linear fixture with an asymmetric 60°x90° beam is often superior because it directs light onto the vertical face of the pallets rather than wasting it on the tops of the racks.
Myth 5: If the Horizontal Lux is High, Glare is Under Control
In many B2B projects, the "success" of a lighting plan is measured by a light meter on the floor (horizontal illuminance). However, in an industrial setting, the most critical visual tasks often happen on a vertical plane—reading labels on a 20-foot rack or inspecting the side of a large machine.
A common mistake is over-lighting the floor to compensate for poor vertical illuminance. This creates a "snow-blind" effect where the floor is so bright that the contrast ratio between the floor and the dark racks exceeds 10:1, triggering discomfort glare.
The IES RP-7-21 Standard for Industrial Facilities recommends that vertical illuminance should be at least 50% of the horizontal illuminance. Achieving this without increasing glare requires precision optics that "throw" light sideways at controlled angles. Simply increasing power will only increase the UGR without necessarily improving the visibility of the task.
Practical Implementation: The Specifier’s Checklist
To move from "bright" to "visually comfortable," contractors should follow a data-driven workflow. This process ensures that the selected fixtures meet both performance and compliance requirements.
- Define the Task Area: Identify if the space is a "General Warehouse" (UGR target 25), a "Precision Workshop" (UGR target 19), or a "Cold Storage" facility.
-
Request IES Files: Never specify a high bay without a corresponding
.iesfile. This is the only way to perform an accurate UGR calculation for your specific room. - Check DLC QPL Status: Ensure the fixture is listed on the DesignLights Consortium (DLC) Qualified Products List. DLC Premium fixtures often have stricter requirements for light distribution and efficacy, which indirectly aids glare management.
- Model the "Worst Case" Observer: In your photometric software, place the observer at the end of the longest aisle looking toward the horizon. This is where UGR values are typically highest.
- Verify Vertical Lux: Aim for a 2:1 ratio (Horizontal:Vertical) to ensure safety and label readability in racking areas.
Modeling Note (Reproducible Parameters): To reproduce our internal UGR benchmarks for industrial spaces, use the following simulation parameters:
Parameter Value Unit Rationale Mounting Height 25 ft Standard mid-bay warehouse height Reflectance (C/W/F) 70/50/20 % Standard IES/EN industrial baseline Maintenance Factor 0.85 - Typical LED lumen depreciation (LM-80) Observer Height 5.5 ft Average eye level for standing worker Calculation Grid 10x10 ft Standard density for uniformity check
Compliance, Safety, and the Bottom Line
The push for lower UGR isn't just about comfort; it's about risk mitigation. High glare levels are linked to increased workplace accidents and reduced worker speed. Furthermore, many utility rebate programs are beginning to look at "Quality of Light" metrics beyond simple energy savings.
By referencing the GSA – LED Lighting and Controls Guidance (2023), we see that federal and large-scale commercial projects are now mandating specific glare controls and UGR limits as part of the initial tender. If a contractor installs a high-glare system today, they may find themselves liable for a costly "fix" if the environment fails to meet OSHA safety guidelines or local building codes.
Ultimately, a "Value-Pro" strategy involves choosing fixtures that balance industry-leading efficacy with the optical sophistication required to maintain a low UGR. This approach protects the facility's most valuable asset—its people—while ensuring the lighting system remains compliant for its entire 50,000+ hour lifespan, as projected by IES TM-21-21 data.
Frequently Asked Questions
How do I find the UGR of a specific light? As discussed, UGR is not a single number on a spec sheet. You must ask the manufacturer for the "UGR Table" (derived from IES files) which shows the rating for various room sizes and reflectances. For a definitive project-specific value, a photometric layout is required.
Does color temperature (CCT) affect glare? While CCT (e.g., 4000K vs. 5000K) does not change the mathematical UGR value, many users perceive 5000K "Daylight" as being more glary or "harsh" than 4000K "Cool White." This is due to the higher blue-light content in 5000K LEDs. For tasks requiring high focus, 4000K is often preferred for visual comfort.
Are reflectors better than lenses for glare? Reflectors provide a physical "shield" that creates a sharp cut-off, which is excellent for preventing direct glare when looking up. However, lenses (especially micro-prismatic ones) are often better at maintaining high efficiency and providing uniform light distribution. Many "Pro" setups use a combination of both.
Is UGR relevant for outdoor industrial lighting? UGR is specifically designed for indoor environments. For outdoor areas like equipment yards, the industry uses the "Glare" (G) rating from the BUG (Backlight, Uplight, Glare) system, as defined by IES TM-15-11.
Disclaimer: This article is for informational purposes only and does not constitute professional electrical engineering or legal advice. Always consult with a licensed lighting designer or electrical contractor to ensure your project complies with local building codes and safety standards.
Sources
- DesignLights Consortium (DLC) Qualified Products List (QPL)
- IES LM-79-19: Optical and Electrical Measurements of Solid-State Lighting Products
- EN 12464-1: Light and Lighting - Lighting of Work Places
- ANSI/IES RP-7-21: Recommended Practice for Lighting Industrial Facilities
- 2026 Commercial & Industrial LED Lighting Outlook
- GSA LED Lighting and Controls Guidance for Federal Buildings (2023)
