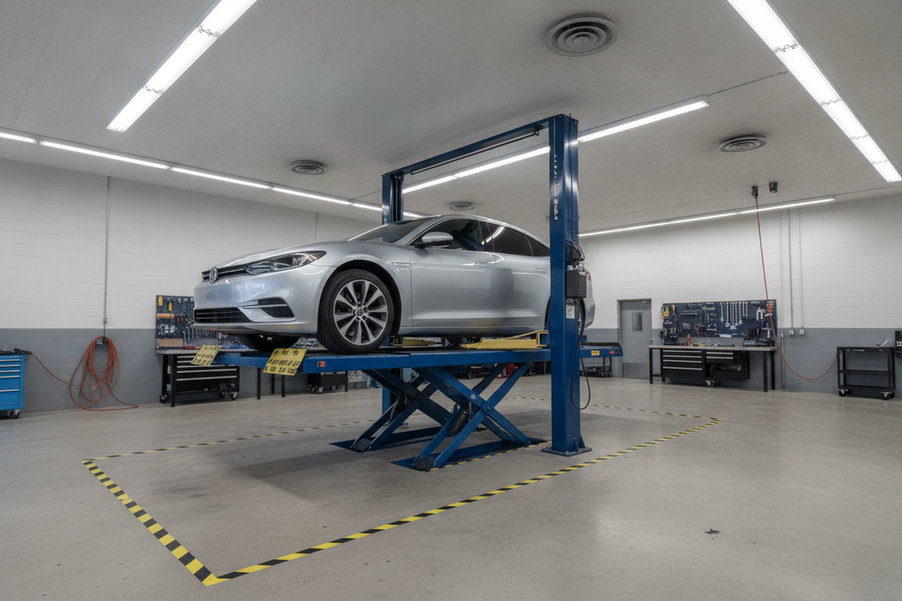

A vehicle lift changes the garage light map because the car, posts, arms, and other parts occupy different positions when raised and lowered. Start with a measured drawing of both states, shade the surfaces hidden from each work position, then place fixed ceiling coverage, side support, and local or portable light around the gaps. This lift-aware process works for a low-ceiling single bay, a larger workshop, and an off-center lift without relying on universal lumen, spacing, or clearance rules.
Map the Lift and Vehicle in Both Positions
The first step in a garage lighting layout is a two-state worksheet. Record the actual lift travel, vehicle footprint, ceiling height, doors, storage, walking routes, and work surfaces before choosing fixture locations. The drawing is a planning tool, not a certified clearance or mounting design.
| Position or work state | Obstruction and shadow to mark | Lighting surface or path that must remain visible |
|---|---|---|
| Vehicle lowered | Roof, hood, doors, lift posts, arms, and the operator's normal standing position | Vehicle sides, floor, doors, storage access, and front and rear work areas |
| Vehicle raised | Highest vehicle point, underside, posts, arms, and the space between the car and floor | Underside, wheels, suspension areas, floor, access routes, and inspection positions |
| Lift posts and arms | Fixed posts and moving components that interrupt a direct view | Wall-side work, wheel areas, bay edges, and paths around the lift |
| Ceiling and doors | Limited mounting surfaces, door travel, and the highest point in the raised envelope | Clear fixture paths and usable sightlines from front, rear, and side positions |
| Bench and storage zone | Shelving, cabinets, tools, and adjacent vehicles or equipment | Bench surface, controls, retrieval path, and the boundary between work zones |
Use this short sketch sequence:
- Measure the bay, ceiling, lift, vehicle footprint, lift travel, doors, storage, and intended work positions.
- Draw the lowered state and the raised state separately. Include the highest point reached by the vehicle and the lift hardware.
- From front, rear, side, wheel, underside, and bench positions, shade surfaces that a post, arm, vehicle panel, or your own position can block.
- Mark candidate ceiling, wall, and local-light paths only where they do not interfere with movement, access, mounting surfaces, or required clearances.
This worksheet tells you what the garage light must reveal before it tells you which fixture type to buy. If you later need general area planning, use high bay spacing guidance only as background. It cannot replace the raised and lowered lift map.
Choose Ceiling Light Positions From the Two Shadow Maps
Choose ceiling positions by comparing the sightlines in both drawings, not by placing one bright source directly over the vehicle and assuming it will serve every task. A ceiling source is useful when it preserves broad visibility and access in both states while staying outside the documented movement and mounting envelope.
| Garage condition | Obstruction or visibility question | Placement decision to test |
|---|---|---|
| Low-ceiling garage | Does the raised vehicle or lift hardware occupy the same space as the proposed fixture or beam path? | Test positions that preserve clearance and useful viewing angles, then add side or local support where the overhead layer is blocked. |
| Higher-clearance workshop | Does broad ceiling coverage still reach the underside, wheels, walls, and work surfaces from actual positions? | Compare more than one ceiling path across the raised and lowered maps instead of judging coverage from the entrance. |
| Off-center lift | Does one side of the bay lose visibility because the lift sits near a wall or adjacent storage? | Favor coverage that serves the lift side and the open side separately, with perimeter support for the blocked edge. |
| Two-bay layout | Does the second bay improve access, or does it leave the lift zone with poorly angled light? | Divide the space into work zones and test controls and sightlines for the lift bay, adjacent parking, and bench areas. |
| Lowered versus raised work | Does the vehicle hide the floor and lower side areas in one state, then hide the underside in the other? | Retain fixed coverage for orientation and access, then plan another useful angle for the surfaces missing from either map. |
Run a temporary visual test before permanent mounting or wiring. Stand where you will inspect the front, rear, sides, wheels, underside, floor, and work surfaces. Compare the result with both shadow maps and look for reflected glare from paint, glass, tools, and metal. The goal is a usable visual environment, not a roadway or parking-lighting target transferred to a home garage. A visibility-first lighting approach can inform that sightline review, but its roadway and parking targets do not establish vehicle-lift requirements. For a practical glare check, use glare reduction guidance while comparing fixture positions. When you are ready to compare fixture formats, high bay lighting options are a category path, not proof that any listed fixture fits your lift.
Fill Side Shadows Around the Vehicle and Lift
Add side or perimeter support only where the completed ceiling map leaves a work surface difficult to see. This layer is especially useful when the raised vehicle, lift posts, or arms block the overhead view of the vehicle flanks, wheels, wall-side work, or the edge of an adjacent bay.
- Vehicle-side visibility: If a ceiling source leaves doors, panels, or the wall-side flank dim from the inspection position, test a second angle aimed at that surface while keeping the source outside vehicle and walking paths.
- Post and wheel shadows: If posts or arms interrupt the view of wheels, suspension areas, or access points, compare side support with the actual raised and lowered positions. The added source should solve the blocked sightline without creating a new glare problem.
- Wall and perimeter coverage: A wall or perimeter layer can support the boundary between the lift bay, storage, and bench work when the vehicle blocks the ceiling layer. Its value depends on the surfaces that remain hidden in your worksheet.
- Glare and controls: Glossy paint, glass, tools, and metal can reflect a side source toward the operator. Test from the intended work position and use separate controls when inspection or detailing needs side light but parking or storage does not.
A general workplace visibility cue can support a conservative sightline review, but it does not establish vehicle-lift rules or a required lighting level. If fixed lighting still leaves equipment or a task area hard to see, evaluate an additional directional or local source rather than assuming more overhead output will solve the angle. That is a visibility cue, not a vehicle-lift standard or a promise of shadow-free results.
Add Task Lighting for Underbody and Close-Up Work
Fixed ceiling and side layers handle broad orientation and access. Local or portable support handles work that moves around the underside, wheels, panels, tools, and bench. Plan this layer separately because a bright ceiling can still be blocked at close range by the vehicle or the person working on it.
| Work situation | Fixed-light responsibility | Local or portable support |
|---|---|---|
| Parking and storage | Keep the bay, floor, doors, and access routes visible in both states | Usually limited to a retrievable source for occasional inspection |
| Detailing | Provide broad visibility across panels and the surrounding work area | Add close-up light where body panels, glass, or trim create reflections or blocked angles |
| Underbody inspection | Illuminate general access and the floor around the raised vehicle | Place support where the underside or wheel area is hard to view from the fixed layers |
| Wheel or suspension work | Cover the bay and approach path without relying on one blocked source | Use local light at the changing work point, with storage and retrieval outside traffic paths |
| Bench and tool work | Cover the bench and adjacent controls as a separate work zone | Add task support when tools or parts create close-up shadows |
Plan where a portable light, stand, cord, charger, or housing will be stored and retrieved. Keep that arrangement outside lift movement and normal walking paths. Review portable-lighting power arrangements and visible installation details against applicable electrical requirements and the manufacturer's instructions. OSHA wiring guidance is an occupational reference for that review, not a complete residential code answer or a determination of lift clearance.
For a fixed-layer example, the available product information for the Hyperlite Hexagon Garage Lights Gen 2 lists an 18-grid format measuring 15.9 by 7.6 feet, 51,100 lumens, 6500K, AC 100-277V, and a 24-month warranty. Those supplied facts describe the listed product. They do not establish fit above a particular lift, portability, certification, mounting suitability, or shadow performance. Treat it as an optional fixed-layer comparison after the two-state map is complete, never as portable underbody lighting.
Verify the Layout Before Buying or Installing
Use the drawing as a buy-and-verify checklist. The right choice is the fixture and control arrangement that matches the measured envelope and work positions, not simply the highest output or a familiar fixture label.
- Recheck the geometry. Confirm the bay dimensions, ceiling height, lift travel, vehicle footprint, highest raised point, posts, arms, doors, storage, mounting surfaces, and walking routes.
- Label both work states. Identify the surfaces and controls that must remain usable with the vehicle lowered and raised. Include front, rear, side, wheel, underside, floor, and bench positions.
- Test candidate locations. Compare ceiling and side positions from the actual work areas. Use a temporary visual test before permanent mounting or wiring, and look for blocked access, glare, and dependence on one source.
- Match product documentation to the location. Review the exact fixture's dimensions, mounting method, voltage, wattage or total load, controls, output or adjustability, intended environment, and available installation instructions. For broader area and height inputs, see wattage and area planning, but do not treat a general chart as a lift-clearance rule.
- Resolve installation questions before commitment. Electrical, structural, clearance, control, and local-code questions that exceed your competence belong with the relevant manufacturer or a qualified professional. A product page alone does not make an installation code-compliant.
If you are comparing a fixed grid format after measuring the space, hexagon garage lighting provides a category path. The selection still depends on the exact configuration and your raised and lowered sightlines.
The best overall garage light logic around a vehicle lift is straightforward: map both states, place fixed coverage from those maps, fill blocked side surfaces, and reserve local or portable light for moving close-up work. Measure the lift envelope first, then compare fixture documentation with the locations that survived the two-state test.
FAQs
Use these answers to work through the main layout choices for a vehicle lift.
How do you light a garage with a car lift?
Start by drawing the lift and vehicle in lowered and raised positions. Use the drawings to assign fixed ceiling coverage for broad orientation, side support for blocked surfaces, and local or portable support for underbody or close-up work. The next action is to mark the work positions that must remain visible in both states.
Where should lights go around a vehicle lift?
Place them where they serve useful sightlines without entering the lift's movement, access, or mounting envelope. Test posts, arms, vehicle surfaces, walking paths, and work areas from both states before permanent mounting. An off-center lift may need a different side or perimeter approach than a centered lift.
How do you reduce shadows under a raised car?
Inspect the underside and wheel areas from the position where the work will actually happen. If the ceiling layer is blocked, test a second useful angle or local source, then check glare and keep cords, stands, and storage out of walking and lift paths.
Should a low-ceiling garage use high-bay lighting around a lift?
The high-bay label does not answer the fit question. Compare measured ceiling clearance, lift travel, mounting requirements, glare, and the fixture's documented coverage with both shadow maps. A lower-clearance space may need a different fixed arrangement plus side or local support.
What should I verify before buying garage lighting for a car lift?
Verify the raised and lowered dimensions, mounting surface, fixture dimensions, voltage, load, controls, intended environment, and installation documentation. Then test visibility at the actual work zones. Electrical, structural, clearance, or local-code questions that remain outside your competence need qualified review before installation.
