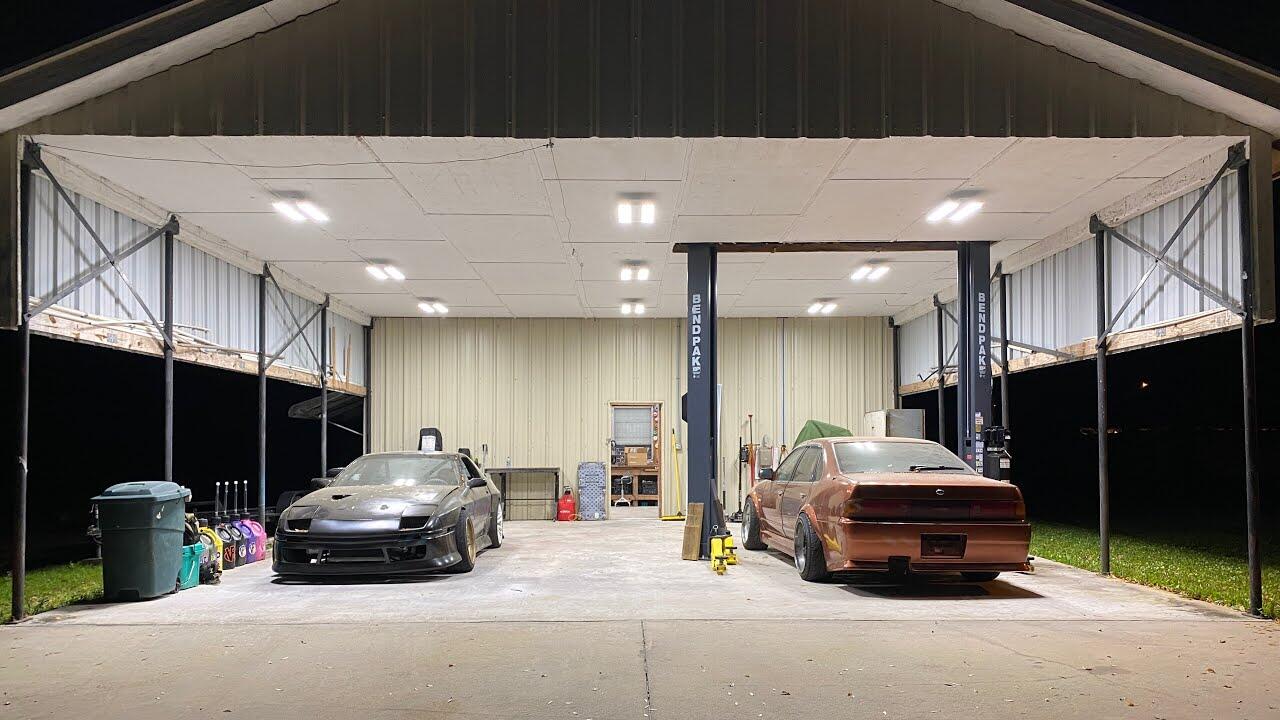

For a standard 20'x20' 2-car garage, the most effective lighting strategy is not a single high-output fixture, but a four-unit grid of 2ft linear high bays. While a single 30,000-lumen fixture might provide enough raw light, it fails the "uniformity test," creating intense hot spots and deep shadows in the corners where you likely keep your workbenches and tools. For a workshop-intensive environment, the goal is to achieve 70 to 100 foot-candles (fc) of even illumination across the entire 400-square-foot floor area.
Achieving professional-grade results requires moving beyond "plug-and-play" shop lights and applying the same photometric principles used in industrial warehouses. This guide breaks down the math, spacing rules, and technical specifications required to transform a residential garage into a high-performance workspace.
The Math of Garage Illumination: The Lumen Method
To determine exactly how many fixtures you need, you must first define your "target illuminance." According to the Illuminating Engineering Society (IES) RP-7-21 standard for industrial facilities, a general service bay or detailed workshop requires significantly higher light levels than a simple storage area.
| Application Type | Target Illuminance (Foot-Candles) | Lumens per Sq. Ft. (Estimated) |
|---|---|---|
| Standard Storage | 10–20 fc | 20–30 lm/sq ft |
| General DIY/Parking | 30–50 fc | 40–60 lm/sq ft |
| Precision Workshop | 70–100 fc | 80–110 lm/sq ft |
Theoretical Calculation: The 400 Sq. Ft. Workshop Based on the Lumen Method formula (Needed Lumens = Area × Target Foot-Candles / Coefficient of Utilization), a 20'x20' garage used for car maintenance or woodworking requires approximately 32,000 to 35,000 total delivered lumens.
If you select 2ft linear high bay fixtures delivering roughly 8,000 to 9,000 lumens each, a simple calculation suggests four units are necessary. While two ultra-high-output 18,000-lumen fixtures could technically meet the total lumen count, they would fail to provide uniform coverage, especially when a vehicle is on a lift or large equipment blocks the light path.
The Spacing-to-Mounting-Height (S/MH) Rule
Expert installers rely on the Spacing-to-Mounting-Height (S/MH) ratio to prevent "cave effect" and uneven distribution. For linear high bays with a standard 110° to 120° beam angle, the typical S/MH ratio is 1.0 to 1.5.
In a garage with a 10ft ceiling, your mounting height (the distance from the light source to the work plane) is approximately 7.5 feet (assuming a 30-inch workbench height).
- Maximum Spacing: 1.5 × 7.5 = 11.25 feet.
- Optimal Grid: For a 20'x20' space, placing four fixtures in a 2x2 grid, spaced roughly 10 feet apart and 5 feet from the walls, ensures that light beams overlap before hitting the work surface.
This overlap is the mechanism that eliminates harsh shadows. When you are leaning over an engine bay, light from multiple fixtures hits the area from different angles, ensuring you can see into the crevices of the machinery.
Why 2ft Linear High Bays Outperform UFO and 4ft Alternatives
In a standard 2-car garage, the 2ft linear form factor offers a pragmatic "sweet spot" between the concentrated output of UFO fixtures and the lower-density output of traditional 4ft shop lights.
- Uniformity in Low Ceilings: UFO fixtures are designed for ceilings above 15 feet. In a 10ft garage, they can create intense glare. Linear fixtures distribute the LEDs over a larger surface area, reducing "pixelated" glare.
- Structural Compatibility: Standard garage joists are often spaced 16 or 24 inches on center. 2ft fixtures are significantly easier to mount directly to or between these joists without complex bracing.
- Obstruction Mitigation: In a workshop with overhead storage or a garage door opener, multiple smaller 2ft units are easier to position around these obstacles than long 4ft or 8ft strips.
Technical Performance and Compliance Standards
When selecting fixtures, looking at the "lumen per watt" (lm/W) efficacy is critical for long-term ROI. High-performance linear high bays often reach 150 lm/W. For a deeper look at the latest efficiency benchmarks, consult the 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights.
DLC Premium and Energy Rebates
The DesignLights Consortium (DLC) Qualified Products List (QPL) is the industry gold standard for performance. Fixtures with DLC 5.1 Premium certification have undergone rigorous testing for color consistency, glare control, and thermal management. Using DLC-certified fixtures is often a prerequisite for receiving utility rebates, which can significantly offset the initial project cost.
Safety Certifications
Never install a fixture in a workshop that lacks a UL Solutions Product iQ listing or an equivalent ETL certification. For linear high bays, ensure the product meets UL 1598 (Luminaires) and that the internal driver is UL 8750 compliant. This ensures the housing can withstand the heat generated during continuous use and that the electrical components are protected against failure.
The Economic Case: Total Cost of Ownership (TCO)
Investing in high-grade linear high bays is often more cost-effective than using cheap, "screw-in" LED replacements. Based on industry averages and standard utility rates, the following table illustrates the potential savings of a professional LED retrofit over legacy metal halide (MH) or T12 fluorescent systems.
Table: LED Retrofit ROI Analysis (Estimated)
| Metric | Legacy System (4x 400W MH) | Professional LED (4x 150W) |
|---|---|---|
| Total System Wattage | 1,832W (inc. ballast) | 600W |
| Annual Energy Cost | $512.96 | $168.00 |
| Maintenance Cost (Annual) | $78.00 (Bulb/Ballast) | $0.00 |
| Total Annual Savings | -- | $422.96 |
| Estimated Payback Period | -- | 1.6 to 2.0 Years |
Note: Calculations assume 2,000 operating hours per year at $0.14/kWh. Actual results will vary based on local rates and usage patterns.
Scenario Analysis: Choosing Your Setup
The "best" setup depends on how you use the space. We have identified two primary scenarios for a standard 2-car garage.
Scenario A: The Multi-Purpose Garage
- Goal: General visibility for parking, storage, and occasional DIY.
- Setup: Two 2ft linear high bays (approx. 15,000 lumens each) mounted 10 feet apart.
- Benefit: Low installation complexity while providing 40–50 fc, which is double the brightness of standard incandescent or fluorescent setups.
Scenario B: The Precision Workshop (Power User)
- Goal: Professional-grade car detailing, woodworking, or fabrication.
- Setup: Four 2ft linear high bays (approx. 8,000–10,000 lumens each) in a 2x2 grid.
- Benefit: Exceptional uniformity and 80+ fc. This setup minimizes shadows underneath vehicles and provides enough light for high-quality product photography or detailed inspection.
Installation Friction Points and "Gotchas"
Even the best lights will underperform if installed incorrectly. Address these common friction points during your planning phase:
- The "Garage Door Trap": Many DIYers mount their lights only to realize that when the garage door is open, it blocks 50% of the light. Always measure the "open" height of your door and ensure fixtures are mounted either below that level or positioned outside the door's travel path.
- 0-10V Dimming Wiring: Professional-grade high bays use 0-10V dimming. Unlike standard household dimmers that vary the voltage to the light, 0-10V requires a separate pair of low-voltage wires (usually purple and gray/pink). According to NFPA 70 - National Electrical Code (NEC), these low-voltage wires must be kept separate from high-voltage lines unless the insulation is rated for the highest voltage in the enclosure.
- Circuit Loading: A standard 15A circuit can safely handle a continuous load of 1,440W. A four-fixture 150W setup only draws 600W, leaving plenty of overhead for power tools. However, if you are planning a massive decorative grid (like a hexagon array), you may need multiple power injection points to avoid exceeding the amperage limits of the thin-gauge wiring used in those kits.
Summary Checklist for a 2-Car Garage Project
- Quantity: 4 units for workshops; 2 units for general storage.
- Total Lumens: Aim for 32,000+ lumens for a 400 sq. ft. workshop.
- Color Temperature: 5000K (Daylight) is standard for workshops to improve focus and color accuracy; 4000K (Cool White) is preferred for a "softer" residential feel.
- Certification: Verify DLC Premium for rebates and UL/ETL for safety.
- Controls: Ensure the driver is 0-10V dimmable if you plan to add motion sensors or daylight harvesting later.
YMYL Disclaimer: This article is for informational purposes only and does not constitute professional electrical or structural engineering advice. Electrical installations should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and local building regulations. Improper installation of high-output lighting can result in fire, electrical shock, or structural failure.
