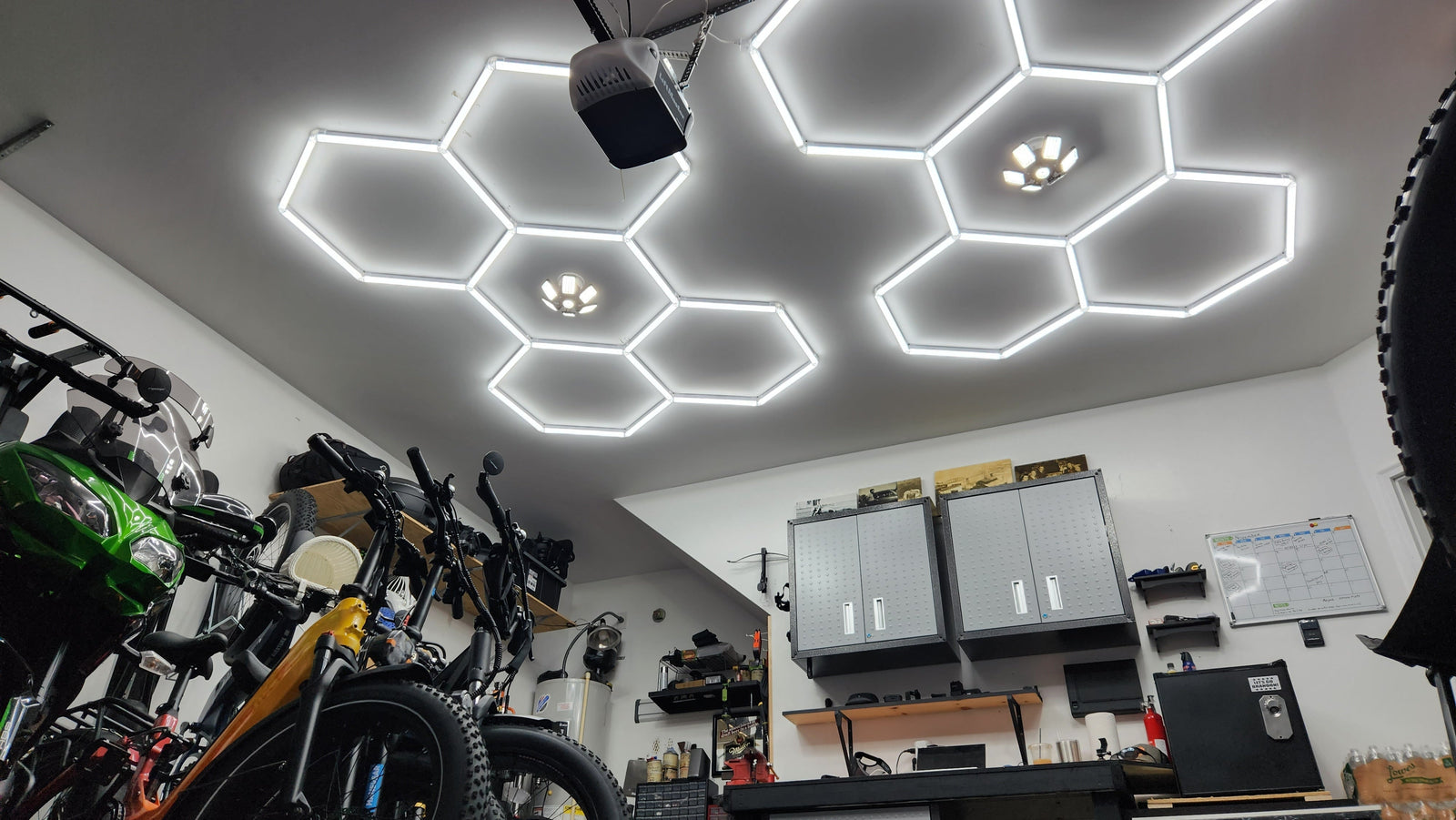

Energize your workout space with the right light. A dim, shadowy garage can kill your motivation before you even lift a single weight. The solution is moving beyond a single bare bulb and designing a lighting system that creates a bright, motivating, and shadow-free environment. Modular hexagon LEDs offer a brilliant way to achieve this, combining pro-level aesthetics with intense, even illumination perfect for any home gym.
This guide will walk you through everything from planning your layout to a step-by-step installation, ensuring you get the results you want safely and efficiently.
Why Great Lighting is a Game-Changer for Your Gym
Proper lighting in a home gym is about more than just seeing your equipment. It directly impacts the energy, safety, and effectiveness of your workouts.
- Motivation and Energy: Bright, cool-toned light mimics natural daylight, which can boost alertness and energy levels. Walking into a brilliantly lit space feels like entering a professional studio, mentally preparing you to perform.
- Safety: I used to work out under a single, dim shop light. The shadows it cast were not just gloomy; they were dangerous. It was hard to see the floor clearly, creating a trip hazard, and it made checking my form in the mirror nearly impossible. Even lighting eliminates these shadows, whether you're setting up for a deadlift or moving through a yoga flow.
- Focus and Detail: When you're focused on form or working on detailed equipment maintenance, you need to see clearly. High-quality, uniform light reduces eye strain and helps you concentrate on the task at hand.
Hexagon LED grids are an increasingly popular solution because they solve all these problems at once. Their modular design spreads light evenly across a large area, eliminating the harsh shadows and "hot spots" created by single-point light sources.
Planning Your Hexagon LED Layout
Before you start clicking connectors together, a little planning goes a long way. Getting the layout right is the key to a professional-looking and highly functional result. The two biggest decisions are how much light you need and what color temperature you prefer.
Step 1: Calculate Your Brightness Needs
The most common question is, "How many hexagons do I need?" The answer depends on your room size and how you use the space. We can determine this with a simple calculation based on lumens, which are a measure of light output.
A good rule of thumb is to use a "lumens per square foot" (lm/ft²) target. For a multi-purpose garage gym, you should aim for a range that accommodates different activities.
| Activity / Zone | Recommended Brightness | Why It Works |
|---|---|---|
| General Ambient Light | 50–75 lm/ft² | Perfect for warm-ups, stretching, and general movement. Provides a comfortable, well-lit environment without being harsh. |
| Strength & Cardio Zones | 75–100 lm/ft² | Ideal for areas with squat racks, free weights, or cardio machines. It's bright enough to keep you energized and focused. |
| Detail & Task Areas | 150–300 lm/ft² | Essential for workbenches, tool chests, or a dedicated spot for checking your lifting form. This intense light reveals fine details. |
To calculate your total lumen needs, use this formula:
[Room Length (ft)] x [Room Width (ft)] x [Target lm/ft²] = Total Lumens Needed
For example, a 20ft x 20ft garage (400 sq ft) intended for general strength training would need:
400 sq ft x 80 lm/ft² = 32,000 lumens
Most hexagon light kits specify their total wattage and efficacy (lumens per watt). You can use this to find a kit that meets your target.
Step 2: Choose the Right Color Temperature (CCT)
Color temperature, measured in Kelvin (K), describes how "warm" or "cool" the light appears. This choice significantly impacts the feel of your gym.
- 5000K – 6500K (Cool White / Daylight): This is the most popular choice for gyms and task-oriented spaces. The crisp, blue-white light mimics natural daylight, which boosts contrast and alertness. It’s perfect for seeing every detail of your equipment and maintaining high energy levels. Most hexagon kits, like the Hyperlite Hexagon Garage Lights Gen 2 - 11 Grid, come in a 6500K color temperature for this very reason.
- 4000K (Neutral White): This is a great middle-ground option. It’s a cleaner, more modern look than warm light but less intense and clinical than 6500K. If your garage gym doubles as a general-purpose workshop or social space, 4000K provides a comfortable and versatile environment. According to the American National Standards Institute (ANSI), standards like C78.377-2017 ensure that a "4000K" light from one brand looks consistent with another, so you can trust the rating.
Step 3: Design Your Grid and Layer Lighting
Once you know your brightness and CCT, you can design the grid. For most home gyms, a large central hexagon array provides excellent ambient lighting. However, for the best results, consider a layered approach.
For me, the real game-changer wasn't just the main hex grid, but adding a smaller, dedicated light over my primary lifting area. This eliminated any remaining shadows cast by my own body when I was standing under the main array. You can combine a large hexagon grid for overall light with a smaller one or an adjustable spotlight over a squat rack or workbench.
Installation: A Step-by-Step Guide
Installing a hexagon LED system is a straightforward DIY project. The key is to be methodical and prioritize safety, especially when dealing with power.
Myth Debunked: Powering Your Grid
A common mistake I often see is people trying to power a massive grid from a single input cable. They just keep daisy-chaining segments, thinking it's like plugging in Christmas lights. This is a myth, and it's dangerous. It leads to significant voltage drop, causing lights at the end of the chain to flicker or dim, and it can overload the initial cable and connector.
Always follow the product rule: For most systems, a single power input can safely support a specific number of light tubes (e.g., up to 62 tubes or 440W). For larger grids, you must use multiple, evenly distributed power feeds. For an 11-grid system, using two or three separate input points connected to your power source will ensure even brightness and safe operation.
Installation Steps
- Gather Your Tools: You'll need a ladder, a drill, a level (a laser level is a huge help), a tape measure, and wire strippers.
- Dry Fit on the Floor: Before drilling any holes, assemble your entire grid on the garage floor. This lets you confirm your layout and ensure all connectors are working. This is also the best time to plan your power input points.
- Mark Your Mounting Points: Measure your ceiling and use a chalk line or laser level to mark where the center of your grid will be. Use the dry-fitted grid as a template to mark the mounting points for each connector.
- Mount the Connectors: Install the mounting clips and attach the connectors to the ceiling. Don't fully tighten them yet.
- Install the Light Tubes: Snap the LED light tubes into the connectors one by one. A helpful tip is to pre-lay your power cables as you go, labeling them so you know which one goes where.
- Align and Secure: Use a level to ensure all the tubes are flush and the grid is perfectly flat. Inconsistent heights are the number one cause of ugly shadows and visible seams. Once aligned, tighten all the fasteners.
- Connect Power: This is the most critical step. If you are not 100% comfortable with electrical wiring, hire a licensed electrician. Connect your designated input cables to a junction box powered by a wall switch. Following general safety guidelines like those found in the National Electrical Code (NEC) is essential for a safe installation.
- Test Your System: Flip the switch! Test the lights. If you have a dimmable kit like the Dimmable Hexagon Garage Lights Gen 2 - 11 Grid, test the dimming function. Many stock dimmer switches are not compatible with LEDs and can cause buzzing or flickering. Always use an LED-rated dimmer or a compatible controller.
Key Takeaways
Transforming your garage into a high-energy home gym is one of the most satisfying DIY projects you can tackle. A well-designed hexagon LED system is the centerpiece of that transformation.
- Plan First: Calculate your brightness needs based on how you'll use the space. Don't just guess.
- Choose the Right CCT: Select a color temperature (like 6500K) that promotes energy and focus.
- Power Safely: Avoid the common pitfall of overloading a single power line. Split large grids into multiple, evenly spaced power feeds.
- Align for Perfection: Take the time to make your grid perfectly flat and level. It makes the difference between a DIY look and a professional installation.
With a thoughtful approach, you can create a workout space that is not only functional and safe but also a place you're excited to be in.
Frequently Asked Questions (FAQ)
How long does shipping take? Shipping within the US typically takes 3-7 business days. Processing can take an additional 2-5 days for some items.
What is the warranty on these lights? Our hexagon lights come with a 5-Year Warranty, giving you peace of mind and protection for your investment.
Can I return the lights if they don't work for my space? Yes, we offer a 30-Day Return Policy. If you're not satisfied with your purchase, you can return it within 30 days.
How does the dimming feature work on dimmable kits? For kits with stepped dimming, you can cycle through brightness levels by switching the light off and on again within 3 seconds. The light will remember the last used brightness setting when you turn it on next.
Disclaimer: This article is for informational purposes only. Electrical work can be dangerous. Always consult a qualified, licensed electrician for installation and adhere to all local building and electrical codes. The author and publisher are not liable for any damage or injury resulting from the use of this information.
