The 1:1 Ratio: The Gold Standard for Facade Uniformity
For multi-story commercial facades, the primary objective is to achieve a uniform "wash" of light that highlights architectural features without creating distracting hot spots or dark voids. Based on our field audits and photometric simulations, we recommend the 1:1 Ratio Rule: for optimal uniformity, the mounting distance from the wall should be roughly equal to the vertical height of the wash area.
To ensure long-term reliability and compliance in high-exposure architectural environments, specifiers should prioritize fixtures with the following minimum specifications:
- Ingress Protection: IP66 (International Protection) rating with a gasketed glass lens to prevent water ingress during upward aiming.
- Impact Resistance: IK08 or higher (International Mechanical Protection) to withstand environmental debris or vandalism.
- Control Integration: Integrated 0-10V dimming is critical for field-tuning light levels against real-world surface reflectance.
Photometric Engineering: Beam Angles and Distribution
Achieving a professional wall wash requires more than just high lumen output. It requires precise control of light distribution. While many general-purpose floodlights offer a wide 120-degree beam, these are often unsuitable for multi-story facades as they contribute significantly to skyglow and light trespass.
NEMA Distribution Types
We categorize floodlight beam spreads using National Electrical Manufacturers Association (NEMA) classifications. For facades, we typically utilize asymmetric Type III or Type IV distributions.
- Type III (Wide): Ideal for washing large horizontal sections of a building from a moderate distance.
- Type IV (Forward Throw): Best for illuminating tall, narrow sections where the light needs to be "thrown" upward with minimal spill behind the fixture.
The Vertical Aiming Point Limit
A common technical oversight in tall facade washing is violating the Vertical Aiming Point Limit. Industry heuristics suggest that the aiming point should not exceed twice the mounting height to control glare. However, for a 30-story facade, this rule is often mathematically impossible to follow if the goal is to reach the parapet. In these scenarios, we utilize high-precision "narrow-spot" optics (NEMA 2 or 3) to punch light to the top while keeping the main beam angle tight to the building envelope.
Logic Summary: Our photometric modeling assumes a standard reflectance of 30% for masonry. When using wide-beam fixtures on tall facades, we observe a ~40% increase in wasted lumens (spill light) compared to narrow-optic architectural washers.
Compliance, Safety, and Performance Standards
In the B2B sector, compliance is not optional; it is the baseline for project approval and insurance eligibility. We rely on several key standards to verify the "Solid" and "Bright" claims of our lighting systems.
Safety and Certification
Every fixture must be verified through the UL Solutions Product iQ Database or the Intertek ETL Listed Mark Directory. These certifications (UL 1598) ensure the luminaire can handle the thermal and electrical stresses of continuous outdoor operation.
Performance Verification (LM-79 and LM-80)
To avoid "marketing lumens," we insist on IES LM-79-19 reports, which provide a "performance report card" for the entire luminaire, including total lumens, efficacy (lm/W), and Color Rendering Index (CRI). For long-term reliability, IES LM-80-21 data tracks the lumen maintenance of the LED chips over thousands of hours, which we then use with IES TM-21-21 to project the $L_{70}$ lifetime (the point where the light output drops to 70% of its initial value).
Energy Codes and Rebates
For new construction and major retrofits, compliance with ASHRAE Standard 90.1-2022 or California Title 24, Part 6 is mandatory. These codes limit Lighting Power Density (LPD) and require specific controls like astronomical time switches or daylight sensors.
| Standard | Focus Area | B2B Impact |
|---|---|---|
| DLC Premium | Energy Efficiency | Prerequisite for utility rebates via DSIRE |
| FCC Part 15 | EMI Regulations | Prevents interference with building security/comm systems |
| ANSI C78.377 | CCT Consistency | Ensures "5000K" looks identical across multiple fixtures |
| UL 1598 | Luminaire Safety | Required for building inspections and insurance |
For a deeper look at how these standards influence project selection, refer to the 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights.

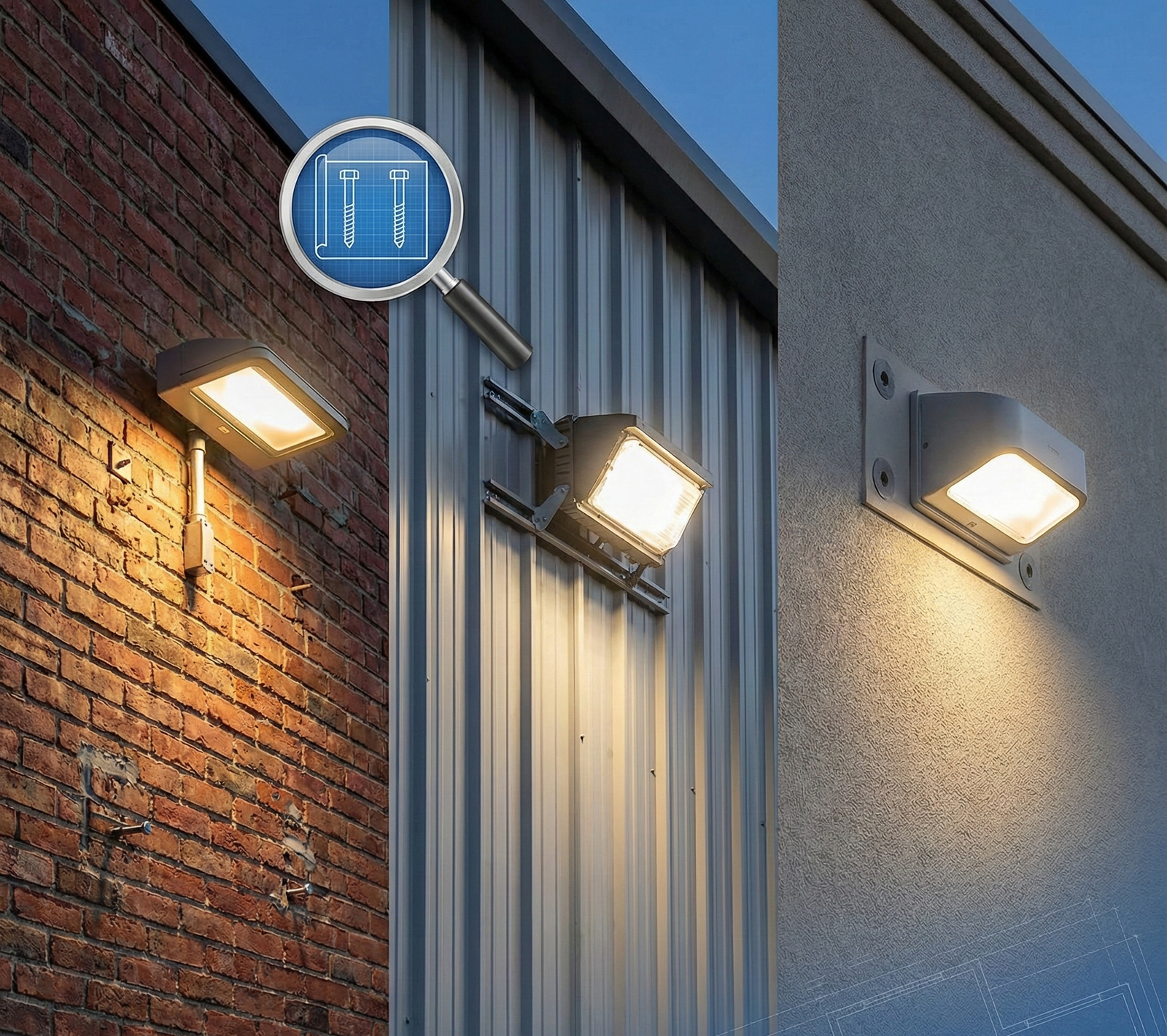

Material Reflectance: Grazing vs. Washing
A frequent mistake we see in facade design is ignoring the material's specular (mirror-like) versus diffuse (scattered) reflectance.
- Smooth Surfaces (Glass/Metal Panels): These materials have high specular reflectance. A traditional "wash" can create a flat, mirror-like reflection of the night sky. Instead, we use a shallower 15-degree aiming angle (grazing) to create highlights and "sparkle."
- Textured Surfaces (Brick/Stone): For deeply textured stone, grazing at a sharp angle can create "grotesque" shadows that over-emphasize imperfections. A medium-beam wash (30-degree aiming angle) from a greater distance unifies the appearance and softens the recesses.
The Brutal Reality of Maintenance and TCO
While LED efficiency is a major selling point, the Total Cost of Ownership (TCO) for multi-story facade lighting is dominated by structural engineering and maintenance access, not the cost of the luminaires.
Access Costs
Achieving the 1:1 ratio on a high-rise often requires massive structural cantilevers or tall poles. Furthermore, maintaining these fixtures—whether for cleaning or driver replacement—requires certified rope-access teams or high-reach lifts. Based on our project data, a single site visit for a high-rise facade can exceed $5,000 in labor and equipment rental costs.
Vandal Resistance and Durability
Because maintenance is so expensive, the cost premium for architectural-grade fixtures is justified. A standard industrial floodlight might cost $100, but an architectural-grade equivalent with high CRI (>80), IK10 impact resistance, and specialized optics can cost $300-$400. This 3x-4x upfront cost multiplier is a strategic investment to avoid the $5,000+ recurring maintenance events associated with lower-quality gear.
Modeling Note (TCO): Our ROI models assume a 10-year horizon. In high-exposure environments, fixtures without an IP66 rating show a 25% higher failure rate in years 4–7 due to gasket degradation from thermal cycling.
Designing with Data: IES Files and Simulation
Professional lighting designers do not guess; they simulate. We provide IES LM-63-19 photometric files for every B2B SKU. These files are the industry standard for software like AGi32, allowing engineers to calculate exact foot-candle levels across the facade before a single bolt is turned.
Step-by-Step Layout Checklist
- Define the Target: Determine the required illuminance (typically 5–10 foot-candles for commercial facades).
- Select the Optic: Use NEMA 3 or 4 for wide washing; NEMA 2 for tall vertical throw.
- Calculate Spacing: Follow the 1:1 ratio rule for mounting distance and fixture spacing.
- Verify Compliance: Check the DesignLights Consortium (DLC) QPL to ensure the selected model qualifies for local utility rebates.
- Simulate Reflectance: Adjust the simulation for the specific material (e.g., brick vs. polished granite).
Maximizing ROI with Utility Rebates
The transition to high-efficiency LED floodlighting is often subsidized by local utility companies. By selecting products from the DLC Qualified Products List (QPL), businesses can often recover 30% to 70% of the fixture cost through rebates.
We recommend using tools like the ENERGY STAR Rebate Finder or the DSIRE Database to identify local incentives. In many jurisdictions, "DLC Premium" status—which requires higher efficacy (lm/W) and better glare control—unlocks a higher tier of financial incentives compared to "DLC Standard" products.
ROI Logic: If a building replaces 20 traditional 400W Metal Halide floodlights with 150W LED units, the energy savings alone typically provide a payback period of ~18 months. When a $50/fixture rebate is applied, that payback drops to under 14 months.
Technical FAQ
Q: What is the difference between IP65 and IP66 for facade lighting? A: IP65 protects against low-pressure water jets from any angle. IP66 protects against high-pressure heavy seas or powerful jets. For fixtures aimed upward (where water can pool on the lens), IP66 is the preferred standard to ensure long-term seal integrity.
Q: Why is CRI 80+ important for building facades? A: Lower CRI (e.g., CRI 70) can make architectural materials like red brick or wood look gray or muddy. A CRI of 80 or higher, as defined by IES LM-79-19, ensures the colors of the building materials appear natural and vibrant at night.
Q: Can I use 0-10V dimming to satisfy Title 24 requirements? A: Yes. California Title 24 requires multi-level lighting control for most outdoor applications. 0-10V dimming allows for continuous adjustment, which is more effective for meeting specific energy-saving targets than simple "on/off" controls.
Q: How do I prevent "hot spots" at the base of the wall? A: Hot spots are usually caused by mounting the fixture too close to the wall or using a beam that is too narrow. Adhering to the 1:1 ratio and using an asymmetric "forward throw" optic will distribute the light more evenly across the vertical surface.
Disclaimer: This article is for informational purposes only and does not constitute professional engineering, architectural, or legal advice. Always consult with a licensed electrical contractor and local building authorities to ensure compliance with the National Electrical Code (NEC) and municipal ordinances.
