Troubleshooting Common Hexagon Lighting Issues

Is a Hexagon Light Panel Out or Flickering? Your Troubleshooting Guide

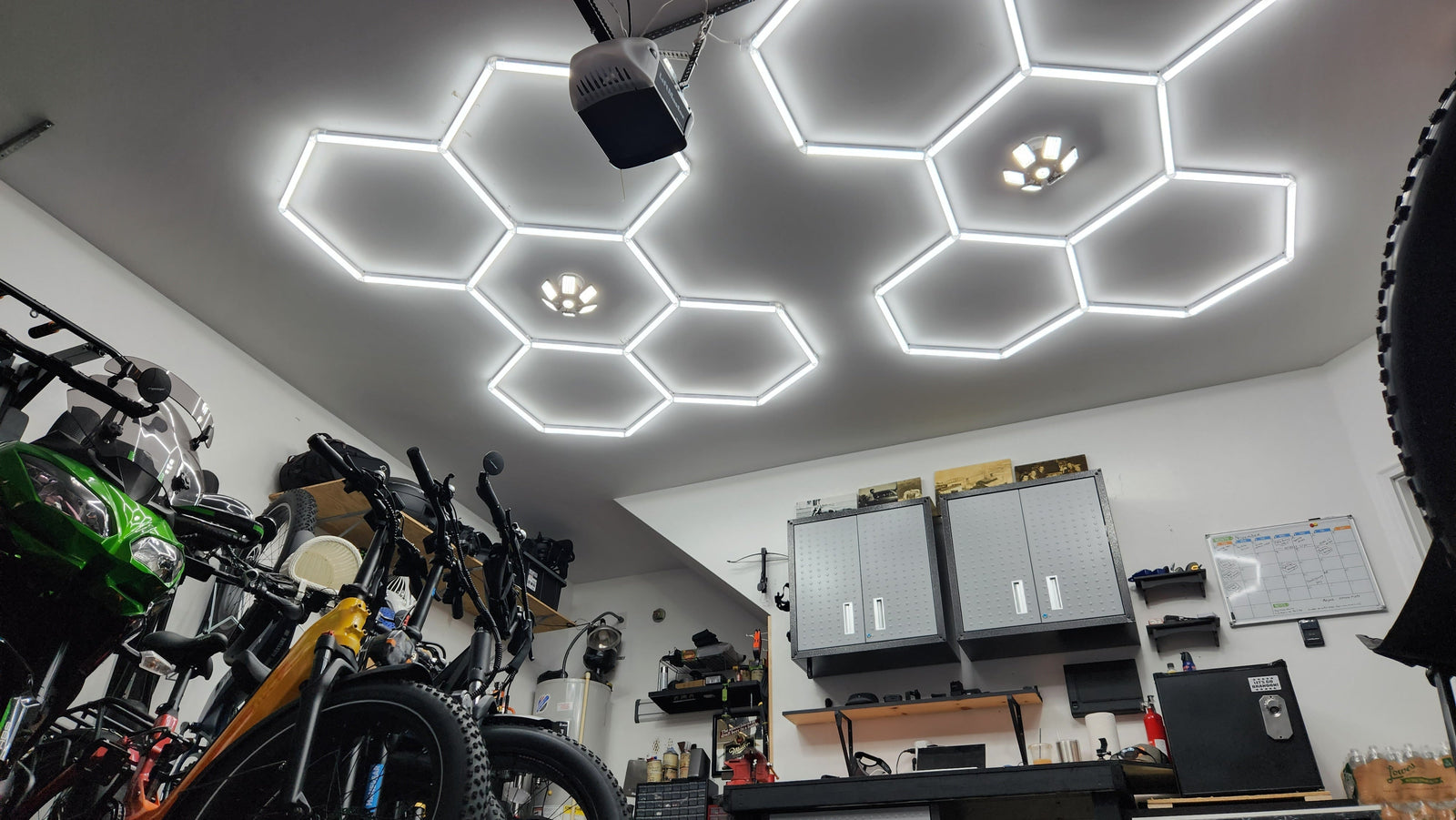

You’ve mapped out the design, clicked the connectors into place, and mounted your new hexagon lighting grid. You flip the switch, and the garage floods with brilliant, even light… except for one stubborn panel that’s dark. Or maybe a section starts flickering just when you’re about to start a project. Don’t worry. This is usually a simple fix, and you’ve come to the right place.

I’ve helped countless DIYers and shop owners install these systems, and I’ve seen every common hiccup. Most issues with modular LED lights aren’t due to a major failure, but rather a simple connection or power-planning oversight. This guide provides straightforward, practical steps to diagnose and fix the most frequent problems, from a single dead tube to flickering sections, getting your workspace back to 100% brightness.

Before You Begin: Safety and Smart Prep

Before you get on a ladder, let's cover two golden rules that prevent most problems from ever happening.

Safety First: Always De-Energize

Working with any electrical system requires caution. Before you unplug connectors or adjust wiring, always disconnect the entire grid from its power source. For plug-in kits, this means unplugging it from the wall. If your system is hardwired, you must turn off the corresponding circuit breaker at your main electrical panel. Confirm the circuit is dead with a voltage tester before proceeding. Safe installation practices are outlined in standards like the NFPA 70 National Electrical Code (NEC), which is the benchmark for electrical safety in the United States. If you are ever unsure about hardwiring, consult a licensed electrician.

The Pro Tip: Test Everything on the Floor

Here’s a piece of advice born from experience: always assemble and test your complete hexagon grid on the floor before you permanently mount it to the ceiling. Connect every tube and power it on. This five-minute pre-flight check allows you to:

• Instantly spot any out-of-the-box faulty components (like a tube or connector).
• Ensure all connections are snug and secure.
• Confirm your power distribution plan works as expected.

It might seem like an extra step, but it can save you an hour of frustration trying to diagnose a problem from the top of a ladder.

Solving Power and Connection Issues

Based on my experience, more than 80% of issues with a new hexagon light installation trace back to power distribution or a loose connection. These are the first and most important areas to check.

Check Every Connection Point

The beauty of modular lights is their simple connectors, but this is also the most common point of failure. A pin that isn't fully seated can cause a single tube or an entire section to lose power.

1. Power Down: Unplug the entire system.
2. Inspect Manually: Go to the first dark tube in the series. Gently but firmly push the connectors on both ends to ensure they are fully seated. Listen for a faint click.
3. Wiggle Test: Give the connection a very gentle wiggle. If the light flickers on, you've found a loose connection. Unplug the connector and look for any bent or recessed pins inside. Carefully straighten any bent pins with a small tool.
4. Strain Relief: A common mistake is letting the weight of the power cable pull on the first connector. This can cause intermittent contact. Use a zip tie to secure the main power cord to a nearby tube or mounting point, removing any tension from the connector itself.

The Daisy-Chain Dilemma: Are You Overloading Your Circuit?

A frequent myth is that you can connect an infinite number of tubes to a single power cord. In reality, each power cable is designed to handle a specific maximum load. Exceeding this limit causes voltage drop, which can lead to flickering, dimming, and entire sections failing to light up, especially those farthest from the power source.

For most standard hexagon kits, the rule of thumb is:

• Maximum 62 tubes per single power feed.
• Maximum 440 Watts per single power feed.

If your design is larger than this, you must distribute the load by adding more power feeds. For large ceiling arrays, a good practice is to run a new power feed from your outlet to the grid approximately every 12 to 20 feet. This ensures every section receives stable, sufficient power. For more details on planning for larger setups, see our guide on how to power and link multiple hexagon light kits.

Here’s a table to help you distinguish between a power overload issue and a simple faulty part:

Symptom	Likely Cause: Power Overload	Likely Cause: Faulty Component
Lights at the far end are dim	Yes, this is a classic sign of voltage drop over a long chain.	No, a single bad part usually won't cause dimming elsewhere.
An entire section flickers	Yes, the section might be struggling to draw enough power.	Possible, but less common than a power overload issue.
One single tube is dark	No, this points to an issue with the tube or its direct connectors.	Yes, this is the most common symptom of a bad tube or connector.
The whole system is off	Possible, if the overload tripped the driver's protection circuit.	Possible, if the first power connector or driver has failed.

Banishing Flicker and Brightness Glitches

Flickering lights are distracting and can be a sign of an underlying issue. Here’s how to systematically troubleshoot the cause.

Finding the Source of Flicker

The first thing to know is that the LED tubes themselves are rarely the source of flickering. The problem almost always lies with the power being supplied to them.

1. Rule Out External Dimmers: Hexagon lighting kits are often designed with built-in drivers. Connecting them to an external wall dimmer switch is a common cause of flickering, buzzing, and eventual driver failure. These dimmers are not compatible. Remove any external dimmers from the circuit.
2. Isolate the Power Source: Unplug the hexagon grid from any extension cords or power strips. Plug it directly into a known-good wall outlet. Sometimes, a cheap or failing power strip can deliver "dirty" power, causing the lights to flicker.
3. Check for Shared Circuits: Is your lighting grid on the same circuit as a large appliance, like a shop compressor or a welder? The massive power draw when these devices kick on can cause a momentary voltage dip, resulting in a flicker. If possible, dedicate a circuit to your lighting.

"My Lights Are Stuck on One Brightness!"

Some hexagon light models have a built-in brightness toggle feature. This isn't controlled by a remote, but by a specific sequence of using the power switch.

• How it Works: To cycle through the brightness levels (e.g., 100%, 50%, 25%), you must turn the light switch off and then on again within 3 seconds.
• The Fix: If your lights seem "stuck" on a dim setting, you may have unintentionally activated this feature. Simply turn the power off, wait 5 seconds, and turn it back on. The system should return to the last brightness setting used.
• The Hard Reset: If the toggle sequence becomes unresponsive, the driver’s internal memory might need a reset. Unplug the entire system from the wall, wait for 30-60 seconds to allow the internal capacitors to fully discharge, and then plug it back in. This often resolves the issue.

When a Single Tube or Section Goes Dark

If you have a single dark tube or a small, isolated dead section, and you've already confirmed the connections are tight, it’s time to identify the specific failed component. The process is simple and requires no special tools.

The Swap Test: Your Best Diagnostic Tool

The goal here is to use known-good parts to test the known-bad section.

1. Get a Known-Good Tube: First, power down the system. Carefully remove a light tube from a section of the grid that is working perfectly. This is now your "tester tube."
2. Test the Dark Spot: Take your tester tube to the dark spot. Unplug the non-working tube and plug in your tester tube.
3. Analyze the Result:
   • If the tester tube lights up: Congratulations, you've found the problem. The original light tube in that spot has failed.
   • If the tester tube does NOT light up: The problem is not the tube itself, but the power feeding it. The issue lies "upstream"—either in the connector or the tube that powers that slot.
4. Test the Connectors: If the tube isn't the issue, repeat the process with a known-good connector. Swap the connector from a working section into the dark spot and see if it resolves the issue. While robust, the internal electronics of LED equipment must meet safety standards like UL 8750, and on rare occasions, an individual component can fail.

By systematically swapping components, you can pinpoint the exact source of the failure without any guesswork.

Key Takeaways: Your Quick Troubleshooting Checklist

When your hexagon lights act up, follow this simple checklist to find and fix the problem fast.

• Power Off First: Always disconnect the power before touching any wiring or connectors.
• Check the Main Plug & Breaker: Start with the simplest solutions.
• Confirm All Connectors Are Secure: Gently push on each connector to ensure it's fully seated.
• Respect the Power Limit: Never exceed 62 tubes (or 440W) on a single power cord. Add more feeds for large grids.
• Remove External Dimmers: These are a primary cause of flickering.
• Perform a "Swap Test": Use a known-good tube or connector to systematically isolate a failed component.

These modular lighting systems are designed to be robust, reliable, and user-serviceable. With a little patience and a logical approach, you can solve nearly any common issue and enjoy your brilliantly lit space for years to come.

Frequently Asked Questions (FAQ)

Q: How many hexagon light tubes can I connect to one power cord? A: A single power cord can typically support a maximum of 62 light tubes, or a total power draw of 440 watts. For larger installations, you must connect additional power cords to different sections of the grid to distribute the electrical load safely.

Q: Why are my hexagon lights flickering? A: The most common cause of flickering is an incompatible power source. This is often due to connecting the lights to an external wall dimmer switch. Flickering can also be caused by a loose connection or an overloaded circuit from daisy-chaining too many tubes together.

Q: How do I change the brightness on my dimmable kit? A: For models with this feature, you can cycle through the brightness levels by turning the main power switch off and then on again within 3 seconds. To return to the last used brightness, simply turn the lights off, wait more than 5 seconds, and turn them back on.

Q: What is the warranty on my lighting kit? A: We stand by our products with a comprehensive 5-Year Warranty that covers defects in materials and workmanship. You can find the full details on our official FAQ page.

Q: One of my tubes is dead. How long does it take to get a replacement? A: If you've identified a faulty component, please contact our support team. Once the issue is confirmed, a replacement part is typically shipped and will arrive within 2 to 7 business days, depending on your location and current inventory.
