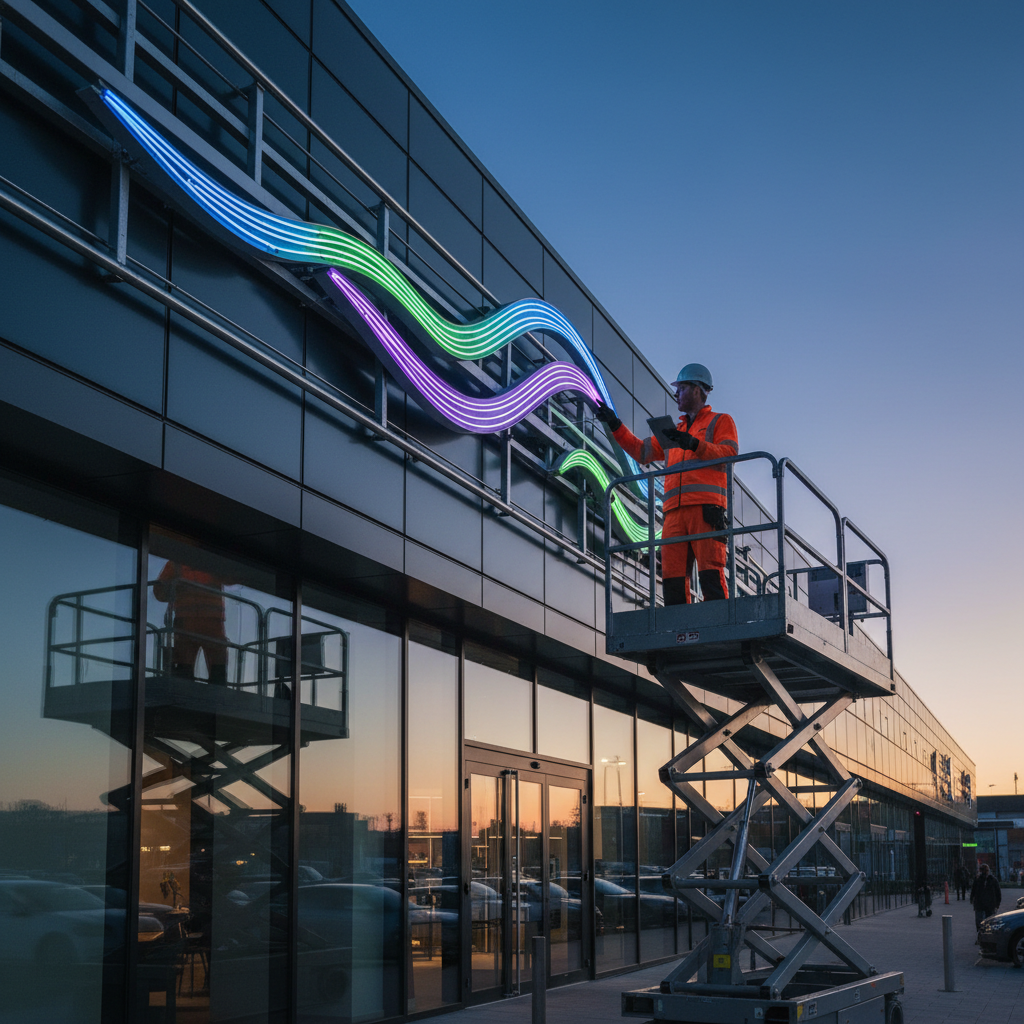

The Electrician’s Field Guide to UL 879 Compliance
For a commercial electrical contractor, the presence of a UL mark on a neon sign is not the end of the inspection—it is the beginning. While a business owner sees a vibrant branding tool, the Authority Having Jurisdiction (AHJ) and the installing electrician see a complex electrical system that must interface safely with the building’s infrastructure. Verifying UL 879 (Standard for Electric Sign Components) compliance requires a pragmatic understanding of where the manufacturer’s responsibility ends and the installer’s liability begins.
The primary objective of this guide is to provide specifiers and electricians with a technical framework for auditing custom neon sign installations. We prioritize code compliance, safety, and operational efficiency, grounding every recommendation in the National Electrical Code (NEC) and UL safety standards.
Decoding the Labels: UL 879 vs. UL 48
A common misconception in the field is that a "UL-listed sign" is a unified, singular certification. In reality, commercial signage often involves a hierarchy of standards.
- UL 879: This is the Standard for Electric Sign Components. It certifies the individual "building blocks" of the sign—the LED modules, the power supplies, and the internal wiring.
- UL 48: This is the Standard for Electric Signs, which covers the entire enclosure and the assembly as a whole.
Based on patterns observed in project specification audits (not a controlled lab study), we frequently find that signs built with UL 879-listed components can still fail inspection if the assembly does not meet UL 48 requirements for the specific environment (e.g., damp vs. wet locations). As noted in our Specifier's Checklist for Lighting Compliance Docs, verifying that the components are listed is only half the battle; the electrician must ensure the system integration maintains the integrity of those listings.
Logic Summary: UL 879 certifies components only. The primary liability shifts to the installer and business owner if the assembly or installation violates the component’s intended use cases, as defined by the International Sign Association.
Critical Checkpoints: The Wiring and Power Path
When an inspector arrives on-site, they trace the power path from the sign’s driver back to the dedicated circuit breaker. Any weak link in this chain can lead to a permit rejection or structural failure.
1. NEC Continuous Load Adherence
Per NEC 210.20(A), a branch circuit must not be loaded to more than 80% of its rating for a continuous load (defined as any load expected to run for 3 hours or more). For a standard 20A circuit at 120V, the maximum allowable wattage is 1,920W (120V × 20A × 0.80).
Electricians must verify the sign’s nameplate amperage. If a sign draws 16A, it is at the absolute limit of a 20A breaker. We recommend a 20% safety buffer beyond the NEC minimum to account for voltage fluctuations and component aging.
2. The 440W Daisy-Chain Limit
UL 879 typically imposes strict limits on the maximum wattage allowed per power injection point. In many LED neon systems, this limit is 440W. Exceeding this limit creates localized heat buildup in the thin-gauge internal wiring, which can lead to premature failure or fire hazards.
For large-scale installations, this necessitates multiple power feeds. As detailed in the 2026 Commercial & Industrial LED Lighting Outlook, project-ready signage must account for these distribution topologies during the design phase to avoid costly field retrofits.
Scenario Modeling: Large Exterior Neon Sign Installation
To illustrate the practical application of these standards, we modeled a scenario for a high-visibility retail storefront. This model identifies the specific technical requirements that an electrician must manage to ensure both compliance and ROI.
The Analysis Setup
- Sign Dimensions: 25ft × 15ft (375 sq ft).
- Installation Height: 30ft on a masonry facade.
- Electrical Load: Estimated 206 tube segments at 9W each, totaling ~1,854W.
- Circuitry: 120V, 20A dedicated branch circuit.
Quantitative Insights (Modeling Metrics)
| Parameter | Value | Unit | Rationale / Source |
|---|---|---|---|
| Total Watts | 1854 | W | Estimated load based on hex grid density |
| Current Draw | ~15.5 | A | Calculated at 120V nominal |
| Max Continuous Load | 1920 | W | NEC 80% rule for 20A breaker |
| Power Injection Points | 5 | count | Based on 440W UL 879 daisy-chain limit |
| Annual Energy Savings | ~946 | USD | Replacing 1500W legacy neon with 300W LED |
| Payback Period | ~1.6 | years | Includes energy, maintenance, and $500 rebate |
Modeling Note: This deterministic model assumes a moderate dirt accumulation environment and standard electricity rates ($0.18/kWh). The requirement for 5 separate power injection points is a critical field observation; failing to plan for these injection points is a primary cause of inspection failure in large-scale signage.
Methodology & Assumptions
- Load Estimation: Used a conservative geometry factor (3.0) to estimate tube density from the sign area.
- NEC Compliance: Applied the 80% rule per NEC 210.20(A).
- ROI Logic: Calculated annual energy savings using (ΔW × 4,380 hours / 1,000 × $0.18). Maintenance savings assume professional neon tube replacement every 1.8 years.
Low-Voltage (LED) Neon Specifics: LVPS and OCP
Modern neon signs are predominantly low-voltage LED systems. This shift introduces two specific components that inspectors scrutinize: the Low-Voltage Power Supply (LVPS) and Overcurrent Protection (OCP).
Verifying the LVPS
The power supply must be listed under UL 8750 (LED Equipment for Use in Lighting Products). Inspectors check for:
- Class 2 Rating: Most LED signs require Class 2 power supplies to limit the risk of shock and fire. A Class 2 supply is limited to 60W at 12V or 96W at 24V.
- Environmental Rating: If the power supply is mounted inside the sign enclosure, it must be rated for the internal operating temperature. If mounted remotely, it must be in a UL-listed junction box.
GFCI Requirements
For outdoor signs or signs installed near water (e.g., a bar or restaurant), the AHJ will verify that the primary side of the power supply is protected by a Ground Fault Circuit Interrupter (GFCI). This is a separate requirement from the sign’s UL 879 certification and must be documented in the electrical permit.
Structural Integrity and Mounting Hardware
A sign that is electrically perfect can still fail if it falls off the wall. UL 879 focuses on electrical safety, but the installation must follow NEC Article 600 and local building codes for mechanical securement.
- Listed Hardware: Electricians must use mounting hardware (anchors, bolts, brackets) that is rated for the sign’s weight and the specific mounting surface. Using generic hardware on a concrete facade is a common "gotcha" that leads to permit rejection.
- Environmental Sealing: For exterior signs, all penetrations through the building envelope must be sealed with a UL-listed sealant. This prevents water ingress from reaching the internal electrical connections, which could lead to arcing—a failure mode not always simulated in component-level shop tests.
For more on the risks of ignoring these standards, see our guide on UL Listed vs. Non-UL Neon Signs: A Business Risk Guide.
Common Inspection Pitfalls and "Gotchas"
Drawing from pattern recognition in high-volume commercial installations (patterned from support tickets and field feedback), here are the most frequent reasons a UL 879 certified sign fails a field inspection:
- Missing Disconnect: Every sign must have an external disconnect switch within sight of the sign, or a switch that can be locked in the "off" position.
- Junction Box Misalignment: Using non-UL-listed junction boxes for remote power supply mounting.
- Wire Gauge Mismatch: Using low-voltage secondary wiring that is too thin for the run length, causing a voltage drop that exceeds 3–5%. This can be verified using a standard multimeter to measure voltage at the furthest LED module.
- Label Obscuration: Painting over or covering the UL 879/UL 48 labels during installation. If the inspector cannot see the mark, the sign does not exist in their eyes.
ROI and Financial Justification
Beyond safety, UL 879 compliance is a financial decision. As shown in our scenario modeling, the payback period for a high-efficiency LED neon sign is often less than 2 years.
- Utility Rebates: Many utility companies require DLC Premium or UL certification to qualify for energy efficiency rebates. In our retail storefront model, a $500 rebate significantly accelerated the ROI.
- Maintenance Avoidance: Legacy neon requires high-voltage transformers (UL 2161) and fragile glass tubes. Transitioning to UL 879 LED systems eliminates the need for specialized neon glass blowers, reducing annual maintenance costs by an estimated $240 per sign.
Contractors can use these figures to overcome client resistance to the higher upfront cost of certified signage. Compliance is not just a regulatory burden; it is an investment in long-term operational stability.
Summary Checklist for Electricians
Before calling for an inspection, perform this final audit:
- [ ] Verify Labels: Ensure the UL 879 mark is visible on components and the UL 48 mark is on the enclosure.
- [ ] Check the Breaker: Confirm the load is <80% of the breaker rating (e.g., <1,920W for 20A).
- [ ] Trace the Low Voltage: Ensure no single injection point exceeds 440W (or the manufacturer’s spec).
- [ ] Test for Voltage Drop: Measure at the furthest segment to ensure it is within 5% of the driver output.
- [ ] Inspect the Disconnect: Confirm a lockable or line-of-sight disconnect is present.
Disclaimer: This article is for informational purposes only and does not constitute professional electrical or legal advice. Always consult the latest edition of the National Electrical Code (NEC) and your local AHJ before beginning an installation. Pre-existing conditions or specific local amendments may alter compliance requirements.
