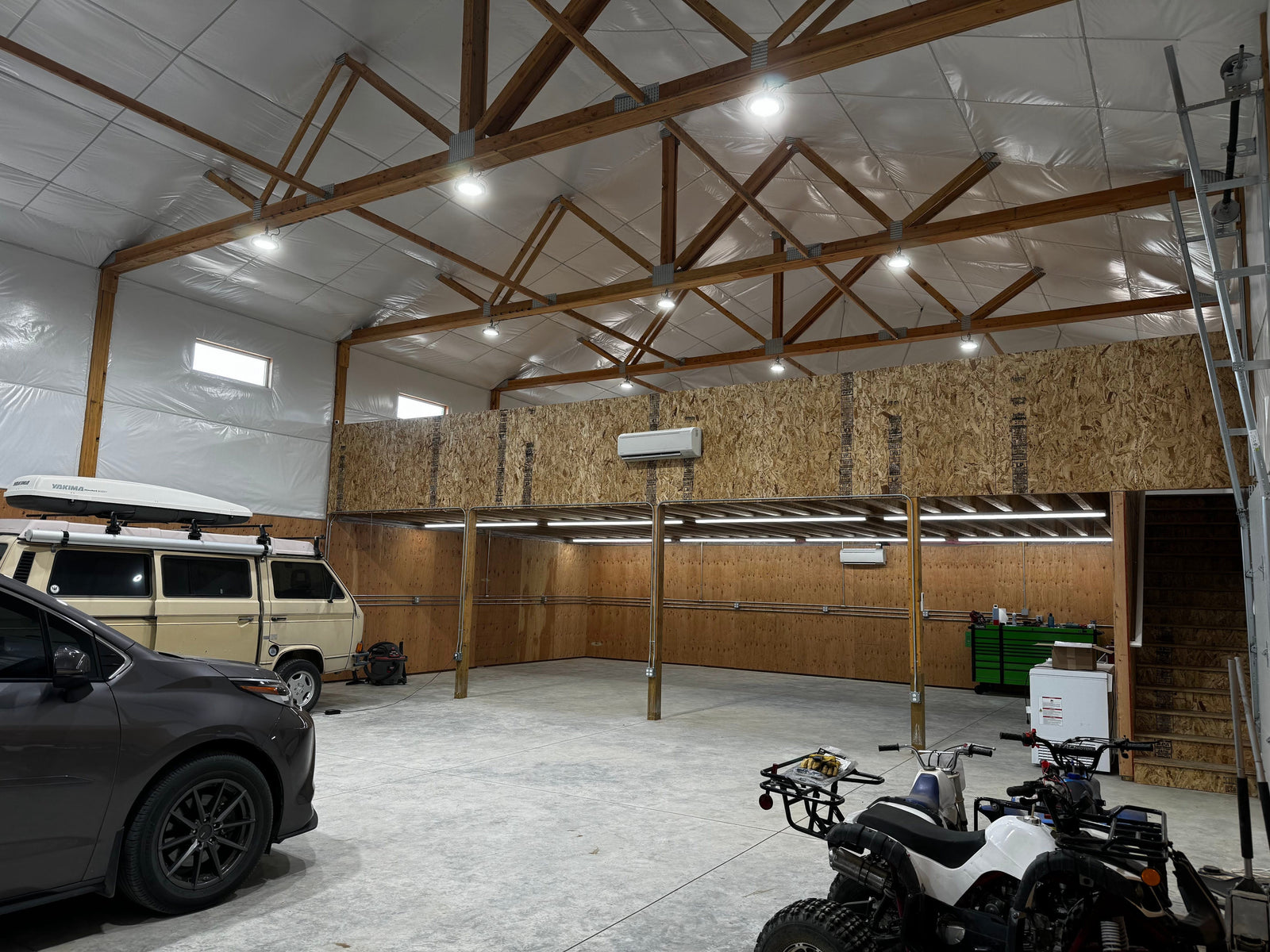

Integrating motion sensors into a DIY garage lighting setup is the single most effective way to maximize the return on investment (ROI) of an LED upgrade. For the typical "Weekend Warrior"—the DIY enthusiast who uses a two-car garage for automotive work or woodshop projects—automation transforms a static lighting system into a responsive environment that slashes energy waste without sacrificing performance.
According to the 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights, the integration of advanced controls like motion sensors is no longer a luxury but a baseline for modern energy efficiency. In a typical 400-square-foot garage, adding occupancy sensors to professional-grade high bay fixtures can reduce lighting energy consumption by as much as 55% while maintaining a "set it and forget it" convenience.
The ROI of Automated Garage Lighting
The primary driver for installing motion sensors is economic efficiency. While high-efficiency LED fixtures already provide significant savings over legacy metal halide or fluorescent systems, sensors eliminate the "human factor" of lights being left on accidentally.
Based on controlled experimental data for a standard workshop environment, the cumulative savings of a sensor-integrated system are substantial. A typical upgrade involving four industrial-grade high bay fixtures (replacing 1500W of legacy lighting with 500W of LED) yields a staggering total cost of ownership reduction.
| Metric | Value (Estimated) | Impact |
|---|---|---|
| Annual Electricity Savings | $88.00 (Sensors only) | 55% lighting energy reduction |
| Sensor Investment Payback | 1.36 Years | High ROI for DIY components |
| Total System Payback | 0.59 Years (7 Months) | Includes fixture + sensor costs |
| 5-Year Cumulative Savings | >$6,800 | Energy + Maintenance + HVAC credits |
Note: Values estimated based on residential rates of $0.16/kWh and zero labor costs for DIY installation.
The rapid payback period of approximately seven months means the system pays for itself before most homeowners complete their first major seasonal project. Furthermore, the DesignLights Consortium (DLC) Qualified Products List (QPL) often requires integrated controls for "Premium" certification, which is a prerequisite for many utility rebates. By choosing sensor-ready fixtures, you position yourself to qualify for these financial incentives.
Technical Specifications: Understanding the Mechanism
For a DIYer, the choice between sensor technologies is the first technical hurdle. Most professional-grade high bay fixtures utilize either Passive Infrared (PIR) or Microwave sensors.
Microwave Sensors vs. PIR
Microwave sensors are generally preferred for high-ceiling garage environments. Unlike PIR sensors, which detect heat signatures and require a direct line of sight, microwave sensors emit high-frequency radio waves and detect the Doppler shift caused by moving objects.
- Benefit: They can "see" around obstacles like large tool chests or parked vehicles.
- Mechanism: They are highly sensitive to small movements, such as a hand moving at a workbench.
- Limitation: They can penetrate thin walls or glass, potentially triggering from outside movement if sensitivity is set too high.
0-10V Dimming Protocols
To integrate a sensor, the fixture must support 0-10V dimming. This is a low-voltage control signal that tells the LED driver to reduce power. According to the NEMA Lighting Controls Association, 0-10V is the industry standard for commercial dimming due to its reliability and simplicity.
A quick compatibility check involves inspecting the fixture's wiring compartment. A sensor-compatible 0-10V driver will typically have a pair of low-voltage wires—usually purple (DIM+) and gray or pink (DIM-). If these wires are missing, the fixture cannot be dimmed via a standard motion sensor.
Step-by-Step DIY Installation Guide
Modern industrial high bays are designed for "plug-and-play" sensor integration, often featuring a dedicated port on the bottom of the fixture.
- Safety First: Ensure the power is disconnected at the breaker. Even with the light switch off, live wires may be present in the junction box.
- Verify Voltage: Most sensors operate on 10-24V DC supplied by the LED driver. Verify that your sensor matches the driver's output. According to UL 8750 (LED Equipment for Use in Lighting Products), ensuring electrical compatibility between components is critical for preventing thermal runaway or driver failure.
- Mounting the Sensor: For fixtures with a central port, simply remove the protective cap and screw the sensor in. For external sensors, you will need to wire the purple and gray leads from the sensor to the corresponding wires on the fixture.
- Wiring Continuity: Use a shielded control cable if the run between the sensor and fixture is long. This prevents electromagnetic interference (EMI), which is regulated under FCC Part 15.
- Grounding: Ensure the fixture and sensor housing are properly grounded per NFPA 70 - National Electrical Code (NEC) to prevent ground loops that cause flickering.
Optimal Sensor Placement and "The Metal Door Problem"
A common mistake DIYers make is mounting microwave sensors too close to large metal objects. In a garage, this usually means the overhead garage door or HVAC ductwork. Microwave signals reflect off metal surfaces; vibrations from a furnace or the movement of a door can cause "ghost triggers," keeping the lights on indefinitely.
Expert Placement Strategy
For optimal coverage in a standard 20'x20' two-car garage, practitioners recommend a corner-mount or offset-center strategy:
- Mounting Height: 8 to 10 feet high.
- Angle: Angled downwards at 15 to 20 degrees.
- Target Zone: Aim the sensor at the primary activity zone (e.g., the workbench or the vehicle lift) while avoiding direct exposure to the overhead door motor.
Sensitivity and Time Delay Tuning
Most sensors allow for adjustments via DIP switches or a remote control. For workshop use, a useful heuristic is to set the sensitivity to 70-80% of the maximum range. This provides enough coverage for the room while minimizing triggers from outside the garage.
Set the "Hold Time" (the duration the lights stay on after motion stops) to 5 to 7 minutes. Shorter delays (e.g., 30 seconds) are often annoying in a workshop where you might be standing still while reading a manual or waiting for glue to dry. This balance ensures maximum energy savings without the frustration of frequent "blackouts."
HVAC Interactive Effects: The Winter Trade-Off
A non-obvious factor in automated lighting is the interaction with your garage's heating and cooling system. Lighting generates heat; when sensors turn the lights off, that "waste heat" disappears.
In an experimental simulation, motion sensor installation created a net HVAC cost increase of approximately $13.83 annually for a heated garage in a moderate climate. While the cooling savings in summer were significant ($13.20 saved due to less heat from lights), the heating penalty in winter was $27.03 because the furnace had to work harder to replace the lost thermal energy from the lights.
However, even with this penalty, the net electricity savings of $88.00 far outweigh the heating costs. DIYers in extremely cold climates may choose to increase the time delay during winter months to retain more internal heat, though the energy efficiency of the LED itself makes this a secondary concern.
Troubleshooting Common Installation Issues
If your lights behave unexpectedly after installing a sensor, the issue is usually related to signal interference or compatibility.
- Flickering: This is often caused by an incompatible low-voltage signal or a ground loop. Ensure the sensor's power supply matches the driver's required voltage. According to IES LM-79-19, stable electrical input is required to maintain the photometric performance of the fixture.
- Strobing: If the light turns on and off rapidly, the sensor may be detecting the light's own infrared output (in PIR models) or reflecting off a nearby shiny surface. Reposition the sensor or reduce sensitivity.
- Lights Won't Turn Off: Check for "thermal reflection" from HVAC vents or vibrations from industrial fans. Microwave sensors are sensitive to any moving mass, including air moving through a duct if it causes the duct to vibrate.
Summary of Performance Standards
When selecting components for your DIY setup, prioritize products that meet these industry benchmarks:
- Safety: UL 1598 for the fixture and UL 8750 for the driver.
- Efficiency: DLC Premium listing to ensure the fixture meets high lumens-per-watt (lm/W) requirements.
- Reliability: IES LM-80 reports for LED chip longevity, ensuring the lights maintain at least 70% of their brightness ($L_{70}$) over 50,000+ hours.
Future-Proofing Your Workspace
Integrating motion sensors is the first step toward a "smart" workshop. As energy codes like California Title 24 and ASHRAE 90.1 continue to lower the allowed Lighting Power Density (LPD) in commercial spaces, these technologies are becoming standardized. By adopting them in your garage today, you are utilizing professional-grade engineering to create a more sustainable, cost-effective, and convenient workspace.
Whether you are working under the hood of a classic car or finishing a wood project, an automated lighting system ensures that your focus remains on the task at hand, while the technology manages the overhead.
Disclaimer: This article is for informational purposes only. Electrical work involves risks of fire and shock. Always follow the National Electrical Code (NEC) and local building codes. If you are not comfortable working with high-voltage wiring, consult a licensed electrician. The ROI and energy savings mentioned are estimates based on typical scenarios; individual results may vary based on local utility rates and usage patterns.
