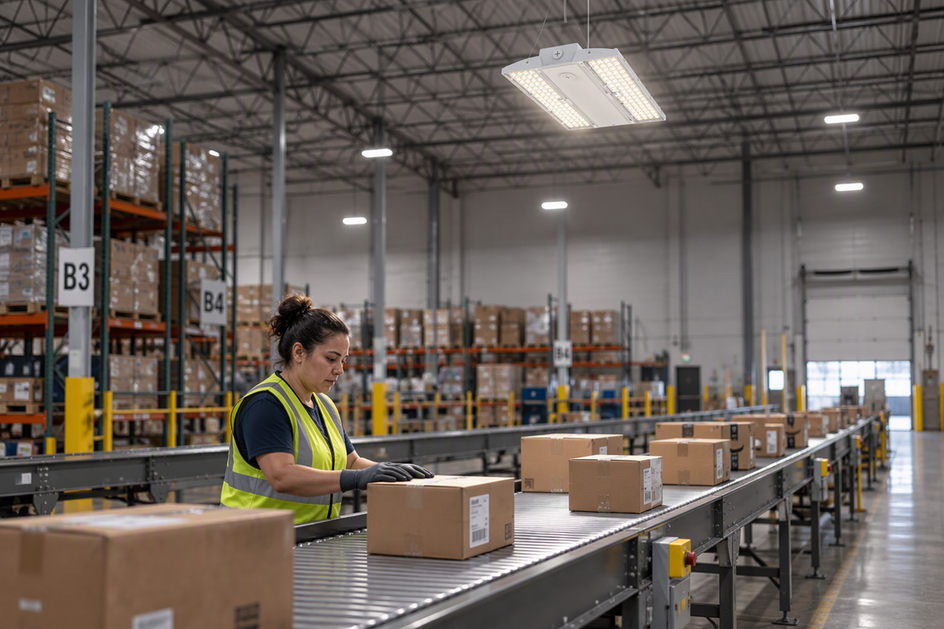

No single fixture type is the right choice for every conveyor line. Good conveyor line lighting comes from a layout that has been checked at the actual work surface and at the spots where people stand to move, sort, inspect, or pack items. Bright aisles nearby do not prove that the line itself gets the light it needs.
Treat the conveyor as its own task zone that runs in one direction. Write down how the line runs and where the work happens. Then ask for a layout built for this project that evaluates that area before you buy a new fixture plan or keep the old one.
What lighting layout works best above a conveyor line?
The best layout is the one shown to serve your line's work surface and worker positions. The fixture category alone doesn't decide it. A conveyor is long and narrow, and people work along one side or both. An open-floor grid is planned around the floor as a whole, so it may or may not fit the belt, the stations, and the people leaning over them.
Think of the line as a separate zone inside the larger building plan. Our guide to planning lighting by zone explains why one fixture approach may not cover every area. No single spacing, beam pattern, or foot-candle number fits every conveyor. Those values have to come from a project layout that models your line, your mounting conditions, and your tasks.
Map the conveyor work before changing the layout
Start by recording the conveyor as a work area, separate from the floor around it. These notes become the inputs for whoever runs the layout. They are not a formula for placing fixtures.
| Site input | What to record | What the layout brief must cover |
|---|---|---|
| Line direction, width, work surface | Run direction, belt width, surface height | The belt and work surface as the area being evaluated |
| Continuous work vs. fixed stations | Where sorting, inspection, or packing happens | Full line length or specific station zones |
| Worker positions | Which side or sides people stand on, and where | Light at those positions, plus their sightlines |
| Mounting conditions | Available heights and support points | Real fixture mounting locations, not ideal ones |
| Obstructions | Overhead conveyors, racks, ducts, guarding | Objects between fixtures and the work surface |
Two rows deserve extra care. Work that happens along the whole line is a different job from work that happens at a few busy stations. A plan that treats the whole line one way can miss what a station needs, or spend light where nobody works. Mounting conditions also matter. A layout drawn at one height won't hold if the fixtures end up at another. Our explainer on suspension height and spacing shows how those two variables interact in linear high bay layouts.
Mark each item on a simple plan sketch with dimensions in feet. A reviewer can then model the conveyor as it really stands instead of guessing at an open-floor zone.
Check existing lighting at the conveyor work surface
Existing general lighting serves the conveyor only if evidence for the conveyor's task area shows it. Wide coverage across the floor is not that evidence. Use this path to test the assumption:
- Define the task area. Use your site map to name the work surface and the worker positions that matter. If nobody has defined them yet, no current report can speak to them.
- Get evidence for that area. Ask for a photometric layout or survey that places calculation points on the conveyor work surface, not just a floor-level grid. Knowing how to read a photometric report helps you see which surface the numbers describe.
- Match the assumptions to the site. Compare the report's mounting heights, fixture locations, and obstructions with what is installed today. If they differ, the results describe a different room.
- Decide what the evidence shows. If the evidence covers the task area under current conditions, judge the layout on that result. If it doesn't, treat adequacy as unconfirmed and request a task-area layout before changing anything.
One regulatory example shows why the measurement plane matters. OSHA's Marine Terminals illumination standard measures lighting at the task or working surface, in the plane where that surface sits. It also says lights should, so far as possible, be placed so they won't shine in employees' eyes. That standard covers marine terminals, not warehouses. Even so, it is a clear model for asking where light is measured and where workers look.
The tool behind the report affects how far you can trust it, too. If you need to compare layout calculation tools, weigh a quick web estimate against a full simulation that can model a raised conveyor surface and obstructions.
Verify the layout and fixture details before buying
Before buying, confirm that the proposed layout matches your documented conveyor conditions. Then check the exact fixture model against its current documentation. Work through this checklist once, and treat any open item as a reason to wait:
- Layout evidence. The layout uses your recorded work surface, worker positions, mounting conditions, and obstructions. It names the exact fixture model and configuration it assumed.
- Exact model and variant. The SKU, wattage setting, and optic or distribution match what the layout modeled. Don't carry specs from one model, wattage, or variant to another, even within the same series.
- Current manufacturer documentation. The spec sheet, photometric file, and installation instructions are current for that exact variant, including the mounting method it supports.
- Electrical and control items. Check operating voltage, fixture wattage, total load, inrush current, control type, 0–10V dimming compatibility, and any sensor rating against your project. Circuit design and wiring belong to a licensed electrician.
- Applicable requirements. Identify the project's jurisdiction and confirm code questions with the local authority or a qualified professional. OSHA's warehousing resources can help you find standards that may apply to warehouse operations.
Once the layout criteria are set, you can compare candidates such as our linear high bay options against them. Check the spec sheet of a specific linear high bay model against the same list before it goes in the cart. If you are still sketching rough fixture positions, our online lighting layout tool is a starting point for that conversation, not a replacement for a task-area review.
FAQs
Is one type of fixture always best over a conveyor?
No. Fixture categories differ in shape and optics, but the category name doesn't tell you how a given model will light your belt and stations. Choose the fixture after a layout shows that the exact model and optic serve your task area at your mounting height.
Does OSHA set a lighting level for warehouse conveyors?
OSHA's Marine Terminals illumination rule includes measurement and glare language, but its scope is marine terminals. Don't apply it to a warehouse as a rule. To find standards that may apply to your warehouse, start with OSHA's warehousing resources. Confirm project requirements with your local authority or a qualified professional.
Should the lighting be rechecked if the conveyor is moved or extended?
Yes. Moving, extending, or adding stations changes the work surface, worker positions, and possibly the obstructions. A layout that matched the old line no longer describes the new one. Update your site map and ask for the layout to be reevaluated for the changed area.
Who should prepare the conveyor lighting layout?
A lighting designer, an engineer, or a supplier offering photometric layout services can model the task area from your site inputs. A licensed electrician handles circuit design and installation. Your local authority decides code compliance. Give all of them the same documented conveyor map so everyone works from one set of assumptions.
