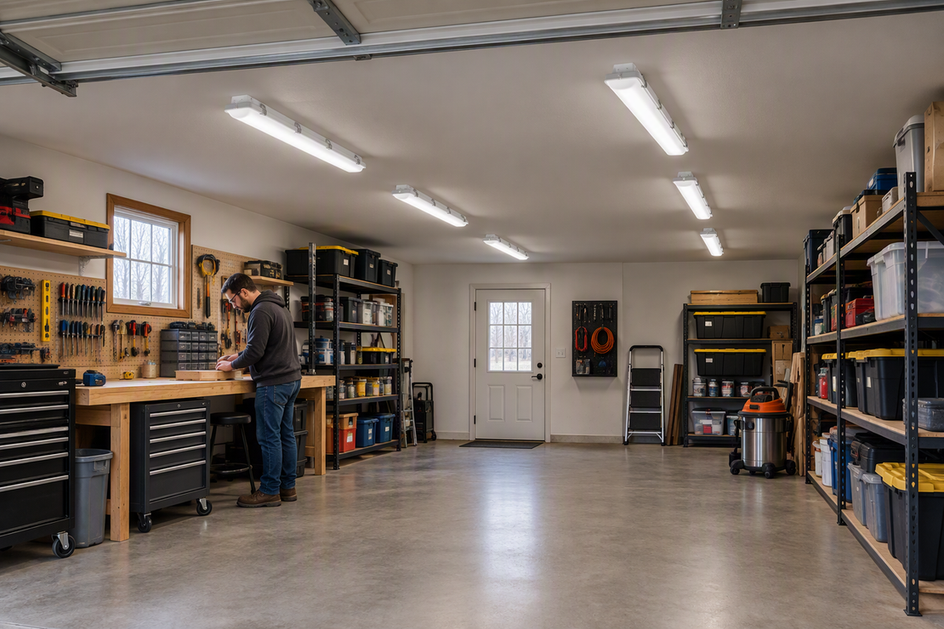

Converting a garage into a workshop starts with a plan, not a brighter bulb. Map your room's dimensions, ceiling height, and work zones, then choose a distributed multi-fixture ceiling grid sized to those zones and your verified electrical capacity. Treat 75-plus foot-candles as a planning target to validate with photometric data, not a guaranteed result of any single fixture swap.
Getting there means separating what you can plan yourself from what needs a licensed electrician's review. This guide walks through the sequence: survey the room, choose a distribution approach, decode the specifications that matter, screen your existing circuit, verify product documentation, and hand the finished brief to the right professional.
Build the upgrade plan before buying fixtures
A ceiling lighting upgrade for a home workshop is a planning project before it's a shopping trip. Draw the line between what you can decide yourself and what needs a licensed electrician's sign-off before you buy a single fixture.
Set the safety and scope boundary
You can measure the room, map work zones, and shortlist fixture criteria and documentation on your own. Circuit design, wiring changes, live testing, and local code compliance are not do-it-yourself decisions. The NEC safety boundary matters here because the National Electrical Code is a widely adopted model code meant to protect people and property from electrical hazards, and your local jurisdiction decides how it applies to your garage. If the existing circuit, ceiling box, conductors, controls, or fixture connections are unknown or show damage, stop and have a licensed electrician evaluate them before planning any further.
Create the first-pass project brief
Your first deliverable is a one-page project brief, not a wiring diagram. Record the garage's length, width, and ceiling height; the tasks you'll do under each zone; obstructions like door tracks, openers, and shelving; the switching or sensor behavior you want; and what you currently know about the existing circuit. Use that brief to guide your ceiling sketch, and the garage lighting bundle guide can help you cost-check fixture combinations once your zones are set.
Measure the garage and map work zones
The room survey turns a guess into a layout. Sketch the garage in plan view, mark every dimension, and note where light actually needs to land instead of relying on wherever your old single bulb happened to hang.
Start with length, width, and mounting height in feet, since ceiling height changes how far light spreads before it reaches a workbench or hood. Then mark fixed zones: benches, tool stations, parking or lift areas, shelving, storage racks, and the door track and opener hardware that can block a fixture's throw.
Separate general ceiling illumination from close task work. A workbench used for fine assembly or a saw used for precise cuts usually needs supplemental task lighting in addition to overhead coverage, not just a brighter ceiling grid. Mark any spot where a support beam, duct, or storage shelf is likely to cast a shadow or create glare on a work surface, since that's where your ceiling grid needs an extra fixture or a repositioned run rather than a single brighter light.
Choose fixture distribution by ceiling height and task
Ceiling height and task type determine whether you need more fixtures, wider spacing, or a different fixture category, not just higher lumens. The matrix below gives a starting direction; treat exact spacing and count as something your fixture's photometric data and mounting conditions still need to confirm.
| Ceiling/task condition | Coverage problem | Fixture approach | Validate before purchase |
|---|---|---|---|
| Low ceiling, general work | Fixtures sit close to the workplane, causing hot spots | Wider, lower-output fixtures spread across more positions | Beam angle and glare at eye level |
| Higher-mounted ceiling, general work | Light spreads thin before reaching the floor | Fewer, higher-output fixtures or linear runs | Photometric spacing for that mounting height |
| Fixed bench or tool zone | Ceiling grid alone leaves shadows on the work surface | Add supplemental task lighting at the bench | Task light placement relative to your body and tool |
| Vehicle bay or open floor | Storage, door track, or vehicle blocks throw | Offset fixture runs around obstructions | Clearance from door hardware and opener rail |
Higher ceilings favor fewer, more powerful fixtures because light has farther to travel before it reaches your workbench. Lower ceilings usually call for more evenly spaced fixtures at moderate output to avoid harsh hot spots directly under each light. None of this replaces a workplane check with real photometric data, and it's worth noting that OSHA's foot-candle context for regulated maritime workspaces uses foot-candles only to describe specific occupational settings like machine shops and warehouses, not a residential garage requirement. If you're comparing fixture categories rather than individual specs, our LED shop light collection is organized around that same distribution logic.
Choose specifications that affect the layout and purchase
Not every spec on a fixture's listing changes your decision. Four things actually move your layout or purchase: delivered light at the workplane, color temperature, color rendering, and the electrical details that determine fit.
Translate light output into coverage
Lumens describe how much light a fixture produces, not how much light lands on your workbench. Foot-candles measure illumination at a surface, and getting from one number to the other depends on ceiling height, fixture spacing, and room reflectance. Treat any 75-plus foot-candle target as an assumption to validate with your actual room geometry and a fixture's photometric file rather than a spec you can simply shop for.
Check color, distribution, and electrical specifications
Color temperature (CCT), measured in kelvins, describes how warm or cool the light looks, and color rendering index (CRI) describes how accurately it shows true colors. The Department of Energy's lighting definitions and guidance recommends 3000K and 80-plus CRI for general residential lighting, a reasonable starting point for a workshop but not a mandatory workshop spec. Beyond color, record each fixture's beam distribution, wattage, input voltage, and any dimming or sensor control it supports, since those four items determine whether a fixture fits your existing circuit and controls before it ever gets to how it looks.
Screen circuit load, controls, and installation conditions
You can screen your existing electrical setup without touching a wire. List what you already have, then hand that list to a licensed electrician instead of guessing at capacity yourself.
Write down the circuit's labeled rating if you know it, every other load connected to it such as a garage door opener, space heater, or power tools, and the wattage and count of the new fixtures you're considering. Note any switches, occupancy sensors, dimmers, or timers already installed, since a new fixture's control compatibility depends on what's already wired in.
If the manufacturer publishes inrush-current or control-compatibility data, save it. That inventory, not a wattage guess, is what a licensed electrician needs to determine whether your circuit can support the upgrade. Adding up wattage is a planning input, not proof that the circuit is sized correctly, and the NEC and its locally adopted version ultimately decide that answer. If you're unsure whether an opener, compressor, or other tool already shares your lighting circuit, the shared circuit guide walks through how to check that safely before your electrician visit.
Complete the pre-installation verification before you buy
A fixture only becomes a real candidate once its exact documentation matches your project's requirements. Use this checklist before it moves from a maybe to a cart addition.
Match the exact SKU to the documents
Specifications belong to the exact SKU and configuration you're looking at, not the series or brand it comes from. Check the current manual, specification sheet, photometric file, product labels, and any certification records that match that specific model before relying on a single feature listed on a product page.
Use a buy-or-hold verification checklist
- Dimensions and mounting method match your ceiling and clearance
- Confirmed input voltage matches your circuit
- Fixture wattage and total connected load recorded
- Inrush-current data available if the manufacturer publishes it
- Sensor, dimmer, or control compatibility confirmed
- Manufacturer installation instructions available for your model
- Current specification sheet and photometric file on hand
- Environmental or location rating language matches your garage's conditions
- Certification records verified for that exact SKU
- Local permit or inspection requirements checked with your jurisdiction
As an example of what this documentation should include, the current listing for this vapor tight LED fixture lists 6,500 lumens, selectable 30/40/50W wattage, selectable 3000K/4000K/5000K CCT, AC 120-277V input, a two-pack package, waterproof and dustproof features, and UL/cUL and DLC entries. Those listed specifications describe that configuration; they don't by themselves establish workplane coverage, control compatibility, or code fit for your specific garage. If any item on the checklist above is missing for a fixture you're considering, hold the purchase and request the current documentation before buying.
Hand the completed plan to the right reviewer
Once your sketch, specification sheet, and circuit inventory are assembled, the next move depends on what's still unresolved. Keep planning if you're still refining zones or fixture criteria. Bring in a professional the moment circuit, wiring, control, or code conditions remain uncertain.
A lighting professional is worth the added step when you need a validated foot-candle result, have an irregular room shape, or want project-specific photometric planning rather than a general layout. A licensed electrician's review is required whenever the circuit's capacity, wiring condition, control compatibility, or the permit and inspection requirements in your area aren't already confirmed, since local adoption of the electrical code ultimately decides what's compliant. When you're ready for that outside input, our lighting design support can take your sketch and specification list and turn it into a project-specific plan.
The concrete next action is simple: hand your marked-up sketch, specification sheet, current product documents, and circuit inventory to whichever reviewer matches your open question, before you order fixtures or touch any wiring.
FAQs
Can other garage loads share the lighting circuit?
Possibly, but fixture wattage alone can't answer that question. A garage door opener, space heater, or power tool sharing your lighting circuit changes the total connected load and may affect inrush current and breaker behavior in ways a wattage total doesn't capture. Inventory every load and control on that circuit, then have a licensed electrician assess whether the existing wiring can support the addition safely.
What should you do if a product page lacks photometric or installation data?
Treat that fixture as unverified rather than ready to order. A bare lumen rating does not show how light distributes across your workbench from your ceiling height, and missing mounting details or control specs leave physical and electrical fit unresolved. Contact the manufacturer directly for the official manual and photometric file, or use a qualified photometric design service, before placing your order.
Can an overhead ceiling grid replace dedicated workbench task lighting?
No, an overhead grid provides broad ambient coverage across the room but typically leaves shadows when your body leans over a workbench. Dedicated task lights placed closer to the workplane eliminate glare and shadows for detailed cutting, measuring, or finishing tasks without requiring you to over-illuminate the entire garage ceiling.
