A commercial project needs a lighting plan for each operating phase when a phase changes what the shared layout was drawn to represent. Having several phases does not mean each one needs its own drawing. Compare each phase's work areas, tasks, equipment, and operating assumptions with the documented basis of the shared layout.
If every phase matches that basis, one shared layout is a reasonable starting point for planning. If a phase moves work areas, changes tasks, or adds equipment or obstructions, flag it. Your lighting design professional can then decide whether phase notes, an overlay, or a separate layout fits that change.
When to Request Separate Lighting Layouts by Phase
Test the shared layout's assumptions against each phase instead of counting phases. The table below shows how to sort each kind of difference before design review. It is a planning screen, not a code rule or a design threshold.
| Phase difference | What to record | Planning direction |
|---|---|---|
| Same work areas and tasks | Task locations that match the layout basis | Candidate for one shared layout, still provisional |
| Only schedules or control states change | Hours, occupancy patterns, control modes | Ask whether the layout's assumptions change |
| Work areas, tasks, or equipment move | Marked locations, new obstructions, new tasks | Send for design review: notes, overlay, or separate layout |
| Inputs are missing or unsettled | Which items are open, and who owns them | Unresolved until the phase details are known |

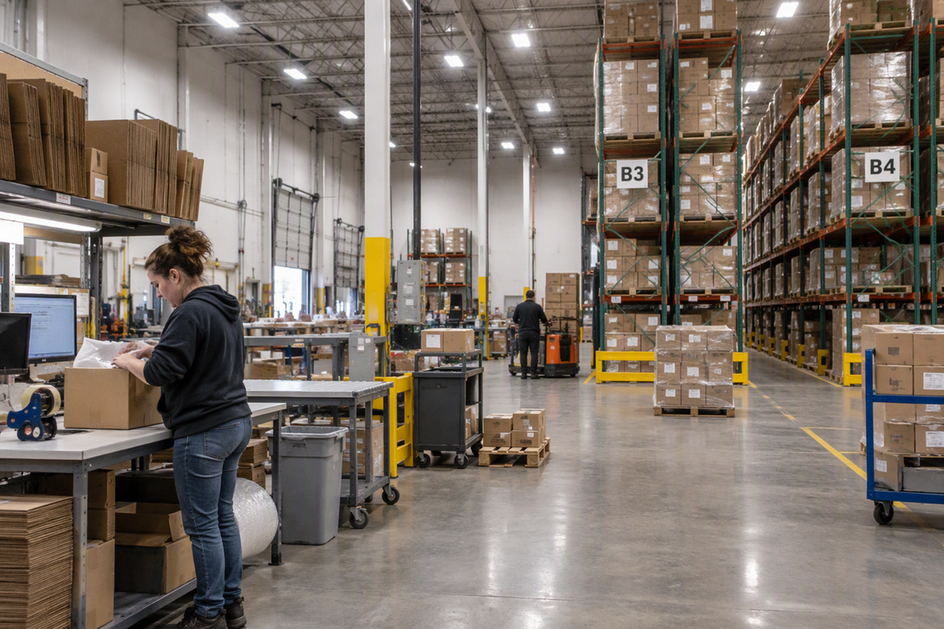

The key split is between changes to the space or task and changes in timing or control. Here's an illustrative example. A warehouse that keeps the same racks and benches but adds a second shift may still match the base layout. A phase that moves a packing line under different fixtures may not match it. Neither type of change decides the drawing format by itself. That call belongs to a qualified designer who can see the whole project.
The same question shows up in retrofit work. A commercial retrofit layout decision between one-for-one replacement and a new layout also depends on whether the existing basis still describes the work. When it doesn't, a phase-specific approach deserves a closer look.
What to Compare Across Operating Phases
Use the same fields for every phase so that differences stand out against one baseline. Mark each field as stable, changed, or unknown compared with the shared layout.
- Phase name and sequence: what each phase is called and when it happens compared with the others.
- Work areas and task locations: what work happens in each phase and where on the floor it happens.
- Equipment or obstructions: racks, machinery, partitions, staging zones, or anything else that appears, moves, or leaves.
- Physical conditions tied to the layout: room-use changes or temporary construction that alters the space the layout covers.
- Schedule and control state: operating hours and how lighting controls should behave during the phase.
- Status for each field: stable, changed, or unknown. If a detail is unsettled, mark it unknown instead of assuming it matches the baseline.
Write tasks down rather than guessing them from room names. On VA projects, for example, the VA lighting design manual tells consultants to choose room lighting guidance based on each room's application and task. If the task is unclear from the room name, they must confirm it with project officials. That rule covers VA work only, but it shows why a clear task record matters before anyone reviews the layout.
Keep control states in their own column, apart from changes to space and equipment. The U.S. Department of Energy notes that LED sources can work with sensor and control systems for integrated lighting controls such as occupancy sensing, daylight harvesting, and local light-level control. If phases use those functions in different ways, record the difference for each phase. If phases also mix fixtures and controls from different systems, an early LED fixture and control compatibility check keeps that issue separate from the layout question.
Teams that manage more than one site can reuse this structure as a shared baseline and exceptions log. In that version, phases sit next to site differences.
What to Send for Lighting Design Review
Send the phase comparison, the drawings you have, and a clear note on which conditions are confirmed, changed, or unresolved. Ask the designer two things: does the shared layout's basis hold for every phase, and which format best shows each phase that differs?
- The completed phase comparison record showing phase names and sequence.
- Available base drawings, such as architectural floor plans and current lighting drawings.
- The project's address and building type to verify applicable jurisdiction requirements.
- An assigned owner and next review date for each open or unknown input.
Local code and energy requirements depend on the project's jurisdiction and context. No single US rule decides when separate operating-phase layouts are required. The project's designer, engineer, or authority having jurisdiction makes compliance decisions. A planning worksheet cannot replace that review.
Some teams find it easier to discuss phases when they have a draft layout to mark up. Our lighting design options page and our online lighting layout tool are optional places to start. If fixtures are already being considered, note which phases each one would serve before you compare commercial lighting fixtures. That way, the phase record shapes the choice instead of the other way around.
FAQs
Does a different operating schedule automatically call for a separate layout?
No automatic rule ties schedule changes to a separate drawing. Record each phase's hours and control behavior, and note whether the work areas and tasks stay the same. Then ask the designer whether the schedule difference changes the layout's assumptions or can be shown another way, such as in phase notes or control documents.
Can a phase-specific overlay be used instead of a separate layout?
Sometimes, but no general standard says when an overlay is enough. The answer depends on how much the phase changes and how clearly an overlay can show those changes. Ask the designer to choose a format that makes each phase's work areas, equipment, and controls easy to identify for the people who will build and use it.
What if the work area or equipment is not finalized?
Mark that input as unknown and share the current drawing along with any alternatives being considered, such as two possible equipment positions. Until the open phase details are settled and reviewed, treat any decision about one layout versus several as provisional.
Should commercial lighting plans be revisited if the project changes during design?
Yes, when the change affects a field in your phase record. Update the stable, changed, or unknown status for the affected phase and send the revision to the designer. A layout that fit the earlier assumptions may need a new review once work areas, tasks, or equipment shift.
