Why the Heatsink Design Matters More Than the LED Chip
For a round industrial high‑bay fixture, the heatsink is not just a piece of metal on the back. It is the primary life‑support system for the LED array and driver. Once you push 100–240 W into a compact housing and hang it 30–40 ft (9–12 m) in a warm warehouse, the thermal path—not the datasheet of the LED—usually decides whether you still have useful light in year 10.
This article explains what cold forging actually changes in a round aluminum heatsink, where it really helps, where it is over‑sold, and how facility managers, specifiers, and contractors can read between the lines of marketing claims.
1. Thermal Management Basics for Round High Bays

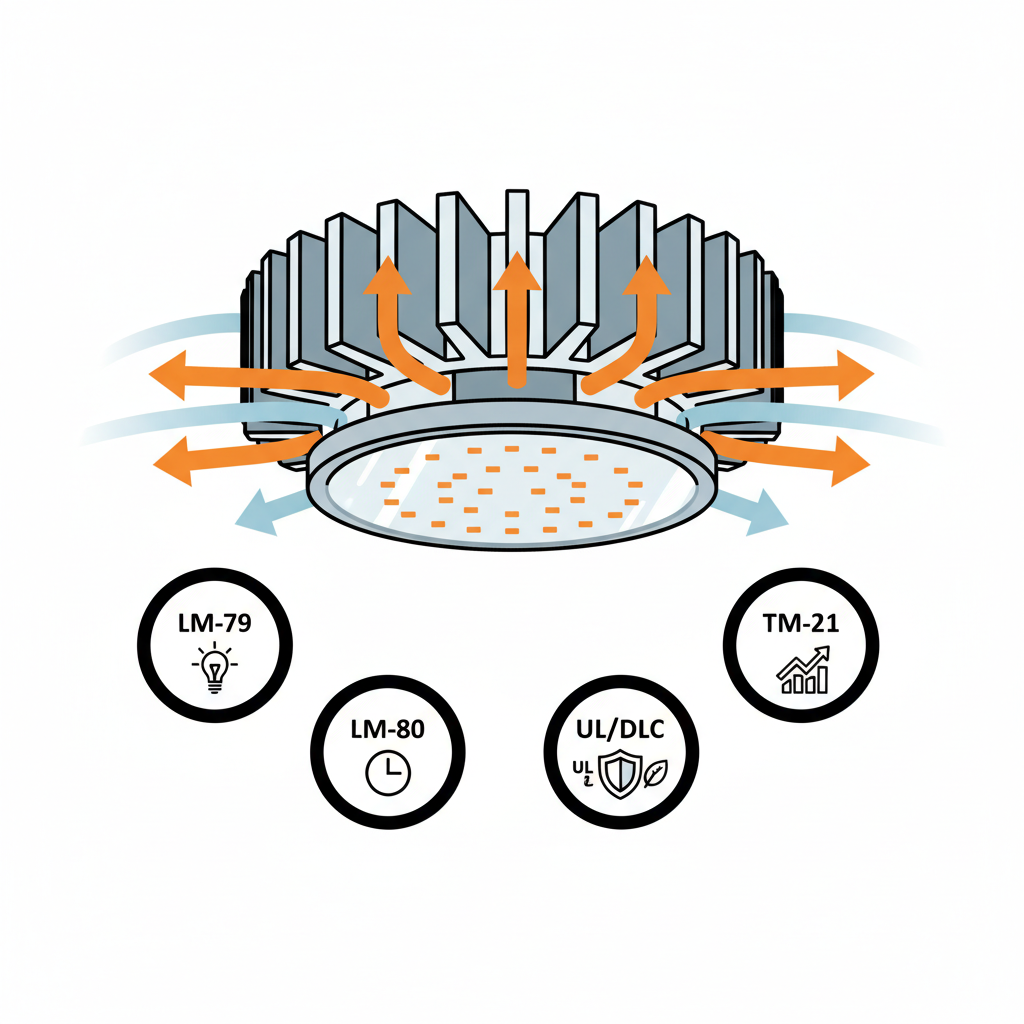

1.1 The thermal path in plain language
For any LED high bay, the heat path looks like this:
LED junction → LED package → metal‑core PCB (MCPCB) → heatsink base → fins + housing → surrounding air
Two things control long‑term lumen output and color stability:
- Junction temperature (Tj) – the LED chip temperature inside the package.
- Case or board temperature (Tc) – typically measured at a test point on the MCPCB.
In practice, specifiers rarely see Tj directly. Instead, they look at Tc and the rated ambient (Ta) during LM‑80 and TM‑21 lifetime projections.
According to the IES LM‑80‑21 standard, lumen maintenance testing is run at defined case temperatures (often 55 °C, 85 °C, and a higher option). Then TM‑21 uses that data to project L70 or L90 lifetime. If your heatsink cannot keep Tc in the tested range under real ambient, the LM‑80/TM‑21 projection no longer reflects reality.
Practical target: for warehouse and industrial spaces that regularly hit 40–45 °C near the ceiling, a robust high bay design usually aims to keep Tc in the 80–90 °C band at full power. That typically keeps Tj in a safe region for genuine 50,000–60,000 h performance.
1.2 Why the heatsink is the limiter, not the LED chip
Modern high‑power LED packages routinely support junction temperatures up to 105–125 °C in their datasheets. In practice, what limits them is:
- The thermal resistance from LED board into the heatsink.
- The ability of the fins and housing to reject heat to air under low airflow.
- The ambient conditions: 40–50 °C air is common at the roof of a warehouse.
Standards like LM‑79‑19 define how to measure luminaire power, total lumens, efficacy, and color at thermal equilibrium. When you see a photometric report, the fine print should state the ambient and operating conditions. If the heatsink is marginal, the fixture may only hit its advertised performance in a cool lab, not in a real plant.
Key takeaway: when comparing round high bays, treat the heatsink design as the core of the product, not an afterthought.
2. What Cold Forging Really Is (and What It Is Not)
2.1 Process overview
Cold forging is a process where a metal slug—typically pure or high‑purity aluminum—is pressed into final shape at or near room temperature using very high tonnage.
Common steps for a round heatsink:
- Cut an aluminum slug.
- Lubricate and place it into a precision die.
- Apply thousands of tons of pressure to upset and flow the metal into fins and mounting bosses.
- Trim, machine critical features, then often anodize the surface.
This differs from:
- Die casting: molten aluminum alloy injected into a mold, then cooled.
- Extrusion: heated billet pushed through a die to create a constant‑profile shape, later cut and machined.
A forged heatsink is often marketed as denser and more conductive because it is formed without melting. That is only partly true.
2.2 Mechanical and geometric advantages
Cold forging does offer real design advantages for round high‑bay heatsinks:
- Continuous grain flow and high compressive strength. The metal is plastically deformed, aligning grains and increasing strength. This allows thinner walls and more integrated features (mounting bosses, hooks) without cracking.
- Tight fin geometry. It is possible to create tall, thin radial fins that would be difficult and expensive to machine, and challenging to cast without defects.
- Fewer voids than typical die casting. Because the metal is never molten, cold forging generally avoids shrinkage porosity that can occur in castings.
Those advantages can enable a lighter heatsink for the same thermal performance, or slightly better performance for the same mass—if the rest of the design is done correctly.
3. Common Claims About Cold‑Forged Heatsinks — Tested
This is where real‑world experience and test data matter. Several assumptions around cold forging are only partly correct.
3.1 Myth: “Cold forging always improves thermal conductivity”
A common belief is that heavy cold work eliminates porosity and therefore makes aluminum a better heat conductor. However, research on aluminum alloys shows the opposite once deformation becomes aggressive.
A study on thermal conductivity of aluminum alloys from cryogenic to room temperature found that high dislocation density from severe cold work can reduce bulk thermal conductivity by roughly 10–30 % at room temperature unless a recovery or annealing step is applied, and that conductivity drops as dislocation spacing shrinks, due to increased phonon scattering (ResearchGate – Predicting the thermal conductivity of aluminium alloys).
Expert warning: a heavily cold‑forged round heatsink that is not stress‑relieved can actually spread heat worse in its core than a properly extruded and aged 6063‑T5 sink of the same volume.
The net result on a real high bay depends on:
- Whether the forging vendor includes a suitable stress‑relief/anneal.
- How long the conduction path is from LED board to fin base.
- Whether the fin geometry provides enough surface area and airflow.
3.2 Myth: “More fins from forging are always better”
Another frequent claim: because cold forging can create very dense fins, more fins automatically mean superior cooling.
Experimental work on plate and pin‑fin heatsinks under low‑velocity air (0.2–1.0 m/s, typical for warehouse spaces) shows a different story. Once fin spacing drops below roughly 3–4 mm, additional fins produce only about 0–5 % extra heat transfer, while pressure drop can increase by 30–80 %. In dusty environments, these narrow channels foul quickly, further reducing performance (see data synthesized from the paper Effect of fin profile in a plate pin fin heat sink for performance enhancement on tandfonline.com).
In practice, that means:
- Hyper‑dense forged fins may look impressive in a catalog but can be a net loss in a dusty plant or barn.
- An optimized, slightly more open fin pattern often runs cooler after months of operation, because it stays cleaner and breathes better.
3.3 Where cold forging genuinely shines
When used thoughtfully, cold forging is particularly useful for:
- Mid‑to‑high wattage (100–200 W) fixtures that must stay compact for mechanical reasons (tight aisles, low‑hanging cranes).
- High ambient locations (40–50 °C at the roof) where every few degrees of junction temperature matters for LM‑80/TM‑21 lifetime.
- Ruggedized housings: forged bosses and lugs integrate mounting hardware and eyebolts into a single piece of metal, improving impact resistance and long‑term mechanical stability.
The real question for specifiers is not “forged or not,” but how well the thermal and mechanical design is validated.
4. Surface Finish, Anodizing, and Real‑World Heat Rejection
4.1 Emissivity is not cosmetic
In semi‑enclosed or low‑airflow industrial spaces, radiant heat transfer is a large part of how a high bay rejects heat. Surface finish directly affects this.
Research on LED modules has shown that controlled surface micro‑roughness plus black anodizing can increase emissivity by up to about 2.5× and reduce heatsink surface temperature by several kelvin compared to untreated or poorly treated surfaces (see Effect of Surface Microstructure on the Heat Dissipation of High‑Power LED on PubMed Central).
For a round high bay, that translates into:
- Lower case temperatures at the LED board for the same ambient.
- Improved alignment with LM‑80 test conditions, leading to more honest TM‑21 lifetime projections.
4.2 When anodizing hurts instead of helps
The same study and practical experience also show that:
- Excessively thick or contaminated anodic layers can add 5–15 % thermal resistance at the contact interfaces.
- Rough, inconsistent machining or forging marks underneath the coating reduce real contact area between the MCPCB and heatsink base.
So a high‑quality cold‑forged heatsink is not just about fin count; it also requires:
- A flat, well‑machined LED mounting pad with proper torque and thermal interface material.
- A specified anodizing process that balances emissivity improvement with minimal added thermal resistance.
4.3 How this shows up in LM‑79 and DLC data
DesignLights Consortium (DLC) uses LM‑79 data and minimum efficacy thresholds to qualify high‑performance luminaires. Their SSL technical requirements drafts for future versions push efficacy higher and emphasize long‑term performance.
From a thermal standpoint:
- A cooler LED junction yields higher initial lumens per watt, making it easier to clear DLC thresholds.
- Better thermal design slows lumen depreciation, supporting TM‑21‐based lifetime requirements.
When comparing two DLC‑listed high bays, look not only at efficacy, but whether the manufacturer provides LM‑79 reports and LM‑80/TM‑21 summaries and clarifies the test temperature.
5. Reliability, Lifetime, and Standards: How the Heatsink Ties In
5.1 LM‑80, TM‑21, and what they assume
As noted earlier, IES LM‑80‑21 specifies how LED light sources are tested for lumen maintenance, usually at 6,000 h or longer under controlled case temperatures. IES TM‑21‑21 then provides the math for projecting that data to longer times, with one important restriction: the projection time cannot exceed six times the tested duration.
For example:
- 6,000 h tested → max 36,000 h projected.
- 10,000 h tested → max 60,000 h projected.
If a product claims “L70 @ 100,000 h” but only has 6,000 h of LM‑80 data, that claim is not consistent with TM‑21.
Where the heatsink comes in: LM‑80 and TM‑21 are based on controlled case temperatures. If a high bay’s heatsink cannot keep the LED module near those temperatures in a 40–45 °C warehouse, the TM‑21 projection overstates real‑world lifetime.
5.2 Safety and ambient ratings
Safety standards such as UL 1598 – Luminaires set requirements for construction, electrical spacing, and temperature limits for fixed lighting equipment. For LED drivers and internal modules, UL 8750 – LED Equipment for Use in Lighting Products defines additional thermal and electrical safety criteria.
During certification, test labs measure maximum temperatures on critical components at rated ambient and line voltage. A marginal heatsink that drives LED boards, wiring, or plastics above their allowed temperatures can fail certification.
Spec tip: when reviewing a data sheet, check for:
- A clearly stated maximum ambient (e.g., 40 °C or 50 °C).
- Evidence of certification (UL, ETL, etc.) in official databases like UL Product iQ or Intertek’s directory.
5.3 Energy codes and why efficient thermal design pays off
Energy standards such as ASHRAE 90.1‑2022 and the IECC 2024 commercial energy code cap lighting power density and require controls like occupancy and daylight sensors. To hit target illuminance levels while staying within watts‑per‑square‑foot limits, high bays must deliver:
- High lumens‑per‑watt (lm/W), which depends on cool operation.
- Reliable dimming and control, which also benefit from lower driver and LED temperatures.
According to the U.S. Department of Energy’s FEMP guidance on commercial and industrial luminaires, typical high‑efficiency high/low‑bay products achieve significantly higher lm/W than legacy HID fixtures and can cut lighting energy by 50 % or more when combined with controls.
A well‑designed heatsink is a direct enabler of those energy and code‑compliance goals, because it keeps LEDs in their optimal efficiency window.
6. Cold Forging vs. Other Heatsink Options — Comparison
Cold forging is one of several viable paths to a robust high‑bay heatsink. The table below compares common options from a thermal and practical standpoint.
6.1 Comparison table
| Heatsink type | Typical material & process | Thermal performance (for well‑designed unit) | Mechanical & design traits | Supply chain / cost notes | Best used when… |
|---|---|---|---|---|---|
| Cold‑forged radial | High‑purity aluminum slug, cold forged | Often 5–15 % better θSA* vs. similar‑mass die cast (lab) if stress‑relieved and fins optimized | High strength, thin integrated fins and bosses, low porosity | Requires large presses and custom dies; longer lead times and fewer qualified vendors (12–20 weeks typical for new tooling, per industry experience and vendor guides) | You need compact size, rugged mounting, and high ambient rating. |
| Die‑cast aluminum | Molten alloy injected into mold | Good to very good if designed with proper wall thickness and vents; can suffer if porosity is high | Complex shapes, integrated housing details, but thicker fins | Tooling cost high but widely available; easier to dual‑source | You value styling flexibility and cost, ambient is moderate. |
| Extruded + machined | 6063‑T5/T6 extrusion, radial or straight fins machined | Very good conduction; fin density limited by machining; excellent consistency | Strong in one direction; radial patterns require more machining | Broad supplier base, shorter tooling and lead times | Long linear bays, or round units where extra mass is acceptable. |
*θSA = thermal resistance from sink to ambient.
Key point: a cold‑forged heatsink is usually a premium mechanical platform, but its real thermal advantage is modest unless fin density and surface treatment are carefully engineered.
6.2 Expert warning: capacity and single‑source risk
Industry experience and vendor guides on cold‑forged heatsinks highlight a supply‑chain tradeoff: large‑diameter forged sinks need multi‑thousand‑ton presses, which only a limited number of vendors operate. Typical die lead times run 6–10 weeks, and production lead times can be 12–20 weeks. A die failure or capacity issue can add months of delay.
For facility managers planning phased retrofits, this means:
- Verify that your fixture supplier has multiple qualified sources or adequate buffer stock.
- Consider whether the incremental thermal benefit of forging is worth the potential schedule risk compared to more easily sourced die‑cast or extruded designs.
7. How to Evaluate a Round High‑Bay Heatsink Like a Pro
This section gives a practical checklist you can use on spec sheets, samples, and submittals.
7.1 Spec‑sheet and documentation checklist
When reviewing candidate fixtures:
-
Check LM‑79 and LM‑80/TM‑21 data.
- Look for independent LM‑79 test reports that show input watts, lumen output, and efficacy at a stated ambient per LM‑79‑19.
- Request LM‑80 and TM‑21 summaries for the LED package at the case temperature your application demands (often 85 °C or higher for industrial).
-
Confirm safety and listings.
- Verify listing in UL Product iQ or Intertek’s ETL directory.
- Ensure the rated maximum ambient matches your facility (e.g., 50 °C for hot docks or foundries).
-
Look for DLC qualification.
- Use the DLC Qualified Products List to check efficacy, category, and any notes about dimming or controls.
- DLC listing is often a prerequisite for utility rebates and indicates that minimum performance and documentation standards are met.
-
Inspect heatsink details.
- Does the spec sheet show the material (e.g., pure aluminum forging vs. generic “aluminum housing”)?
- Are there thermal test notes or Tc measurements at rated ambient?
For more on how these specs translate into layout and safety, see the high‑bay layout article on designing for warehouse safety and the warehouse lumens guide on this site, which walk through target illuminance and spacing.
7.2 Physical sample inspection checklist
When you can examine a sample fixture:
-
LED mounting pad
- Remove the board (if practical) or inspect via documentation.
- Look for a flat, machined pad with full contact and either a thin, uniform thermal interface material or direct metal‑to‑metal contact.
-
Fin geometry
- Measure or estimate fin spacing. For natural or low‑velocity convection, aim for 3–6 mm spacing rather than ultra‑dense arrays.
- Check that fin height and thickness are consistent and that there are no obvious cracks at the root.
-
Surface finish and coating
- A uniform, dark anodize improves emissivity.
- Avoid surfaces with heavy machining marks under the LED pads or poorly adhered paint that can flake and reduce contact.
-
Mounting and impact robustness
- Grab the hook or bracket and apply moderate force; a forged boss integrated into the heatsink typically feels more solid than a thin cast lug.
7.3 Field validation
Contractors and engineers often validate thermal performance in the field by:
- Running fixtures at full output for several hours in worst‑case ambient.
- Using an IR camera to check housing and driver temperatures.
- Logging Tc at the LED board test point where accessible.
A healthy design with a well‑executed forged heatsink will show:
- Tc comfortably below the LED’s LM‑80 test temperature at your worst‑case ambient.
- No hot spots at plastic parts or wiring near maximum ratings.
8. Pro Tip: Don’t Chase Mass, Design for Temperature
A frequent mistake in high‑bay selection is equating a heavier fixture with better thermal performance. In reality:
- Beyond a certain point, extra metal mainly increases warm‑up time, not steady‑state temperature.
- Junction temperature is more sensitive to thermal interfaces, geometry, and surface condition than to raw kilograms of aluminum.
Practical design heuristics that consistently produce better outcomes:
- Prioritize lowered junction temperature: aim for several degrees of Tj reduction via better contact, fin layout, and emissive surface, rather than adding mass for its own sake.
- Preserve a clean thermal path: maximize metal‑to‑metal contact from MCPCB to baseplate; avoid unnecessary glue layers or non‑conductive spacers.
- Respect ambient reality: design and specify for 40–50 °C air at mounting height in industrial roofs, not a lab‑like 25 °C.
These principles matter more than whether the heatsink is forged, cast, or extruded.
9. When Is a Cold‑Forged Heatsink Worth Paying For?
9.1 Scenarios where cold forging adds real value
A cold‑forged heatsink is most compelling when:
- Your facility has high ambient temperatures (frequently above 35 °C at the roof) and long runtime (24/7 plants, logistics centers).
- You need compact fixtures to avoid obstructions or to fit between ducts and trusses.
- You require aggressive impact resistance (indoor sports areas, low‑clearance warehouses, or facilities with overhead material handling).
In such cases, field experience shows that a well‑engineered forged design can:
- Reduce LED junction temperature by 5–10 °C compared to a basic cast housing at similar wattage.
- Extend useful L70 life by tens of thousands of hours, particularly at elevated ambient.
9.2 Scenarios where other designs are sufficient
Cold forging is not mandatory for every project. Alternative heatsink designs are often adequate when:
- Ambient temperature near the fixtures rarely exceeds 30–35 °C.
- Runtime is limited (e.g., 10–12 hours/day, 5 days/week), allowing more cooling between cycles.
- Impact risk is low, and fixtures are mounted well above traffic.
In these cases, a well‑designed die‑cast or extruded heatsink that meets LM‑79, LM‑80/TM‑21, UL/ETL, and DLC requirements, and is paired with controls to satisfy ASHRAE 90.1 or IECC, can deliver:
- Similar lifetime and performance from the end user’s perspective.
- Lower first cost and more flexible lead times.
10. Key Takeaways for Specifiers and Facility Managers
- Cold forging is a powerful tool, not magic. It enables strong, compact, low‑porosity heatsinks, but its raw thermal advantage over good die‑cast or extruded designs is modest unless geometry and surface finish are optimized.
- Beware of marketing myths. Heavy cold work can lower aluminum’s thermal conductivity without proper stress relief, and ultra‑dense fins can perform worse in real, dusty warehouses than more open designs.
- Surface treatment matters. Black anodizing and controlled micro‑roughness can cut heatsink temperature by several kelvin, directly improving LM‑80/TM‑21 lifetime alignment and helping meet DLC efficacy thresholds.
- Validate with data, not slogans. Use LM‑79 reports, LM‑80/TM‑21 projections, DLC listings, and UL/ETL certifications as your baseline. Confirm that thermal conditions during testing match your real ambient.
- Design for the worst‑case ambient. Aim for Tc under ~80–90 °C at the LED board in 40–50 °C ceiling air to sustain genuine 50,000–60,000 h performance.
- Balance performance, risk, and logistics. Consider not only thermal results, but also supply‑chain resilience and lead times when choosing between forged, cast, and extruded heatsinks.
When evaluated with this framework, a cold‑forged heatsink often is a strong indicator that the manufacturer is serious about thermal design—but the real proof is in the test reports and in how the fixture performs on your ceiling.
FAQ
Q1. Does a cold‑forged heatsink automatically mean longer LED life? Not automatically. LED lifetime depends on junction temperature, which is influenced by the entire thermal path, ambient conditions, and drive current. A well‑designed forged heatsink helps, but a poorly executed forging can perform worse than a good die‑cast or extruded design.
Q2. How can I tell if a forged heatsink is actually better in practice? Request LM‑79 reports, LM‑80/TM‑21 data, and information on maximum ambient ratings. If possible, measure Tc on a sample fixture after several hours at full load in your hottest area. If Tc stays comfortably below the LM‑80 test temperature, the thermal design is likely robust.
Q3. Are more fins always better on a round heatsink? No. Data shows that once fin spacing drops below about 3–4 mm in low‑velocity air, additional fins deliver minimal extra heat transfer and can increase pressure drop and dust fouling. For warehouses with modest airflow and dust, slightly wider fin spacing often performs better over time.
Q4. How does heatsink design relate to code compliance and rebates? Better thermal design keeps LEDs efficient and slows lumen depreciation, helping fixtures meet or exceed lm/W thresholds in standards like ASHRAE 90.1 and IECC, and qualify under DLC’s QPL for utility rebates. This improves both compliance and lifecycle cost.
Safety & Compliance Disclaimer This article is for informational purposes only. It does not constitute engineering, safety, or legal advice. Always consult qualified electrical engineers, licensed electricians, and local code officials when selecting and installing lighting equipment, and verify all certifications and test data with accredited laboratories and official databases.
