Aisle-Optic Layouts for Mixed-Use Warehouse Zones

Optimal Illumination Strategies for Mixed-Use Industrial Facilities

How do you light a facility that has both long, narrow aisles and open staging areas? This is one of the most frequent technical inquiries we handle from facility managers and electrical contractors. The standard "one-size-fits-all" approach—typically hanging the same round high bay throughout the entire building—often results in significant energy waste in the aisles and dangerous glare in open work zones.

In our experience troubleshooting industrial lighting retrofits, we have observed that the most successful projects treat the warehouse not as a single room, but as a series of distinct optical zones. This guide provides a pragmatic framework for integrating focused aisle-optic fixtures with general-purpose high bays to create a cohesive, efficient, and project-ready lighting plan.

The Optical Divide: Aisle-Optic vs. General-Purpose High Bays

The fundamental challenge in a mixed-use warehouse is the geometry of the space. Open areas require a wide, symmetric distribution to ensure horizontal uniformity. Conversely, pallet racking requires a narrow, asymmetric beam to drive light deep into the "canyon" of the aisle without wasting lumens on the top of the racks.

Understanding Asymmetric Beam Patterns

According to the IES LM-79-19 Standard (Optical/Electrical Measurement), which defines the measurement methods for Solid-State Lighting (SSL), the performance of a fixture is dictated by its "performance report." For aisle-optic fixtures, the IES LM-63-19 Standard (Photometric File Format) data will show an elongated, narrow distribution (often a 30° x 70° or 40° x 90° beam).

In our pattern recognition across hundreds of site audits, we have identified that using a standard 120° beam in a 10-foot wide aisle results in approximately 40% of the light being absorbed by the upper racking. This "wasted light" never reaches the floor or the lower pick faces where it is needed most.

Logic Summary: Our analysis of beam efficiency assumes standard racking heights (25–35 feet) and aisle widths (8–12 feet) based on common industry heuristics. Efficiency gains are calculated by comparing the percentage of total lumens reaching the work plane (floor + rack face) between a 120° symmetric beam and a 40°x90° asymmetric beam.

The Project-Ready Decision Framework

When selecting fixtures, we recommend following this application-based hierarchy:

High-Density Racking: Use linear high bays with dedicated aisle-optics. These are designed to align with aisle geometry to maximize vertical illuminance.
Open Staging & Shipping: Use high-efficiency round high bays (often referred to as "Value-Pro" industrial fixtures). These provide the necessary horizontal foot-candles (fc) for reading labels and operating machinery.
Manufacturing/Assembly Zones: Prioritize fixtures with high Color Rendering Index (CRI) and low Unified Glare Rating (UGR) to prevent worker fatigue.

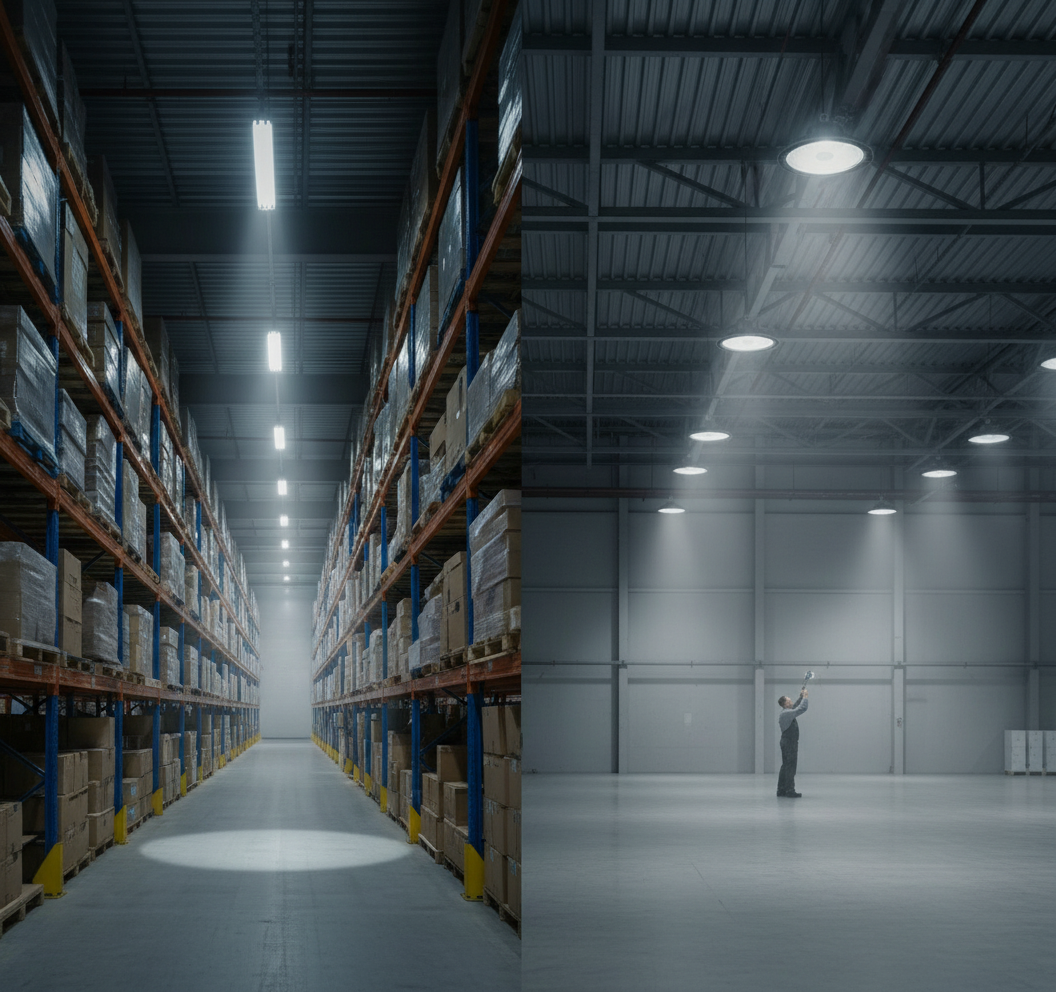

LED High Bay lights in a high‑ceiling warehouse with tablet displaying lighting layout and beam patterns

Designing the Mixed-Use Layout: The 60:40 Heuristic

For initial project budgeting and layout planning, we utilize a 60:40 lumen budget split. This means allocating 60% of your total target lumens to the high-traffic aisles and 40% to the open staging areas. While final modeling with .ies files is non-negotiable for professional sign-off, this heuristic allows for rapid estimation.

The Transition Zone: Preventing the "Seam"

The most common mistake we see in mixed-use layouts is a sharp drop-off in light levels where the aisle ends and the staging area begins. To prevent a visible "seam" of lower light levels, we employ a rule of thumb: overlap the calculated spacing of each fixture type by 10-15% at the zone boundary.

For example, if your aisle fixtures are spaced 20 feet apart and your open-area fixtures are on a 25-foot grid, the first open-area fixture should be placed 22 feet from the last aisle fixture. This overlap ensures a smooth photometric transition, which is critical for the safety of forklift operators moving between zones.

Vertical Illuminance: The "Lowest Shelf" Rule

In B2B lighting design, horizontal foot-candles on the floor are only half the story. According to the ANSI/IES RP-7 – Lighting Industrial Facilities, vertical illuminance on the rack face is essential for pick accuracy.

Practical Quality Check: Post-installation, we recommend verifying vertical illuminance on the lowest rack shelf. If the light level is below 20 fc, pickers will struggle to identify barcodes and SKU numbers, leading to increased error rates.

Parameter	Recommended Value	Unit	Rationale
Staging Area (Horizontal)	30–50	fc	Safe machinery operation
Aisle Floor (Horizontal)	15–25	fc	Forklift navigation
Rack Face (Vertical)	20 (min)	fc	SKU/Label identification
Transition Overlap	10–15	%	Visual continuity
Mounting Height	20–40	ft	Standard industrial ceiling

Compliance and Energy Standards: Beyond the Basics

Building a "Project-Ready" facility means more than just brightness; it requires strict adherence to energy codes and safety certifications.

DLC Premium and Utility Rebates

For many facility managers, the Return on Investment (ROI) of a lighting upgrade hinges on utility rebates. We always check the DesignLights Consortium (DLC) Qualified Products List (QPL) to ensure fixtures meet "Premium" standards. DLC Premium fixtures typically offer higher efficacy (lumens per watt) and tighter control over light distribution, which often qualifies them for higher rebate tiers.

Safety and Interference

In sensitive environments like labs or facilities with advanced robotics, electromagnetic interference (EMI) is a major concern. We verify that all LED drivers comply with FCC Part 15 (EMI Regulations). Lower-quality drivers can emit interference that disrupts wireless scanners or sensitive electronic equipment—a pattern we've seen lead to costly troubleshooting in automated warehouses.

Furthermore, every fixture must be UL Listed or ETL certified to meet the safety requirements of the National Electrical Code (NEC). In our experience, building inspectors and insurance auditors will look for these marks as the first point of verification.

Long-Term Reliability: LM-80 and TM-21 Analysis

When we discuss "Solid" industrial lighting, we are talking about lumen maintenance. A high bay that is bright today but loses 30% of its output in two years is a liability.

Projecting L70 Life

We rely on the IES LM-80-21 Standard to measure how LED chips degrade over time. However, raw LM-80 data only covers the first 6,000 to 10,000 hours. To project long-term performance, we use the IES TM-21-21 Standard (Lifetime Projection).

Expert Insight: Be wary of manufacturers claiming "100,000-hour life" without supporting TM-21 documentation. IES guidelines generally prohibit projecting beyond six times the actual test duration. If an LED was tested for 10,000 hours, a credible projection should not exceed 60,000 hours. This is a critical distinction we emphasize in our 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights.

Integrating Advanced Controls

To meet modern energy codes like ASHRAE Standard 90.1-2022 or California Title 24, simple on/off switches are no longer sufficient.

Zoning for Maximum Savings

Occupancy Sensors in Aisles: These must have a long enough delay (typically 10–15 minutes) to account for workers who may be stationary while checking inventory. We have seen "aggressive" sensor settings lead to frustration and safety risks when lights turn off on a worker in a deep aisle.
Daylight Harvesting in Staging: Open areas near loading docks or windows are ideal candidates for daylight harvesting. These sensors dim the LEDs when natural light is abundant, often reducing energy consumption by an additional 20–30% in those specific zones.

Methodology Note: These savings estimates are based on scenario modeling for a standard 50,000 sq. ft. warehouse with 10% skylight coverage and 12-hour daily operation. Actual results vary based on geographic location and building orientation.

Installation and Maintenance Best Practices

A project is only as good as its execution. Based on feedback from our contractor network, here are the "gotchas" to avoid during the installation of aisle-optic layouts:

Alignment is Critical: Unlike round high bays, linear aisle-optic fixtures must be perfectly aligned with the center of the aisle. A 5-degree rotation can shift the "hot spot" of the beam onto the rack, creating glare and leaving the floor in shadow.
Dimming Compatibility: Ensure your 0-10V dimming circuits are correctly wired. We often see "Class 1" and "Class 2" wiring mixed in the same conduit, which can cause signal interference and flickering. Refer to NEMA LSD 64 – Lighting Controls Terminology for standard definitions to ensure clear communication with your electrical team.
IP and IK Ratings: In facilities with heavy forklift traffic, look for an IK08 to IK10 impact rating (defined by IEC 62262). This ensures the fixture can withstand accidental mechanical impacts. For wash-down or dusty environments, an IP65 rating (per IEC 60529) is the baseline for preventing internal component failure.

Summary Checklist for Mixed-Use Layouts

Before finalizing your procurement, verify your plan against this technical checklist:

[ ] Does the aisle-optic fixture have a valid LM-79 report confirming asymmetric distribution?
[ ] Are the fixtures listed on the DLC QPL for rebate eligibility?
[ ] Has the layout been modeled to ensure at least 20 fc of vertical illuminance on the lowest shelf?
[ ] Is there a 10-15% spacing overlap at the transition between aisles and open zones?
[ ] Do the chosen controls comply with local energy codes (e.g., IECC 2024 or Title 24)?

By treating the warehouse as a collection of specialized zones rather than a single cavernous space, you can achieve a lighting system that is truly "Value-Pro"—balancing high-performance optics with pragmatic energy savings.

Disclaimer: This article is for informational purposes only and does not constitute professional engineering, electrical, or legal advice. Always consult with a licensed electrical contractor and local building authorities to ensure compliance with the specific codes and safety regulations in your jurisdiction.
