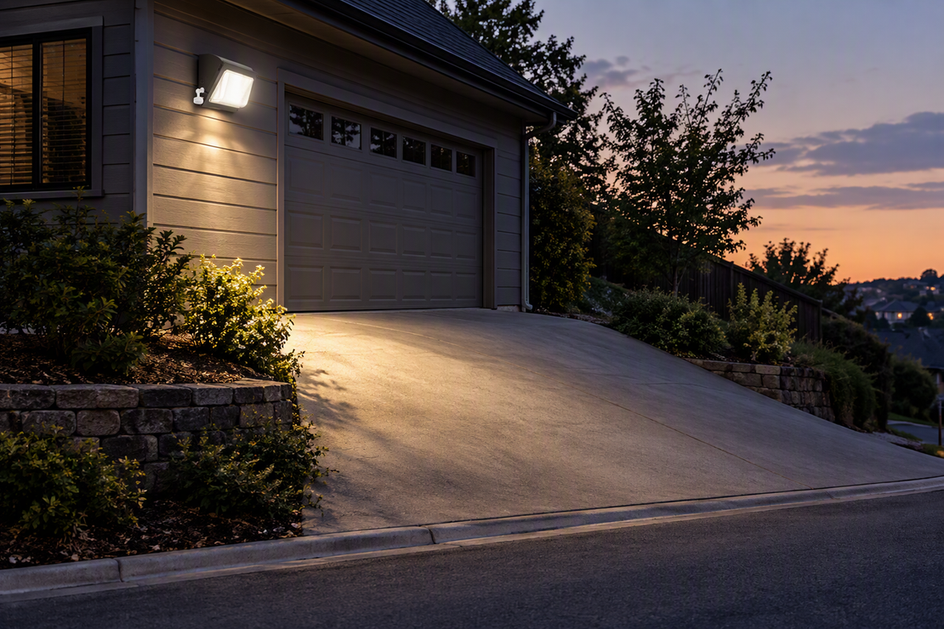

When positioning a motion activated outdoor light on a sloped driveway, aim the sensor at the actual path people and vehicles travel, not just down the visual line of the driveway. Start with a slight downward tilt toward the middle of that travel zone, then test at several points along the slope before touching sensitivity.
Maximum sensitivity is not a starting setting; it usually just adds more roadway traffic to what the light reacts to.
Key Takeaways
- Aim at the real travel zone first. Slope, mounting height, and approach direction can shift where a sensor actually "sees" movement, even when the fixture looks pointed at the driveway.
- Fix aiming before touching sensitivity. Sensitivity changes how strongly the sensor reacts, not where its field of view sits.
- Test vehicles, pedestrians, and the roadway edge separately. Each path can behave differently on a slope.
- A missed pedestrian with good vehicle detection usually means a path alignment problem, not a sensitivity problem.
- Stop at external aiming and documented controls. Wiring, circuit work, and unsafe mounting access belong to a qualified professional.
Where to Aim on a Sloped Driveway
A rising or falling driveway can create a gap between where the light looks pointed and where movement actually happens. Fixing that gap starts with defining the travel zone, not adjusting a dial.
Map the Intended Travel Zone
Before touching the sensor, mark out what you actually need it to see:
- Where vehicles enter, slow down, and leave the slope
- The pedestrian path, if it differs from where vehicles drive
- The roadway edge or sidewalk that should stay outside the detection area
- Any background motion, like a neighbor's driveway or a bus stop, that shouldn't trigger the light
Relate the Sensor to the Slope
The driveway's visual line and the sensor's actual field of view are two different things. Mounting height and the angle a vehicle or person approaches from can shift the useful sensing area away from where the driveway appears to run, especially on an incline. A practical starting point is to aim the sensor at the center of the zone you want to protect, angled slightly downward, then check the result on site rather than trusting the initial position. One installation guide notes that aiming toward the middle of the "walk zone," angled down, gives a sensor a better chance of catching someone throughout their approach instead of only near the fixture. Treat this as a bounded starting method. The exact angle that works depends on your fixture and site, so verification always follows the initial aim.
Adjust Aiming and Sensitivity in the Right Order
Change the sensor's physical aim first, confirm the travel zone is covered, and only then touch sensitivity or range. Reversing that order usually just adds more unwanted background detection instead of fixing the miss.
Start With Physical Aiming
- Use the travel zone you mapped as the target, not the driveway's visual centerline.
- Make one aiming or repositioning change at a time, whether that's tilting the sensor head or shifting the fixture.
- Test before changing any sensitivity or range setting. A physical aiming fix often solves the problem on its own.
Test the Boundaries in Order
- Walk to the farthest point you want the light to cover and confirm it activates there.
- Walk a representative vehicle approach, then a representative pedestrian approach, since the two paths can cross the sensing area at different heights and angles.
- Check the roadway edge or other background boundary separately from the driveway tests. A light that correctly detects the driveway can still react to passing traffic if the field of view extends past the property line.
Adjust One Documented Control at a Time
Only use range, field-of-view, or sensitivity controls that your fixture's current documentation actually lists. If the far boundary test shows the light reaching past your property line, reduce range or narrow the field of view first, rather than defaulting to a lower sensitivity setting that may not change where the sensor looks. After each change, repeat the same vehicle, pedestrian, and roadway-edge tests so you can see whether that specific change helped or just shifted the problem.
Diagnose Dead Zones and Roadway False Triggers
A missed vehicle, a missed pedestrian, and a roadway false trigger point to different causes. Matching the symptom to the right next check saves you from repeatedly nudging sensitivity with no result.
Use the Symptom to Choose the Next Check
| Symptom | Likely cause | Next safe check |
|---|---|---|
| Dead zone on the slope | Aiming or mounting misalignment | Re-map the travel zone and re-aim toward its center |
| Vehicles detected, pedestrians missed | Path height or angle mismatch | Walk-test the pedestrian path separately |
| Light triggers on passing road traffic | Field of view extends past the property line | Test the far/roadway edge and narrow documented range |
| Triggers only at the far driveway edge | Range set beyond the intended boundary | Reduce range if the fixture documents that control |
Treat Listed Coverage as a Reference, Not a Guarantee
A product's listed range or detection angle describes one configuration, not your installed result. For example, the available product information for our Oval series wall pack light lists a 66-foot motion sensor range and a 120-degree detection angle for that specific configuration. Those numbers are useful as a reference point when you're checking a spec sheet, but they don't confirm how the fixture will perform on your particular slope, mounting height, or roadway boundary. The walk test from the previous section is what actually confirms coverage at your site.
Know When to Stop at External Adjustments
Continue only with external aiming and the controls your fixture's current documentation lists. Stop and bring in qualified help once the task moves into wiring, circuit changes, or unsafe mounting access.
Use Only the Controls the Fixture Documents
Check the current manual before assuming your sensor head, mount, range, field of view, or sensitivity is adjustable. A product listing alone does not establish that a specific configuration supports slope-specific aiming; for a named series like our Zeus Series parking lot light, the available information covers an adjustable mount and PIR motion sensing for that configuration, not a guaranteed fit for every sloped driveway. If your manual doesn't mention a control, don't improvise one.
Stop Before Electrical or Unsafe Mounting Work
- Do not attempt wiring, circuit changes, breaker selection, or line sizing yourself. This guide covers external adjustment only, and electrical installation work needs to meet local code requirements.
- Use qualified help whenever mounting access is unsafe or requires structural changes.
- For questions about a specific fixture's controls or documentation, our technical support team can help you confirm what your model allows before you make further changes.
FAQs
Why does my motion light detect a car but miss someone walking on the slope?
Vehicles and pedestrians often cross the sensing area at different heights and angles, so one can trigger the light while the other doesn't. Retest the pedestrian path specifically after confirming the physical aim; increasing sensitivity first usually isn't the fix, since the aiming problem sits in a different part of the sensor's field of view.
Can I fix passing-traffic triggers by lowering sensitivity alone?
Not always. If the roadway is still inside the sensor's physical field of view, lowering sensitivity may only make the light less responsive without actually excluding the road. Test the far roadway edge directly and use only the range or field-of-view controls your fixture documents. If no such control exists, the fix may require repositioning rather than a sensitivity change.
What if my sensor has no range or field-of-view adjustment?
Don't improvise a setting or add an unapproved mask to block part of the lens. Check the current manual to confirm which controls the fixture actually supports. If none of them solve the problem, repositioning the fixture or reaching out for product-specific guidance is a more reliable next step than guessing.
