The Architecture of High-Intensity Visibility
In professional fitness environments—ranging from Olympic lifting platforms to high-intensity interval training (HIIT) studios—lighting is not merely a utility; it is a critical safety and performance specification. Achieving a 100 foot-candle (fc) target (a measurement of light intensity on a surface) ensures that athletes can track fast-moving objects, maintain balance during complex movements, and operate heavy machinery or rigs without the risk of shadow-induced accidents.
For facility managers and contractors, the transition from "standard" lighting to "professional-grade" (100fc) requires a shift from simple bulb replacement to rigorous photometric planning. This guide details the technical requirements, economic modeling, and compliance standards necessary to design a high-performance gym lighting layout that meets the Illuminating Engineering Society (IES) standards while maximizing return on investment (ROI).
According to the 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights, the integration of high-efficacy fixtures with advanced controls is now the baseline for commercial facilities seeking both performance and energy compliance.
Defining the 100 Foot-Candle Standard
The 100fc threshold is derived from the IES RP-7-21 (Lighting Industrial Facilities) recommendations for high-speed athletic activity and professional-level training environments. While a standard warehouse may function at 20–30fc, a professional gym requires significantly higher illuminance to eliminate visual fatigue and support the precision required for powerlifting or gymnastics.
Why 100fc Matters in a Pro Gym
- Safety and Injury Prevention: High illuminance reduces "visual lag," allowing the brain to process spatial orientation faster during lifts or jumps.
- Uniformity and Depth Perception: Consistent light levels across the floor prevent "hot spots" that can cause momentary blindness or misjudged distances.
- Aesthetic and Branding: High-intensity lighting (typically 5000K Color Correlated Temperature, or CCT) creates a high-energy, motivational atmosphere that translates well to social media and marketing.
Photometric Modeling: The 60x40 Pro Gym Scenario
To move beyond guesswork, we modeled a typical professional "CrossFit Box" or functional training center. This scenario provides a reproducible baseline for contractors planning similar spaces.
Modeling Note: Method & Assumptions
Our analysis uses the Zonal Cavity Method to determine fixture density for a high-performance gym environment. This is a scenario model, not a controlled lab study.
| Parameter | Value | Unit | Rationale / Source |
|---|---|---|---|
| Room Dimensions | 60 x 40 | ft | Typical mid-sized pro gym footprint |
| Ceiling Height | 20 | ft | Standard commercial bay height |
| Target Illuminance | 100 | fc | IES Professional Athletic Standard |
| Fixture Output | 24,000 | lm | High-output industrial LED specification |
| Beam Angle | 120 | deg | Wide spread for uniformity (Extra Info) |
| Reflectance (C/W/F) | 50/30/20 | % | Average gym finishes (concrete/mirrors) |
Analysis Output: To achieve a target average of ~88–100fc in this 2,400 sq. ft. space, the model requires 19 fixtures arranged in a 5x4 grid.
Logic Summary: Based on common patterns from customer support and lighting design projects, a spacing-to-mounting-height ratio of 1.5x (30 ft spacing for a 20 ft height) is the maximum limit for uniformity. In our 19-fixture model, we utilized a ~12 ft spacing to prioritize high-intensity coverage and eliminate shadows between equipment rigs.
Technical Compliance: DLC, UL, and Safety Standards
Professional-grade lighting must be verified by third-party certifications to ensure safety, longevity, and eligibility for utility rebates.
DLC Premium and Utility Rebates
The DesignLights Consortium (DLC) Qualified Products List (QPL) serves as the industry benchmark for energy efficiency. For B2B gym projects, specifying DLC Premium fixtures is essential.
- Rebate Eligibility: Most utility companies (e.g., Con Edison, PG&E) require DLC certification to issue "prescriptive" or "custom" rebates.
- Performance Verification: DLC Premium requires higher efficacy (lumens per watt) and stricter lumen maintenance (LM-80) data than standard listings.
UL Listed vs. UL Recognized
When reviewing specifications, facility managers must distinguish between these two UL Solutions marks:
- UL Listed: The entire fixture has been tested as a complete unit and is safe for installation by an electrician.
- UL Recognized: Only a component (like the LED driver) is certified. For commercial gym inspections, UL Listed (specifically under UL 1598 for Luminaires) is generally the mandatory requirement for building code compliance.
Engineering for the Gym Environment: IP65 and Durability
Gyms are surprisingly harsh environments for electronics. High humidity from group classes, dust from chalk, and the potential for mechanical impact require fixtures with specific ingress protection (IP) and impact (IK) ratings.
The IP65 "Sweat-Proof" Standard
According to IEC 60529 (IP Ratings), an IP65 rating indicates the fixture is "dust-tight" and protected against water jets from any angle.
- Practical Application: In gyms with suspended heavy bags or high-intensity cardio zones, IP65 prevents internal corrosion from high ambient moisture and sweat evaporation.
- Maintenance: IP65 fixtures can be wiped down or lightly sprayed during deep cleaning without risking electrical shorts.
Impact Resistance (IK Ratings)
For facilities with ball sports or functional training (e.g., wall balls), look for an IK08 or higher rating per IEC 62262. This ensures the housing and lens can withstand mechanical shocks without shattering, a critical safety factor when fixtures are mounted above athletes.
Economic Impact: Total Cost of Ownership (TCO)
The "Value-Pro" approach focuses on the intersection of performance and payback. Upgrading from legacy systems (like 400W metal halide) to high-efficiency LED high bays offers immediate cash-flow benefits.
ROI Analysis: 19-Fixture Retrofit
Based on our scenario modeling for a 60x40 ft gym operating 4,000 hours per year at $0.14/kWh:
- Annual Energy Savings: ~$3,277 (Estimated by replacing 458W MH legacy fixtures with 150W LEDs).
- Maintenance Avoidance: ~$779 (Eliminating the need for annual bulb and ballast replacements).
- HVAC Cooling Credit: ~$169 (LEDs generate significantly less heat, reducing the load on gym AC systems).
- Total Annual Savings: ~$4,225.
Modeling Disclosure: This ROI estimate assumes a national average electricity rate and moderate climate conditions. Total project cost (~$3,420) minus estimated DLC rebates (~$1,140) results in a payback period of approximately 6.5 months.

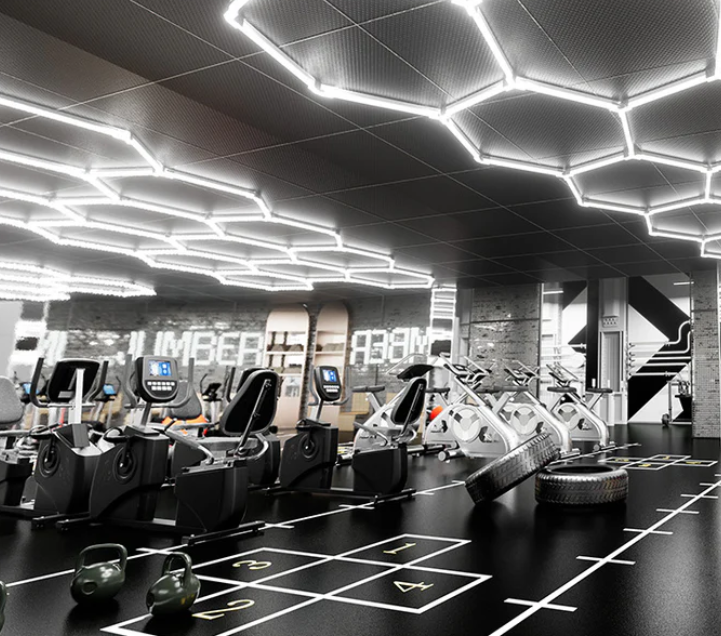

Integrating Aesthetics: Hexagon Accents and Motivational Zones
Modern fitness studios often blend high-performance task lighting with decorative elements to create a "vibe" that attracts members.
The Rule of Accent Lighting
A common mistake is attempting to light a gym using only decorative hexagon or neon lights. These should be treated as supplemental.
- The 80/20 Rule (Heuristic): Primary high bays should deliver at least 80% of the target illuminance (80fc), while decorative hexagon grids provide the remaining 20% and visual interest in specific zones (e.g., the entrance or "selfie wall").
- Electrical Load Management: A standard decorative hexagon grid (approx. 15x10 ft) typically draws ~343W. This is well within the 80% continuous-load limit of a standard 15A circuit (1,440W), allowing multiple decorative elements to be daisy-chained safely.
Advanced Controls: Compliance and User Experience
To meet modern energy codes like California Title 24 or ASHRAE 90.1-2022, commercial gym lighting must incorporate dimming and sensors.
0-10V Dimming Protocols
Standard professional high bays utilize 0-10V dimming. This allows the facility manager to drop light levels during yoga or recovery sessions while maintaining 100fc for peak training hours.
- Compatibility: Ensure your LED drivers are compatible with standard wall dimmers. Based on common patterns from customer support, "flickering" is most often caused by using legacy TRIAC (incandescent) dimmers with 0-10V LED drivers.
Occupancy Sensing in Ancillary Spaces
While the main gym floor may remain on during business hours, locker rooms and corridors should utilize occupancy sensors.
- Savings Potential: In ancillary spaces, sensors typically reduce energy consumption by ~40% (based on DOE FEMP guidelines).
- Payback: The typical payback for adding wireless occupancy sensors to a 19-fixture gym layout is approximately 3 years.
Common Pitfalls and "Gotchas"
- Narrow Beam Angles: Using a 60° or 90° beam angle in a 20 ft ceiling creates "hot spots" on the floor and dark aisles between equipment. We recommend a 110–120° beam angle for general gym illumination.
-
Missing IES Files: Before purchasing, always request the
.iesphotometric files. These are required to model the space in software like AGi32. Projects are frequently delayed when these files are unavailable during the specification phase. - Ignoring Flicker: Cheap LED drivers can produce a stroboscopic effect (flicker). In a gym, this can cause dizziness or headaches during high-intensity movement. Ensure fixtures are "flicker-free" and meet FCC Part 15 EMI regulations to prevent interference with gym audio systems or heart-rate monitors.
Professional Checklist for Gym Managers
- [ ] Verify Target: Aim for 100fc average horizontal illuminance at floor level.
- [ ] Check Certifications: Ensure fixtures are UL Listed (UL 1598) and DLC Premium for rebate eligibility.
- [ ] Environmental Rating: Minimum IP65 for moisture/sweat resistance.
- [ ] Uniformity Check: Maintain a spacing-to-mounting-height ratio of no more than 1.5x.
- [ ] Control Integration: Use 0-10V dimming and occupancy sensors in locker rooms to meet Title 24/ASHRAE codes.
By adhering to these technical standards and modeling scenarios, facility managers can transform a standard fitness space into a professional-grade training environment that prioritizes safety, optimizes energy costs, and delivers a superior member experience.
Disclaimer: This article is for informational purposes only and does not constitute professional electrical engineering or legal advice. Always consult with a licensed electrician and local building authorities to ensure compliance with the National Electrical Code (NEC) and local energy regulations.
