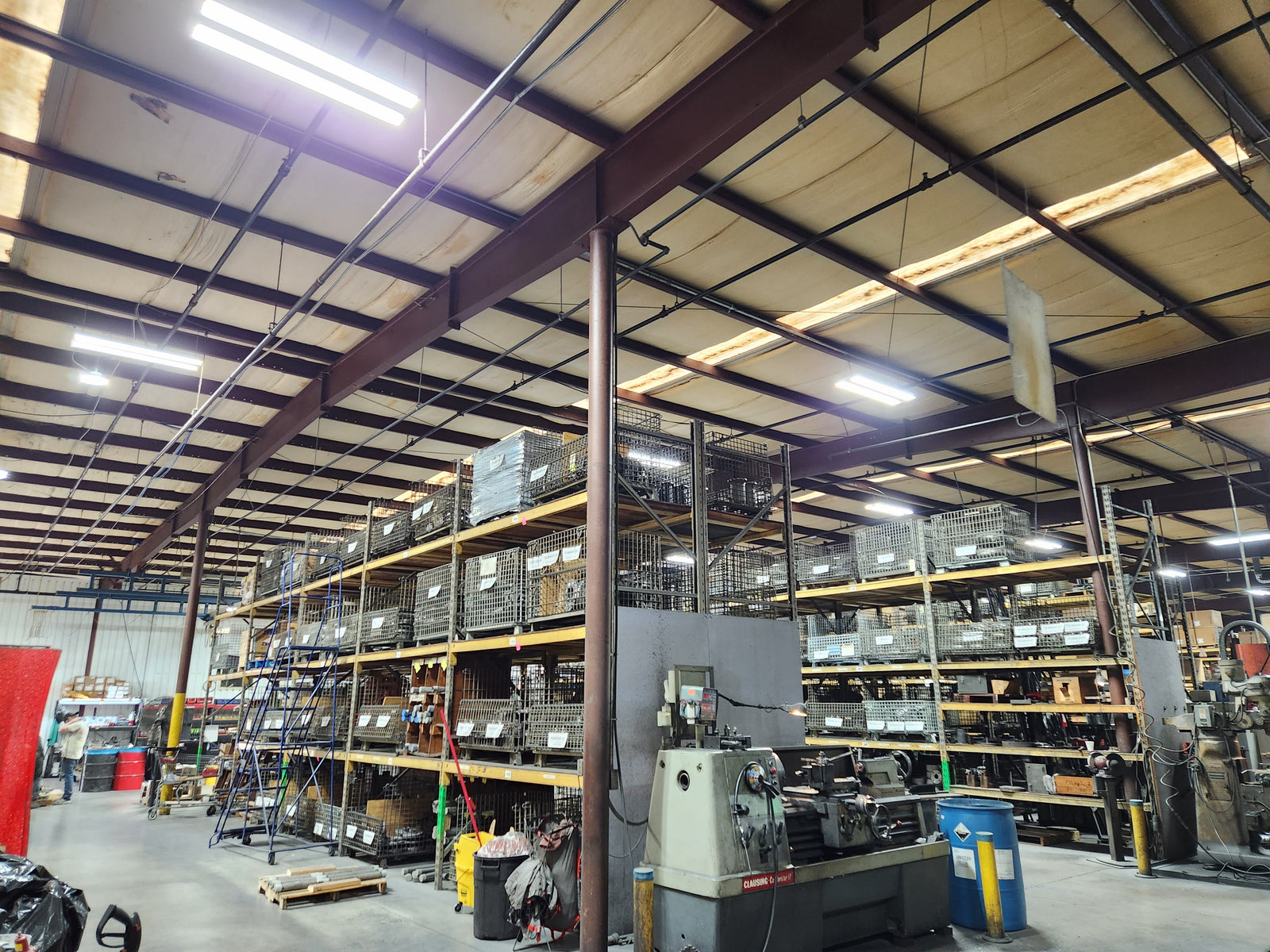

Troubleshooting 0-10V High Bay Dimming Issues

Experiencing flickering or unresponsive 0-10V dimming with your new UFO high bay lights? You’ve completed the installation, but the controls aren't working as expected. This is a common frustration in the field, but the root cause is rarely a faulty LED fixture. More often, the issue lies in the wiring or a mismatch between control components.

From my experience, most post-installation dimming problems stem from simple, overlooked details. I once spent hours on a site where a group of high bays flickered uncontrollably at low light levels. The issue wasn't the drivers or the expensive control system; it was that the low-voltage dimming wires were run tightly alongside a 277V conduit for over 100 feet, inducing electrical noise. A simple re-routing of the cable solved the problem instantly.

This guide provides a systematic, professional approach to diagnosing and resolving 0-10V dimming issues. We will cover the common causes, from wiring faults to driver incompatibility, and provide clear, step-by-step troubleshooting instructions to help you get the job done right the first time.

Understanding the Fundamentals of 0-10V Dimming

Before you can troubleshoot, it’s critical to understand how 0-10V dimming works. It is an analog lighting control protocol, and one of the simplest and most reliable methods for commercial fixtures. The name itself describes its function: the control sends a DC voltage signal between 0 and 10 volts to the LED driver.

• 10V Signal: The driver operates at 100% brightness.
• 1V Signal: The driver dims to its minimum level (typically 10%).
• 0V Signal: Driver dims to minimum or off.
• Open Circuit (Broken Wire): Driver defaults to 100% brightness (fail-safe).

The low-voltage control signal is transmitted over a dedicated pair of wires, typically colored purple (DIM+) and pink (DIM-). Note: Recent NEC code updates have transitioned to pink for the negative wire to distinguish it from high-voltage neutral wires. According to the National Electrical Manufacturers Association (NEMA), these standards help ensure interoperability, but subtle differences between components can still cause issues.

Myth Debunked: "Dimmable" Does Not Always Mean 0-10V

A common mistake I see is assuming any fixture advertised as "dimmable" is compatible with a 0-10V system. Many residential or light-duty fixtures use forward-phase or reverse-phase (TRIAC/ELV) dimming, which works by cutting off part of the AC power waveform. These are completely incompatible with 0-10V systems.

Connecting 0-10V control wires to a fixture designed for phase-cut dimming will not work and could potentially damage the driver or the controller. Always verify that your high bay fixtures, like the Hyperlite LED High Bay Light - Black Hero Series, explicitly state "0-10V Dimmable" in their specifications.

Sinking vs. Sourcing: A Critical Distinction

0-10V controllers and drivers operate in one of two ways:

• Sourcing: The controller (e.g., a wall dimmer) sends out its own 10V power. The LED driver "sinks" this current to pull the voltage down to the desired level.
• Sinking: The LED driver provides the 10V signal, and the controller (e.g., a passive sensor) "sinks" the current to signal the dim level.

A mismatch is a frequent source of problems. You cannot use a passive "sinking" sensor with a "sinking-only" driver; there is no power source on the control line to create the signal. Most quality drivers can operate in both modes, but it's essential to verify compatibility between the driver and the controls.

Common Causes of 0-10V Dimming Failure

Most 0-10V issues fall into three categories: wiring, controls, or the driver itself. Experience shows that wiring is the culprit over 80% of the time.

1. Wiring and Installation Errors

Incorrect wiring is the most frequent cause of dimming problems. These mistakes are easy to make during a fast-paced installation but just as easy to correct.

• Connecting 0-10V Wires to Line Voltage: This is the most dangerous mistake. Accidentally connecting the low-voltage purple and gray wires to a 120V or 277V AC line will instantly destroy the LED driver's dimming circuit and potentially the controller.
• Reversed Polarity: Connecting DIM+ to DIM- and vice-versa. While this often doesn't cause permanent damage, it will prevent the dimming from working correctly. Some fixtures may stay at full brightness, while others may not light up at all.
• Loose Connections: Poorly secured wire nuts or terminal blocks can lead to intermittent flickering or unresponsive controls.
• Electromagnetic Interference (EMI): As in my earlier story, running unshielded low-voltage dimming wires parallel to high-voltage AC power lines for long distances (typically over 50 feet) can induce a "phantom" voltage on the control line. This noise confuses the driver, causing flickering, especially at low dim levels.

All wiring practices must comply with the NFPA 70 – National Electrical Code (NEC), which outlines requirements for Class 1 and Class 2 circuit separation to prevent such issues.

2. Control and Driver Incompatibility

If the wiring is perfect, the next step is to check for a fundamental mismatch between the components.

• Sinking/Sourcing Mismatch: As discussed, a passive sinking controller (like a simple occupancy sensor) cannot function with a sinking-only driver.
• Exceeding Controller Limits: Every 0-10V dimmer or controller is rated for a maximum number of drivers it can handle. This is based on the current draw of the drivers on the control line. Overloading a controller by connecting too many fixtures will cause erratic performance or a complete failure to dim.
• Minimum Dim Level: If lights flicker only when dimmed to their lowest setting, the controller's low-end trim may be set too low for the driver. Most 0-10V drivers have a minimum voltage of around 1V. Setting the controller to output a signal lower than this can cause instability.

A Systematic Guide to Troubleshooting

Approach troubleshooting methodically. Making random changes can create more problems. Always follow safety protocols and disconnect power before handling any wiring.

Step-by-Step Diagnostic Process

1. Safety First: De-energize the circuit at the breaker. Use a multimeter to verify there is no power to the fixtures or controls.
2. Visual Inspection: Carefully check all connections. Look for reversed polarity (purple-to-gray), loose wire nuts, and signs of arcing or heat damage from an accidental line voltage connection.
3. Isolate and Conquer: If a group of lights is failing, disconnect all but one fixture from the dimming controller. If that single fixture now works correctly, the issue is likely either a wiring fault in the disconnected fixtures or you have overloaded the controller.
4. Test the Control Signal: Disconnect the dimming wires from the driver. Re-energize the circuit and use a multimeter to measure the DC voltage between the DIM+ and DIM- wires coming from the controller. As you adjust the dimmer, you should see a smooth voltage change from 1V to 10V. If you don't, the problem is with your controller or its wiring.
5. Test the Driver Directly: If the control signal is good, the issue may be the driver. A definitive test is to use a dedicated 0-10V DC power supply. Disconnect the controller wires and connect your test supply to the driver's DIM+ and DIM- leads. Varying the voltage from the power supply should make the fixture dim accordingly. If it doesn’t, the driver is likely faulty.

Troubleshooting Cheat Sheet

Use this table to quickly diagnose common symptoms.

Symptom	Most Likely Cause(s)	Recommended Solution(s)
Lights do not dim; stay at 100%	1. Reversed polarity on DIM+/DIM- wires. 2. Open circuit (broken wire) on the control line. 3. Controller/sensor is incompatible or faulty.	1. Correct the wiring (purple-to-purple, gray-to-gray). 2. Check for continuity on both dimming wires. 3. Verify controller signal with a multimeter.
Lights do not turn on	1. Reversed polarity (on some driver models). 2. Short circuit between DIM+ and DIM- wires.	1. Correct the wiring. 2. Inspect for pinched wires or a short circuit. Check voltage; it should not be 0V unless commanded.
Lights flicker when dimmed low	1. EMI from parallel high-voltage runs. 2. Controller's low-end trim is set too low.	1. Re-route dimming wires away from AC power lines or use shielded cable. 2. Adjust the dimmer's minimum trim setting to 1V or higher.
All lights flicker randomly	1. Overloaded controller (too many drivers). 2. Loose connection in the daisy chain.	1. Check driver current spec and reduce the number of fixtures per controller. 2. Inspect all wire nut and terminal connections.
One light behaves differently	1. Faulty driver in that specific fixture. 2. Wiring issue specific to that fixture's drop.	1. Swap the problematic fixture with a known-good one. If the problem follows the fixture, replace the driver. 2. Inspect the individual wiring run to that fixture.

Installation Best Practices for Flawless Dimming

Preventing problems is always better than fixing them. Adhering to best practices during the initial installation will ensure reliable, flicker-free performance.

1. Respect Wire Separation: Whenever possible, route low-voltage 0-10V control wires in a separate conduit or maintain physical distance from parallel AC power cables. This is the most effective way to prevent EMI.
2. Use Shielded, Twisted-Pair Cable for Long Runs: For any control run exceeding 50-100 feet, using a shielded, twisted-pair cable is a wise investment. The twists help cancel out induced noise, and the shield (which should be grounded at the controller end only) provides another layer of protection.
3. Verify Sensor Placement: When using occupancy or daylight sensors, proper placement is key. As noted in guidance from the Department of Energy, sensors in high-ceiling applications must have a clear line of sight and be positioned to avoid false triggers from activity in adjacent zones.
4. Document Your Installation: For any professional job, a simple handoff sheet is invaluable. List the driver model, the control system used, and any specific wiring notes. This small step saves immense time on future service calls and helps the facility manager understand their system.

Key Takeaways

Troubleshooting 0-10V dimming doesn’t have to be a headache. By adopting a structured approach grounded in how the technology works, you can quickly pinpoint and resolve issues. Most problems are not caused by defective high bay fixtures, but by simple, correctable installation errors.

Remember these core principles:

• Verify Compatibility: Ensure your fixtures, drivers, and controllers are all designed for 0-10V analog dimming.
• Focus on Wiring First: Meticulously check for reversed polarity, shorts, and line-voltage contact before suspecting hardware failure.
• Isolate and Test: Diagnose systematically. Test one component at a time to definitively identify the source of the problem.
• Prevent EMI: Keep low-voltage and high-voltage wiring separate to ensure a clean, stable control signal.

By following these guidelines, you can deliver a robust and reliable lighting control system that performs flawlessly for your clients.

Frequently Asked Questions (FAQ)

Can I put 0-10V and 120V wires in the same conduit?

According to the NEC, Class 1 and Class 2 circuits have different rules. Generally, for Class 2 low-voltage circuits (which most 0-10V systems are), you cannot place them in the same conduit or enclosure as Class 1 power and lighting circuits unless a permanent barrier or divider is used. It is always best practice to run them in separate conduits to prevent safety hazards and EMI.

How many LED drivers can I connect to one 0-10V dimmer?

This depends on the dimmer's rated "sinking" capacity and the driver's "sourcing" current. A typical 0-10V driver sources about 0.15 mA. If a dimmer is rated to sink 15 mA, you could theoretically connect up to 100 drivers (15 / 0.15 = 100). However, it is best to check the manufacturer's specifications for both the dimmer and the driver and to build in a safety margin.

Why do my lights flicker at 100% brightness?

Flicker at full brightness is not typically a 0-10V control issue, as the control signal is a steady 10V. This is more likely related to AC power quality problems, a loose line-voltage connection (neutral or hot), or an impending driver failure. Check your main power connections first.

Disclaimer: This article is for informational purposes only and is intended for qualified electricians and professional lighting installers. All electrical work must be performed in accordance with the National Electrical Code (NEC), state, and local building codes. Improper installation can result in electrical shock, fire, or other serious hazards. Always disconnect power at the circuit breaker before servicing fixtures.
