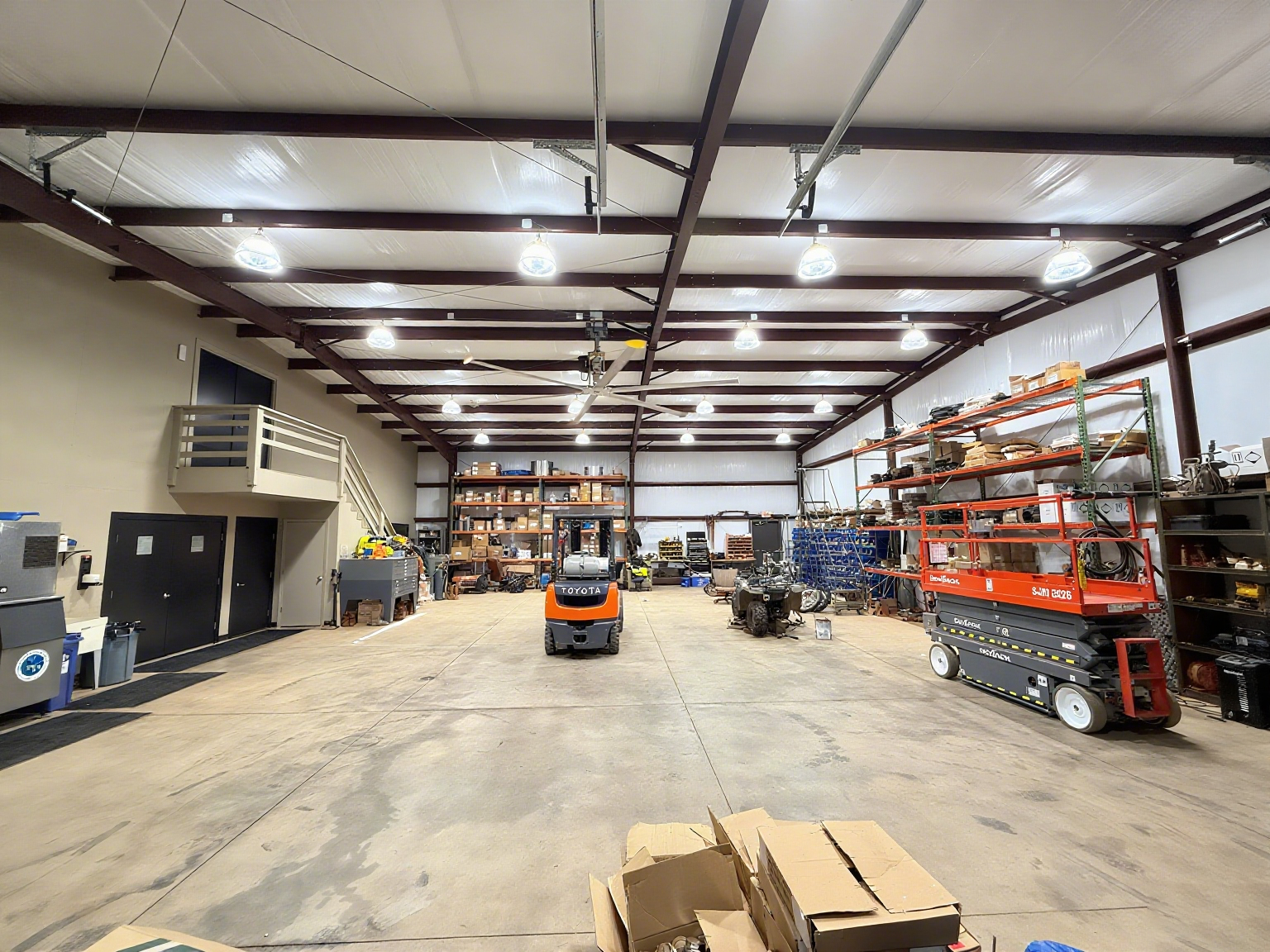

Wiring 0-10V Dimming on UFO High Bay Lights

Understanding 0-10V Dimming Fundamentals

Correctly wiring a 0-10V dimming system is straightforward, but it requires a precise understanding of how the technology works. Unlike line-voltage dimmers that modify the main power, 0-10V dimming uses a separate, low-voltage direct current (DC) signal to communicate with the LED driver. The driver interprets this signal and adjusts the light output accordingly.

The core of the system consists of two dedicated control wires, typically colored purple (DIM+) and gray (DIM-).

• 10V Signal: The driver receives a 10V DC signal, indicating 100% brightness.
• 1V Signal: As the voltage drops, the light output decreases. A 1V signal corresponds to the minimum light level, usually 10%.
• 0V Signal: A signal below 1V typically commands the fixture to turn off.

It is critical to recognize that this is a low-voltage circuit, governed by different rules than the main AC power lines. According to the National Electrical Code (NEC), these Class 2 control circuits must be physically separated from non-Class 2 circuits, like the 120-277V mains power.

Common Misconception: Sourcing vs. Sinking

A frequent point of failure is assuming all 0-10V devices are universally compatible. In reality, they fall into two categories: current sourcing and current sinking.

• Current Sourcing: The dimmer control provides the 10V DC power. The LED driver simply regulates this voltage.
• Current Sinking: The LED driver provides its own 10V DC power on the DIM+ wire. The dimmer's job is to "sink" or pull this voltage down to the desired level.

Most modern, high-quality UFO high bay drivers are current sinking. This means they supply the control voltage. Mismatching a sourcing dimmer with a sinking driver is a primary cause of dimming failures. Always verify the specifications for both the fixture's driver and the wall controller to ensure they are compatible.

Pre-Wiring Checklist: Materials and Code Compliance

Before pulling a single wire, preparation is essential for a clean, code-compliant, and reliable installation. Neglecting this step often leads to troubleshooting headaches, flickering lights, and failed inspections.

Selecting the Right Wire

The low-voltage 0-10V signal is susceptible to electromagnetic interference (EMI), which can cause the lights to flicker or dim erratically.

• Wire Gauge: For most commercial applications, an 18-22 AWG (American Wire Gauge) stranded copper wire is the standard choice.
• Shielding: Using a shielded, twisted-pair cable is a non-negotiable best practice. The twisting helps cancel out induced noise, and the foil or braided shield provides a barrier against external EMI from motors, ballasts, and power lines.
• Distance Limitations: Passive 0-10V dimming circuits have distance limits. A common rule of thumb is to keep wire runs under 300 feet. For runs between 300 and 500 feet, performance can degrade. If you must exceed this distance, you will need to use an active 0-10V signal repeater or switch to a more robust protocol like DALI.

Ensuring NEC Compliance

The most critical code requirement is the physical separation of power and control wiring. Per the NEC, low-voltage Class 2 conductors (like 0-10V) cannot be placed in the same conduit, raceway, or enclosure as the high-voltage Class 1 power conductors.

• Separate Conduits: The most reliable method is to run the 0-10V control wiring in its own dedicated conduit.
• Physical Separation: If running open-air wiring, maintain as much physical distance as possible between the control and power cables.
• No Sharing Junction Boxes: Do not terminate the 0-10V wires in the same junction box as the 120-277V mains power unless a permanent, fixed barrier is installed inside the box to separate them.

Failure to adhere to these separation requirements is not just a code violation; it is a primary source of EMI-induced flicker. For more complex installations, consulting the NEMA Lighting Systems Division's resources can provide deeper insight into industry standards.

Step-by-Step Wiring Guide for UFO High Bays

This guide provides the standard procedure for wiring a 0-10V dimmable fixture, such as the Hyperlite LED High Bay Light - Black Hero Series. Always consult the manufacturer's specific installation instructions.

Step 1: Safety First

Before beginning any work, completely de-energize the lighting circuit at the breaker panel. Use a multimeter or voltage tester to confirm that no power is present at the fixture location. Follow all standard lockout/tagout procedures.

Step 2: Identify All Wires

On a typical UFO high bay fixture, you will find five wires:

• Black: Line / Hot (AC Power)
• White: Neutral (AC Power)
• Green: Ground (Safety Ground)
• Purple: Dimming Positive (DIM+)
• Gray: Dimming Negative (DIM-)

The 0-10V wall controller or sensor will have corresponding DIM+ and DIM- terminals.

Step 3: Connect Mains Power

First, make the high-voltage connections.

1. Connect the fixture's Green ground wire to the building's ground wire.
2. Connect the fixture's White neutral wire to the supply neutral.
3. Connect the fixture's Black line wire to the supply hot/live wire. Ensure all connections are secure using appropriately sized wire nuts or other approved connectors.

Step 4: Connect the 0-10V Dimming Control Wires

Next, connect the low-voltage control circuit.

1. Connect the Purple (DIM+) wire from the fixture to the DIM+ terminal on the dimmer or controller.
2. Connect the Gray (DIM-) wire from the fixture to the DIM- terminal on the dimmer or controller.

Polarity is critical. Reversing these wires will cause the dimming to fail. The fixture will likely remain at full brightness and will not respond to the controller.

Step 5: Daisy-Chaining Multiple Fixtures

You can control multiple UFO high bays from a single 0-10V controller. The maximum number of fixtures is determined by the controller's sinking capacity and the total current draw of the drivers. Always check the dimmer's specifications, but a single controller can often handle 10-20 fixtures.

To wire them, connect all the DIM+ (purple) wires together and all the DIM- (gray) wires together in parallel. Run a single twisted pair from the controller to the first fixture, then jump to the next, maintaining correct polarity throughout the entire run.

Field-Tested Best Practices and Troubleshooting

A successful installation goes beyond just connecting wires. My experience in the field has shown that a few extra steps can prevent the most common issues, ensuring a smooth commissioning process.

One of the most valuable habits is to bench-test one fixture with the exact controller you plan to use before installing the entire array. Connect it on the ground, power it up, and run the dimmer from its lowest setting to 100%. This simple, five-minute test confirms driver/controller compatibility and can save hours of troubleshooting up on a lift.

If you do encounter problems, a systematic approach is key. For a more detailed breakdown of potential issues, our Troubleshooting 0-10V High Bay Dimming Issues guide offers an in-depth checklist.

Common 0-10V Dimming Problems & Solutions

Problem	Likely Cause(s)	Solution(s)
Flickering at Low Levels	1. EMI from power lines in the same conduit. 2. Loose ground or neutral connection. 3. Incompatible dimmer (wrong dimming curve).	1. Rerun control wires in a separate conduit or use shielded cable. 2. Verify all AC power connections are secure. 3. Check dimmer compatibility list from the fixture manufacturer.
Fixture Stays at 100%	1. Reversed polarity (DIM+ and DIM- are swapped). 2. Floating control wires (not connected to a dimmer). 3. Broken wire in the control run.	1. Swap the purple and gray wire connections. 2. Ensure wires are terminated at a controller. If no dimmer is used, cap the wires separately. 3. Use a multimeter to check for continuity on the control pair.
Fixture Stays at 10% (Min)	1. Short circuit between DIM+ and DIM- wires. 2. Incorrect wiring at the dimmer.	1. Inspect the wiring run for any nicks or staples that could be shorting the pair. 2. Double-check the terminations at the wall controller.
All Lights Don't Dim Together	1. Exceeded the maximum number of fixtures for the dimmer. 2. Voltage drop on a very long control wire run.	1. Check the dimmer's spec sheet for its fixture limit and split the load if necessary. 2. Reduce the length of the run or install a 0-10V signal repeater.

Remember that every component in the system must be certified for safety and performance. A luminaire's UL 1598 certification ensures it has been tested to rigorous safety standards, providing another layer of confidence for the installer and facility owner.

Key Takeaways

Wiring 0-10V dimming for UFO high bay lights is a precise task that adds significant value through energy savings and lighting control. By adhering to best practices, you can ensure a flawless, flicker-free installation every time.

Remember these critical points:

• Verify Compatibility: Ensure the dimmer and the LED driver are compatible (e.g., both are current sinking).
• Use Shielded Wire: Always use a shielded, twisted-pair cable (18-22 AWG) for the low-voltage control signal.
• Separate Power & Control: Strictly follow NEC guidelines by running control wiring in a separate conduit from high-voltage AC power lines to prevent EMI.
• Check Polarity: Double-check that DIM+ (purple) and DIM- (gray) are correctly terminated at the fixture and the controller.
• Test Before You Commission: Bench-test one fixture with its intended controller before installing the full set to save time and identify issues early.

By following this guide, electricians and installers can confidently deploy high-performance dimming systems that meet code, save energy, and provide a superior lighting environment.

Frequently Asked Questions (FAQ)

1. How many high bay lights can I connect to a single 0-10V dimmer? This depends on the dimmer's current sinking capacity and the current draw of each LED driver. Most commercial 0-10V dimmers can handle 10-20 fixtures, but you must check the manufacturer's specification sheet for the exact limit.

2. What happens if I don't use the dimming wires? If you do not connect the purple and gray dimming wires, the fixture will operate at 100% brightness by default. It is recommended to cap the unused wires individually with wire nuts to prevent accidental contact.

3. Why are my lights flickering when I dim them? Flickering is almost always caused by electromagnetic interference (EMI). This typically happens when the low-voltage dimming wires are run in the same conduit as the high-voltage power lines. To fix this, you must separate the wiring into different conduits or use high-quality shielded cable.

4. Can I use regular thermostat wire for 0-10V dimming? While it might work over very short distances, it is not recommended. Thermostat wire is often unshielded, making it highly susceptible to EMI, which can lead to poor dimming performance and flickering. Always use a shielded, twisted-pair cable rated for the application.
