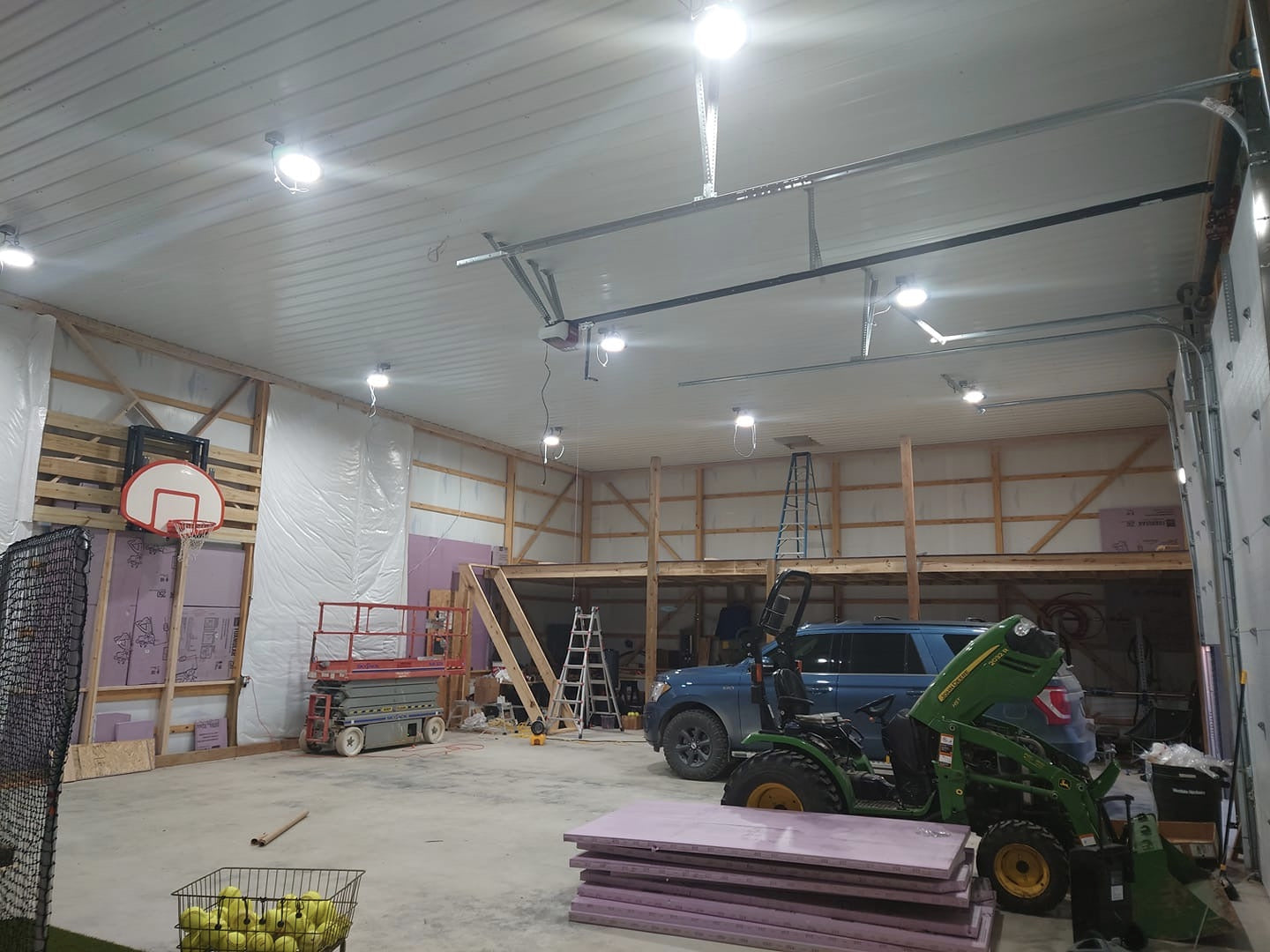

Choosing High Bay Sensors: Motion vs. Daylight

Understanding High Bay Sensors: Occupancy vs. Daylight Harvesting

Upgrading to LED high bay lighting is a significant first step in reducing energy costs in a warehouse, factory, or gymnasium. However, the fixtures themselves are only half of the equation. Intelligent controls are what transform a static lighting installation into a dynamic, highly efficient system. The most fundamental controls are sensors, but choosing the right type is critical.

Understand the key differences between microwave motion sensors and daylight harvesting sensors for your high bay lights. We compare their ideal use cases in warehouses, gyms, and shops to help you choose the right one, ensuring you maximize energy savings and comply with modern building codes. This guide breaks down the core technologies, practical applications, and essential installation practices to help you make an informed decision.

Core Technologies: How High Bay Sensors Work

At a high level, sensors automate lighting based on two conditions: the presence of people or the availability of natural light. While often used together, they are distinct technologies designed to solve different problems.

Occupancy Sensors for Motion Detection

Occupancy sensors, also known as motion sensors, control lighting based on the physical presence of people or vehicles in a space. Their goal is to ensure lights are on when an area is in use and automatically dim or turn off when it is vacant, eliminating wasted energy. There are two primary technologies used in high bay applications.

Passive Infrared (PIR) Sensors

A Passive Infrared (PIR) sensor works by detecting the differential heat signature of a moving person or object against the background temperature.

• How It Works: The sensor is divided into zones, and when a warm body moves from one zone to another, it triggers the sensor.
• Strengths: PIR sensors are not typically triggered by inanimate objects moving, such as a conveyor belt or vibrations from machinery. This makes them reliable in environments where you only want to detect human activity.
• Limitations: They require a direct line of sight to the target. A rack, pallet, or piece of machinery can block its view. From my experience, standard PIR sensor performance also degrades significantly at mounting heights above 20-25 feet unless you use a model with a specialized high-bay lens.

Microwave (MW) Sensors

A microwave sensor actively emits low-power microwaves and measures the reflection. A change in the reflected signal's frequency (a Doppler shift) indicates motion.

• How It Works: It functions like a small radar, detecting any movement within its coverage pattern, regardless of heat.
• Strengths: Microwave sensors can "see" around corners and through non-metallic obstructions like plywood or plastic. They are highly effective at the greater mounting heights (30-45 feet) common in high bay facilities.
• Limitations: Their sensitivity can be a drawback. I've seen poorly calibrated microwave sensors get triggered by forklifts in an adjacent aisle, or even by vibrations from large HVAC units. This requires careful commissioning to adjust sensitivity and avoid "nuisance cycling" where lights turn on unnecessarily.

Daylight Harvesting Sensors (Photocells)

A daylight harvesting sensor, or photocell, measures the amount of ambient light in a space. Its purpose is to supplement natural light, not replace it.

• How It Works: You configure a target light level, or "setpoint," for a specific area (e.g., 300 lux on the workplane). The sensor continuously monitors ambient light. If sunlight coming through skylights or windows provides 200 lux, the sensor will automatically dim the high bay fixtures via their 0-10V drivers to produce only the remaining 100 lux needed to hit the target.
• Primary Use Case: This technology is most effective in perimeter zones, areas directly under skylights, and spaces with large windows or loading dock doors.
• Code Compliance: Implementing daylight harvesting is often mandatory to comply with modern energy standards like ASHRAE Standard 90.1-2022 and California's Title 24, Part 6. For a deeper dive into these specific requirements, our guide on Title 24 Controls for Warehouse High Bay Lighting provides detailed scenarios.

Matching the Sensor to the Space: A Practical Guide

Choosing between PIR, microwave, and daylight sensors depends entirely on the application. Using the wrong technology for the space is a common mistake that leads to poor performance and user complaints. The following table provides a decision-making framework based on real-world scenarios.

Application Area	Primary Goal	Recommended Sensor	Key Settings & Field Notes
Open Warehouse Aisles	Detect transient traffic	Microwave (MW) or High-Bay PIR	At mounting heights over 25 feet, MW is generally more reliable. A short timeout of 2-5 minutes prevents energy waste from infrequent pass-through traffic.
High-Rack Storage Aisles	Detect presence between racks	Microwave (MW)	PIR is ineffective here, as the racks create total line-of-sight blockage. MW can detect motion within the aisle even when the sensor is mounted above.
Shipping & Packing Stations	Accommodate intermittent work	Hybrid (MW+PIR) + Daylight	Activity here is often sporadic. A longer timeout of 10-20 minutes prevents lights from turning off while a worker is briefly stationary. A daylight sensor is key if stations are near large loading dock doors.
Gymnasium / Arena	Cover a large, open area	Microwave (MW)	The high mounting heights and need to detect fast-moving individuals across a wide, open space make MW sensors the superior choice.
Workshop / Garage	General motion detection	PIR or MW	For ceilings under 20 feet, a well-placed PIR is often sufficient and cost-effective. In a cluttered workshop, a microwave sensor can better detect presence around equipment.
Perimeter Zones / Skylit Areas	Maximize natural light	Daylight Sensor	The primary goal is saving energy when the sun is out. Mount the sensor so it reads the general ambient light on the workplane, avoiding direct exposure to windows or skylights.

Installation and Commissioning Best Practices

Selecting the right sensor is only the first step. Proper installation and meticulous commissioning are what unlock its full potential for energy savings and reliable operation.

Sensor Placement and Coverage

A sensor’s effectiveness is dictated by its placement. A common heuristic I use for initial layout is that a high bay sensor provides a detection diameter of roughly 1.5 to 2 times its mounting height. For a sensor mounted at 30 feet, expect a 45 to 60-foot coverage circle.

Common Placement Errors to Avoid:

• Obstructions: Never place a sensor where its view is blocked by HVAC ducting, structural beams, or the top of a tall pallet rack.
• Mounting Height: Don't use a standard PIR sensor at 35 feet and expect it to work reliably. Respect the manufacturer's specified height limits for each technology. A thoughtful lighting plan is essential for safety and performance; for more on this, see our guide on Designing a High Bay Layout for Warehouse Safety.
• Daylight Sensor Aiming: A common error is pointing a daylight sensor directly at a window. This causes it to read direct sunlight and dim the lights too aggressively. It should be aimed at a representative work surface to measure the actual usable light in the space.

Wiring for 0-10V Dimming

Modern high bay fixtures, including the Hyperlite LED High Bay Light - Black Hero Series, use a 0-10V dimming protocol. This is an analog system where a low-voltage DC signal tells the driver at what brightness to operate.

• Dedicated Wires: The control signal is carried by two dedicated low-voltage wires, typically one purple (+) and one gray (-).
• Crucial Tip: To prevent signal interference (EMI) from the main power lines, always run the purple and gray control pair separately from the AC power conduit. According to the National Electrical Code (NEC), the classification of these low-voltage circuits has specific wiring requirements that qualified electricians must follow. Using a twisted pair for the control signal is a best practice to ensure signal integrity over long runs.

The Commissioning Checklist

Commissioning is the final, critical step of tuning the system for your specific facility. Skipping this is the number one reason for poor sensor performance.

1. Perform a Walk Test: With the system installed, have people and equipment (like forklifts) move through the space. Confirm that sensors trigger when they should and, just as importantly, don't trigger when they shouldn't.
2. Set Timeouts and Dim Levels: Adjust the hold time after motion stops. Set the dimmed level for vacant periods (e.g., 10% or 20%) to provide standby lighting without wasting energy.
3. Calibrate Daylight Setpoints: On a moderately bright day, manually dim the lights to the desired level for a task area. Then, configure the daylight sensor to maintain that lux level as its setpoint.
4. Verify the Dimming Curve: Ensure the transition from full bright to the dimmed state is smooth and not distracting to occupants.
5. Document Everything: Create a log of sensor locations and their final settings (sensitivity, timeout, lux level). This is invaluable for future troubleshooting.
6. Measure and Verify: If applying for utility rebates, which often require DesignLights Consortium (DLC) qualified products, you'll need to document energy savings. Record before-and-after meter readings to prove the system's performance.

Debunking a Common Myth: "Sensors are a 'Set-and-Forget' Solution"

A pervasive myth is that you can simply install lighting controls using their factory default settings and achieve optimal results. My field experience consistently proves this false. Default settings are a starting point, not a solution.

The reality is that every space is unique. Default high sensitivity on a microwave sensor in a warehouse with heavy forklift traffic will lead to constant false triggers. A default 15-minute timeout in a rarely used storage aisle is a massive energy waste. An uncalibrated daylight sensor provides zero harvesting benefits. Commissioning is not an optional add-on; it is a mandatory process to tailor the system to the building's layout, usage patterns, and operational needs. A properly commissioned system saves energy and improves the occupant experience, while a poorly configured one often creates more problems than it solves.

Key Takeaways

Choosing the right sensor is a strategic decision that goes beyond the hardware's spec sheet. It requires a clear understanding of the space and how it's used.

• Technology First: Match the sensor technology to the application. Use microwave sensors for high ceilings and obstructed areas, and PIR for defined zones with clear sightlines.
• Harness Natural Light: Deploy daylight harvesting sensors in any area with significant access to sunlight to maximize savings and meet energy code requirements.
• Installation Matters: Correct placement is non-negotiable. A sensor with a blocked view is useless. Follow best practices for wiring to ensure signal integrity.
• Commissioning is King: The final tuning process is what separates a frustrating system from a high-performing one. Always budget time to properly commission your sensors.

By following these principles, you can design and implement a high bay lighting control system that delivers maximum energy savings, ensures code compliance, and provides a safer, more productive environment.

Frequently Asked Questions (FAQ)

Can I add a sensor to any high bay light? You can only add a sensor to a high bay light that has a dimmable driver, most commonly a 0-10V dimming driver. Fixtures like Hyperlite's Hero Series are designed to be "sensor-ready" with these drivers included. Non-dimmable fixtures can only be turned on or off.

What is the difference between an occupancy sensor and a vacancy sensor? An occupancy sensor provides auto-on and auto-off functionality. A vacancy sensor requires a person to manually turn the lights on, but it will automatically turn them off when the space is vacated. Vacancy sensors are more common in offices and restrooms to meet specific energy codes and are rarely used for high bay applications.

How high can I mount a motion sensor? This is technology-dependent. Standard PIR sensors work best under 25 feet. Specialized high-bay PIR lenses can work up to 40 feet. Microwave sensors are generally the preferred choice for mounting heights between 25 and 45 feet due to their reliable performance at a distance.

Do I need a special dimmer switch for 0-10V lights? Yes. You cannot use a standard residential (line-voltage) dimmer. You must use a 0-10V compatible sensor, wall dimmer, or lighting controller. Using the wrong type of dimmer can permanently damage the fixture's driver.
