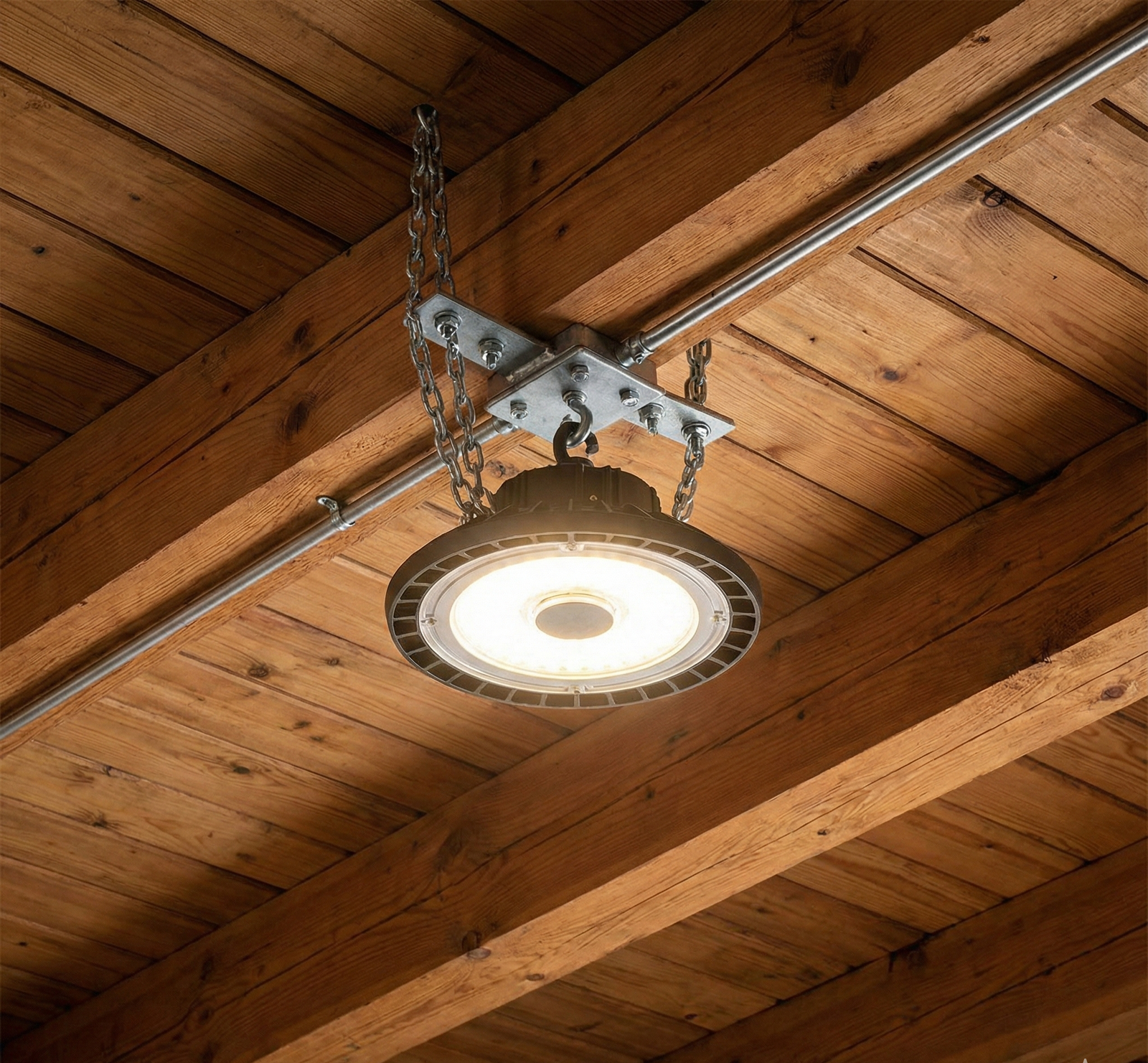

For any serious DIY enthusiast or workshop owner, the transition to high-output Light Emitting Diode (LED) lighting is a milestone project. However, installing industrial-grade fixtures—specifically circular "high bay" luminaires—into residential garages with wood ceilings introduces a critical technical challenge: thermal management. While LEDs are significantly more efficient than legacy Metal Halide (MH) or High-Pressure Sodium (HPS) lamps, they are not "heat-free." Instead, they concentrate thermal energy at the heatsink.
In North American residential settings, the fundamental safety guideline for mounting these fixtures to combustible wood surfaces is a minimum air clearance of 6 inches, based on common UL 1598 interpretations. However, based on field observations in workshop environments with limited ventilation, we recommend a safety margin of 8 inches. This is particularly important when mounting between ceiling joists where air circulation is restricted. Maintaining this gap helps mitigate the risk of a "thermal shadow," a pocket of stagnant air that can contribute to the long-term degradation of wood fibers.
The LED Thermal Paradox: Concentration vs. Radiation
A common misconception among homeowners is that because an LED fixture is cool to the touch on the lens, it poses no thermal risk. In reality, while a 400W metal halide lamp radiates heat outward in all directions, a high-output LED fixture uses a conductive heatsink to pull heat away from the sensitive diode chips and dissipate it upward.
According to the Illuminating Engineering Society (IES) RP-7-21 - Lighting Industrial Facilities, proper thermal management is a primary factor in maintaining the "L70" lifespan (the time it takes for a light to reach 70% of its original output). In a high-output workshop setting, the heatsink of a 150W or 200W fixture can reach temperatures exceeding 140°F (60°C). When this heat is trapped against a horizontal wood surface, it can trigger pyrolysis—the chemical decomposition of organic material by heat over an extended period.
Clearance Requirements: Standard vs. Enhanced Safety
For standard installations in the US and Canada, factory-specified clearance is typically derived from UL 1598 – Luminaires. These standards generally assume unobstructed airflow. In a real-world residential garage, factors like dust, storage racks, and low ceiling heights can alter the thermal equation. Note: Local building codes may vary; always verify requirements with your municipal authority.
The 8-Inch Recommendation for Wood Joists
While 6 inches is a common minimum for certified fixtures, many electricians advocate for an 8-inch clearance if the fixture is mounted between wooden joists. This additional 2 inches facilitates lateral convection—the movement of air across the heatsink fins—which can be partially obstructed by the vertical faces of the joists.
| Installation Scenario | Minimum Air Clearance | Recommended Barrier | Reason |
|---|---|---|---|
| Flat Open Ceiling | 6 Inches | None Required | Optimal vertical convection |
| Between Joists | 8 Inches | Metal Backplate | Reduces "Thermal Shadowing" risk |
| Insulated Ceilings | 10 Inches | Fire-Rated Box | Prevents heat entrapment in fiberglass |
| High-Dust Shops | 6 Inches | Periodic Cleaning | Dust acts as a thermal insulator |
Identifying and Mitigating the "Thermal Shadow"
The "thermal shadow" effect occurs when a light fixture is mounted too close to a horizontal surface, causing heat to radiate back onto the fixture and the ceiling. This creates a feedback loop where the fixture runs hotter, potentially reducing its efficacy, while the wood above is subjected to constant heat.
Research indicates that wood ignition typically occurs between 300°C and 365°C. While a properly functioning LED heatsink will not reach these temperatures, the concern is the long-term "baking" of the wood. Over years of operation, wood subjected to constant heat may become more susceptible to degradation.
The Solution: The Non-Combustible Barrier An effective method for enhancing safety in wood-ceiling garages is the installation of a non-combustible metal backplate (such as 22-gauge galvanized steel) between the mounting hook and the ceiling. This plate acts as a physical fire barrier and helps reflect radiant heat away from the wood, encouraging air to move horizontally before rising.
Compliance and Certifications
When selecting fixtures for a wood-ceiling garage, certifications provide a baseline for safety and performance.
- UL Listed (Underwriters Laboratories): Indicates the fixture has undergone thermal stress testing. A UL 1598 listing is a standard benchmark for fixed luminaires in North America.
- DLC Premium (DesignLights Consortium): The DLC Qualified Products List (QPL) verifies standards for color consistency and thermal stability. High-efficacy fixtures (140 lm/W or higher) generate less waste heat per lumen.
- IES LM-79 Reports: These provide verified data on the fixture’s electrical and photometric measurements, confirming that wattage and heat output claims are accurate.
Deep Experiment: The ROI of Safety and Efficiency
To demonstrate the impact of a high-performance lighting upgrade, we modeled a "High-Output Workshop" scenario.
Model Assumptions:
- Setup: 10 fixtures replacing 400W Metal Halide (MH) with 200W LED.
- Operating Hours: 12 hours/day, 365 days/year (4,380 annual hours).
- Electricity Rate: $0.12 per kWh.
- Rebates: Includes a projected $50/unit utility rebate for DLC Premium fixtures.
| Metric | Legacy (400W MH) | Modern (200W LED) | Net Impact |
|---|---|---|---|
| System Power Draw | 458W per unit* | 200W per unit | -258W reduction |
| Annual Energy Cost | $2,406 | $1,051 | $1,355 savings |
| Total Thermal Output | High (Radiant) | Moderate (Convective) | 2,580W total reduction |
| Maintenance Cost | $323/year | $0/year (5-year warranty) | $323 savings |
| *Includes ballast factor. |
Financial Impact: Under these specific parameters, the energy and maintenance savings total $1,678 annually. The estimated payback period is approx. 4-6 months when accounting for utility rebates and reduced labor.
DIY Installation Safety Checklist
If you are installing these fixtures yourself, follow this checklist to help protect your wood ceiling:
- Thermal Measurement (Non-Contact): After the lights have been running for 60 minutes, use an infrared (IR) thermometer to measure the heatsink temperature. If it exceeds 150°F (65°C) or if the temperature of the wood ceiling directly above the fixture exceeds 120°F (49°C), increase the air clearance immediately. Avoid touching the heatsink directly to prevent burns.
- Use the Safety Rope: Most high-quality high bays include a stainless steel safety cable. Per the National Electrical Code (NEC), suspended fixtures should have a secondary support mechanism to prevent accidental falls.
- Account for Storage: Ensure overhead storage racks are at least 12 inches away from the light fixtures. Obstructions are a primary cause of heat entrapment.
- Wiring Integrity: All connections must be made within a UL-rated junction box. Do not leave wire nuts exposed near wood surfaces.
Maintenance: Managing Dust Risks
In a woodshop, sawdust is a common thermal insulator. If a layer of fine dust accumulates on the cooling fins of an LED fixture, it can prevent heat from escaping, causing internal temperatures to rise.
We recommend a quarterly cleaning schedule using compressed air to clear the heatsink fins. This helps maintain the safety of your installation and protects your investment by keeping the LED chips within their optimal operating temperature.
Editorial Disclosure: This guide was developed through independent technical analysis of industry standards (UL/IES). While we may discuss specific product categories, this content is not sponsored by any lighting manufacturer.
YMYL Safety Disclaimer: This article is for informational purposes only and does not constitute professional electrical or fire safety advice. Electrical installations should comply with the National Electrical Code (NEC) and local building regulations. Always consult a licensed electrician before performing electrical work. Improper installation of high-output lighting can result in fire, injury, or death.
