You’ve spent years turning your garage into the ultimate sanctuary. The floor is epoxied, the cabinets are custom-built, and your tools are organized with surgical precision. But then you look up. Those old, buzzing fluorescent tubes or flickering incandescent bulbs just don’t fit the vibe. Worse yet, the thought of running ugly metal conduits across your pristine, finished ceiling makes you cringe.

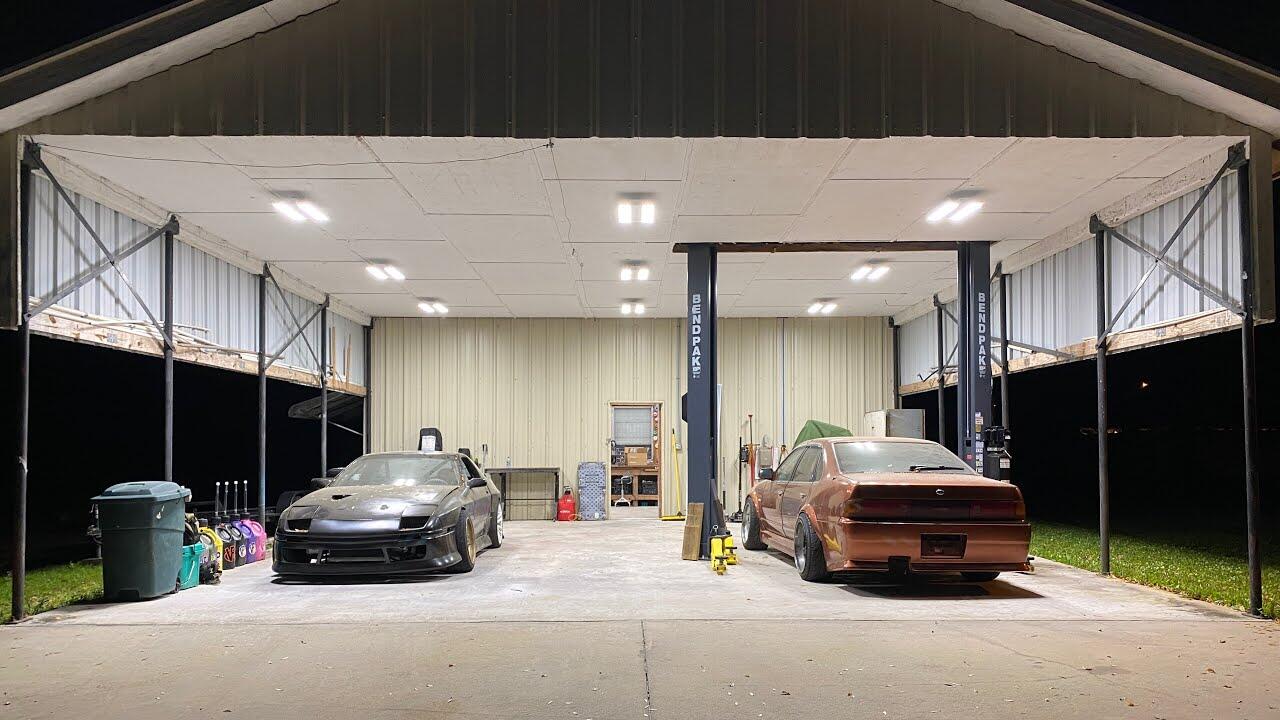

You want that professional workshop look—the kind you see in high-end detailing bays or elite woodshops—featuring powerful UFO high-bay lights. But you want them installed with "stealth" wiring. No exposed cords. No visible conduit. Just raw, high-performance light emerging from a clean, painted surface.
Achieving a wire-free installation in a finished garage is a challenge, but it is one of the most rewarding DIY projects you can undertake. This guide will walk you through the technical safety standards, the "fish-tape" secrets of the pros, and the ROI of switching to industrial-grade LED technology.
The "Value-Pro" Performance Standard
Before you pick up a drill, you need to understand what makes a light "Pro-Grade." In the world of high-bay lighting, we look for the "Value-Pro" sweet spot: industrial performance that is easy enough for a homeowner to install.
To ensure your investment lasts, look for fixtures that carry UL 1598 certification. According to the standard, this ensures the luminaire is safe for permanent installation in North American buildings, covering everything from electrical insulation to mechanical strength.
Beyond safety, performance is measured by the IES LM-79-19 standard. This approved method measures the total luminous flux and electrical power of solid-state lighting. When you see a light claiming 140 or 160 lumens per watt (lm/W), an LM-79 report is the "performance report card" that proves it. High efficacy doesn't just mean a brighter garage; it means a lower electricity bill.
Section 1: Planning and Load Capacity (Safety First)
A finished ceiling hides a lot of secrets. Before mounting a heavy UFO fixture, you must verify what is behind that drywall.
1. The Weight Reality
A standard drywall ceiling joist can typically support 5 to 10 pounds per square foot of "dead load." However, a high-bay fixture is a "concentrated point load." Most high-performance UFO lights weigh between 11 and 22 pounds.
Expert Tip: Never rely on drywall anchors for high-bay lights. You must anchor directly into a ceiling joist or install a blocking bridge between two joists. Use a high-quality stud finder with AC wire detection. Drilling into a live electrical line behind finished drywall is more than just a project delay—it’s a major safety hazard.
2. NEC Compliance and Circuit Design
The NFPA 70 National Electrical Code (NEC) sets the minimum safety standards for electrical installations in the U.S. For a garage, the NEC requires:
- GFCI Protection: All garage outlets must be Ground Fault Circuit Interrupter (GFCI) protected.
- Dedicated Circuits: High-bay fixtures often have a high "startup surge." If you are installing four or more 240W fixtures, we recommend a dedicated 15-amp or 20-amp circuit to prevent nuisance tripping when you flip the switch.
| Component | Standard/Requirement | Why It Matters |
|---|---|---|
| Safety Listing | UL 1598 / ETL | Prevents fires and electrical shocks. |
| Efficiency | DLC Premium | Qualifies for utility rebates and lower bills. |
| Circuit | 15A or 20A Dedicated | Handles startup surges from multiple LEDs. |
| Protection | GFCI | Required by NEC for all garage power sources. |
Section 2: The Stealth Installation Toolkit
To get wires behind a finished ceiling without tearing it down, you need the right "fishing" gear.
- Glow Rods (Fish Sticks): Flexible fiberglass rods that help you push wire through long ceiling spans.
- Fish Tape: A flat steel wire used to pull electrical cables through tight spaces.
- 54-Inch Flexible Drill Bit: This allows you to drill pilot holes through joists from a small access point.
- Wire Lubricant: Applying a small amount to your fish tape reduces friction by up to 50%, making the "pull" much easier.
- Stud Finder with AC Detection: Crucial for avoiding existing wiring.
Section 3: The Step-by-Step "Wire-Free" Guide
The goal is to move power from your existing garage light box to the new UFO mounting locations using the ceiling cavity as your "conduit."
Step 1: Mapping the Layout
Don't guess where the lights go. Use a 120° beam angle as your baseline. This provides broad, even coverage. If your workbenches are against the walls, consider placing the fixtures slightly closer to the walls to prevent your body from casting shadows on your workspace.
Step 2: Creating Access Points
Identify where your power source is (usually the existing center light). You will likely need to install new "old-work" electrical boxes at each UFO location. Ensure these boxes are rated for the weight of your fixture.
Step 3: The "Fish" Technique
This is where the magic happens.
- Feed your glow rod from the new mounting hole toward the original power source.
- Once the rod reaches the source, tape your Romex (14/2 or 12/2 wire) to the rod.
- Carefully pull the rod back through the ceiling, bringing the wire with it.
- The Pro Discovery: If you hit a joist, use a flexible 54-inch drill bit to create a small passage through the wood without removing large sections of drywall.
Step 4: Secure Mounting and Heat Clearance
Heat is the silent killer of LEDs. Even though high-bay lights are efficient, they generate heat at the driver and the heatsink.
- The 6-Inch Rule: Ensure there is at least 6 inches of clearance between the top of the fixture's aluminum heatsink and the ceiling surface. This prevents "thermal throttling," where the light dims itself to stay cool, and significantly extends the life of the components.
Section 4: The Physics of Light (CRI and CCT)
In a finished garage, the "look" of the light is just as important as the brightness.
- CCT (Color Correlated Temperature): This is measured in Kelvins (K). For a workshop, 5000K (Daylight) is the gold standard for focus. However, many homeowners prefer 4000K (Cool White) for a finished space, as it feels slightly more "residential" while still providing excellent clarity.
- CRI (Color Rendering Index): This measures how accurately a light source reveals the true colors of objects. A CRI of 80+ is essential for automotive painting or woodworking. It ensures that the "Midnight Blue" on your car doesn't look like "Black" under the lights.
Section 5: The "Glass Box" ROI Analysis
Is the effort of a wire-free installation worth it? We simulated a high-end DIY garage conversion (converting from 1000W HID to 240W LED) to see the real impact.
The Experiment Logic: We assumed 4 fixtures running for 3,000 hours per year at a premium electricity rate of $0.18/kWh. We also factored in a "cooling credit," as LEDs emit far less heat than traditional bulbs, reducing the load on your garage's HVAC system.
| Metric | Traditional (1000W HID) | Modern (240W LED) | Annual Savings |
|---|---|---|---|
| Energy Cost | $2,160 | $518 | $1,642 |
| Maintenance | $405 | $0 (5-Year Warranty) | $405 |
| HVAC Impact | High Heat Load | Low Heat Load | $78 |
| Total Annual | $2,565 | $518 | $2,125 |
The Result: The system pays for itself in approximately 5.7 months when you factor in utility rebates. Over 10 years, you aren't just getting better light; you are keeping over $21,000 in your pocket.
Section 6: Addressing Common Pitfalls
Even the best DIYers run into "gotchas." Here is how to handle them:
- Flickering: Usually caused by a mismatch between the LED driver and a wall dimmer. Ensure you are using a 0-10V dimming system if your fixture supports it. Standard "Triac" dimmers often cause LEDs to buzz or flicker.
- Shadowing: If you have a car lift, place your lights to the sides of the lift, not directly over it. This ensures light reaches the engine bay and the sides of the vehicle.
- Thermal Throttling: If your lights seem to get dimmer after an hour of use, check your clearance. The heatsink needs airflow to function.
What to Expect After Installation
Once the last wire is tucked away and the drywall is touched up, the transformation is immediate. You’ll notice a "high-definition" feel to your tools and vehicles. The uniform illumination eliminates the dark corners that make a garage feel cluttered.
Furthermore, by choosing fixtures that are DesignLights Consortium (DLC) Qualified, you have verified that your lights meet strict technical requirements for efficacy and longevity. This certification is often the prerequisite for getting those lucrative utility rebates that slash your initial project cost.
A Note on Safety: This article is for informational purposes only. Electrical work involves risks of fire and shock. Always consult with a licensed electrician to ensure your installation meets local building codes and that your home's electrical panel can handle the new load. If you are uncomfortable fishing wire or working with live circuits, hire a professional to handle the "behind-the-wall" work while you manage the layout and mounting.
