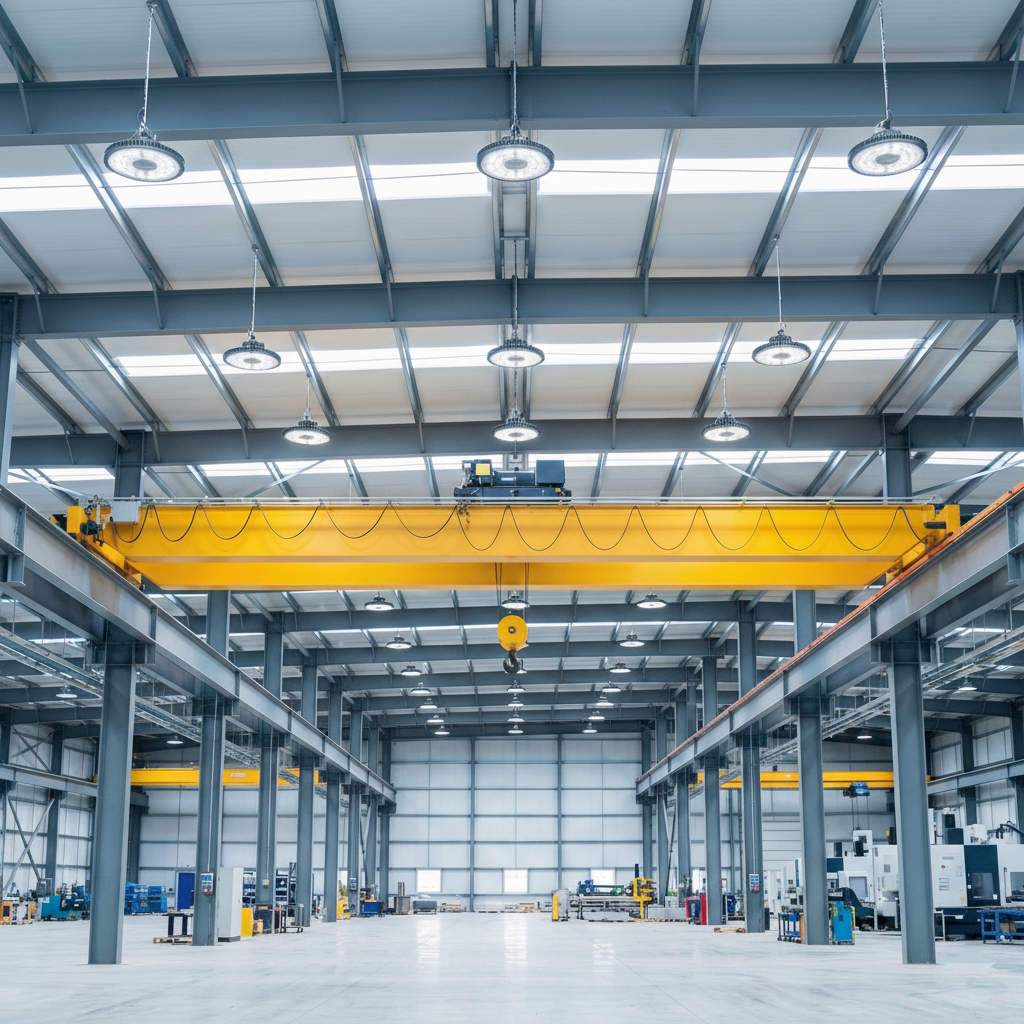

Low-Glare Mounting: Angle Adjustments for Sloped Ceilings
In industrial and commercial lighting, sloped ceilings—common in pole barns, agricultural sheds, and specialized manufacturing facilities—present a unique engineering challenge. Standard vertical suspension can be problematic in these environments, often leading to excessive glare, uneven light distribution, and potential non-compliance with safety standards. Achieving visual comfort requires a departure from "rule-of-thumb" installations toward a more precise mounting strategy.
Visual comfort is quantified primarily through the Unified Glare Rating (UGR). According to the IES RP-7-21 Lighting Industrial Facilities standard, maintaining specific illuminance levels while minimizing glare is critical for worker productivity and safety. When a fixture is mounted on a slope without adjustment, the light source often enters the occupant's field of view at a high-intensity angle, leading to "disability glare" that can obscure hazards.
This article provides a technical framework for managing glare on sloped ceilings through yoke mount adjustments, photometric planning, and field-verified heuristics.
The Geometry of Glare on Sloped Surfaces
A common misconception in sloped ceiling installations is that aligning a fixture perpendicular to the roofline is sufficient. In reality, on steep slopes exceeding 30°, a vertically hung or roof-parallel fixture can significantly increase direct glare compared to a level installation. This occurs because the light source optics are aimed closer to the occupant's eye level rather than the horizontal task plane.
The Precision Formula for Tilt Adjustment
To achieve an optimized, low-glare environment, lighting designers should consider calculating the specific tilt angle based on the ceiling pitch (θ), the fixture beam angle (β), and the average occupant eye height (h).
Practical Heuristic for Glare-Free Mounting: Tilt angle = θ - arctan(h/d) + (β/2) Where 'd' is the horizontal distance from the fixture to the primary occupant zone.
By applying this heuristic, practitioners can help the central beam axis remain perpendicular to the floor, maintaining uniform horizontal illuminance while shielding the high-intensity LED chips from direct view.
Impact of Beam Angles
Modern directional LEDs with narrow beam angles (less than 30°) require different mounting strategies than traditional diffuse sources. For instance, a 15° narrow-beam LED on a 45° sloped ceiling typically benefits from a 7° to 10° downward tilt from the vertical to help prevent blinding glare. Conversely, a 120° wide-distribution fixture may require minimal tilt but often benefits more from external shielding or deep-cell louvers.
Mounting Hardware & Mechanical Precision
To implement these adjustments, the choice of mounting hardware is as critical as the photometric calculation. Standard hook-and-chain suspensions are often inadequate for slopes because they do not easily allow for the rigid, fixed-angle positioning required to maintain a precise photometric distribution.
Yoke Mounts and Locking Mechanisms
Yoke mounts (also known as trunnion mounts) are a common solution for sloped ceiling applications. They allow for rotation, enabling the fixture to be pivoted on the Y-axis to compensate for the ceiling pitch. However, mechanical stability is a frequent concern.
Based on common patterns observed in facility maintenance audits and warranty returns (note: this is based on field experience, not a controlled laboratory study), some adjustable systems show signs of sagging or loosening over time due to thermal expansion and vibration. To mitigate this, we recommend the following professional installation protocol:
- The 80% Torque Heuristic: Under-tightening yoke mount locking bolts is a frequent mistake. A reliable field rule of thumb is to torque bolts to approximately 80% of the manufacturer's specified maximum for the fastener size. This typically provides enough clamping force to prevent "drift" while allowing for minor thermal movement without compromising the bracket's integrity.
- Level Verification: It is helpful to verify the adjusted aim with a handheld lux meter at critical task planes. Even a minor misalignment on a 50-fixture run can create hot spots where UGR values might exceed comfortable levels, potentially causing operator discomfort.
- Rigid Conduit Integration: For facilities with high vibration (e.g., those with overhead cranes), using rigid conduit feeds in conjunction with yoke mounts can provide a secondary layer of stabilization.
Scenario Modeling: ROI and Performance on a 15° Slope
To demonstrate the operational impact of glare control and high-efficiency mounting, we modeled a scenario for a 20,000 sq. ft. warehouse with a 15° sloped ceiling. This model compares a legacy 400W metal halide system with a modern, properly angled LED high-bay installation.
Modeling Note (Illustrative Parameters)
The following data is derived from a parameterized model designed to simulate potential operational costs and rebate eligibility.
| Parameter | Value | Unit | Rationale / Source |
|---|---|---|---|
| Ceiling Slope | 15 | Degrees | Common pole barn/industrial shed pitch |
| Fixture Count | 50 | Units | Medium-sized facility footprint |
| Annual Operating Hours | 4,000 | Hours/Year | Single-shift (8h/day, 5 days/week) |
| Electricity Rate | 0.14 | $/kWh | Average US industrial rate (EIA) |
| LED System Wattage | 150 | Watts | High-efficiency replacement for 400W MH |
| HVAC Interactive Factor | 0.33 | Ratio | 33% of lighting heat reduction impacts cooling |
Quantitative Results of the Analysis
Properly angled LED fixtures in this environment can generate significant financial and operational returns. According to our model, the annual total savings across 50 fixtures are estimated at over $11,000. This includes approximately $8,600 in direct energy savings and an estimated $1,900 in avoided maintenance costs.
Furthermore, integrating occupancy sensors—often a requirement under IECC 2024 (International Energy Conservation Code)—adds an estimated $600+ in annual savings with a projected payback period of under eight months in this specific scenario.
Logic Summary: This model assumes a 15° slope and uses standard industrial utility rates. HVAC cooling credits are calculated based on a COP of 3.2, typical for many commercial systems.
Compliance and Rebate Optimization
For B2B professionals, technical performance should align with financial incentives. The DesignLights Consortium (DLC) Qualified Products List (QPL) serves as a primary gateway for utility rebates. High-bay fixtures that meet "DLC Premium" status—requiring higher efficacy (lm/W) and stricter glare control—often qualify for rebates ranging from $130 to $275 per unit.
Energy Standards and Building Codes
Compliance is a key factor for new construction or major retrofits.
- ASHRAE 90.1-2022: This standard sets Lighting Power Density (LPD) limits. High-efficiency fixtures with proper optics allow designers to meet these limits while maintaining task-plane illuminance.
- California Title 24, Part 6: For projects in California, multi-level dimming and occupancy sensing are often mandatory. Properly angled fixtures help ensure that sensors have a clear "line of sight" to the floor, reducing the risk of false-off triggers.
- UL 1598 & UL 8750: All fixtures should be UL Listed to ensure electrical and thermal safety, especially when mounted at angles that might affect heat dissipation.
For a deeper look at the evolving standards for 2026, refer to the 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights.
Field Verification and Practical Implementation
Once calculations are complete and hardware is selected, the final step is field commissioning. In our experience with project handovers, the final stage of installation often determines long-term satisfaction.
The Parallax Pitfall
Installers sometimes set the standing height of fixtures incorrectly due to visual parallax when looking up from a lift. This can result in the beam spread overlapping inconsistently, creating "zebra stripes" of light and dark on the floor. On a sloped ceiling, this effect is often magnified. We recommend using a digital protractor to set the yoke angle before the fixture is lifted into place, rather than attempting to estimate the adjustment from the ground.
Thermal Management at an Angle
LED longevity is influenced by heat. IES LM-80 reports provide data on lumen maintenance, typically conducted in standard orientations. When a fixture is tilted, the convection currents through the heat sink may change. For significant tilts (over 45°), it is important to check that heat sink fins allow for adequate natural airflow. Failure to account for this can potentially reduce the projected $L_{70}$ life (calculated via IES TM-21).
Summary of Best Practices for Sloped Ceilings
To ensure a reliable and effective installation in sloped environments, consider this technical checklist:
- Prioritize Yoke Mounts: Use rigid, adjustable brackets rather than chains to maintain a fixed photometric angle.
- Target the Task Plane: Use tilt heuristics to keep the central beam axis directed toward the floor rather than the ceiling.
- Verify with IES Files: Use IES LM-63-19 photometric files in design software to simulate glare before purchasing.
- Secure the Fasteners: Use appropriate torque to prevent fixture drift over time.
- Leverage Rebates: Check for DLC Premium listing to help maximize ROI and reduce payback periods.
By treating sloped ceiling lighting as a geometric and mechanical task, facility managers and contractors can significantly reduce glare and improve visual performance.
Disclaimer: This article is for informational purposes only and does not constitute professional electrical, structural, or legal advice. All lighting installations must comply with the National Electrical Code (NEC), local building codes, and manufacturer-specific safety instructions. Consult a licensed electrician or lighting engineer before beginning any high-voltage project.
